2022 TOYOTA HILUX warning

5948-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Type C
Lay down the tire with the valve
stem facing up and install the
holding bracket, inserting the
claw into the wheel lug nut hole.
Turn the jack handle extension
clockwise to take up slack in
the chain.
Then, check to ensure the claw is
in the wheel lug nut hole and the
holding bracket is centered in the
wheel hub.
Holding bracket
Claw
WARNING
Q Stowing the flat tire
Failure to follow steps listed under stowing the tire may result in damage to
the spare tire carrier and loss of the tire, which could result in death or seri-
ous injury.
Stowing the flat tire, jack and all tools
incorrect
correct
1
1
2

5978-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
QFlat tire
Repair or replace the flat tire as soon as possible.
When stowing the repaired or replaced tire to the carrier, remove the rags that
are protecting the wheel design faces.
WARNING
Q After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
NOTICE
Q When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle
underbody (except for rags that is used when stowing the flat tire).
Q When assembling the jack handle extension
Insert the square head securely until you hear a click. Otherwise the exten-
sion may come off and it may damage the paint or vehicle body.

6088-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
WARNING
QWhen removing the battery terminals
Always remove the negative (-) terminal first. If the positive (+) terminal con-
tacts any metal in the surrounding area when the positive (+) terminal is
removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.
Q Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
O Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
O Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
O Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
O Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
Q Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
O When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
O Do not lean over the battery.
O In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
O Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
O Do not allow children near the battery.

6098-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
WARNING
QWhen exchanging the battery
O When the vent plug and indicator are close to the hold down bracket, the
battery fluid (sulfuric acid) may leak.
O For information regarding battery replacement, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Q To prevent damage to the vehicle (vehicles with manual transmission)
Do not pull- or push-start the vehicle as the three-way catalytic converter or
catalytic converter may overheat and become a fire hazard.
NOTICE
Q When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or belt.

6138-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
Start the engine to check that the radiator cooling fan operates and
to check for coolant leaks from the radiator or hoses.
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
WARNING
Q When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
O If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
O Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
O Do not loosen the radiator cap (if equipped), the engine coolant reservoir
cap or intercooler coolant reservoir cap (if equipped) while the engine and
radiator are hot. High temperature steam or coolant could spray out.
NOTICE
Q When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
Q To prevent damage to the cooling system
Observe the following precautions:
O Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
O Do not use any coolant additive.
6
7

6178-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
WARNING
QWhen attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
Q When shifting the shift lever
For vehicles with automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
Q To avoid damage to the transmission and other components
O Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
O If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
O Vehicles with automatic transmission: When a warning message for the
automatic transmission fluid temperature is displayed while attempting to
free a stuck vehicle, immediately remove your foot from the accelerator
pedal and wait until the warning message disappears. Otherwise, the
transmission may become damaged. ( P. 238)

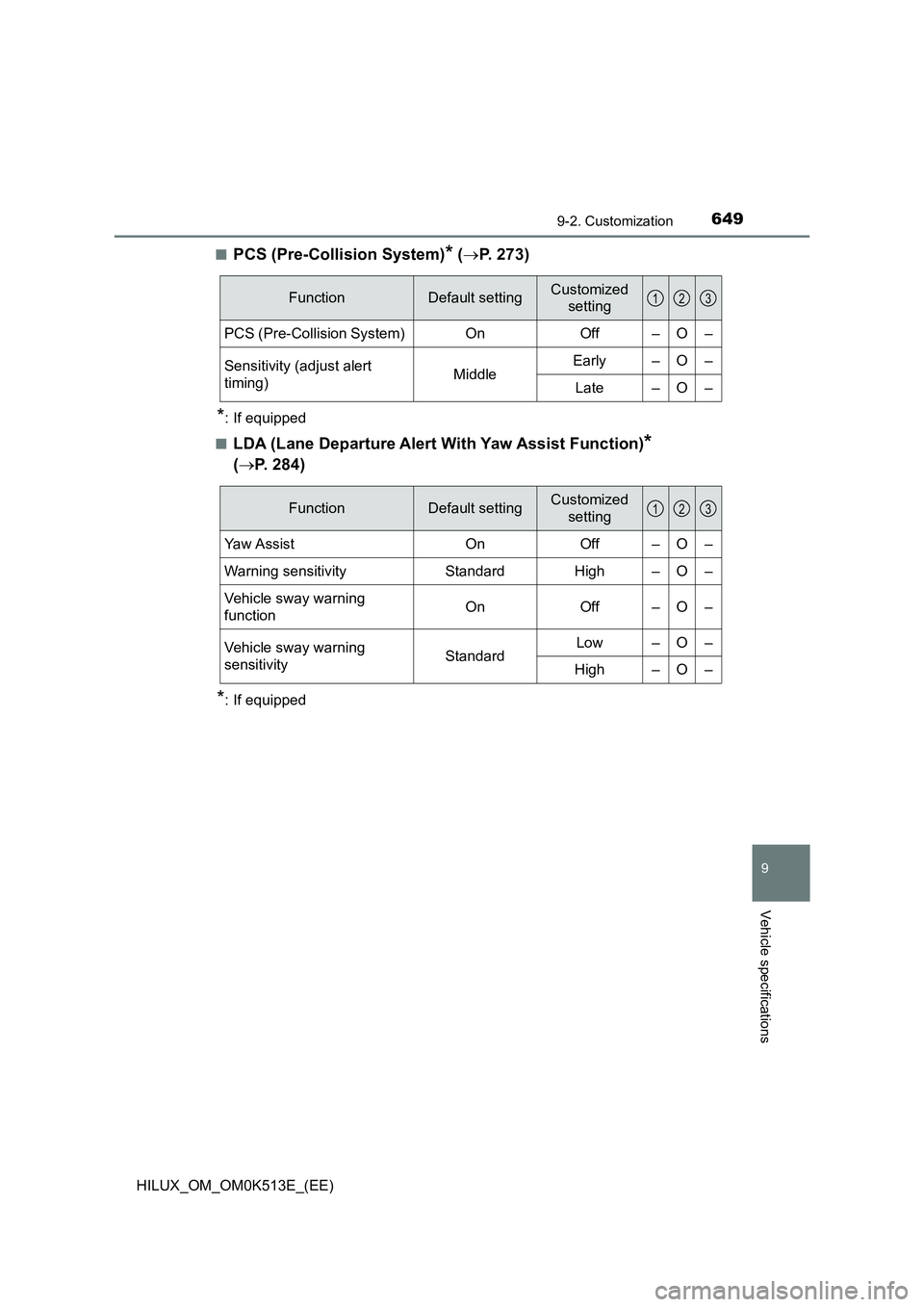

6499-2. Customization
HILUX_OM_OM0K513E_(EE)
9
Vehicle specifications
QPCS (Pre-Collision System)* (P. 273)
*: If equipped
QLDA (Lane Departure Alert With Yaw Assist Function)*
( P. 284)
*: If equipped
FunctionDefault settingCustomized
setting
PCS (Pre-Collision System)OnOff–O–
Sensitivity (adjust alert
timing)MiddleEarly–O–
Late–O–
123
FunctionDefault settingCustomized
setting
Yaw AssistOnOff–O–
Warning sensitivityStandardHigh–O–
Vehicle sway warning
functionOnOff–O–
Vehicle sway warning
sensitivityStandardLow–O–
High–O–
123

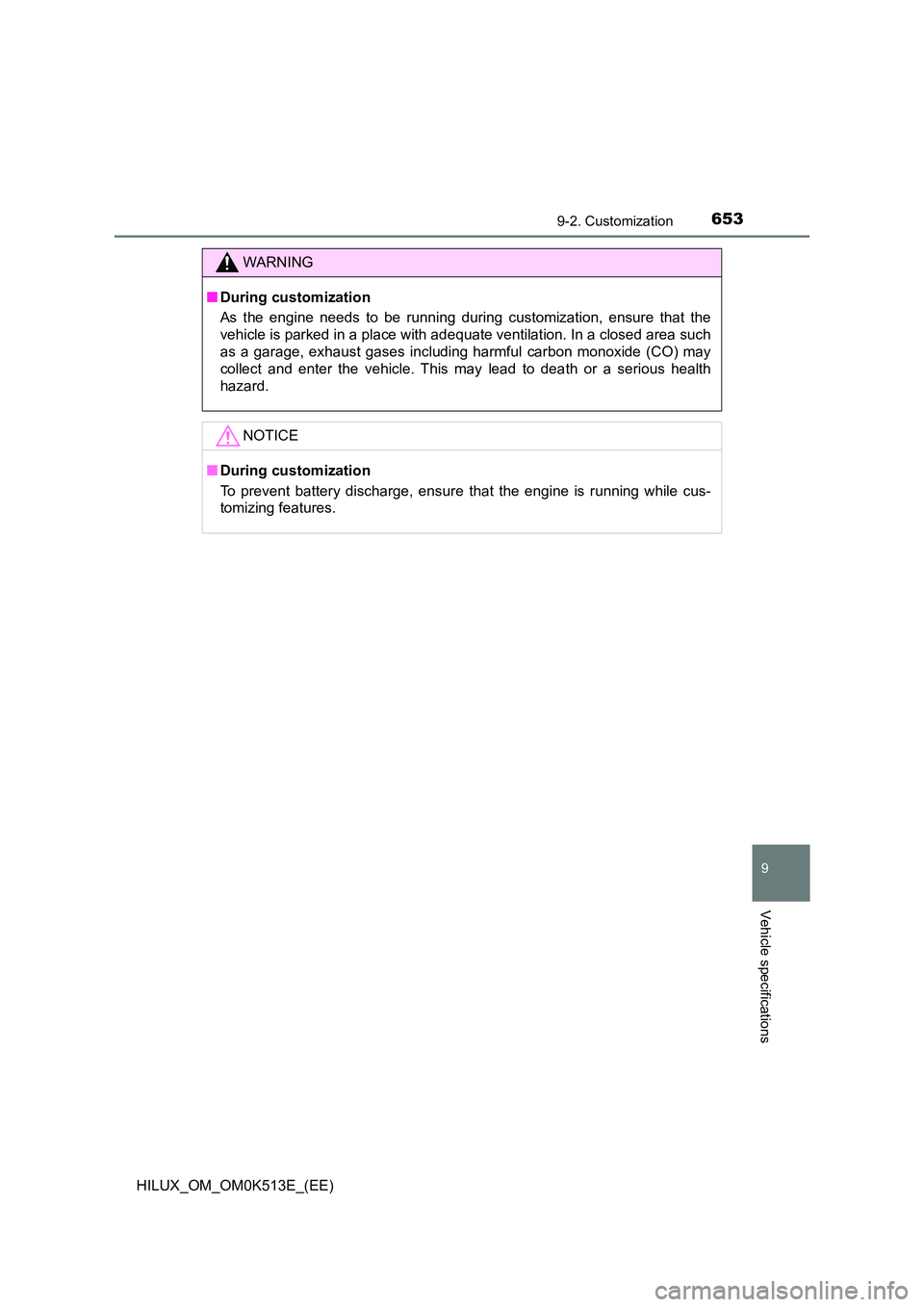

6539-2. Customization
HILUX_OM_OM0K513E_(EE)
9
Vehicle specifications
WARNING
QDuring customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
Q During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
