3714-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
OIf the DPF system warning message “DPF full See owner’s manual”
appears on the multi-information display, follow the procedure
below to regenerate.
When regenerating the filter during driving the vehicle
To regenerate the filter, the following driving methods are recom-
mended.*1
• By driving continuously (for example, at around 60 km/h [37 mph]
for 20 to 30 minutes).
• By avoiding short trips, or by driving continuously (leaving the
engine running for long periods of time).
Check the engine is warmed up before driving the vehicle to regenerate
the filter. If the engine is cold, warm up the engine by driving the vehicle
downshifting to increase the engine speed.*2
The warning message will disappear on the multi-information display when
regeneration is complete. However, depending on the driving condition
such as heavy traffic, the amount of accumulated deposit increases and
the warning message may not disappear on the multi-information display.
If the warning message does not disappear on the multi-information dis-
play after driving, press the DPF system switch to manually regenerate the
filter.
Regeneration during driving cannot be performed when the vehicle is
higher than 4000 m (13124 ft.) above sea level.
*1: When driving, pay sufficient attention to weather, road conditions, ter-
rain and traffic conditions, and drive according to traffic laws.
*2: Depending on the situation, it may be necessary to downshift until the
engine speed is increased to 3000 rpm. If the engine coolant tempera-
ture or exhaust gas temperature is low, it may take a long time to
regenerate, or regeneration may be impossible.
DPF system failure warning

3724-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
When regenerating the filter by pressing the DPF system switch
Stop the vehicle in a safe place.
Shift the shift lever to P (automatic transmission) or N (manual
transmission), and firmly set the parking brake.
Do not stop the engine.
Also, make sure that there are no flammable materials near the exhaust
pipe. ( P. 369)
Check the engine is warmed up. If the engine is cold, warm up the engine
by depressing the accelerator pedal.*1
Press the DPF system switch.
The DPF system warning message
shown in the illustration appears
on the multi-information display,
and the idling engine speed will
increase.
Regeneration will take around 15 -
40 minutes to complete.*2
When the DPF system warning message disappears on the multi-
information display, the idling engine speed will have finished return-
ing to normal.
The DPF system switch may not operate when the vehicle is higher
than 4000 m (13123 ft.) above sea level.
*1: Depending on the situation, it may be necessary to depress the acceler-
ator pedal until the engine speed is increased to 3000 rpm. If the engine
coolant temperature or exhaust gas temperature is low, it may take a
long time to regenerate, or regeneration may be impossible.
*2: Time required for regeneration differs in accordance with the outside
temperature. Also, if the engine speed is still approximately 2000 rpm
10 minutes after pressing the DPF system switch, the exhaust gas tem-
perature may be low. In this case, depress the accelerator pedal to run
the engine at approximately 3000 rpm for a while.
When depressing the accelerator pedal, regeneration will be stopped. In
this case, restart regeneration.
1
2
3

3734-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
OIf the “DPF full Manual regeneration required See owner’s manual”
appears on the multi-information display, press the DPF system
switch to regenerate the filter. ( P. 371)
O If the DPF system warning message “DPF full Visit your dealer”
appears on the multi-information display and a buzzer sounds (mal-
function indicator lamp comes on), have the vehicle inspected by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
Q Regeneration with the DPF system switch
O After pressing the DPF system switch, depressing the accelerator pedal or
clutch pedal (manual transmission) will stop regeneration. If regeneration
has been stopped, restart regeneration as soon as possible.
O After regeneration is finished, race the engine several time to clean the
exhaust system.
Q DPF system warning
Under the following driving conditions, the DPF system warning message
may be displayed on the multi-information display earlier than normal.*
O When only driving at low speeds (for example 20 km/h [12 mph] or below).
O If the engine is turned on and off frequently (if the engine is not left running
for more than 10 minutes at a time).
*: Differs in accordance with weather, driving conditions, etc.
NOTICE
Q If the malfunction indicator lamp comes on (warning buzzer)
The malfunction indicator lamp comes on if you continue driving while the
DPF system warning message appears on the multi-information display. In
this event, damage may be caused to the vehicle or an accident may occur.
Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.

3764-6. Driving tips
HILUX_OM_OM0K513E_(EE)
QTire chain installation
Observe the following precautions when installing and removing chains:
O Install and remove tire chains in a safe location.
O Install tire chains on the rear tires. Do not install tire chains on the front tires.
O Install tire chains on rear tires as tightly as possible. Retighten chains after
driving 0.5 - 1.0 km (1/4 - 1/2 mile).
O Install tire chains following the instructions provided with the tire chains.
WARNING
QDriving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
O Use tires of the specified size.
O Maintain the recommended level of air pressure.
O Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
O Use snow tires on all, not just some wheels.
Q Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
O Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
O Avoid driving on bumpy road surfaces or over potholes.
O Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
O Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
O Do not use LDA (Lane Departure Alert with Yaw Assist Function) system.
(if equipped)

3805-1. Basic Operations
HILUX_OM_OM0K513E_(EE)
WARNING
QTo reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

381
5
5-1. Basic Operations
Audio system
HILUX_OM_OM0K513E_(EE)
AUX port/USB por t
QiPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
QUSB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
QPortable audio player
Open the cover and connect the portable audio player using an
AUX cable.
Turn on the power of the portable audio player if it is not turned on.
Q AUX port
The AUX port only supports audio input.
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
Q While driving
Do not connect a device or operate the device controls.

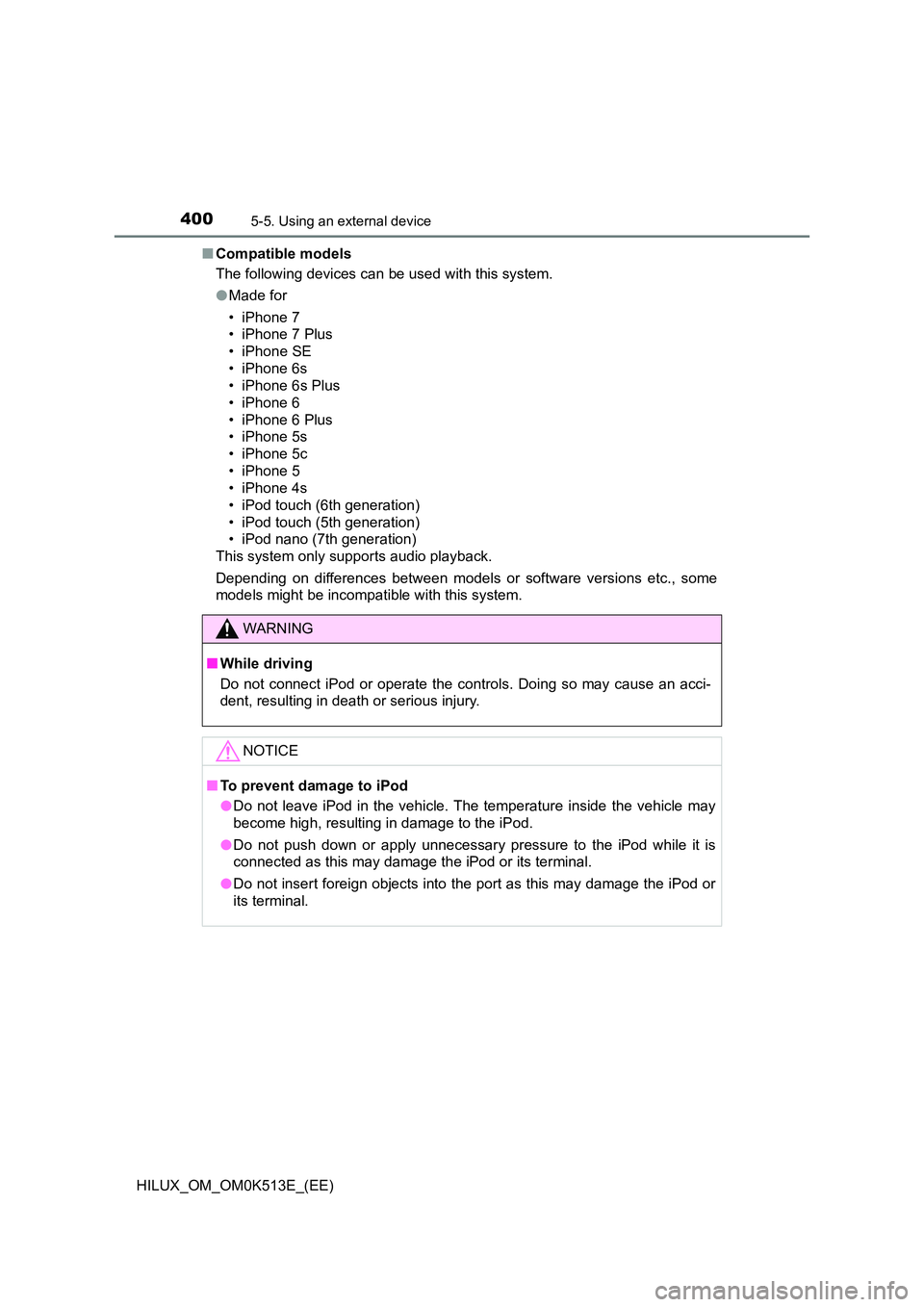

4005-5. Using an external device
HILUX_OM_OM0K513E_(EE)
Q Compatible models
The following devices can be used with this system.
O Made for
• iPhone 7
• iPhone 7 Plus
• iPhone SE
• iPhone 6s
• iPhone 6s Plus
• iPhone 6
• iPhone 6 Plus
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPhone 4s
• iPod touch (6th generation)
• iPod touch (5th generation)
• iPod nano (7th generation)
This system only supports audio playback.
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
WARNING
Q While driving
Do not connect iPod or operate the controls. Doing so may cause an acci-
dent, resulting in death or serious injury.
NOTICE
Q To prevent damage to iPod
O Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the iPod.
O Do not push down or apply unnecessary pressure to the iPod while it is
connected as this may damage the iPod or its terminal.
O Do not insert foreign objects into the port as this may damage the iPod or
its terminal.

4065-5. Using an external device
HILUX_OM_OM0K513E_(EE)
O Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than
MP3, WMA and AAC files, they will be skipped (not played).
O Playback
• To play MP3 files with steady s ound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3,
WMA and AAC files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
WARNING
Q While driving
Do not connect USB memory or operate the controls. Doing so may cause
an accident, resulting in death or serious injury.
NOTICE
Q To prevent damage to USB memory
O Do not leave USB memory in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the USB memory.
O Do not push down or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.
O Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.
