2022 TOYOTA GR SUPRA Owners Manual

329
6
6
REFERENCE
REFERENCE
.6-1. REFERENCETechnical data ............. 330
Certification ................. 333

3306-1. REFERENCE
6-1.REFERENCE
This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures and functions that are not
necessarily available in your
vehicle, e.g., due to the selected
options or country versions. This
also applies to safety-related
functions and systems. When
using these functions and sys-
tems, the applicable laws and regulations must be observed.
The technical data and specifi-
cations in this Owner's Manual
are used as guidance values.
The vehicle-specific data can
deviate from this, for instance
due to the selected special
equipment, country version or
country-specific measurement
method. Detailed values can be
found in the approval docu-
ments, on labels on the vehicle
or can be obtained from your
Toyota dealer.
The dimensions can vary depending on the model version, equip-
ment or country-specific measurement method.
The specified heights do not take into account attached parts, for
instance a roof antenna, roof racks or spoiler. The heights can devi-
ate, for instance due to the selected special equipment, tires, load
and chassis version.
*1: 2.0 models
*2: 3.0 and 3.0 Premium models
Technical data
Vehicle features and
optionsGeneral information
Dimensions
Width with mirrorsin/mm79.8 / 2026
Width without mirrorsin/mm73.0 / 1854
Heightin/mm51.1 / 1299*1
50.9 / 1292*2
Lengthin/mm172.5 / 4381
Wheelbasein/mm97.2 / 2470
Smallest turning radius diam.ft/m36.1 / 11

3316-1. REFERENCE
6
REFERENCE
Observe further information on fuel quality, refer to page 293.

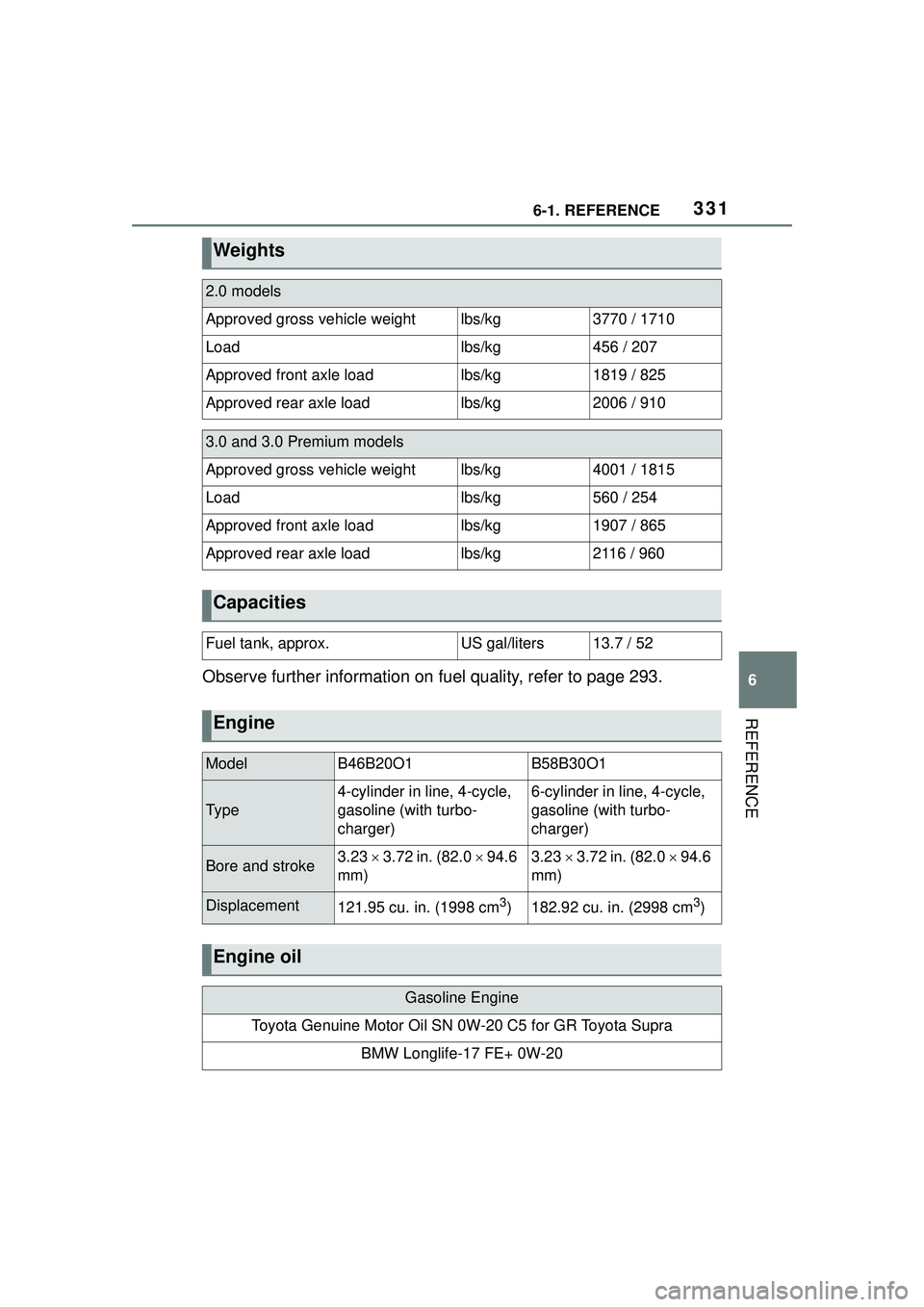

Weights
2.0 models
Approved gross vehicle weightlbs/kg3770 / 1710
Loadlbs/kg456 / 207
Approved front axle loadlbs/kg1819 / 825
Approved rear axle loadlbs/kg2006 / 910
3.0 and 3.0 Premium models
Approved gross vehicle weightlbs/kg4001 / 1815
Loadlbs/kg560 / 254
Approved front axle loadlbs/kg1907 / 865
Approved rear axle loadlbs/kg2116 / 960
Capacities
Fuel tank, approx.US gal/liters13.7 / 52
Engine
ModelB46B20O1B58B30O1
Ty p e
4-cylinder in line, 4-cycle,
gasoline (with turbo-
charger)6-cylinder in line, 4-cycle,
gasoline (with turbo-
charger)
Bore and stroke3.23  3.72 in. (82.0  94.6
mm)3.23  3.72 in. (82.0  94.6
mm)
Displacement121.95 cu. in. (1998 cm3)182.92 cu. in. (2998 cm3)
Engine oil
Gasoline Engine
Toyota Genuine Motor Oil SN 0W -20 C5 for GR Toyota Supra
BMW Longlife-17 FE+ 0W-20

3326-1. REFERENCE
See the further information on engine oil grade, refer to page 294.
Vehicles without LSD (Limited Slip Differential)
Vehicles with LSD (Limited Slip Differential)
Cooling system
Coolant type“Antifreeze and Corrosion Inhibitor Frostox
HT-12”
Automatic transmission
Fluid typeAutomatic Gearbox Oil ATF 3+
Differential
Oil type and viscosityHypoid Axle Oil G3
Oil type and viscosityHypoid Axle Oil G4
Brakes
Fluid typeBrake Fluid DOT 4, Low Viscosity

3336-1. REFERENCE
6
REFERENCE
The following note is for all
radio-based Components of the
vehicle and the vehicle inte-
grated information systems and
communication devices:
The radio-based components of
this vehicle are in accordance
with the basic requirements and
the rest relevant provisions of
the Directive 2014/53 / EU. Fur-
ther information is available
from your Toyota dealer.
Cer tification
Information
Alarm System

3346-1. REFERENCE
Antenna and Amplifier
Body Domain Controller

3356-1. REFERENCE
6
REFERENCE
Headunit

3366-1. REFERENCE

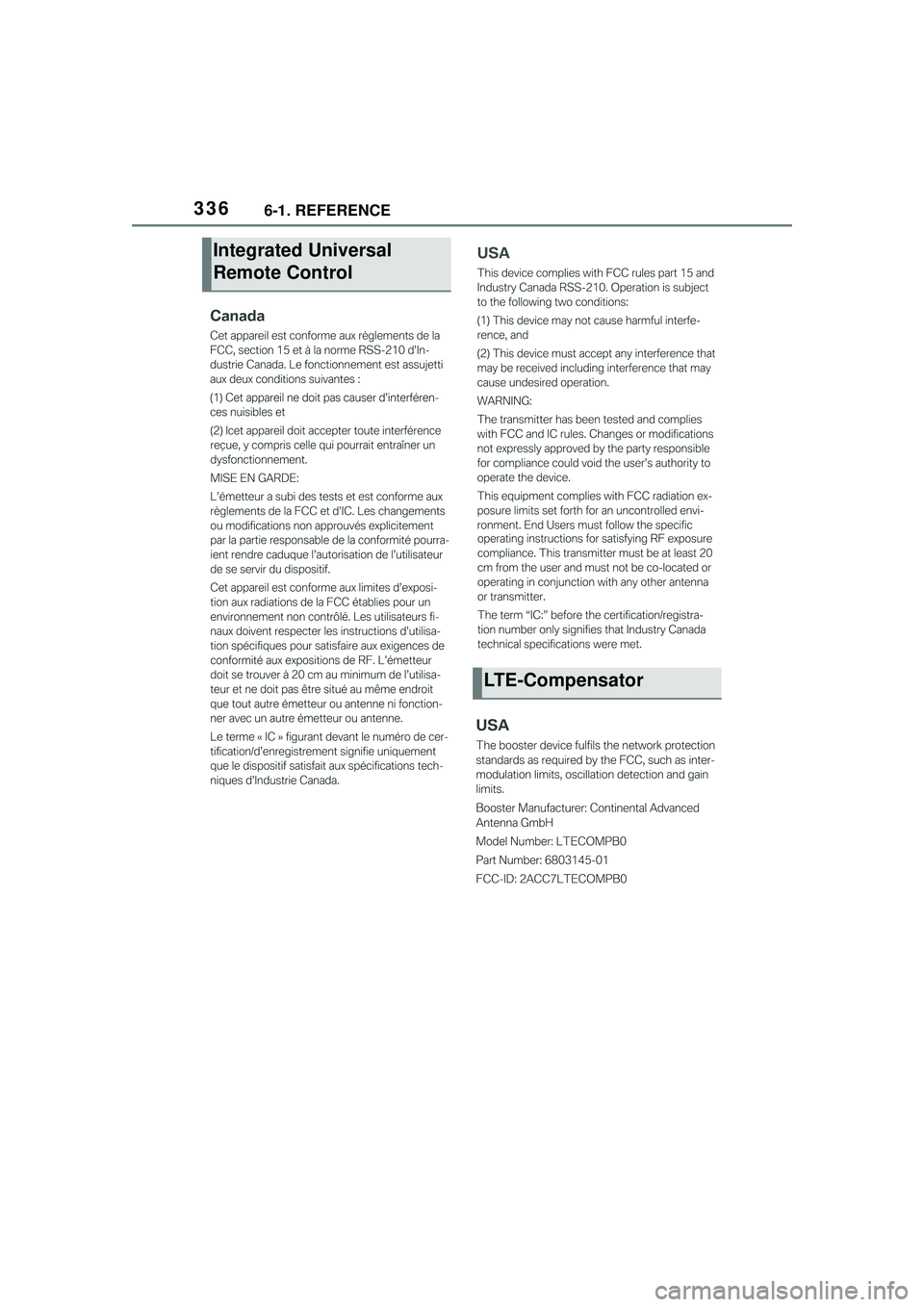

Integrated Universal
Remote Control
LTE-Compensator
