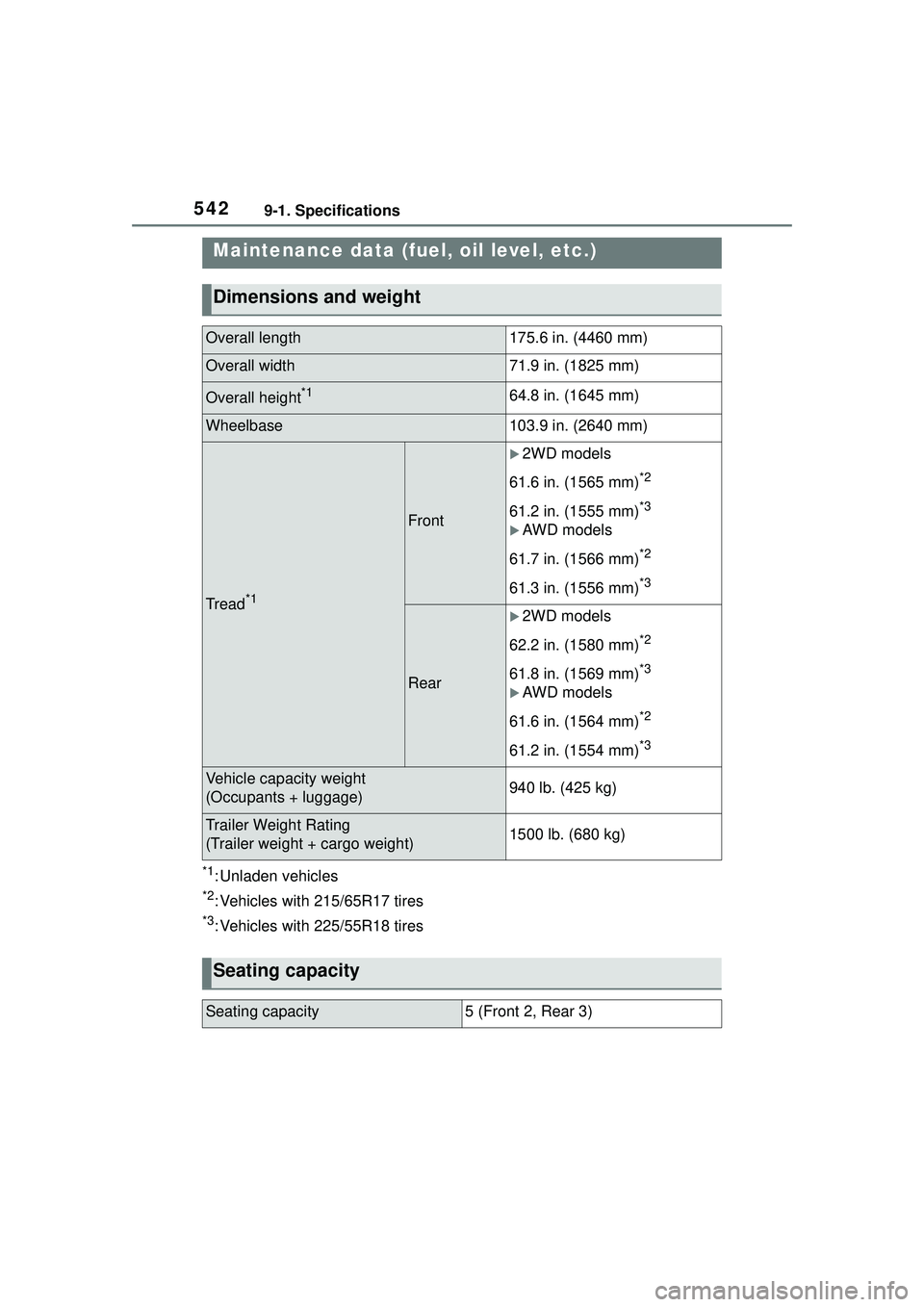

5429-1. Specifications
9-1.Specifications
*1: Unladen vehicles
*2: Vehicles with 215/65R17 tires
*3: Vehicles with 225/55R18 tires
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length175.6 in. (4460 mm)
Overall width71.9 in. (1825 mm)
Overall height*164.8 in. (1645 mm)
Wheelbase103.9 in. (2640 mm)
Tread*1
Front
2WD models
61.6 in. (1565 mm)
*2
61.2 in. (1555 mm)*3
AWD models
61.7 in. (1566 mm)
*2
61.3 in. (1556 mm)*3
Rear
2WD models
62.2 in. (1580 mm)
*2
61.8 in. (1569 mm)*3
AWD models
61.6 in. (1564 mm)
*2
61.2 in. (1554 mm)*3
Vehicle capacity weight
(Occupants + luggage)940 lb. (425 kg)
Trailer Weight Rating
(Trailer weight + cargo weight)1500 lb. (680 kg)
Seating capacity
Seating capacity5 (Front 2, Rear 3)

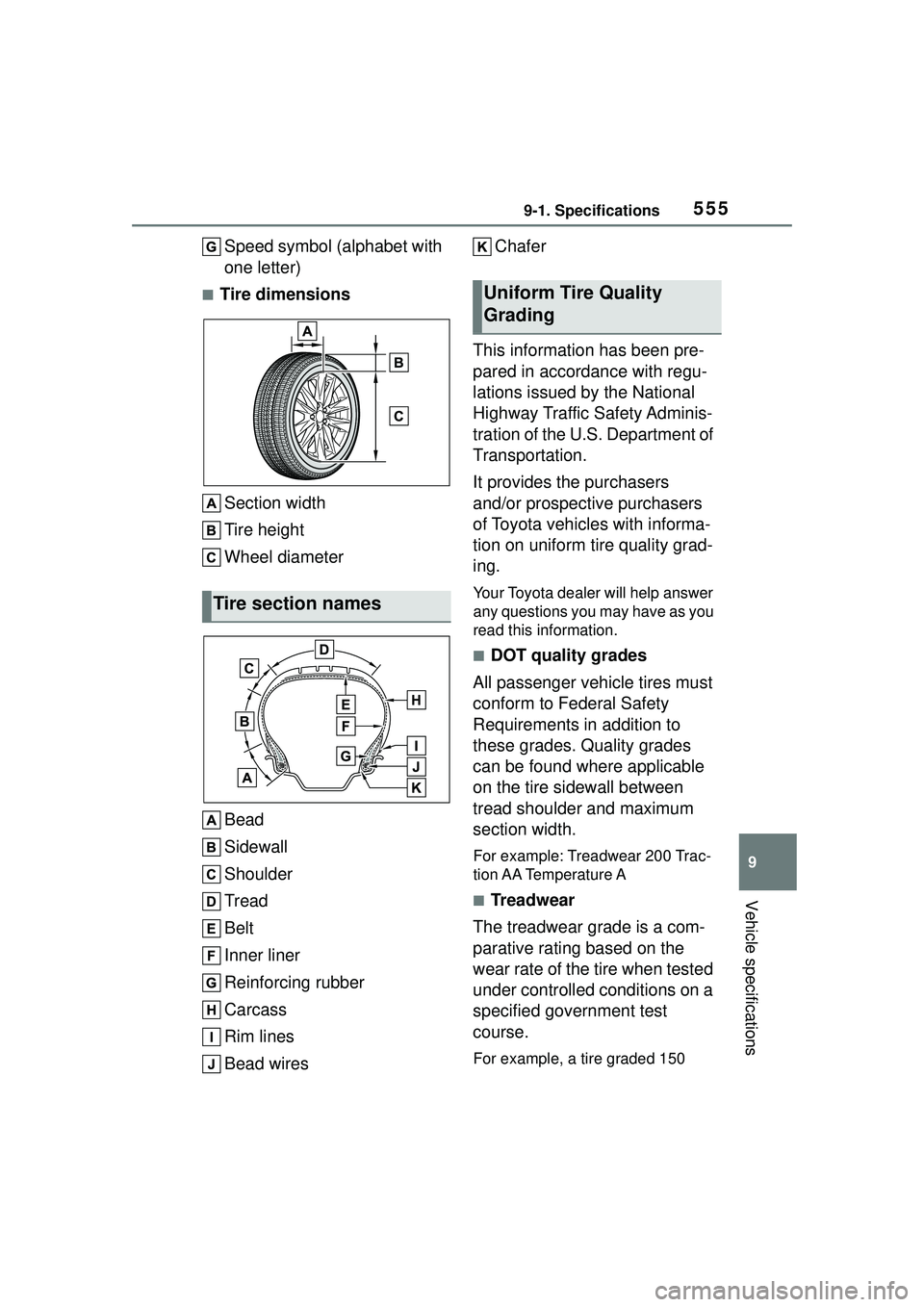

5559-1. Specifications
9
Vehicle specifications
Speed symbol (alphabet with
one letter)
■Tire dimensionsSection width
Tire height
Wheel diameter
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires Chafer
This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-
tion on uniform tire quality grad-
ing.
Your Toyota dealer will help answer
any questions you may have as you
read this information.
■DOT quality grades
All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable
on the tire sidewall between
tread shoulder and maximum
section width.
For example: Treadwear 200 Trac-
tion AA Temperature A
■Treadwear
The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.
For example, a tire graded 150
Tire section names
Uniform Tire Quality
Grading
589Alphabetical Index
Cargo capacity ....................... 150
Cargo hooks ........................... 431
Child restraint systemFixed with a LATCH system ... 59
Fixed with a seat belt ............. 55
Front passenger occupant clas-sification system ................... 40
Points to remember ................ 46
Riding with children ................ 45
Types of child restraint system installation method ............... 48
Using an anchor bracket ........ 64
Child safety Airbag precautions ................. 36
Back door precautions ......... 109
Battery precautions ...... 466, 535
Child restraint system............. 48
Heated steering wheel and seat heater precautions ............. 424
How your child should wear the seat belt................................ 28
Moon roof precautions ......... 137
Power window lock switch.... 135
Power window precautions .. 134
Rear door child-protectors.... 108
Removed electronic key battery precautions......................... 485
Seat belt extender precautions ............................................. 28
Seat belt precautions ............. 45
Child-protectors ..................... 108
Cleaning Exterior ................................. 446
Interior .................................. 449
Radar sensor........................ 191
Seat belts ............................. 449
Wheels and wheel ornaments........................................... 446
Clock ............... 81, 83, 85, 88, 320
Coat hooks .............................. 443
Command list ......................... 361
Condenser .............................. 464 Console box ............................430
Consumption screen ................97
Continuously variable transmis-
sion ........................................167If the shift lever cannot be shifted from P .................................168
M mode ................................169
Cooling system .......................463 Engine overheating ..............536
Cruise control Dynamic radar cruise control with full-speed range ..........216
Cup holders.............................429
Current fuel consumption........92
Curtain shield airbags ..............31
Customizable features ...........563
D
Daytime running light system178
Daytime running lights/parking lightsReplacing light bulbs ............490
DCM .................................400, 401
Defogger Outside rear view mirrors ...412, 419
Rear window.................412, 419
Windshield .................... 411, 418
Differential Rear differential oil................547
Dimensions .............................542
Dinghy towing .........................161
Display Dynamic radar cruise control with full-speed range ..........216
Intuitive parking assist ..........251
LTA (Lane Tracing Assist) .....209
Multi-information display.........90
RCTA ....................................238
Warning message.................515
Display change button .......82, 87
Do-it-yourself maintenance ...453
