Warning and Indicator Lights
147
Instruments and Controls3
– CONTINUED –

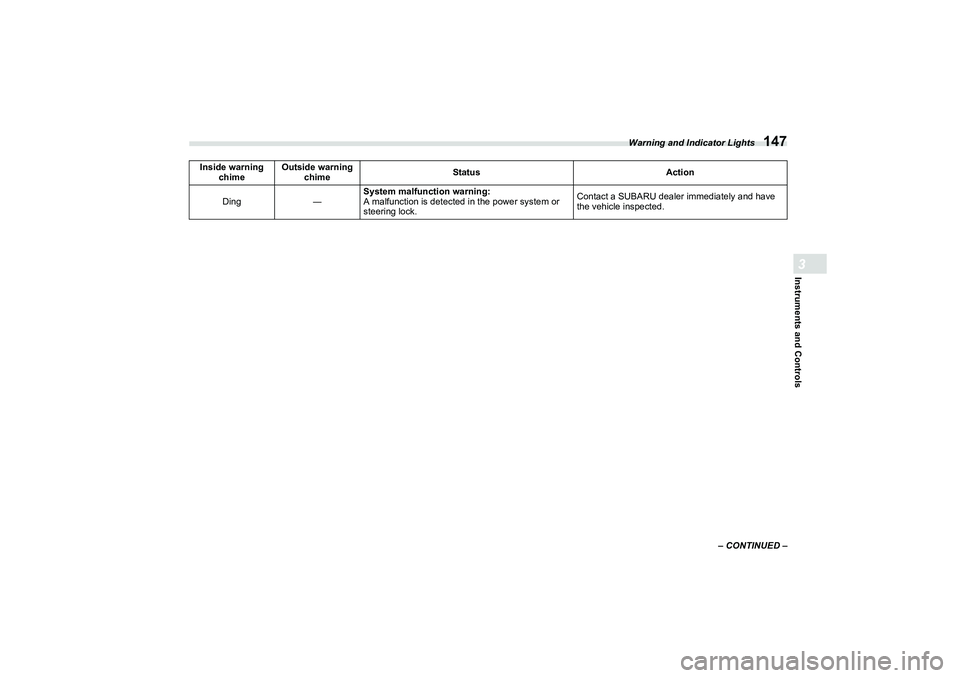

Ding
―System malfunction warning:
A malfunction is detected in the power system or
steering lock. Contact a SUBARU dealer immediately and have
the vehicle inspected.
Inside warning
chime Outside warning
chime Status
Action
B5=B8.ERRN 14 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
148■

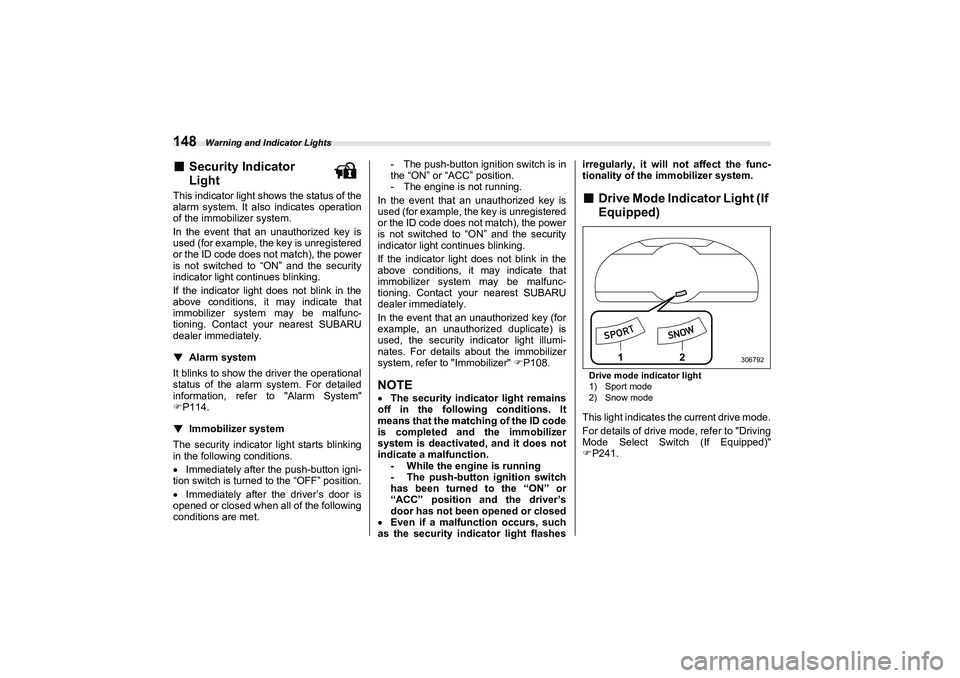

Security Indicator
Light
This indicator light shows the status of the
alarm system. It also indicates operation
of the immobilizer system.
In the event that an unauthorized key is
used (for example, the key is unregistered
or the ID code does not match), the power
is not switched to “ON” and the security
indicator light continues blinking.
If the indicator light does not blink in the
above conditions, it may indicate that
immobilizer system may be malfunc-
tioning. Contact your nearest SUBARU
dealer immediately.
▼
A larm system
It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to "Alarm System"
 P114.
▼Immobilizer system
The security indicator light starts blinking
in the following conditions.
 Immediately after the push-button igni-
tion switch is turned to the “OFF” position.
 Immediately after the driver’s door is
opened or closed when all of the following
conditions are met. - The push-button ignition switch is in
the “ON” or “ACC” position.
- The engine is not running.
In the event that an unauthorized key is
used (for example, the key is unregistered
or the ID code does not match), the power
is not switched to “ON” and the security
indicator light continues blinking.
If the indicator light does not blink in the
above conditions, it may indicate that
immobilizer system may be malfunc-
tioning. Contact your nearest SUBARU
dealer immediately.
In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used, the security indicator light illumi-
nates. For details about the immobilizer
system, refer to "Immobilizer" P108.
NOTE The security indicator light remains
off in the followi ng conditions. It
means that the matching of the ID code
is completed and the immobilizer
system is deactivated, and it does not
indicate a malfunction. - While the engine is running
- The push-button ignition switch
has been turned to the “ON” or
“ACC” position and the driver’s
door has not been opened or closed
 Even if a malfunction occurs, such
as the security indicator light flashes irregularly, it will not affect the func-
tionality of the immobilizer system.
■
Drive Mode Indicator Light (If
Equipped)Drive mode indicator light
1) Sport mode
2) Snow modeThis light indicates the current drive mode.
For details of drive mode, refer to "Driving
Mode Select Switch (If Equipped)"

P241.
2
1
306792
B5=B8.ERRN 14 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
149
Instruments and Controls3
– CONTINUED –
■
Select Lever (AT Models
Only)/Gear Position Indicator1) Upshift indicator
2) Downshift indicator (AT models only)
3) Select lever (AT models only)/gear posi-tion indicatorThis indicator shows the position of the
shift lever (MT models)/select lever (AT
models).
▼
Gear shift indicator (MT models)
When shifting up is recommended for
good fuel economy, the upshift indicator
blinks. Refer to "G ear shift indicator"
 P234. ▼
Upshift/downshift indicator (AT
models)
When the manual mode is selected, the
gear position indicator (which shows the
current gear selection) and the available
upshift/downshift indicator light up. Refer
to "Selection of Manual Mode" P239
■
Cruise Control Indi -
cator Light (White/
Green)/Cruise Control
Warning Light (Yellow)
(Models without the EyeSight
System)
This light illuminates in white when the
cruise control main button is pressed to
activate the cruise control function. When
vehicle speed has been set to use the
cruise control function, this indicator is
lighting in green.
For details, refer to "Cruise Control
(Models without th e EyeSight system)"
 P260.
If this light illuminates in yellow, do not use
the cruise control. Contact your SUBARU
dealer for an inspection.
NOTEIf this indicator light does not illumi-
nate even when you press the cruise
control main button, the cruise control
system may not operate properly.
Have your vehicle checked by your
nearest SUBARU dealer.■
Turn Signal Indicator
Lights
These lights show the operation of the
turn signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be
burned out. Have your vehicle inspected
by your SUBARU dealer as soon as
possible.
12
3
702774
CAUTION
If the malfunction indicator light
(Check Engine ligh
t) illuminates, the
cruise control indicator light illumi-
nates in yellow at the same time. At
this time, avoid driving at high
speeds and have your vehicle
inspected at a SUBARU dealer as
soon as possible.
B5=B8.ERRN 14 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Warning and Indicator Lights
150■

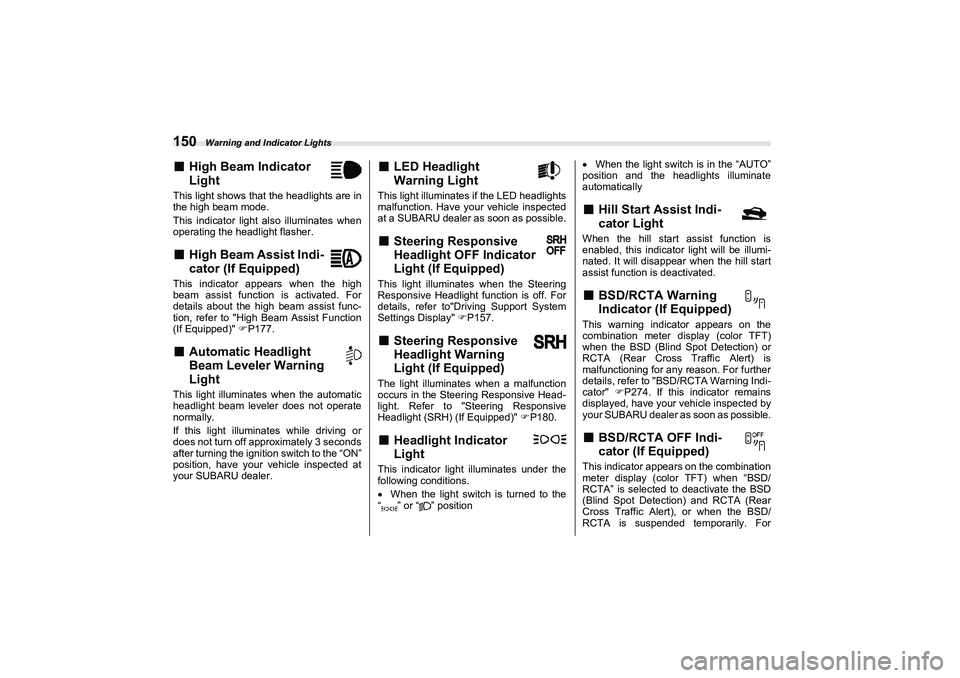

High Beam Indicator
Light
This light shows that the headlights are in
the high beam mode.
This indicator light also illuminates when
operating the headlight flasher.■
High Beam Assist Indi-
cator (If Equipped)
This indicator appears when the high
beam assist function is activated. For
details about the high beam assist func-
tion, refer to "High Beam Assist Function
(If Equipped)" P177.■
Automatic Headlight
Be am Leveler Warning
Light
This light illuminates when the automatic
headlight beam leveler does not operate
normally.
If this light illuminates while driving or
does not turn off approximately 3 seconds
after turning the ignition switch to the “ON”
position, have your vehicle inspected at
your SUBARU dealer.
■
LED Headlight
Wa rning Light
This light illuminates if the LED headlights
malfunction. Have your vehicle inspected
at a SUBARU dealer as soon as possible.■
Steering Responsive
Head light OFF Indica tor
Li ght (If Equipped)
This light illuminates when the Steering
Responsive Headlight function is off. For
details, refer to"Driving Support System
Settings Display" P157.■
Steering Responsive
Headlight Warning
Light (If Equipped)
The light illuminates when a malfunction
occurs in the Steering Responsive Head-
light. Refer to "Steering Responsive
Headlight (SRH) (If Equipped)" P180.■
Headlight Indicator
Light
This indicator light illuminates under the
following conditions.
 When the light switch is turned to the
“ ” or “ ” position 
When the light switch is in the “AUTO”
position and the headlights illuminate
automatically
■
Hill Start Assist Indi -
cator Light
When the hill start assist function is
enabled, this indicator light will be illumi-
nated. It will disappear when the hill start
assist function is deactivated.■
BSD/RCTA Warning
Indic ator (If Equipped)
This warning indicator appears on the
combination meter di splay (color TFT)
when the BSD (Blind Spot Detection) or
RCTA (Rear Cross Traffic Alert) is
malfunctioning for any reason. For further
details, refer to "BSD/RCTA Warning Indi-
cator" P274. If this indicator remains
displayed, have your vehicle inspected by
your SUBARU dealer as soon as possible.■
BSD/RCTA OFF Indi -
cator (If Equipped)
This indicator appears on the combination
meter display (color TFT) when “BSD/
RCTA” is selected to deactivate the BSD
(Blind Spot Detection) and RCTA (Rear
Cross Traffic Alert), or when the BSD/
RCTA is suspended temporarily. For
B5=B8.ERRN 150 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Combination Meter Display (Color TFT)
151
Instruments and Controls3
– CONTINUED –
details, refer to "BSD/RCTA OFF Indi-
cator" P273.■

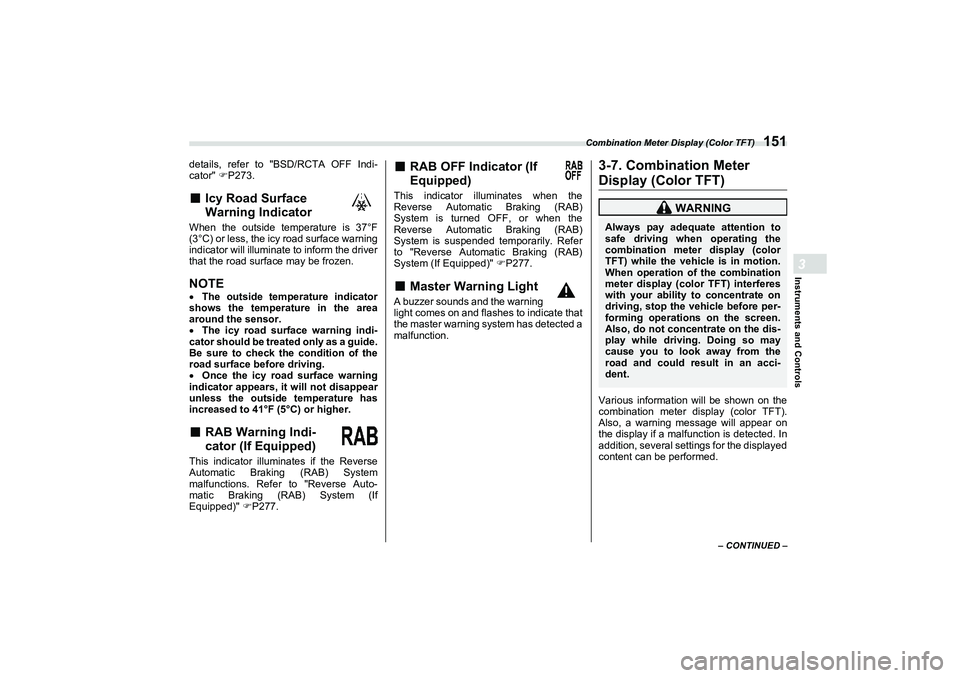

Icy Road Surface
Warning Indicator
When the outside temperature is 37°F
(3°C) or less, the icy road surface warning
indicator will illuminate to inform the driver
that the road surface may be frozen.NOTE The outside temperature indicator
shows the temperature in the area
around the sensor.
 The icy road surface warning indi-
cator should be treated only as a guide.
Be sure to check the condition of the
road surface before driving.
 Once the icy road surface warning
indicator appears, it will not disappear
unless the outside temperature has
increased to 41°F (5°C) or higher.■
RAB Warning Indi -
cator (If Equipped)
This indicator illuminates if the Reverse
Automatic Braking (RAB) System
malfunctions. Refer to "Reverse Auto-
matic Braking (RAB) System (If
Equipped)" P277.
■
RAB OFF Indicator (If
Equipped)
This indicator illuminates when the
Reverse Automatic Braking (RAB)
System is turned OFF, or when the
Reverse Automatic Braking (RAB)
System is suspended temporarily. Refer
to "Reverse Automatic Braking (RAB)
System (If Equipped)" P277.■
Master Warning Light
A buzzer sounds and the warning
light comes on and flashes to indicate that
the master warning system has detected a
malfunction.
3-7. Combination Meter Display (Color TFT)Various information will be shown on the
combination meter display (color TFT).
Also, a warning message will appear on
the display if a malfunc tion is detected. In
addition, several settings for the displayed
content can be performed.
WARNING
Always pay adequate attention to
safe driving when operating the
combination meter display (color
TFT) while the vehicle is in motion.
When operation of the combination
meter display (color TFT) interferes
with your ability to concentrate on
driving, stop the vehicle before per-
forming operations on the screen.
Also, do not concentrate on the dis-
play while driving. Doing so may
cause you to look away from the
road and could result in an acci-
dent.
B5=B8.ERRN 151 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Combination Meter Display (Color TFT)
154Pressing and holding will reset the
average vehicle speed/driving time/
driving distance.
▼Drive information (page 4) (if
equipped)
This screen displays each tire pressure.
When a tire is deflated, the deflated tire
and the tire pressure will be displayed on
the screen in yellow.NOTE The tire pressure values are
displayed several minutes after
driving.
 Once the tire pressure monitoring
system detects the low tire pressure,
the tire pressure values will display in
yellow until the system detects the
normal tire pressure. 
Immediately adjust the tire pressure
when the warning light illuminates.
When the tire pr essure monitoring
system detects the adjusted tire pres-
sure, the warning ligh t will turn off and
the tire pressure values will turn to
white.
 For information about the specified
value of the air pressure, refer to
"Tires" P385
■ Exclusive Content for
SUBARU BRZ▼ G-force1) Acceleration G-force on the vehicle
2) Accelerator pedal input
3) Brake fluid pressure
4) Steering amount
This screen displays lateral G-forces on
the vehicle.
Also displays, around the periphery of the
G-force display, the left and right steering
amount, accelerator pedal input, and
brake fluid pressure.
This display is intended for use as a guide-
line. Depending on factors such as the
road surface conditi on, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.
Press and hold to change the range of
the acceleration G-force display between
1.0 G and 0.5 G.
▼ G-force (peak ho ld function)1) Record of the maximum G-forces
2) Acceleration G-force on the vehicle
3) Accelerator pedal input
702781
4
3 1
2
306799
1
42 5
3
306800
A4600BEscusenvhch03.fm 154 ページ ２０２１年７月５日　月曜日　午後４時２３分

Combination Meter Display (Color TFT)
157
Instruments and Controls3
– CONTINUED –
■

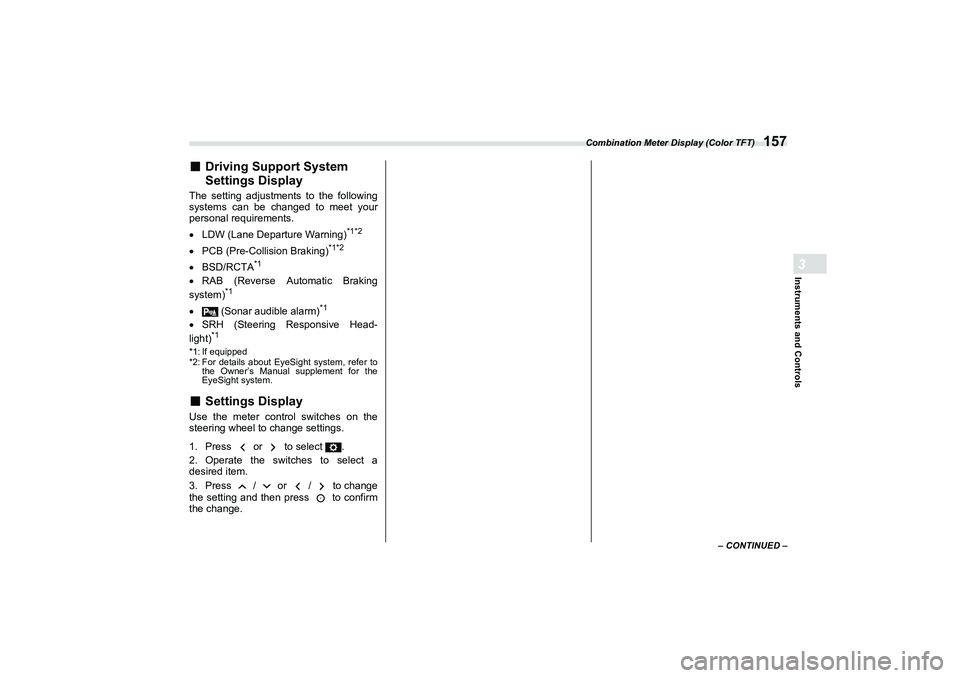

Driving Support System
Settings Display
The setting adjustments to the following
systems can be changed to meet your
personal requirements.
LDW (Lane Departure Warning)
*1*2
PCB (Pre-Collision Braking)
*1*2
BSD/RCTA
*1
RAB (Reverse Automatic Braking
system)
*1
 (Sonar audible alarm)
*1
SRH (Steering Responsive Head-
light)
*1
*1: If equipped
*2: For details about EyeSight system, refer to the Owner’s Manual supplement for the
EyeSight system.■
Settings Display
Use the meter control switches on the
steering wheel to change settings.
1. Press or to select .
2. Operate the switches to select a
desired item.
3. Press / or / to change
the setting and then press to confirm
the change.
B5=B8.ERRN 15 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Combination Meter Display (Color TFT)
158*1: If equipped

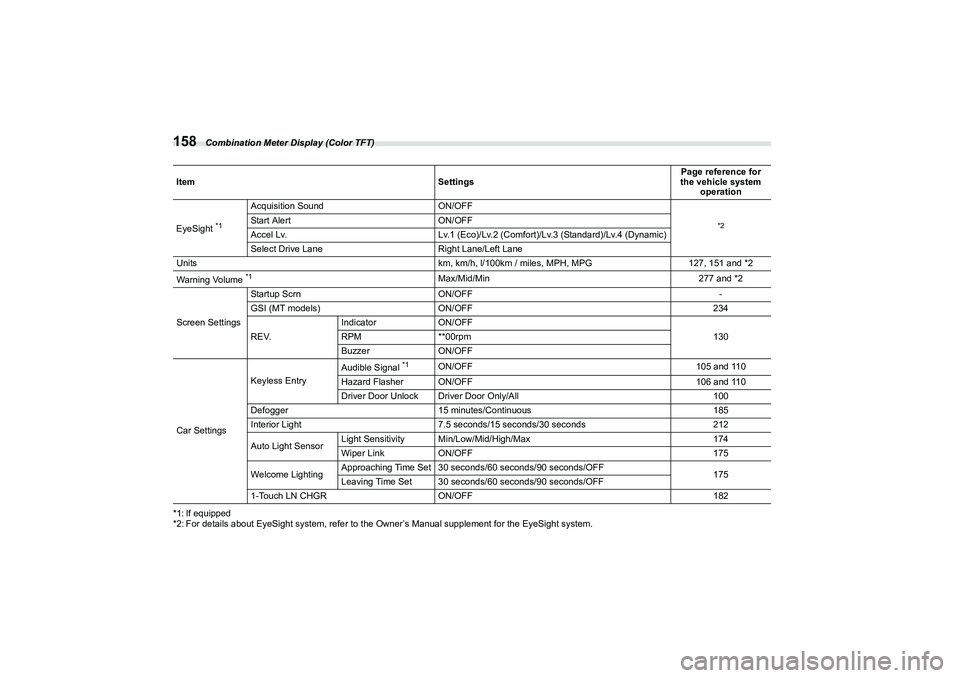

*2: For details about EyeSight system, refer to the Owner’s Manual supplement for the EyeSight system.Item
SettingsPage reference for
the vehicle system
operation
EyeSight
*1
Acquisition Sound ON/OFF
*2
Start AlertON/OFF
Accel Lv. Lv.1 (Eco)/Lv.2 (Comfort)/Lv.3 (Standard)/Lv.4 (Dynamic)
Select Drive Lane Right Lane/Left Lane
Units km, km/h, l/100km / miles, MPH, MPG127, 151 and *2
Warning Volume *1
Max/Mid/Min 277 and *2
Screen Settings Startup Scrn
ON/OFF -
GSI (MT models) ON/OFF 234
R E V. Indicator
ON/OFF
130
RPM **00rpm
Buzzer ON/OFF
Car Settings Keyless Entry
Audible Signal
*1
ON/OFF
105 and 110
Hazard Flasher ON/OFF 106 and 110
Driver Door Unlock Driver Door Only/All 100
Defogger 15 minutes/Continuous 185
Interior Light 7.5 seconds/15 seconds/30 seconds 212
Auto Light Sensor Light Sensitivity Min/Low/Mid/High/Max
174
Wiper Link ON/OFF 175
Welcome Lighting Approaching Time Set 30 seconds/60 seconds/90 seconds/OFF
175
Leaving Time Set 30 seconds/60 seconds/90 seconds/OFF
1-Touch LN CHGR ON/OFF 182
B5=B8.ERRN 15 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
