Door Locks
113
Keys and Doors2
– CONTINUED –
▼
How to operate the power door
locking switches
All doors and the fuel filler lid can be
locked and unlocked by pressing either
side of the power door locking switches
located on the driver’s side and the
passenger’s side doors.
1) Lock
2) UnlockNOTEMake sure that you do not leave the
key inside the vehicle before locking
the doors from the outside using the
power door locking switches.■
Key Lock-In Prevention
Function
All the doors will not lock when the power
door locking switch is pushed with the
door open while the ignition switch is in the
“ACC” or “ON” position.
NOTE When leaving the vehicle, make sure
you are holding the key before locking
the doors.
 The factory setting (default setting)
for this function is set as “operational”.
This function’s operational/non-opera-
tional setting can be changed by a
SUBARU dealer. Contact a SUBARU
dealer for details.
▼
Non-operation of key lock-in
prevention function
When the system is set so that it does not
operate, the doors are locked by the
following operation.
 If the lock lever is turned to the front
(“LOCK”) position with the driver’s door
open and the driver’s door is then closed
with the lock lever in that position, the
driver’s door is locked.
 If the spare key is used to lock the
driver’s door from the outside of the
vehicle, the door is locked.
■
Battery Drainage Prevention
Function
If a door is not completely closed, the inte-
rior lights will remain illuminated as a
result. However, several lights are auto-
matically turned off by the battery
drainage prevention function to prevent
WARNING
Keep all doors locked when you
drive, especially when small chil-
dren are in your vehicle.Along with the proper use of
seatbelts, locking the doors
reduces the chance of being thrown
out of the vehicle in an accident.It also helps prevent passengers
from falling out by preventing a
door from being accidentally
opened, and intruders from unex-
pectedly opening doors and enter-
ing your vehicle.
202961
1 2
B5=B8.ERRN 113 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Alarm System
114the battery from going dead. The following
interior lights are affected by this function.NOTEThe default setting for this function
is set as “operational”. The opera-
tional/non-operation al setting of this
function can be changed by a SUBARU
dealer. Contact your SUBARU dealer to
change the setting.
 When leaving the vehicle, please
make sure that all doors are completely
closed.
 The battery drainage prevention
function does not operate when the
ignition switch is in “ACC” or “ON”
position.
 The battery drainage prevention
function for the pu sh-button ignition
switch. For details, refer to "Battery
drainage prevention function" 
P126.
2-5. Alarm SystemThe alarm system helps to protect your
vehicle and valuables from theft. The horn
sounds and the hazard warning flashers
flash if someone attempts to break into
your vehicle.
The system can be armed or disarmed
with the keyless access function or access
key fob.
The system will not be activated when the
push-button ignition switch is in the “ACC”
or “ON” position.
Your vehicle’s alarm system has been set
for deactivation at the time of shipment
from the factory. You can set the system
for activation yourself or have it done by
your SUBARU dealer. Refer to "Alarm
System Setting" P115.■
Alarm System Operation
When the alarm system is armed, it is trig-
gered by the opening any of the doors, the
trunk lid or engine hood.
The alarm system will activate the
following alarms when triggered.
 The vehicle’s horn will sound for 60
seconds.
 The hazard warning flashers, head-
lights, side marker lights, tail lights and
map lights will flash for 60 seconds.
NOTEThe alarm system can be set to trigger
the illumination of the map lights (illu-
minates only when the door interlock
switch is in the “DOOR” position).■
Arming the System
The alarm system becomes armed when
the following operation is performed.
1. Close all windows and turn the ignition
switch to the “OFF” position.
2. Carry the key and get out of the
vehicle.
3. Make sure that the engine hood is
locked.
4. Lock the doors using any of the
following methods.
Locking using the remote keyless
entry system. For details, refer to
"Remote Keyless Entry System"
 P109.
 Locking using the keyless access
function. For details, refer to "Locking
with the door lock sensor"  P99.
 Locking using the power door
locking switch. For details, refer to
"Locking using power door locking
switch" P112.
Item Switch
posi-tion Automatically turn-
ing off
Map lights DOOR Approximately 20
minutes later
Ignition
switch light ―
Approximately 20
minutes later
B5=B8.ERRN 114 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Alarm System
115
Keys and Doors2
– CONTINUED –
Security indicator light
NOTE
All doors, the trunk lid and fuel filler
lid will lock, an electronic chirp will
sound once, the hazard warning
flashers will flash once, and the secu-
rity indicator light will turn on.
 If any of the doors are not fully
closed, an electronic chirp sounds 5
seconds to alert you that the doors are
not properly closed. When you close
the door, doors will automatically lock
and the system will automatically arm
in 30 seconds.
5. Approximately 30 seconds later, the
system will enter surveillance state.
When the system is in surveillance state,
the security indicator light will then flash
slowly (once approximately every 3 seconds), indicating that the system has
been armed for surveillance.
NOTE
The system can be armed even if the
windows are open. Always make sure
that they are fully closed before arming
the system.
 If any of the following actions is
done during the standby period, the
system will not switch to the surveil-
lance state. - Doors (including the trunk lid)
are unlocked.
- Any door (including the engine
hood) is opened.
- Push-button ignition switch is
turned to the “ACC” position■
Disarming the System
Perform either of the following proce-
dures.
Briefly press a button (for less than 2
seconds) on the access key fob.
 Carry the access key fob and perform
either of the following procedures.
- Grip the door handle.
- Press the trunk opener button
- Unlock using the PIN code access.
The flashing of the security indicator light
will blinks slowly (once approximately every 3 seconds), indicating that the alarm
system has been disarmed.
▼
Emergency disarming
If you cannot disarm the system using the
access key fob, you can disarm the
system without using the access key fob.
The system can be disarmed if you turn
the ignition switch from the “OFF” position
to the “ON” position.
NOTEIf the access key fob battery is dis-
charged, perform the procedure
described in "Switching Power Status"
P326. In such a case, replace the
battery immediately. Refer to "Replac-
ing Battery of Access Key Fob"
P376.■
Alarm System Setting
To change the setting of your vehicle’s
alarm system for activation or deactiva-
tion, do the following.
1. Disarm the alarm system. Refer to
"Disarming the System" P115.
2. Sit in the driver’s seat and shut all
doors, the trunk lid and engine hood.
3. Turn the ignition switch to the “ON”
position.
204136
B5=B8.ERRN 115 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Windows
1164. Hold down “ ” of the driver’s power
door locking switch, open the driver’s door
within the following 1 second, and wait 10
seconds without releasing the switch. The
setting will then be changed as follows.NOTEYou may have the above setting
change done by your SUBARU dealer.■
If You Have Accidentally
Triggered the Alarm System
▼
To stop the alarm
Do any of the following operations:
 Press unlock button on the access key
fob.
 Turn the push-button ignition switch to
the “ACC” position.
NOTEOnly registered keys will stop the
alarm. If the immobilizer transponder
is not registered, the alarm will not
stop.
2-6. WindowsNOTE In order to make opening and
closing the doors easier, completely
closed windows are linked to door
operations. Therefore, when a door is
opened, its window opens slightly. When a door is closed, its window
closes completely. However, if the
battery has discharged or is discon-
nected, this function will not operate.

If the power window system detects
resistance, an impact or abnormality,
the window operation may be automat-
ically stopped to prevent further
jamming, entrapment or malfunction.
- The closing window slides down
slightly and stops.
- The opening window stops
sliding down.
 The power window system may
detect resistance, an impact or an
abnormality in the following cases. - A substantial sized object is
caught between the window and the
roof side (between the front pillar
and a point over the rear seat).
- A foreign object is caught
between the window and the roof
side (between the front pillar and a
point over the rear seat).
- The vehicle drives over a deep
pothole.
 The window cannot be closed for a
few seconds after th e window is auto-
matically stopped by the system.
Setting status Combination
meter display (color TFT) Horn
Activate AL ON Once
Deactivate AL OFF Twice
WARNING
To avoid serious personal injury
caused by entrapment, always con-
form to the follo wing instructions
without exception. When operating the power
windows, be extremely careful to
prevent anyone’s fingers, arms,
neck, head or other objects from
being caught in the window.Always lock the passengers’
windows using the lock switch
when children are riding in the
vehicle.Always carry the key when you
leave the vehicle for safety
reasons and never allow an unat-
tended child to remain in the
vehicle. Failure to follow this
procedure could result in injury
to a child operating the power
window.
B5=B8.ERRN 116 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Trunk Lid
121
Keys and Doors2
– CONTINUED –
■

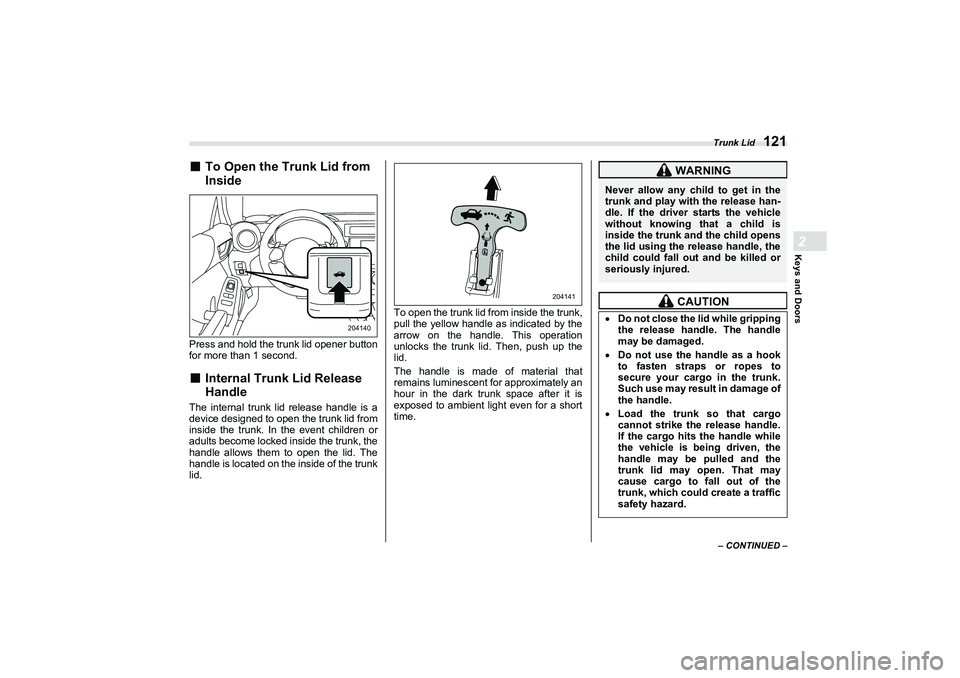

To Open the Trunk Lid from
Inside
Press and hold the trunk lid opener button
for more than 1 second.■
Internal Trunk Lid Release
Handle
The internal trunk lid release handle is a
device designed to open the trunk lid from
inside the trunk. In the event children or
adults become locked inside the trunk, the
handle allows them to open the lid. The
handle is located on the inside of the trunk
lid.To open the trunk lid from inside the trunk,
pull the yellow handle as indicated by the
arrow on the handle. This operation
unlocks the trunk lid. Then, push up the
lid.
The handle is made of material that
remains luminescent for approximately an
hour in the dark trunk space after it is
exposed to ambient light even for a short
time.
204140
204141
WARNING
Never allow any child to get in the
trunk and play with the release han-
dle. If the driver starts the vehicle
without knowing that a child is
inside the trunk and the child opens
the lid using the release handle, the
child could fall out and be killed or
seriously injured.
CAUTION

Do not close the lid while gripping
the release handle. The handle
may be damaged.Do not use the handle as a hook
to fasten straps or ropes to
secure your cargo in the trunk.
Such use may result in damage of
the handle.Load the trunk so that cargo
cannot strike the release handle.
If the cargo hits the handle while
the vehicle is being driven, the
handle may be pulled and the
trunk lid may open. That may
cause cargo to fall out of the
trunk, which could create a traffic
safety hazard.
B5=B8.ERRN 121 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Instruments and Controls3
Instruments and Controls
3-1. Push-Button Ignition Switch ..............................125
Safety Precautions ............................................ ...........125
Operating Range for Push-Button Start System .......125
Switching Power Status ...............................................125
When Access Key Fob Does Not Operate Properly.......................................................................126
3-2. Hazard Warning Flasher .....................................127
3-3. Meters and Gauges .............................................127
Speedometer .................................................................127
Tachometer ...................................................................127
Odometer and Double Trip Meter................................128
Fuel Gauge ....................................................................129
Engine Coolant Temperature Gauge ..........................129
Outside Temperature ...................................................129
Combination Meter Settings ........................................130
3-4. REV indicator light and buzzer ..........................130
3-5. Illumination Brightness Control ........................130
Auto Dimmer Cancel Function ....................................131
3-6. Warning and Indicator Lights ............................131
Seatbelt Warning Light and Chime .............................131
SRS Airbag System Warning Light .............................135
Front Passenger’s Frontal Airbag ON and OFF Indicators ....................................................................135
CHECK ENGINE Warning Light/Malfunction Indicator Light ............................................................136
Coolant Temperature Low Indicator Light/Coolant Temperature High Warning Light .............................136
Charge Warning Light ..................................................137
Oil Pressure Warning Light .........................................137
AT OIL TEMP Warning Light (AT Models) .................138
Low Tire Pressure Warning Light (If Equipped) ........138
ABS Warning Light .......................................................140
Brake System Warning Light... ....................................140Low Fuel Warning Light .............................................. 141
Door Open Indicator .................................................... 141
Power Steering Warning Light ................................... 141
TRAC OFF Indicator Light........................................... 142
Vehicle Stability Control (VSC) Warning Light/
Vehicle Stability Control (VSC) Operation
Indicator Light............................................................ 142
Vehicle Stability Control (VSC) OFF Indicator Light ........................................................................... 143
Warning Chimes and Warning Indicator of the Keyless Access with Push-Button Start System.... 143
Security Indicator Light............................................... 148
Drive Mode Indicator Light (If Equipped) .................. 148
Select Lever (AT Models Only)/Gear Position Indicator ..................................................................... 149
Cruise Control Indicator Light (White/Green)/ Cruise Control Warning Light (Yellow) (Models
without the EyeSight System) .................................. 149
Turn Signal Indicator Lights ....................................... 149
High Beam Indicator Light .......................................... 150
High Beam Assist Indicator (If Equipped) ................. 150
Automatic Headlight Beam Leveler Warning Light ............................................................................ 150
LED Headlight Warning Light ..................................... 150
Steering Responsive Headlight OFF Indicator Light (If Equipped) ..................................................... 150
Steering Responsive Headlight Warning Light (If Equipped)............................................................... 150
Headlight Indicator Light ............................................ 150
Hill Start Assist Indicator Light .................................. 150
BSD/RCTA Warning Indicator (If Equipped).............. 150
BSD/RCTA OFF Indicator (If Equipped) ..................... 150
Icy Road Surface Warning Indicator .......................... 151
B5=B8.ERRN 123 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Instruments and Controls
RAB Warning Indicator (If Equipped) ......................... 151
RAB OFF Indicator (If Equipped) ................................ 151
Master Warning Light .................................................. 151
3-7. Combination Meter Display (Color TFT) ...........151
Basic Operation............................................................ 152
Meter Information Screen ........ .................................... 152
Drive Information ......................................................... 153
Exclusive Content for SUBARU BRZ ......................... 154
Navigation System-Linked Disp lay ............................ 156
Audio System-Linked Display..................................... 156
Driving Support System Settings Display ................. 157
Settings Display ........................................................... 157
Warning Message Display ....... .................................... 159
Telltale Screen .............................................................. 159
3-8. Center Information Display (CID).......................160
Features ........................................................................ 160
Touch Screen Operations ........................................... 160
Main Screen .................................................................. 161
3-9. Clock ....................................................................172
Setting the Clock Manually ......................................... 172
Setting the Clock Automatically ................................. 173
3-10. Light Control Switch ........................................ 174
Headlights ..................................................................... 174
High/Low Beam Change (Dimmer) ............................. 176
Headlight Flasher ......................................................... 176
High Beam Assist Function (If Equipped).................. 177
Daytime Running Light System .................................. 180
3-11. Steering Responsive Headlight (SRH)
(If Equipped) ..................................................... 180
3-12. Headlight Beam Leveler .................................. 182
3-13. Turn Signal Le ver ............................................. 182
One-Touch Lane Changer ........................................... 182
3-14. Wiper and Washer ............................................ 183
Windshield Wiper and Washer Switches ................... 184
3-15. Defogger ........................................................... 185
3-16. Mirrors ............................................................... 186
Inside Mirror.................................................................. 186
Auto-Dimming Mirror/Compass with HomeLink
®
(Dealer Option) ........................................................... 186
Outside Mirrors............................................................. 194
3-17. Tilt/Telescopic Steering Wheel ....................... 195
3-18. Horn ................................................................... 195
A4600BEscusenvhch03.fm 124 ページ ２０２１年７月５日　月曜日　午後４時２２分

Hazard Warning Flasher
127
Instruments and Controls3
– CONTINUED –
3-2. Hazard Warning FlasherThe hazard warning flasher is used to
warn other drivers when you have to park
your vehicle under emergency conditions.
The hazard warning flasher works with the
ignition switch in any position.
To turn on the hazard warning flasher,
press the hazard warning button on the
instrument panel. All the turn signal lights
and the turn signal indicator lights will
flash. To turn off the flasher, press the
button again.NOTEWhen the hazard warning flasher is on,
the turn signals do not work.
3-3. Meters and GaugesNOTELiquid crystal displays are used in
some of the meters and gauges in the
combination meter. You will find their
indications hard to see if you wear
polarized glasses.■
Speedometer
The speedometer shows the vehicle
speed.
■
Tachometer
The tachometer shows the engine speed
in thousands of revolutions per minute.NOTEThe initial movement of the bar display
that occurs when the ignition switch is
turned to the “ON” position can be
activated or deactivated.
For details, refer to "General settings"
P161.
901197
CAUTION
 Do not operate the engine with
the pointer of the tachometer in
the red zone. In this range, fuel
injection will be cut by the engine
control module to protect the
engine from overrevving. The
engine will resume running
normally after the engine speed is
reduced below the red zone.Pay extra attention to the engine
speed when the engine is cold, as
the red zone will be lower than
normal.
B5=B8.ERRN 12 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
