SRS Airbag (Supplemental Restraint System Airbag)
68
120
2
3
4
6
14
9
7
5
10
11
13
12
8
15
21
22
23
17
16
19
18
102764
1) Front impact sensor (left-hand side)
2) Front impact sensor (right-hand side)
3) SRS airbag system warning light
4) Frontal airbag module (driver’s side)
5) Airbag control module (including impactsensor and rollover sensor)
6) Front passenger’s frontal airbag ON and OFF indicator
7) Frontal airbag module (front passenger’s side)
8) Seatbelt buckle switch (front passenger’s side)
9) Curtain airbag module (right-hand side)
10) Side impact sensor (door right-hand side)
11) Side airbag module (front passenger’s side)
12) Seatbelt pretensioner and adaptive force limiter (front passenger’s side)
13) Side impact sensor (center pillar right- hand side)
14) Airbag wiring
15) Side impact sensor (rear wheel house right-hand side)
16) Front passenger’s occupant detection system sensor
17) Side impact sensor (rear wheel house left-hand side)
18) Side airbag module (driver’s side)
19) Side impact sensor (center pillar left- hand side)
20) Seatbelt pretensi oner (driver’s side)
21) Side impact sensor (door left-hand side)
22) Knee airbag module (driver’s side)
23) Curtain airbag module (left-hand side)
B5=B8.ERRN 6 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

SRS Airbag (Supplemental Restraint System Airbag)
70SRS airbag system warning lightHave the system inspected by your
SUBARU dealer immediately if the SRS
airbag system warning light illuminates.
▼
Front passenger’s SRS frontal
airbag
The front passenger’s SRS frontal airbag
uses a dual stage inflator. The inflator
operates in different ways depending on
the severity of impact.
1) Occupant detection sensorsThe occupant detection system sensors
are installed between the seat and seat
rails, and monitor the physique and
posture of the front passenger. Using this
information, the occupant detection
system determines whether the front
passenger’s SRS frontal airbag should be
deployed or not.
The occupant detection system may not
inflate the front passenger’s SRS frontal
airbag even when the driver’s SRS frontal
airbag deploys. This is normal. In this
case, although the front passenger’s SRS
frontal airbag does no t operate, the front
passenger’s seatbelt pretensioner oper-
ates with the driver’s seatbelt
pretensioner. For details about the seatbelt pretensioner, refer to "Seatbelt
Pretensioners"
P44.
102698
102171
1
CAUTION
Observe the following precautions.
Failure to do so may prevent the
SUBARU advanced frontal airbag
system from functioning correctly
or cause the system to fail. Do not apply any strong impact to
the front passenger’s seat such
as by kicking.Do not let rear passengers rest
their feet between the front
seatback and seat cushion.Do not spill liquid on the front
passenger’s seat. If liquid is
spilled, wipe it off immediately.Do not remove or disassemble
the front passenger’s seat.Do not install any accessory
(such as an audio amplifier) other
than a genuine SUBARU acces-
sory under the front passenger’s
seat.Do not place anything (shoes,
umbrella, etc.) under the front
passenger’s seat.Do not place any objects (books,
etc.) around the front
passenger’s seat.
B5=B8.ERRN 0 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

SRS Airbag (Supplemental Restraint System Airbag)
71
Seat, Seatbelt and SRS Airbags1
– CONTINUED –

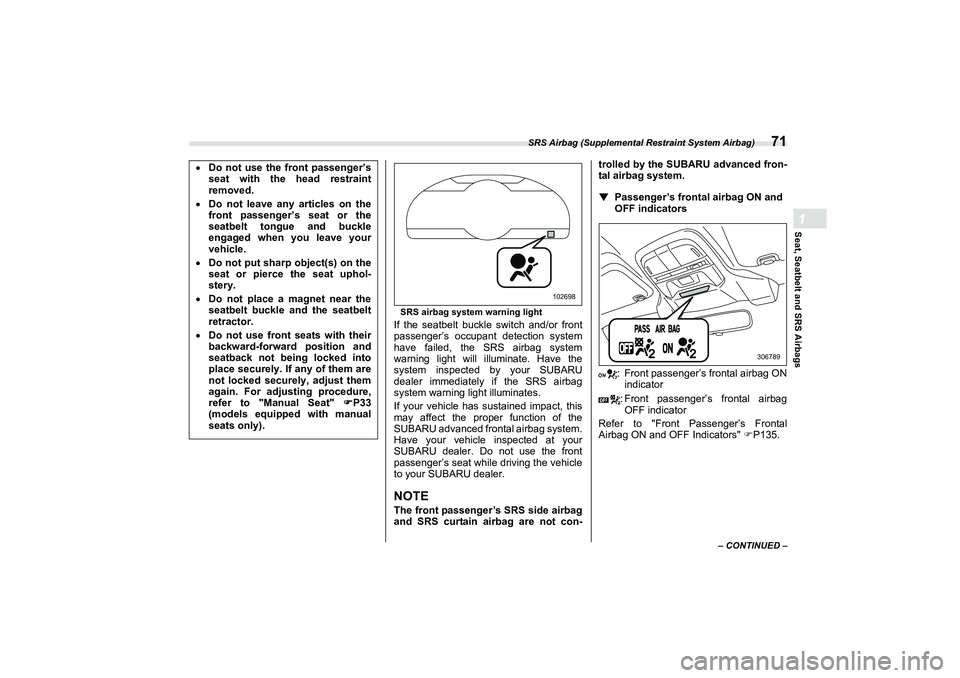

SRS airbag system warning light
If the seatbelt buckle switch and/or front
passenger’s occupant detection system
have failed, the SRS airbag system
warning light will illuminate. Have the
system inspected by your SUBARU
dealer immediately if the SRS airbag
system warning light illuminates.
If your vehicle has sustained impact, this
may affect the proper function of the
SUBARU advanced frontal airbag system.
Have your vehicle inspected at your
SUBARU dealer. Do not use the front
passenger’s seat while driving the vehicle
to your SUBARU dealer.NOTEThe front passenger’s SRS side airbag
and SRS curtain airbag are not con- trolled by the SUBARU advanced fron-
tal airbag system.
▼
Passenger’s frontal airbag ON and
OFF indicators
: Front passenger’s frontal airbag ON indicator
: Front passenger’s frontal airbag OFF indicator
Refer to "Front Passenger’s Frontal
Airbag ON and OFF Indicators" P135.
 Do not use the front passenger’s
seat with the head restraint
removed.Do not leave any articles on the
front passenger’s seat or the
seatbelt tongue and buckle
engaged when you leave your
vehicle.Do not put sharp object(s) on the
seat or pierce the seat uphol-
stery.Do not place a magnet near the
seatbelt buckle and the seatbelt
retractor.Do not use front seats with their
backward-forward position and
seatback not being locked into
place securely. If any of them are
not locked securely, adjust them
again. For adjusting procedure,
refer to "Manual Seat" 
P33
(models equipped with manual
seats only).
102698
306789
B5=B8.ERRN 1 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

SRS Airbag (Supplemental Restraint System Airbag)
72▼
Occupant detection system1) Occupant detection sensorsThe occupant detection system sensors
are installed between the seat and seat
rails, and monitor the physique and
posture of the front passenger. Using this
information, the occupant detection
system determines whether the frontpassenger’s SRS frontal airbag should be
deployed or not.
SRS airbag system warning lightIf the front passenger’s seat cushion is
wet, this may adversely affect the ability of
the system to determine deployment.
Wipe off liquid from the seat, let the seat
dry naturally and then check the SRS
airbag system warning light.
102171
1
WARNING
Do not kick the front passenger seat
or subject it to severe impact. Oth-
erwise, the SRS airbag system
warning light may illuminate to indi-
cate a malfunction of the front pas-
senger occupant detection system.
In this case, contact your SUBARU
dealer immediately.
CAUTION
Electrical devices, such as cell
phones, laptops, portable music
players, or electronic games, espe-
cially when connected to the acces-
sory power outlet and placed on the
front passenger’s seat or used by
the person sitting in the front pas-
senger’s seat, may affect the opera-
tion of the occupant detection
system. If either of the following sit-
uations occurs when using an elec-
tronic device in the vehicle, at first
try to relocate that device to avoid it
creating any interference. The SRS airbag system warning
light illuminates.The front passenger’s frontal
airbag ON and OFF indicators
operate erratically.
If the device continues to cause
interference, the use of that device
in the vehicle should be discontin-
ued.
102698
B5=B8.ERRN 2 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

SRS Airbag (Supplemental Restraint System Airbag)
87
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
▽Examples of the types of acci -
dents in which the SRS side
airbag and SRS curtain airbag
are not designed to deploy in
most cases1) The vehicle is involved in frontal colli- sion with another vehicle (moving or stationary).
2) The vehicle is struck from behind.
3) The vehicle pitches end over end.
In the event of accidents like those illus-
trated, the SRS side airbag and SRS
curtain airbag are not designed to deploy
in most cases.1) First impact
2) Second impact
A) SRS curtain airbag
B) SRS side airbagIn an accident where the vehicle is struck
from the side more than once, the SRS
side airbag and SRS curtain airbag deploy
only once on the first impact.
Example: In the case of a double side
impact collision, first with one vehicle and
immediately followed by another from the same direction, once the SRS side airbag
and SRS curtain airbag are activated on
the first impact, they will not be activated
on the second.
■
SRS Airbag System MonitorsSRS airbag system warning lightA diagnostic system continually monitors
the readiness of the SRS airbag system
(including seatbelt pretensioners) with the
ignition switch in the “ON” position. The
SRS airbag system warn
ing light will show
normal system operation by illuminating
for approximately 6 seconds when the
ignition switch is turned to the “ON” posi-
tion.
The following components are monitored
by the indicator:
 Front impact sensor
1
3 2
102056
B
A
1
2
101410
102698
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

SRS Airbag (Supplemental Restraint System Airbag)
88
- Right-hand side
- Left-hand side
 Airbag control module (including
impact sensor and rollover sensor)
 Frontal airbag module
- Driver’s side
- Front passenger’s side
 Knee airbag module
- Driver’s side
 Side impact sensor
- Center pillar left-hand side
- Center pillar right-hand side
- Forward of rear wheel house left-
hand side
- Forward of rear wheel house right-
hand side
- Door left-hand side
- Door right-hand side
 Side airbag module
- Driver’s side
- Front passenger’s side
 Curtain airbag module
- Right-hand side
- Left-hand side
 Seatbelt pretensioner and adaptive
force limiter
- Driver’s side
- Front passenger’s side
 Seatbelt buckle switch
- Front passenger’s side
 Front passenger’s occupant detection
system sensor 
Front passenger’s frontal airbag ON
and OFF indicator
 All related wiring
■
SRS Airbag System
Servicing
WARNING
If the warning light exhibits any of
the following conditions, immedi-
ately stop the vehicle in a safe
place, and consult a SUBARU
dealer. Unless a technician checks
and repairs the system as needed,
the seatbelt pretensioners and/or
the SRS airbag will not operate
properly in the event of a collision,
which may result in injury.Flashing or flickering of the
warning lightNo illumination of the warning
light when the ignition switch is
first turned to the “ON” positionContinuous illumination of the
warning lightIllumination of the warning light
while driving
WARNING
When discarding an airbag
module or scrapping the entire
vehicle damaged by a collision,
consult your SUBARU dealer.The SRS airbag has no user-
serviceable parts. Do not use
electrical test equipment on any
circuit related to the SRS airbag
system. For required servicing of
the SRS airbag, consult your
nearest SUBARU dealer.
Tampering with or disconnecting
the system’s wiring could result
in accidental inflation of the SRS
airbag or could make the system
inoperative, which may result in
serious injury.
CAUTION
If you need service or repair in
areas indicated in the following list,
have the work performed by an
authorized SUBARU dealer. The
SRS airbag control module, impact
sensors and airbag modules are
stored in these areas.
B5=B8.ERRN  ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Keys and Doors2
Keys and Doors
2-1. Keyless Access with Push-Button Start System .................................................................94
Safety Precautions ..... .......................................... ..........94
Locking and Unlocking with “Keyless Access” Entry Function ..............................................................97
Unlock Using PIN Code Access ..................................100
Power Saving Function ................................................102
Power Saving Function of Access Key Fob...............103
Disabling Keyless Access Function ...........................103
Selecting Audible Signal Operation (If Equipped).....105
Selecting Hazard Warning Flasher Operation ...........106
Warning Chimes and Warning Indicator ....................106
When Access Key Fob Does Not Operate Properly.......................................................................106
Replacing Battery of Access Key Fob ........................106
Replacing Access Key Fob..........................................106
Certification for Keyless Access with Push-Button Start System ...............................................................106
2-2. Immobilizer ..........................................................108
Security Indicator Light ...............................................108
Key Replacement..........................................................108
Certification for Immobilizer System ..........................108
2-3. Remote Keyless Entry System ..........................109
Locking the Doors ........................................................110
Unlocking the Doors ....................................................110
Opening the Trunk Lid .................................................110 Setting Audible Signal Operation (If Equipped)........ 110
Selecting Hazard Warning Flasher Operation........... 110
Vehicle Finder Function .............................................. 110
Sounding a Panic Alarm ............................................. 110
Replacing the Battery .................................................. 111
Replacing Lost Transmitters ...................................... 111
2-4. Door Locks ..........................................................111
Locking and Unlocking from the Outside ................. 111
Locking and Unlocking from the Inside .................... 112
Key Lock-In Prevention Function............................... 113
Battery Drainage Prevention Function ...................... 113
2-5. Alarm System ......................................................114
Alarm System Operation ............................................. 114
Arming the System ...................................................... 114
Disarming the System ................................................. 115
Alarm System Setting.................................................. 115
If You Have Accidentally Triggered the Alarm
System........................................................................ 116
2-6. Windows ..............................................................116
Power Window Operation ........................................... 117
Initialization of Power Window ................................... 118
2-7. Trunk Lid ..............................................................119
To Open and Close the Trunk Lid from Outside ....... 120
To Open the Trunk Lid from Inside ............................ 121
Internal Trunk Lid Release Handle ............................. 121
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Remote Keyless Entry System
110■
Locking the Doors
Press the “ ” button to lock all doors and
fuel filler lid. An electronic chirp will sound
once and the hazard warning flashers will
flash once.
If any of the doors are not fully closed, an
electronic chirp sounds 5 seconds to alert
you that the doors are not properly closed.
When you close the door, it will automati-
cally lock and then the following will occur.
 An electronic chirp sounds once.
 The hazard warning flashers flash
once.■
Unlocking the Doors
Press the “ ” button to unlock the driver’s
door and the fuel filler lid. An electronic
chirp will sound twice and the hazard
warning flashers will flash twice. To unlock
all doors, briefly press the “ ” button again
within 5 seconds.NOTEIf the interval between the first and
second presses of the “ ” button (for
unlocking of all of the doors) is
extremely short, the system may not
respond.
■
Opening the Trunk Lid
Press and hold the “ ” button to open
the trunk lid. An electronic chirp will sound
once.
This operation setting can be changed by
a SUBARU dealer. Consult your SUBARU
dealer for details.■
Setting Audible Signal Oper -
ation (If Equipped)
Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock.
If desired, you can turn the audible signal
off by operating the center information
display. For details, refer to "Car settings"
 P165. Furthermore, the volume setting
of the audible signal can also be changed
by a SUBARU dealer. Consult your
SUBARU dealer for details.■
Selecting Hazard Warning
Fl asher Operation
Using the hazard warning flasher, the
system will give you a visible signal when
the doors are locked or unlocked. If
desired, you can turn the hazard warning
flashers off by operating the center infor-
mation display. For details, refer to "Car
settings" P165. The setting can also be changed by a SUBARU dealer. Consult
your SUBARU dealer for details.
■
Vehicle Finder Function
Use this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30
feet (10 meters) of the vehicle, pressing
the “ ” button three times in a 5-second
period will cause your vehicle’s horn to
sound once and its hazard warning
flashers to flash three times.NOTEIf the interval between presses is too
short when you press the “ ” button
three times, the system may not
respond to the signals from the remote
transmitter.■
Sounding a Panic Alarm
To activate the alarm, press the “PANIC”
button once.
The horn will sound and the hazard
warning flashers, headlights, side marker
lights, tail lights and map lights will flash.
To deactivate the panic alarm, press any
button on the remote transmitter. If a
button on the remote transmitter is not
pressed, the alarm will be deactivated
after approximately 60 seconds.
B5=B8.ERRN 110 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
