2022 SUBARU BRZ Filter

Center Information Display (CID)
171
Instruments and Controls3
– CONTINUED –
5.
:“Add”
6. Enter the name.
7.
:“Next” 8. Enter the date.
9.

:“OK”
NOTEA maximum of 5 birthdays can be
stored.
▽Anniversary List
The procedure for setting an anniversary
is the same as "Birthday List" P170,
except that in step 4 “Anniversary List” is
selected. ▼
Maintenance
Maintenance reminders can be set.
Engine oil setting:
1. Touch (Maintenance).
2.
: (Engine Oil)
3. Select “Notificatio n Date” or “Notifica-
tion Distance” of the reminder.
4.
:“Set”
5.
:
Oil Filter setting:
The setting procedure is the same as
“Engine Oil” setting, but touch the “Oil
Filter” item in step 2.
Tires setting:
The setting procedure is the same as
“Engine Oil” setting, but touch the “Tires”
item in step 2.
306999307000
307001
XXXX
306164
B5=B8.ERRN 11 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Climate Control4
Climate Control
4-1. Ventilator Control................................................198
Center Ventilators.........................................................198
Side Ventilators ............................................................198
4-2. Climate Control Panel.........................................198
4-3. Automatic Climate Control Operation...............200
Sensors .........................................................................200
4-4. Manual Climate Control ......................................201
Airflow Mode Selection ................................................201
Temperature Control ....................................................202
Fan Speed Control........................................................202
Air Conditioner Control................................................202
Air Inlet Selection .........................................................203
To Turn Off the Climate Control System ....................203
4-5. Defrosting ............................................................203 4-6. Operating Tips for Heater and Air
Conditioner ......... ...............................................204
Cleaning Ventilator Grille ............................................ 204
Efficient Cooling after Parking in Direct Sunlight .... 204
Lubrication Oil Circulation in the Refrigerant
Circuit ......................................................................... 204
Checking Air Conditioning System before Summer Season ........................................................................ 204
Cooling and Dehumidifying in High Humidity and Low Temperature Weather Condition...................... 205
Air Conditioner Compressor Shut-Off When Engine Is Heavily Loaded ......................................... 205
Refrigerant for Your Climate Control System ........... 205
4-7. Air Filtration System ...........................................205
Replacing the Cabin Air Filter .................................... 206
B5=B8.ERRN 1 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Air Filtration System
205
Climate Control4
– CONTINUED –
■
Cooling and Dehumidifying
in High Humidity and Low
Temperature Weather Condi-
tion
Under certain weather conditions (high
relative humidity, low temperatures, etc.)
a small amount of water vapor emission
from the air outlets may be noticed. This
condition is normal and does not indicate
any problem with the air conditioning
system.■
Air Conditioner Compressor
Shut-Off When Engine Is
Heavily Loaded
To improve acceleration and gas mileage,
the air conditioner compressor is
designed to temporarily shut off during air
conditioner operation whenever the accel-
erator is fully depressed such as during
rapid acceleration or when driving on a
steep upgrade.
■
Refrigerant for Your Climate
Control System1) Air conditioner labelYour air conditioner uses ozone friendly
refrigerant R-1234yf (HFO-1234yf).
Before adding, changing or checking the
refrigerant, check the air conditioner label
in the location shown in the illustration to
confirm the type of refrigerant is used in
your vehicle.
Consult your SUBARU dealer for service.
Repairs needed as a result of using the
wrong refrigerant are not covered under
warranty.
4-7. Air Filtration SystemYour vehicle’s air conditioning system is
equipped with an air filtration system.
Replace the cabin air filter according to
the replacement schedule found in the
“Warranty and Maintenance Booklet”.
This schedule should be followed to main-
tain the filter’s dust collection ability.
Under extremely dusty conditions, the
filter should be replaced more frequently.
Have your filter checked or replaced by
your SUBARU dealer. For replacement,
use only a genuine SUBARU air filter kit.NOTEThe filter can influence the air condi-
tioning, heating and defroster perfor-
mance if not properly maintained.
1
403493
CAUTION
Contact your SUBARU dealer if the
following occurs, even if it is not yet
time to change the filter. Reduction of the airflow through
the vents.Windshield gets easily fogged or
misted.
B5=B8.ERRN 205 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Air Filtration System
206■

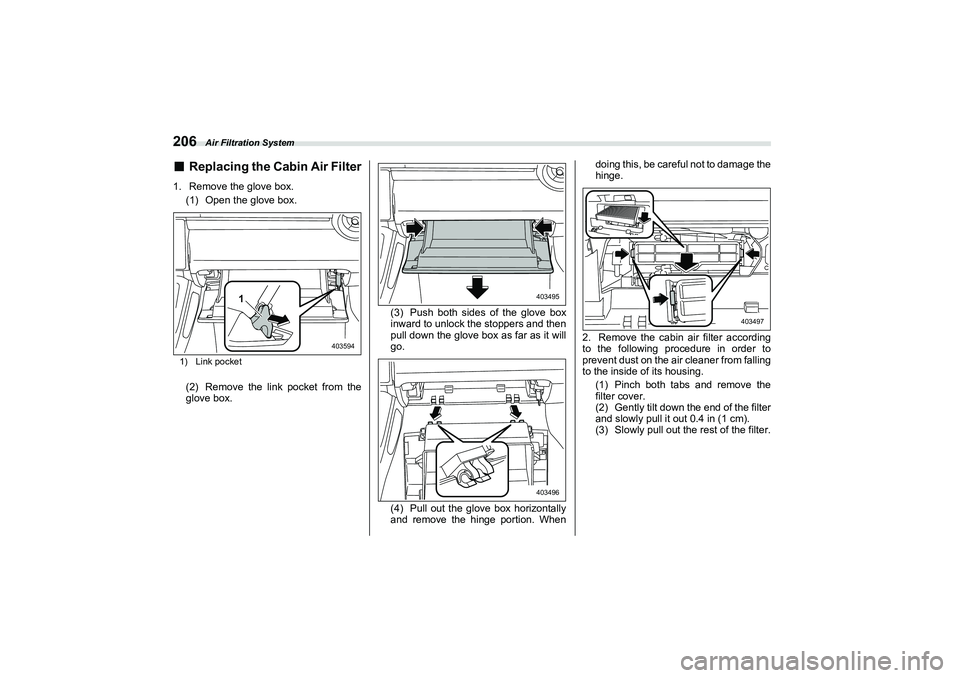

Replacing the Cabin Air Filter
1. Remove the glove box.(1) Open the glove box.1) Link pocket(2) Remove the link pocket from the
glove box. (3) Push both sides of the glove box
inward to unlock the stoppers and then
pull down the glove box as far as it will
go.
(4) Pull out the glove box horizontally
and remove the hinge portion. When doing this, be careful not to damage the
hinge.
2. Remove the cabin air filter according
to the following procedure in order to
prevent dust on the air cleaner from falling
to the inside of its housing. (1) Pinch both tabs and remove the
filter cover.
(2) Gently tilt down the end of the filter
and slowly pull it out 0.4 in (1 cm).
(3) Slowly pull out the rest of the filter.
1
403594
403495403496
403497
B5=B8.ERRN 206 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Air Filtration System
207
Climate Control4
3. Replace the cabin air filter with a new
one and then reinstall the cover.4. Reinstall the glove box in the reverse
order of removal.
5. Close the glove box.
CAUTION
The arrow mark on the filter must
point UP.
403498
403499
B5=B8.ERRN 20 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Maintenance and Service11
Maintenance and Service
11-1. Maintenance Schedule .....................................339
11-2. Maintenance Precautions.................................339
Before Checking or Servicing in the Engine
Compartment ..............................................................340
When Checking or Servicing in the Engine Compartment ..............................................................340
When Checking or Servicing in the Engine Compartment While the Engine Is Running ............341
11-3. Maintenance Tips ..............................................341
Removing and Reinstalling Clips................................341
11-4. Engine Hood ......................................................343
11-5. Engine Compartment Overview.......................345
11-6. Engine Oil ..........................................................346
Engine Oil Consumption..............................................346
Checking the Oil Level .................................................346
Changing the Oil and Oil Filter ....................................347
Recommended Grade and Viscosity ..........................347
Synthetic Oil..................................................................348
11-7. Cooling System .................................................348
Cooling Fan, Hose and Connections ..........................348
Engine Coolant .............................................................349
11-8. Air Cleaner Element ..........................................350
Replacing the Air Cleaner Element .............................350
11-9. Spark Plugs .......................................................352
Recommended Spark Plugs ........................................352
11-10. Drive Belt .........................................................352
11-11. Automatic Transmission Fluid ......................352
Recommended Grade and Viscosity ..........................352
11-12. Differential Gear Oil ........................................353
Recommended Grade and Viscosity ..........................353
11-13. Manual Transmission Oil ...............................353
Recommended Grade and Viscosity ..........................353
11-14. Brake Fluid ......................................................353
Checking the Fluid Level ............................................ 353
Recommended Brake Fluid ........................................ 354
11-15. Clutch Fluid (MT models) ...............................354
Checking the Fluid Level ............................................ 354
Recommended Clutch Fluid ....................................... 355
11-16. Brake Booster .................................................355
11-17. Brake Pedal .....................................................356
11-18. Clutch Pedal (MT models) ..............................356
11-19. Replacement of Brake Pad and Lining..........356
Breaking-in of New Brake Pads and Linings ............ 357
11-20. Parking Brake Stroke ......................................357
11-21. Tires and Wheels ............................................358
Types of Tires .............................................................. 358
Tire Pressure Monito ring System (TPMS)
(If Equipped)............................................................... 358
Tire Inspection ............................................................. 360
Tire Pressures and Wear............................................. 361
Wheel Balance ............................................................. 363
Wear Indicators ............................................................ 363
Rotational Direction of Tires....................................... 364
Tire Rotation................................................................. 364
Tire Replacement ...... ........................................... ........ 365
Wheel Replacement ..................................................... 365
11-22. Alloy Wheels ....................................................366
11-23. Windshield Washer Fluid ...............................366
11-24. Replacement of Wiper Blades........................367
Windshield Wiper Blade Assembly ............................ 368
Windshield Wiper Blade Rubber ................................ 369
11-25. Battery ..............................................................370
11-26. Fuses ................................................................371
11-27. Installation of Acce ssories ............................373
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Maintenance Schedule
339
Maintenance and Service11
– CONTINUED –

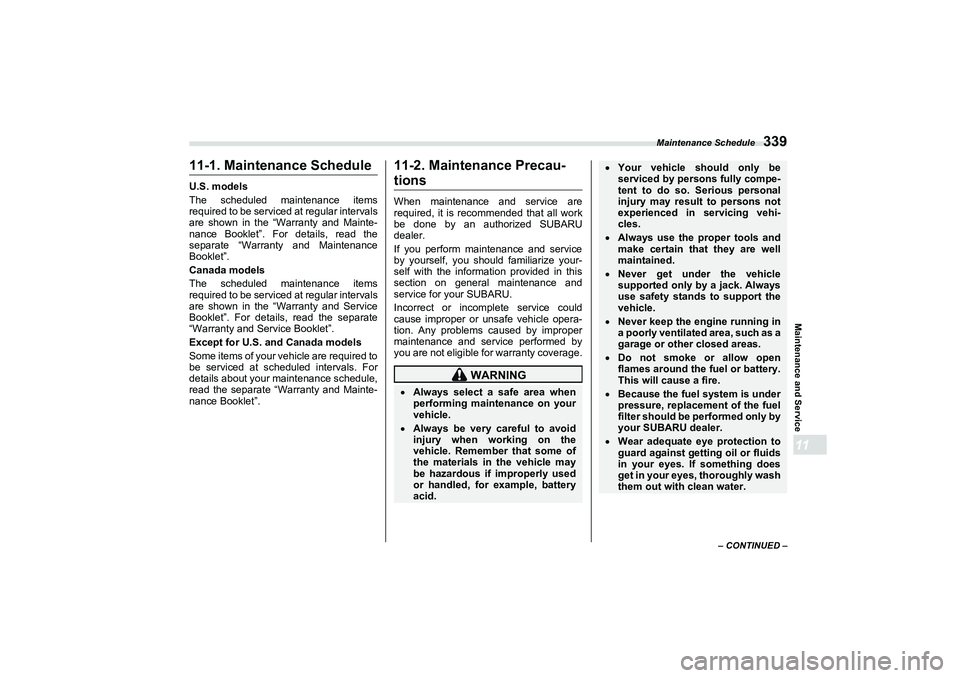

11-1. Maintenance ScheduleU.S. models
The scheduled maintenance items
required to be serviced at regular intervals
are shown in the “Warranty and Mainte-
nance Booklet”. For details, read the
separate “Warranty and Maintenance
Booklet”.
Canada models
The scheduled maintenance items
required to be serviced at regular intervals
are shown in the “Warranty and Service
Booklet”. For details, read the separate
“Warranty and Service Booklet”.
Except for U.S. and Canada models
Some items of your vehicle are required to
be serviced at scheduled intervals. For
details about your maintenance schedule,
read the separate “Warranty and Mainte-
nance Booklet”.
11-2. Maintenance Precau-tionsWhen maintenance and service are
required, it is recommended that all workbe done by an authorized SUBARU
dealer.
If you perform maintenance and service
by yourself, you should familiarize your-
self with the information provided in this
section on general maintenance and
service for your SUBARU.
Incorrect or incomplete service could
cause improper or unsafe vehicle opera-
tion. Any problems caused by improper
maintenance and service performed by
you are not eligible for warranty coverage.
WARNING
 Always select a safe area when
performing maintenance on your
vehicle.Always be very careful to avoid
injury when working on the
vehicle. Remember that some of
the materials in the vehicle may
be hazardous if improperly used
or handled, for example, battery
acid.
Your vehicle should only be
serviced by persons fully compe-
tent to do so. Serious personal
injury may result to persons not
experienced in servicing vehi-
cles.Always use the proper tools and
make certain that they are well
maintained.Never get under the vehicle
supported only by a jack. Always
use safety stands to support the
vehicle.Never keep the engine running in
a poorly ventilated area, such as a
garage or other closed areas.Do not smoke or allow open
flames around the fuel or battery.
This will cause a fire. Because the fuel system is under
pressure, replacement of the fuel
filter should be performed only by
your SUBARU dealer.Wear adequate eye protection to
guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly wash
them out with clean water.
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Maintenance Tips
341
Maintenance and Service11
– CONTINUED –
■
When Checking or Servicing
in the Engine Compartment
While the Engine Is Running
11-3. Maintenance TipsSome clips and fender linings must be
removed before replacing the air cleaner
element or specific bulbs.■
Removing and Reinstalling
Clips
▼
Removing clips
There are several types of clips used for
your vehicle.
▽Type A and D clipsType A clips Type D clips
1. Turn the clips co
unterclockwise using
a flat-head screwdriver until the center
portion of the clip is raised.
2. Remove the clips with a flat-head
screwdriver using leverage.
CAUTION
 Do not contact the belt cover
while checking the components
in the engine compartment.
Doing so may cause your hand to
slip off the belt cover and result in
an unexpected injury.Do not touch the o il filter until the
engine has cooled down
completely. Doing so may result
in a burn or other injury. Note that
the oil filter becomes very hot
when the engine is running and
remains hot for so me time after
the engine has stopped.
WARNING
A running engine can be danger-
ous. Keep your fingers, hands,
clothing, hair and tools away from
the cooling fan, belts and any other
moving engine parts. Removing
rings, watches and ties is advisable.
B01036
B01536
B5=B8.ERRN 341 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
