2022 SUBARU BRZ height

Safety Precautions When Driving
6■
Child Safety
WARNING
Never hold a child on your lap or
in your arms while the vehicle is
moving. The passenger cannot
protect the child from injury in a
collision, because the child will
be caught between the passenger
and objects inside the vehicle.While riding in th e vehicle, infants
and small children should always
be seated in the REAR seat in an
infant or child restraint system
which is appropriate for the
child’s age, height and weight. If a
child is too big for a child
restraint system, the child should
sit in the REAR seat and be
restrained using the seatbelts.
According to accident statistics,
children are safer when properly
restrained in the rear seating
positions than in the front seating
positions. Never allow a child to
stand up or kneel on the seat.
 Place children in the REAR seat
properly restrained at all times in
a child restraint system or in a
seatbelt. The SRS airbag deploys
with considerable speed and
force and can injure or even kill
children, especially if they are not
restrained or improperly
restrained. Because children are
lighter and weaker than adults,
their risk of being injured from
deployment is greater.NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT PASSENGER'S SEAT.
DOING SO RISKS SERIOUS
INJURY OR DEATH TO THE
CHILD BY PLACING THE CHILD’S
HEAD TOO CLOSE TO THE SRS
AIRBAG.Always lock the passengers’
windows using the lock switch
when children are riding in the
vehicle. Failure to follow this
procedure could result in injury
to a child operating the power
window. Refer to "Windows"

P116.
Never leave unattended children,
adults or animals in the vehicle.
They could accidentally injure
themselves or others through
inadvertent operation of the
vehicle. Also, on hot or sunny
days, temperature in a closed
vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to them.Help prevent children, adults or
animals from locking themselves
in the trunk. On hot or sunny
days, the temperature in the trunk
could quickly become high
enough to cause death or serious
heat-related injuries including
brain damage to anyone locked
inside, particularly for small chil-
dren.When leaving the vehicle, close
all windows and lock all doors.
Also make certain that the trunk
is closed.
B5=B8.ERRN 6 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Front Seats
31
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
WARNING
Seat children in the rear seat prop-
erly restrained at all times. The SRS
airbag deploys with considerable
speed and force and can injure or
even kill children, especially if they
are not restrained or improperly
restrained. Because children are
lighter and weaker than adults, their
risk of being injured from deploy-
ment is greater. For that reason, we
strongly recommend that ALL chil-
dren (including those in child
restraint systems) sit in the REAR
seat properly restrained at all times
in a child restraint system or in a
seatbelt, whichever is appropriate
for the child’s age, height and
weight. Secure ALL types of child
systems in the REAR seats at all
times.NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO THE
SRS AIRBAG.
According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating posi-
tions. For instructions and
precautions concerning child
restraint systems, refer to "Child
Restraint Systems" 
P46.
100807
WARNING
To prevent the passenger from slid-
ing under the seatbelt in the event
of a collision, always put the
seatback in the upright position
while the vehicle is in motion. Also,
do not place objects such as cush-
ions between the passenger and the
seatback. If you do so, the risk of
sliding under the lap belt and of the
lap belt sliding up over the abdo-
men will increase, and both can
result in serious internal injury or
death.
101778
B5=B8.ERRN 31 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Front Seats
33
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
■
Manual Seat
▼
Forward and backward adjustment
1. Sit in the seat to adjust.
2. Pull the lever upward, slide the seat to
the desired position, and then release the
lever.
3. Try to move the seat back and forth to
make sure that it is securely locked into
place. ▼
Reclining the seatback
1. Pull up the reclining lever, adjust the
seatback to the desired position, and then
release the lever.
2. Make sure the seatback is securely
locked into place.
The seatback placed in a reclined position
can spring back upward with force when
pulling up the lever. While operating the
lever to return the seatback, hold the
seatback lightly so t hat it may be raised
back gradually. ▼
Seat cushion height adjustment
(driver’s seat)1) Push the lever down to lower the seat.
2) Pull the lever up to raise the seat.You can adjust the height of the seat by
moving the seat cush
ion adjustment lever
up or down.
▼
Getting in and out of the rear seats
To get in and out of the rear seats, use the
reclining lever or seatback fold lever.
102662
102663
12
102664
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Seat Heater (If Equipped)
35
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
▼
Head restraint height adjustment1) Head restraint
2) Release buttonTo raise:
Pull the head restraint up.
To lower:
Push the head restraint down while
pressing the release button on the top of
the seatback.
To remove:
While pressing the release button, pull out
the head restraint.
To install:
Install the head restraint into the holes that
are located on the top of the seatback until
the head restraint locks. Press and hold
the release button to lower the head
restraint. Each head restraint should be adjusted so
that the center of the head restraint is
closest to the top of the occupant’s ears.
NOTEIt is not possible to remove or install
the head restraint wi
thout reclining the
front seatback. Reclining the front
seatback and then remove or install
the head restraint.
1-2. Seat Heater (If Equipped)The seat heater operates when the igni-
tion switch is in the “ON” position.NOTE Use of the seat heater for a long
period of time while the engine is not
running can cause battery discharge.
1 2
102668
102080
CAUTION

Do not put hard or heavy objects
or ones with protrusions on the
seat, and do not stab the seat with
sharp objects, such as pins or
needles.People with deli cate skin may
suffer slight burns even at low
temperatures if they use the seat
heater for a long period of time.
When using the heater, always be
sure to warn the persons
concerned. Do not put anything on the seat
which insulates against heat,
such as a blanket, cushion, or
similar items. This may cause the
seat heater to overheat.When the seat is warmed enough
or before you leave the vehicle,
be sure to turn off the seat heater.
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Seatbelts
39
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
1-4. Seatbelts■
Seatbelt Safety Tips
102759
WARNING
All persons in the vehicle should
fasten their seatbelts BEFORE
the vehicle starts to move. Other-
wise, the possibility of serious
injury becomes greater in the
event of a sudden stop or acci-
dent.All belts should fit snugly in order
to provide full restraint. Loose
fitting belts are not as effective in
preventing or reducing injury.Each seatbelt is designed to
support only one person. Never
use a single belt for two or more
persons – even children. Other-
wise, in an accident, serious
injury or death could result.
Replace all seatbelt assemblies
including retractors and
attaching hardware worn by
occupants of a vehicle that has
been in a serious accident. Also,
be sure to replace seatbelt
assemblies that show signs of
severe fraying or having been
cut. The entire assembly should
be replaced even if damage is not
obvious.Seat children in the rear seat
properly restrained at all times.
The SRS airbag deploys with
considerable speed and force
and can injure or even kill chil-
dren, especially if they are not
restrained or improperly
restrained. Because children are
lighter and weaker than adults,
their risk of being injured from
deployment is greater. For that
reason, we strongly recommend
that ALL children (including
those in child restraint systems)
sit in the REAR seat properly
restrained at all times in a child
restraint system or in a seatbelt,
whichever is appropriate for the
child’s height and weight. Secure
ALL types of child restraint
systems in the REAR seats at all
times.
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

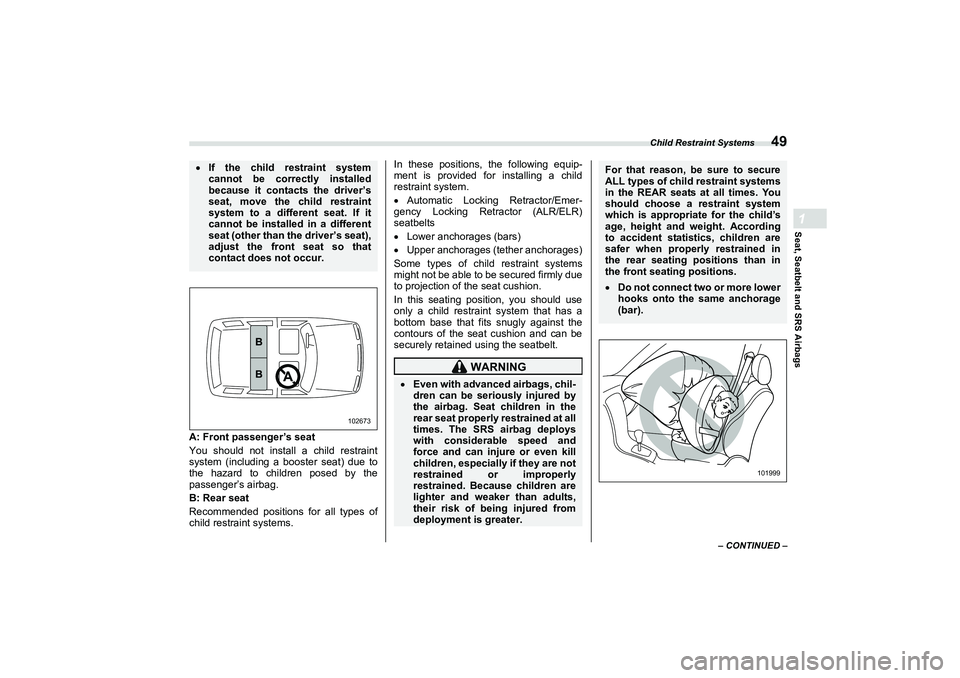

Child Restraint Systems
49
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
A: Front passenger’s seat
You should not install a child restraint
system (including a booster seat) due to
the hazard to children posed by the
passenger’s airbag.
B: Rear seat
Recommended positions for all types of
child restraint systems. In these positions, the following equip-
ment is provided for installing a child
restraint system.

Automatic Locking Retractor/Emer-
gency Locking Retractor (ALR/ELR)
seatbelts
 Lower anchorages (bars)
 Upper anchorages (tether anchorages)
Some types of child restraint systems
might not be able to be secured firmly due
to projection of the seat cushion.
In this seating position, you should use
only a child restrain t system that has a
bottom base that fits snugly against the
contours of the seat cushion and can be
securely retained using the seatbelt. If the child restraint system
cannot be correctly installed
because it contacts the driver’s
seat, move the child restraint
system to a different seat. If it
cannot be installed in a different
seat (other than the driver’s seat),
adjust the front seat so that
contact does not occur.
102673
WARNING
Even with advanced airbags, chil-
dren can be seriously injured by
the airbag. Seat children in the
rear seat properly restrained at all
times. The SRS airbag deploys
with considerable speed and
force and can injure or even kill
children, especially if they are not
restrained or improperly
restrained. Because children are
lighter and weaker than adults,
their risk of being injured from
deployment is greater.
For that reason, be sure to secure
ALL types of child restraint systems
in the REAR seats at all times. You
should choose a restraint system
which is appropriate for the child’s
age, height and weight. According
to accident statistics, children are
safer when properly restrained in
the rear seating positions than in
the front seating positions.Do not connect tw o or more lower
hooks onto the same anchorage
(bar).
101999
B5=B8.ERRN 4 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

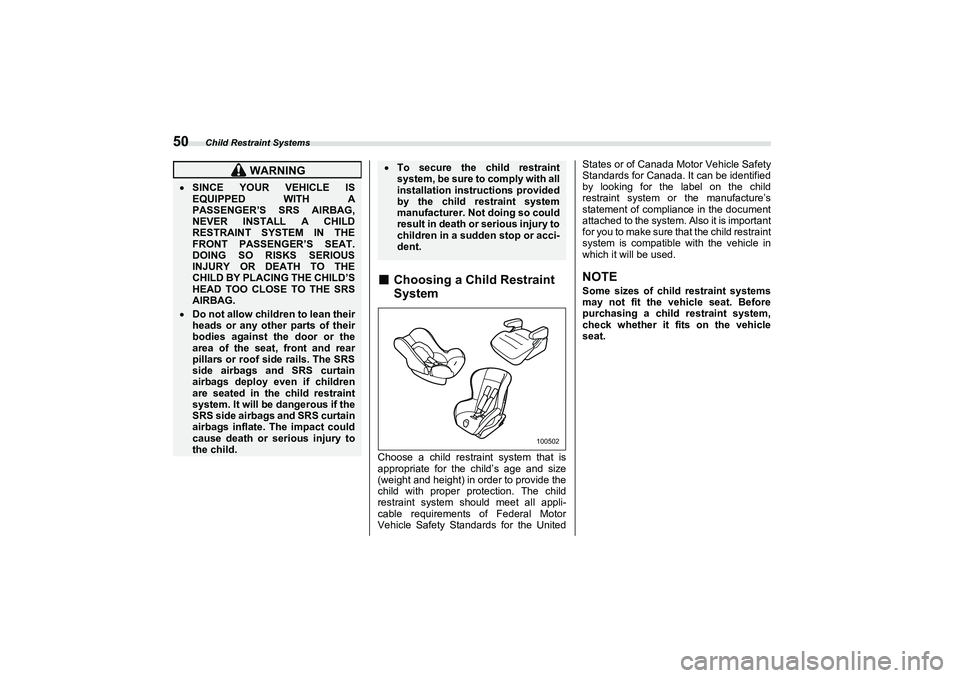

Child Restraint Systems
50
■
Choosing a Child Restraint
System
Choose a child restraint system that is
appropriate for the child’s age and size
(weight and height) in order to provide the
child with proper protection. The child
restraint system should meet all appli-
cable requirements of Federal Motor
Vehicle Safety Standards for the UnitedStates or of Canada Motor Vehicle Safety
Standards for Canada. It can be identified
by looking for the label on the child
restraint system or the manufacture’s
statement of compliance in the document
attached to the system. Also it is important
for you to make sure th
at the child restraint
system is compatible with the vehicle in
which it will be used.
NOTESome sizes of child restraint systems
may not fit the vehicle seat. Before
purchasing a child restraint system,
check whether it fits on the vehicle
seat.
WARNING
 SINCE YOUR VEHICLE IS
EQUIPPED WITH A
PASSENGER’S SRS AIRBAG,
NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT PASSENGER’S SEAT.
DOING SO RISKS SERIOUS
INJURY OR DEATH TO THE
CHILD BY PLACING THE CHILD’S
HEAD TOO CLOSE TO THE SRS
AIRBAG.Do not allow children to lean their
heads or any other parts of their
bodies against the door or the
area of the seat, front and rear
pillars or roof side rails. The SRS
side airbags and SRS curtain
airbags deploy even if children
are seated in the child restraint
system. It will be dangerous if the
SRS side airbags and SRS curtain
airbags inflate. The impact could
cause death or serious injury to
the child.
To secure the child restraint
system, be sure to comply with all
installation instructions provided
by the child restraint system
manufacturer. Not doing so could
result in death or serious injury to
children in a sudden stop or acci-
dent.
100502
B5=B8.ERRN 50 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

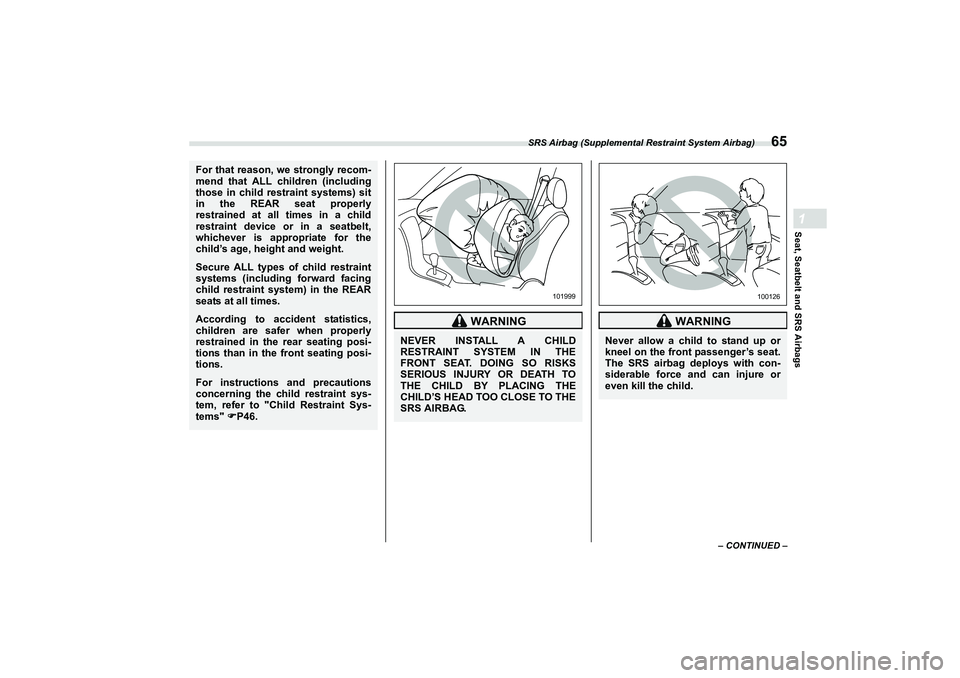

SRS Airbag (Supplemental Restraint System Airbag)
65
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
For that reason, we strongly recom-
mend that ALL children (including
those in child restraint systems) sit
in the REAR seat properly
restrained at all times in a child
restraint device or in a seatbelt,
whichever is appropriate for the
child’s age, height and weight.Secure ALL types of child restraint
systems (including forward facing
child restraint system) in the REAR
seats at all times.According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating posi-
tions.For instructions and precautions
concerning the child restraint sys-
tem, refer to "Chi ld Restraint Sys-
tems" 
P46.
WARNING
NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO THE
SRS AIRBAG.
101999
WARNING
Never allow a child to stand up or
kneel on the front passenger’s seat.
The SRS airbag deploys with con-
siderable force and can injure or
even kill the child.
100126
B5=B8.ERRN 65 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
