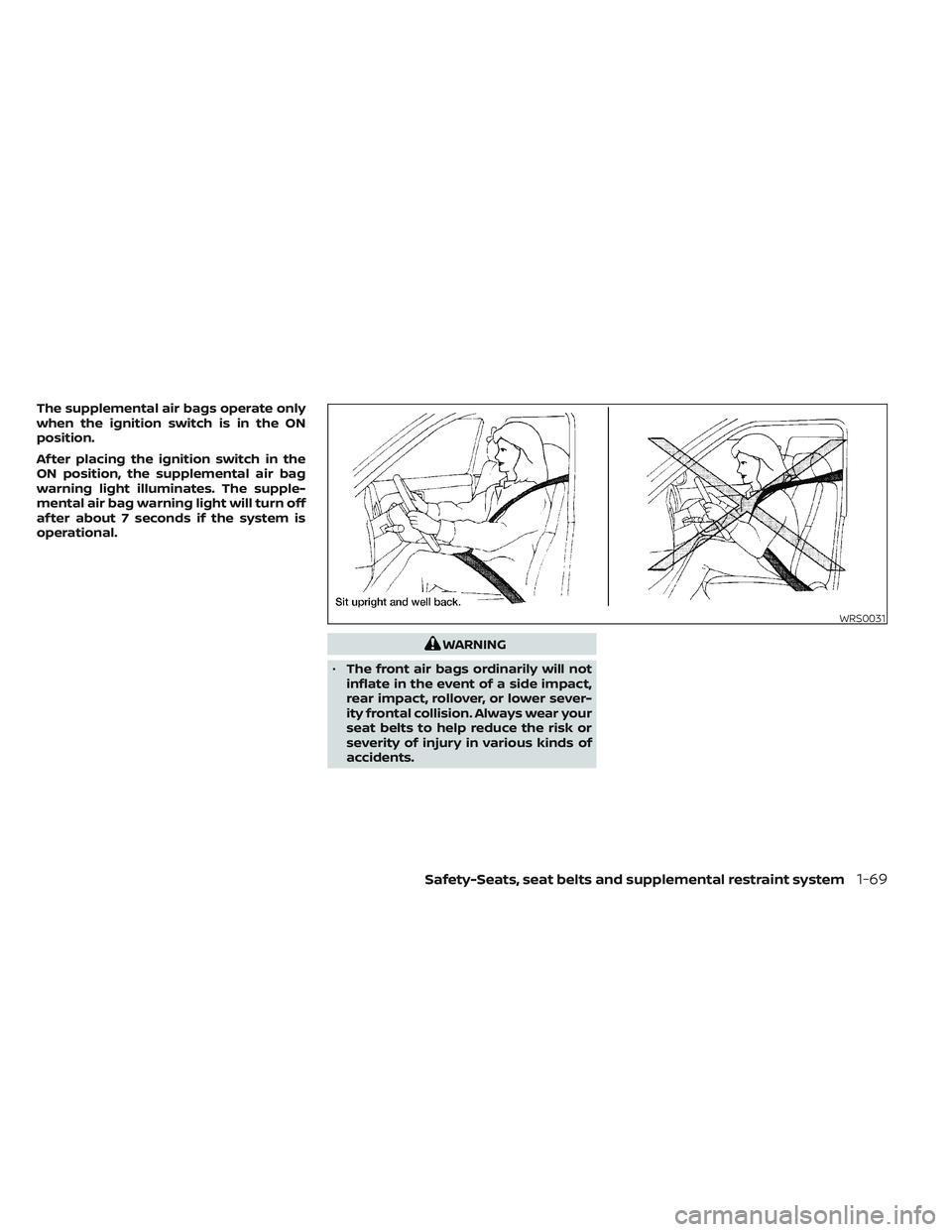

The supplemental air bags operate only
when the ignition switch is in the ON
position.
Af ter placing the ignition switch in the
ON position, the supplemental air bag
warning light illuminates. The supple-
mental air bag warning light will turn off
af ter about 7 seconds if the system is
operational.
WARNING
• The front air bags ordinarily will not
inflate in the event of a side impact,
rear impact, rollover, or lower sever-
ity frontal collision. Always wear your
seat belts to help reduce the risk or
severity of injury in various kinds of
accidents.
WRS0031
Safety-Seats, seat belts and supplemental restraint system1-69

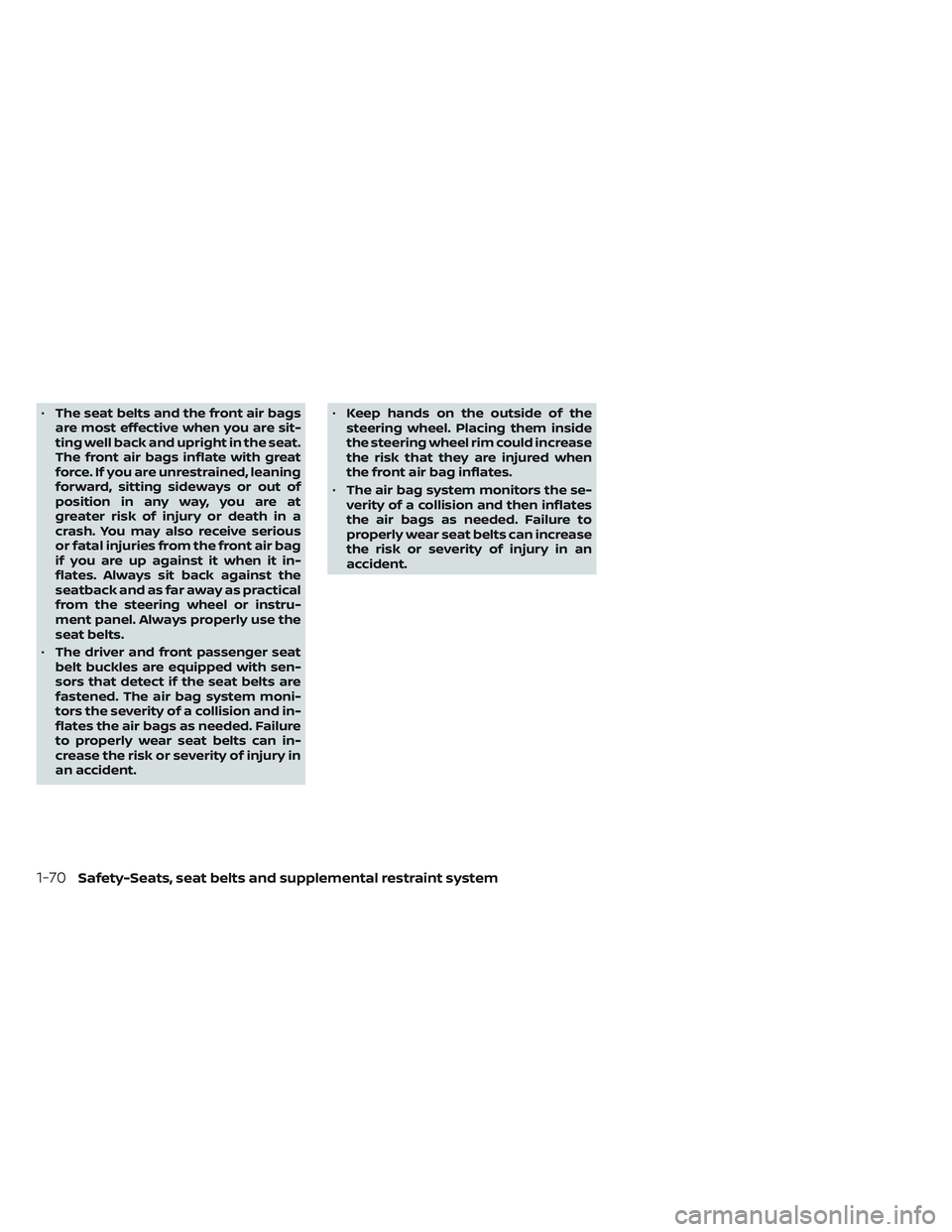

•The seat belts and the front air bags
are most effective when you are sit-
ting well back and upright in the seat.
The front air bags inflate with great
force. If you are unrestrained, leaning
forward, sitting sideways or out of
position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious
or fatal injuries from the front air bag
if you are up against it when it in-
flates. Always sit back against the
seatback and as far away as practical
from the steering wheel or instru-
ment panel. Always properly use the
seat belts.
• The driver and front passenger seat
belt buckles are equipped with sen-
sors that detect if the seat belts are
fastened. The air bag system moni-
tors the severity of a collision and in-
flates the air bags as needed. Failure
to properly wear seat belts can in-
crease the risk or severity of injury in
an accident. •
Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could increase
the risk that they are injured when
the front air bag inflates.
• The air bag system monitors the se-
verity of a collision and then inflates
the air bags as needed. Failure to
properly wear seat belts can increase
the risk or severity of injury in an
accident.
1-70Safety-Seats, seat belts and supplemental restraint system

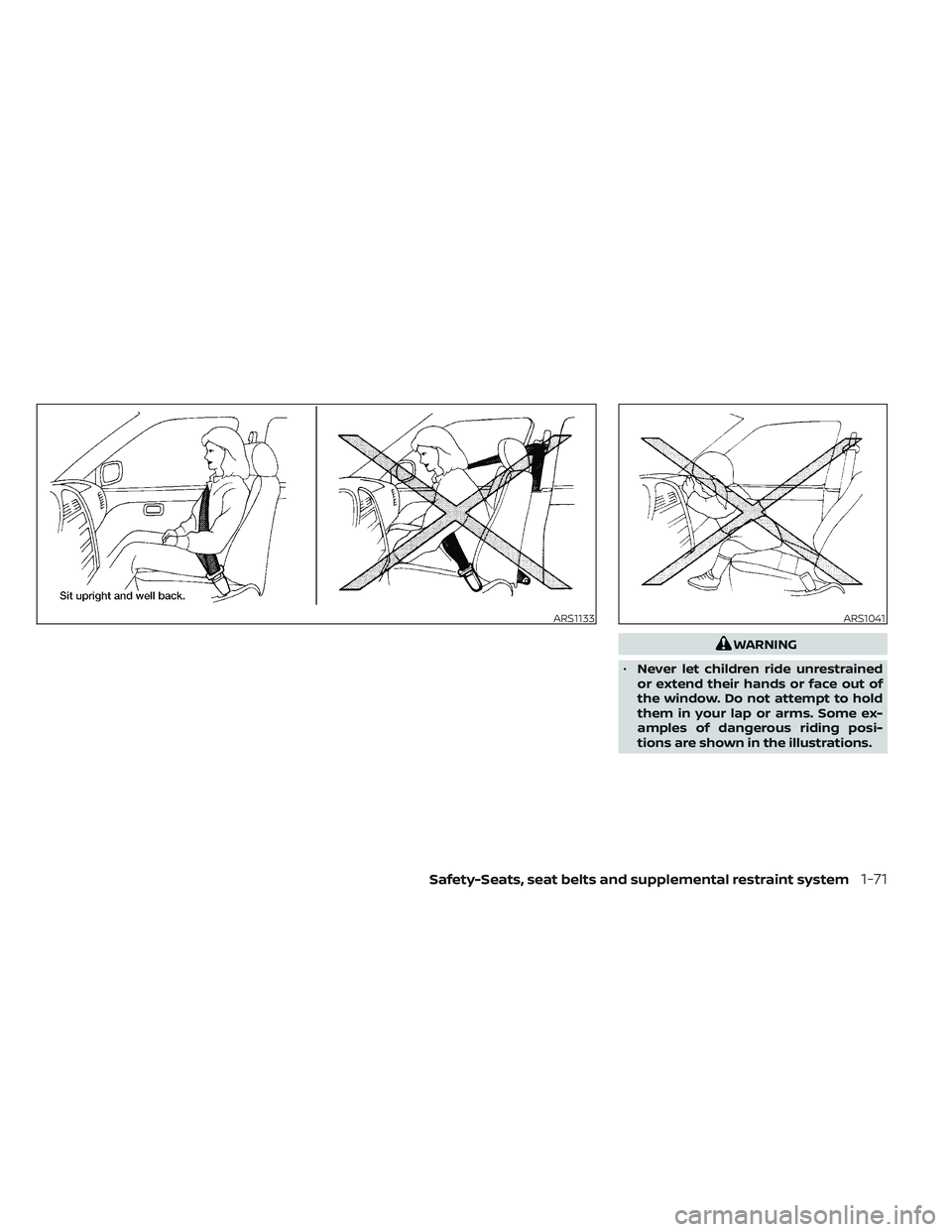

WARNING
• Never let children ride unrestrained
or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some ex-
amples of dangerous riding posi-
tions are shown in the illustrations.
ARS1133ARS1041
Safety-Seats, seat belts and supplemental restraint system1-71

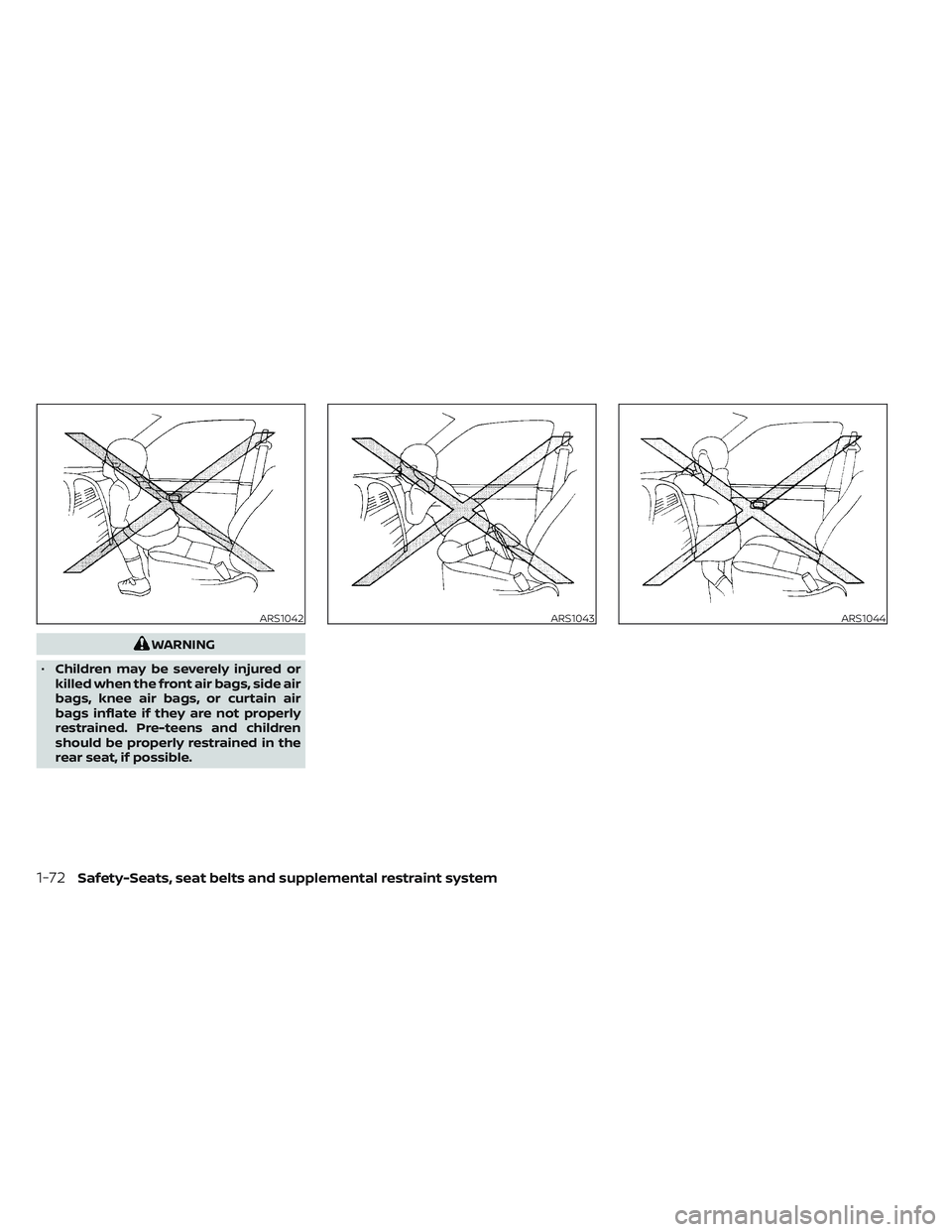

WARNING
• Children may be severely injured or
killed when the front air bags, side air
bags, knee air bags, or curtain air
bags inflate if they are not properly
restrained. Pre-teens and children
should be properly restrained in the
rear seat, if possible.
ARS1042ARS1043ARS1044
1-72Safety-Seats, seat belts and supplemental restraint system

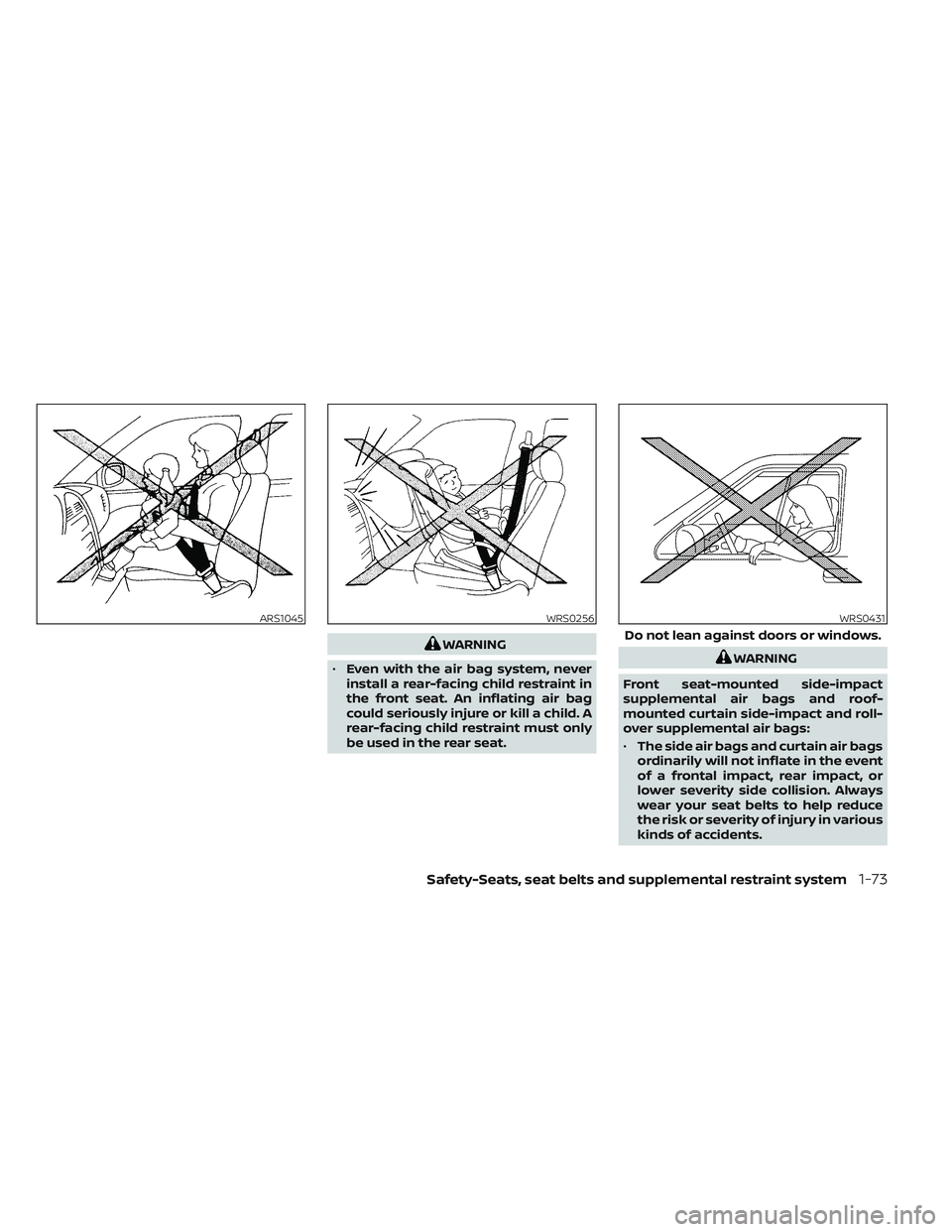

WARNING
• Even with the air bag system, never
install a rear-facing child restraint in
the front seat. An inflating air bag
could seriously injure or kill a child. A
rear-facing child restraint must only
be used in the rear seat.WARNING
Front seat-mounted side-impact
supplemental air bags and roof-
mounted curtain side-impact and roll-
over supplemental air bags:
• The side air bags and curtain air bags
ordinarily will not inflate in the event
of a frontal impact, rear impact, or
lower severity side collision. Always
wear your seat belts to help reduce
the risk or severity of injury in various
kinds of accidents.
ARS1045WRS0256WRS0431
Do not lean against doors or windows.
Safety-Seats, seat belts and supplemental restraint system1-73

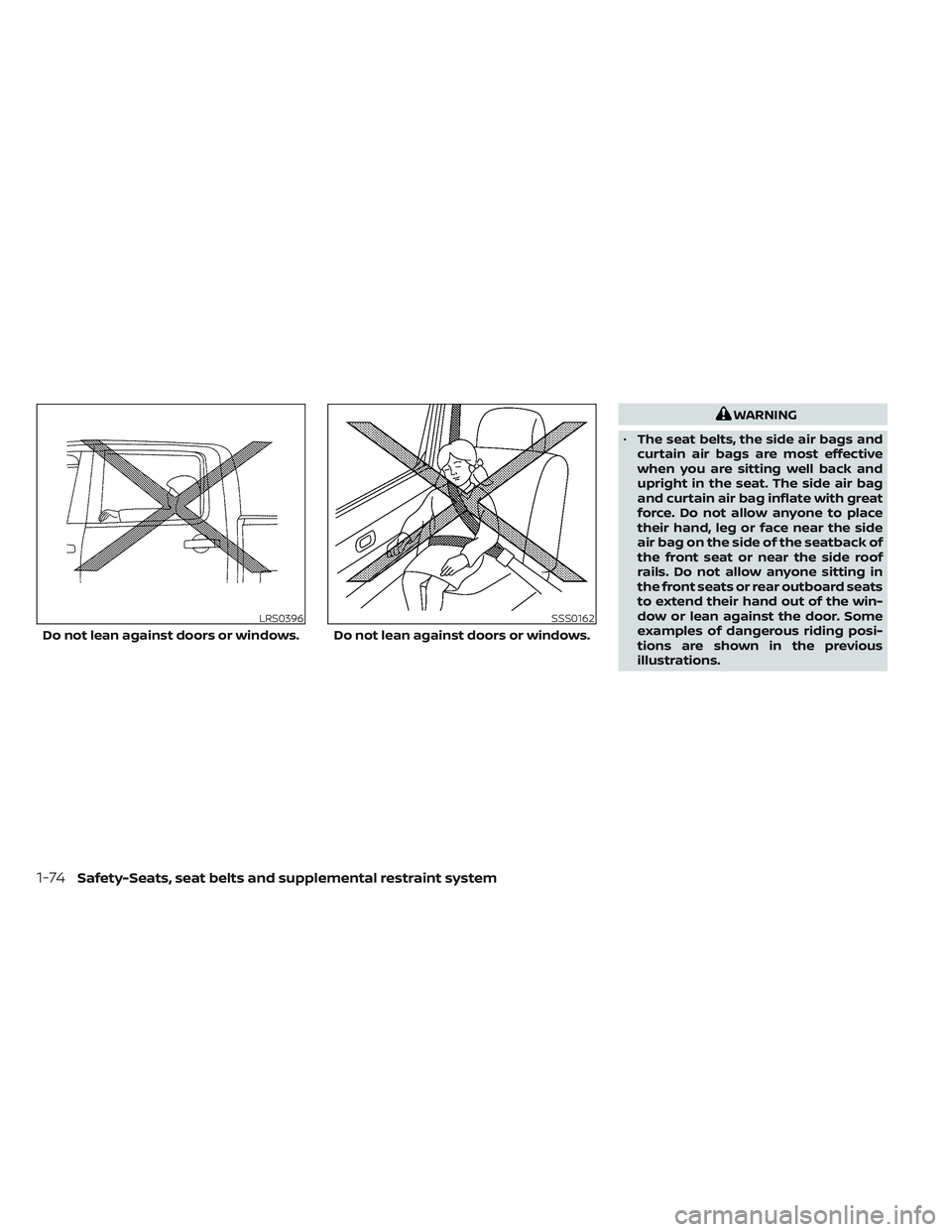

WARNING
• The seat belts, the side air bags and
curtain air bags are most effective
when you are sitting well back and
upright in the seat. The side air bag
and curtain air bag inflate with great
force. Do not allow anyone to place
their hand, leg or face near the side
air bag on the side of the seatback of
the front seat or near the side roof
rails. Do not allow anyone sitting in
the front seats or rear outboard seats
to extend their hand out of the win-
dow or lean against the door. Some
examples of dangerous riding posi-
tions are shown in the previous
illustrations.
LRS0396
Do not lean against doors or windows.
SSS0162
Do not lean against doors or windows.
1-74Safety-Seats, seat belts and supplemental restraint system

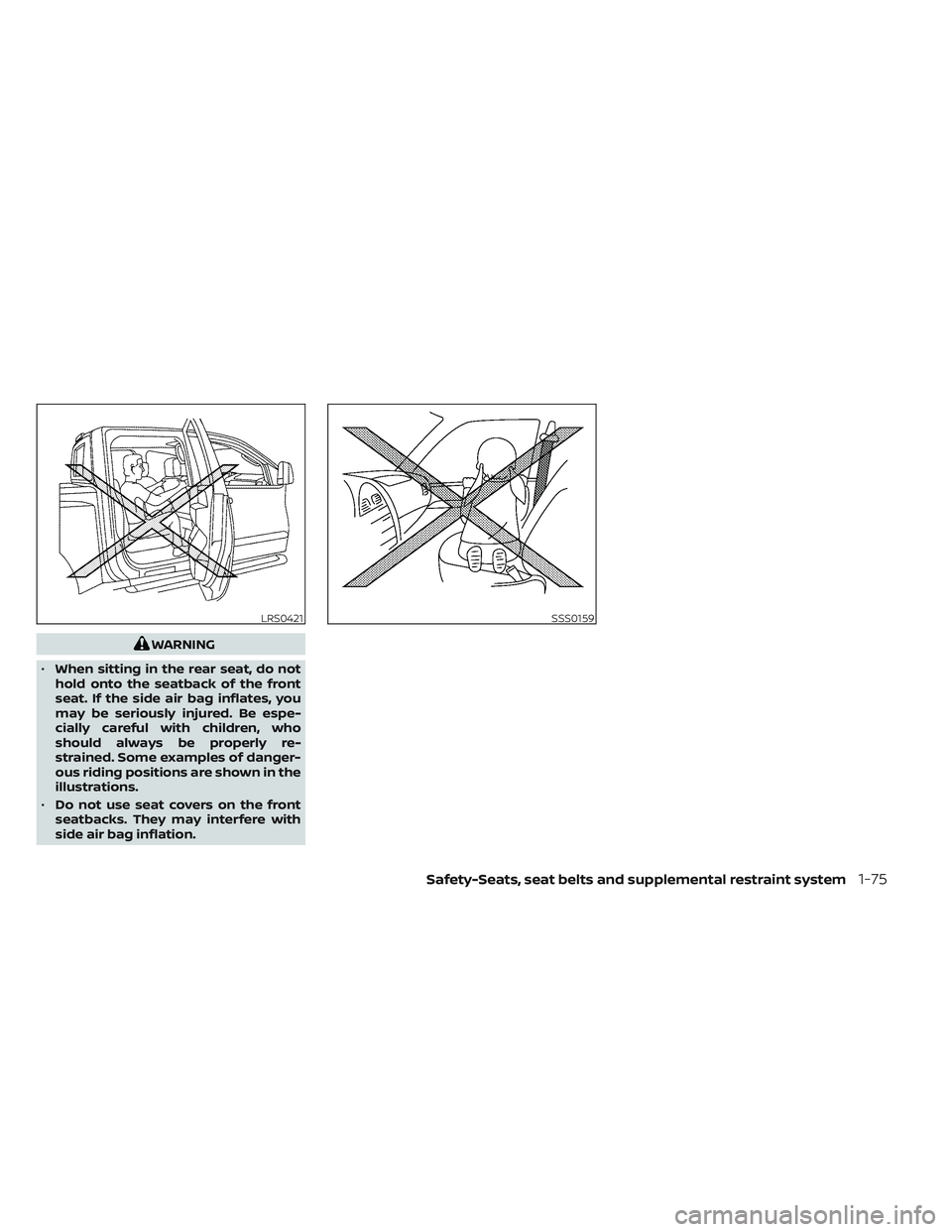

WARNING
• When sitting in the rear seat, do not
hold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe-
cially careful with children, who
should always be properly re-
strained. Some examples of danger-
ous riding positions are shown in the
illustrations.
• Do not use seat covers on the front
seatbacks. They may interfere with
side air bag inflation.
LRS0421SSS0159
Safety-Seats, seat belts and supplemental restraint system1-75

Supplemental air bag system
1. Roof-mounted curtain side-impact androllover supplemental air bags inflators 2. Roof-mounted curtain side-impact and
rollover supplemental air bags
3. Air bag Control Unit (ACU) 4. Supplemental front-impact air bag
modules
5. Crash zone sensor
6. Driver and front passenger supplement knee air bags
7. Seat belt buckle switches
8. Seat belt with pretensioner(s) (front seats) (passenger’s side shown;
driver’s side similar)
9. Front seat-mounted side-impact supplemental air bag modules
(passenger’s side shown; driver’s side
similar)
10. Satellite sensors (passenger’s side shown; driver’s side similar)
11. Seat belt with pretensioner(s) (rear outboard seats) (passenger's side
shown; driver's side similar)
This vehicle is equipped with supplemental
front air bag system for the driver and right
front passenger seats. This system is de-
signed to meet certification requirements
under U.S. regulations. It is also permitted in
Canada. However, all of the information,
cautions and warnings in this manual
still apply and must be followed.
LRS3295
