2022 MERCEDES-BENZ GLE COUPE Owners Manual

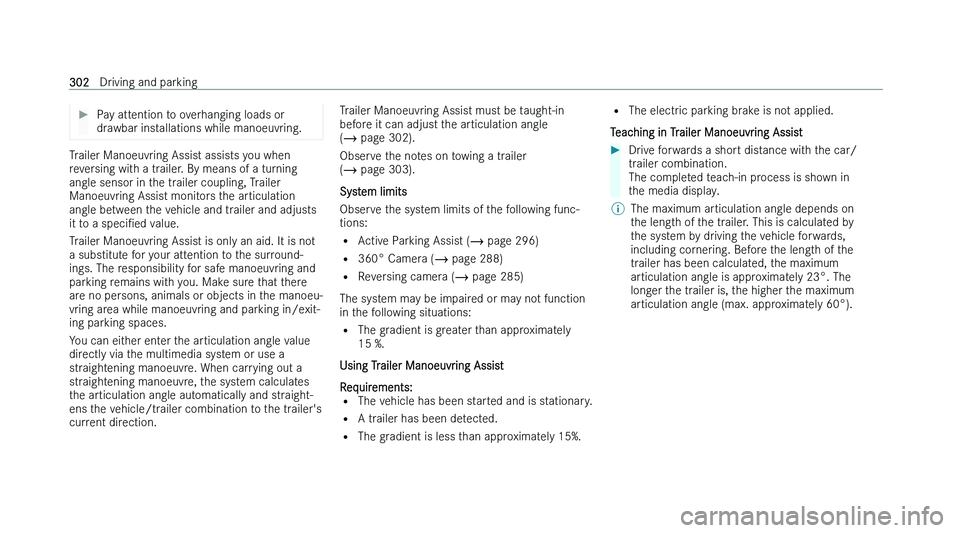

Pay attention to overhanging loads or
dr
awbar installations while manoeuvring. Trailer Manoeuvring Assist assists you when
r

eversing with a trailer. By means of a turning
angle sensor in the trailer coupling, Trailer
Manoeuvring Assist monitors the articulation
angle between the vehicle and trailer and adjusts
it to a speciNed value.
Trailer Manoeuvring Assist is only an aid. It is not
a substitute for your attention to the surround-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
You can either enter the articulation angle value
directly via the multimedia system or use a
straightening manoeuvre. When carrying out a
straightening manoeuvre, the system calculates
the articulation angle automatically and straight-
ens the vehicle/trailer combination to the trailer's
current direction. Trailer Manoeuvring Assist must be taught-in
bef
ore it can adjust the articulation angle
( page 302).
Observe the notes on towing a trailer
( page 303).
System limits
Observe the system limits of the following func-
tions:
= Active Parking Assist (  page 296)
= 360° Camera ( page 288)
= Reversing camera ( page 285)
The system may be impaired or may not function
in the following situations:
= The gradient is greater than approximately
15 %.
Using Trailer Manoeuvring Assist
Requirements:
= The vehicle has been started and is stationary.
= A trailer has been detected.
= The gradient is less than approximately 15%. =
The electr ic parking brake is not applied.
Teaching in Trailer Manoeuvring Assist
Drive forwards a short distance with the car/
tr
ailer combination.
The completed teach-in process is shown in
the media display.
% The maximum articulation angle depends on
t

he length of the trailer. This is calculated by
the system by driving the vehicle forwards,
including cornering. Before the length of the
trailer has been calculated, the maximum
articulation angle is approximately 23°. The
longer the trailer is, the higher the maximum
articulation angle (max. approximately 60°). 302
Driving and parking

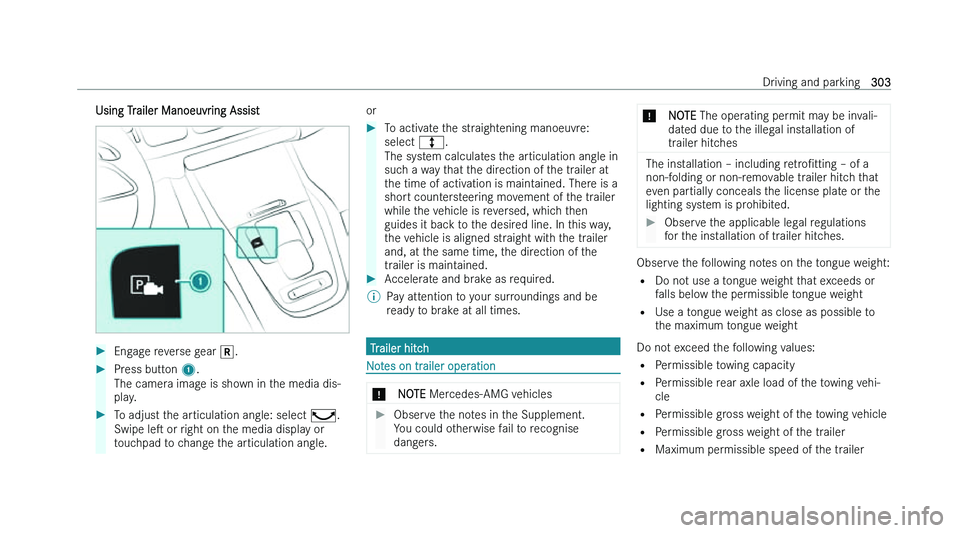

Using Trailer Manoeuvring Assist

Engage reverse gear k.
Press button 1.
The camer
a image is shown in the media dis-
play.
To adjust the articulation angle: select

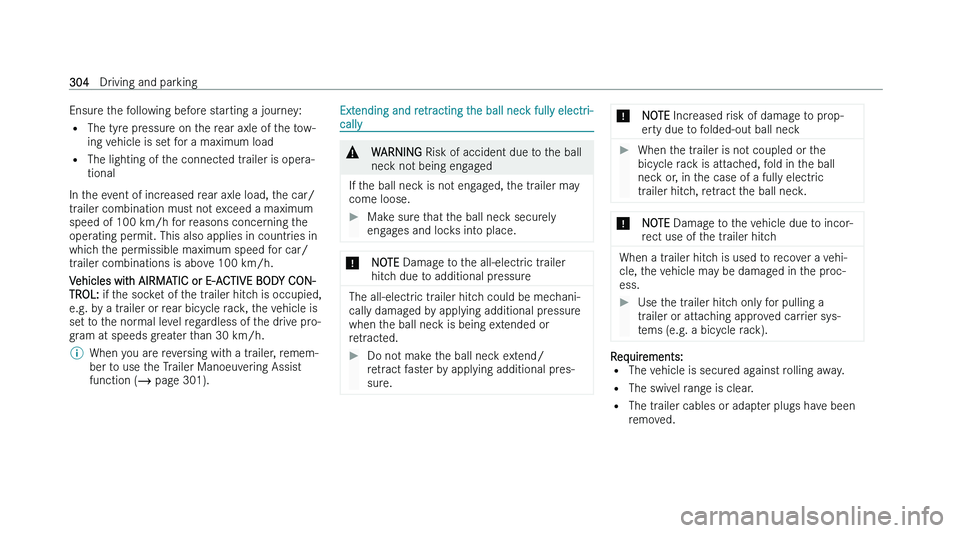

Ensure the following before starting a journey:
= The tyr
e pressure on the rear axle of the tow-
ing vehicle is set for a maximum load
= The lighting of the connected trailer is opera-
tional
In the event of increased rear axle load, the car/
trailer combination must not exceed a maximum
speed of 100 km/h for reasons concerning the
operating permit. This also applies in countries in
which the permissible maximum speed for car/
trailer combinations is above 100 km/h.
Vehicles with AIRMATIC or E-ACTIVE BODY CON-
TROL: if the socket of the trailer hitch is occupied,
e.g. by a trailer or rear bicycle rack, the vehicle is
set to the normal level regardless of the drive pro-
gram at speeds greater than 30 km/h.
% When you are reversing with a trailer, remem-
ber t

o use the Trailer Manoeuvering Assist
function (  page 301). Extending and retracting the ball neck fully electri-
call
y &
WARNING Risk of accident due t
o the ball
neck not being engaged
If the ball neck is not engaged, the trailer may
come loose.
Make sure that the ball neck securely
eng

ages and locks into place. *
NOTE Damag
e to the all-electric trailer
hitch due to additional pressure The all-electric trailer hitch could be mechani-
call
y damaged by applying additional pressure
when the ball neck is being extended or
retracted.
Do not make the ball neck extend/
r

etract faster by applying additional pres-
sure. *
NOTE Incr
eased risk of damage to prop-
erty due to folded-out ball neck
When the trailer is not coupled or the
bicy
cle rack is attached, fold in the ball
neck or, in the case of a fully electric
trailer hitch, retract the ball neck. *
NOTE Damag
e to the vehicle due to incor-
rect use of the trailer hitch When a trailer hitch is used to recover a vehi-
cle, t
he vehicle may be damaged in the proc-
ess.
Use the trailer hitch only for pulling a
tr

ailer or attaching approved carrier sys-
tems (e.g. a bicycle rack). Requirements:
= The v

ehicle is secured against rolling away.
= The swivel range is clear.
= The trailer cables or adapter plugs have been
removed. 304
Driving and parking

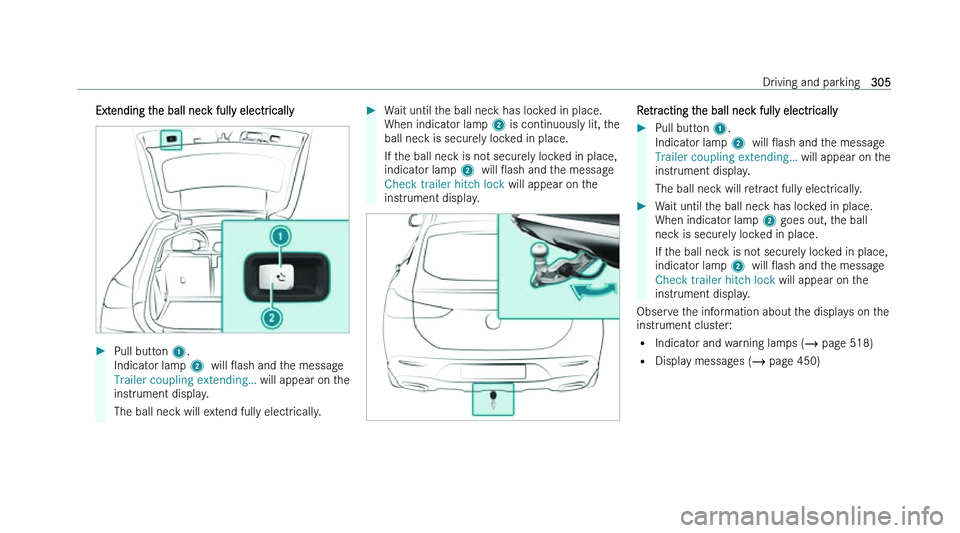

Extending the ball neck fully electrically

Pull button 1.
Indicat or lamp 2 will Oash and the message
Trailer coupling extending

Extending and retracting the ball neck fully electri-
call y (multimedia system) &
WARNING Risk of accident due t
o the ball
neck not being engaged
If the ball neck is not engaged, the trailer may
come loose.
Always engage the ball neck as descri-
bed. *
NOTE Damag
e to the all-electric trailer
hitch due to additional pressure The all-electric trailer hitch could be mechani-
call
y damaged by applying additional pressure
when the ball neck is being extended or
retracted.
Do not make the ball neck extend/
r

etract faster by applying additional pres-
sure. Requirements:
= The v

ehicle is secured against rolling away.
= The swivel range is clear. =
The tr
ailer cables or adapter plugs have been
removed.
Multimedia system: 4 © 5
Settings 5
Quick access
Extending the ball neck fully electrically
Select


Do not lock or unlock the vehicle. Requirements:
= The ball nec
k is extended and engaged in a
securely locked position.
= Vehicles with level control: ensure the vehicle
is at the normal level ( page 276).
Use the normal level in trailer operation. High-
level driving is not permitted in trailer opera-
tion on public roads.
Trailers with a 7-pin plug can be connected to the
vehicle with the following adapters:
= Adapter plug
= Adapter cable
The trailer will be correctly detected by the vehi-
cle only if the following conditions are met:
= The trailer is connected correctly.
= The trailer lighting system is in working order.
The functions of the following systems will be
aMected by a correctly connected trailer: = ESP n
trailer stabilisation =
T
railer Manoeuvering Assist
= Active Lane Keeping Assist
= Parking Assist PARKTRONIC
= Active Parking Assist
= Blind Spot Assist or Active Blind Spot Assist
= Drive Away Assist
= Cross TraPc Alert
= Reversing camera
= 360° camera
= AIRMATIC
= E-ACTIVE BODY CONTROL

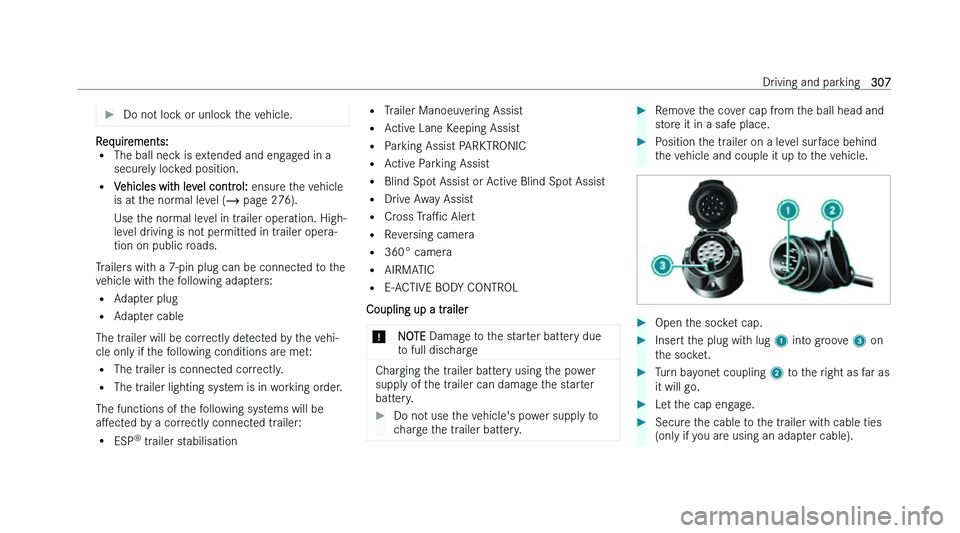

Coupling up a trailer
* NOTE Damag
e to the starter battery due
to full discharge Charging the trailer battery using the power
suppl

y of the trailer can damage the starter
battery.
Do not use the vehicle's power supply to
c

harge the trailer battery.
Remove the cover cap from the ball head and
s

tore it in a safe place.
Position the trailer on a level surface behind
t

he vehicle and couple it up to the vehicle.
Open the socket cap.
Insert the plug with lug 1 int
o groove 3 on
the socket.
Turn bayonet coupling 2 t
o the right as far as
it will go.
Let the cap engage.
Secure the cable to the trailer with cable ties
(onl
y if you are using an adapter cable). Driving and parking
307

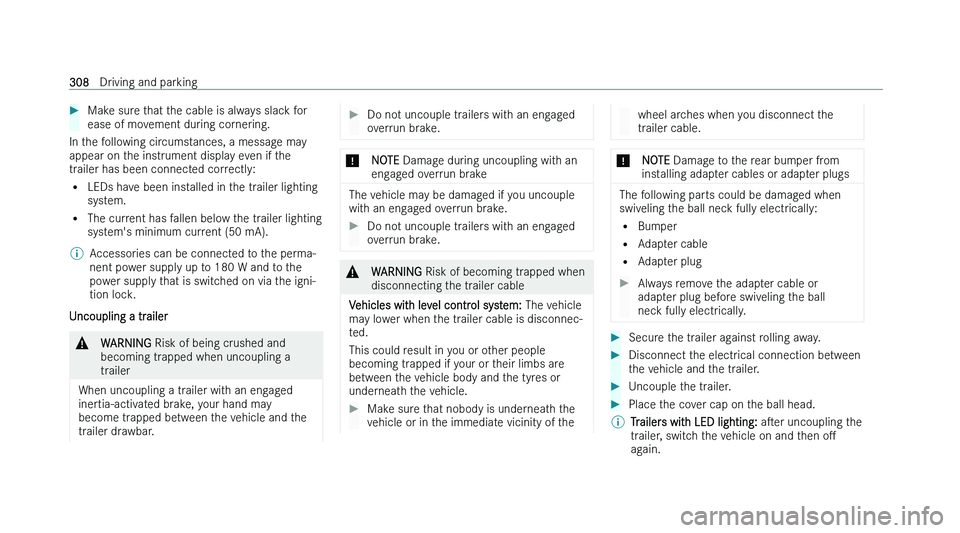

Make sure that the cable is always slack for
ease of mo vement during cornering.
In the following circumstances, a message may
appear on t
he instrument display even if the
trailer has been connected correctly:
= LEDs have been installed in the trailer lighting
system.
= The current has fallen below the trailer lighting
system's minimum current (50 mA).
% Accessories can be connected to the perma-
nent po

wer supply up to 180 W and to the
power supply that is switched on via the igni-
tion lock.
Uncoupling a trailer &
WARNING Risk of being cr
ushed and
becoming trapped when uncoupling a
trailer
When uncoupling a trailer with an engaged
iner
tia-activated brake, your hand may
become trapped between the vehicle and the
trailer drawbar.
Do not uncouple trailers with an engaged
o
verrun brake. *
NOTE Damag
e during uncoupling with an
engaged overrun brake The vehicle may be damaged if you uncouple
wit
h an engaged overrun brake.
Do not uncouple trailers with an engaged
o
verrun brake. &
WARNING Risk of becoming tr
apped when
disconnecting the trailer cable
Vehicles with level control system: The v
ehicle
may lower when the trailer cable is disconnec-
ted.
This could result in you or other people
becoming trapped if your or their limbs are
between the vehicle body and the tyres or
underneath the vehicle.
Make sure that nobody is underneath the
v

ehicle or in the immediate vicinity of the wheel arches when you disconnect the
tr
ailer cable. *
NOTE Damag
e to the rear bumper from
installing adapter cables or adapter plugs The following parts could be damaged when
swiv
eling the ball neck fully electrically:
= Bumper
= Adapter cable
= Adapter plug
Always remove the adapter cable or
adap

ter plug before swiveling the ball
neck fully electrically.
Secure the trailer against rolling away.
Disconnect the electrical connection between
t

he vehicle and the trailer.
Uncouple the trailer.
Place the cover cap on the ball head.
% Trailers with LED lighting: aser uncoupling t
he
trailer, switch the vehicle on and then oM
again. 308
Driving and parking

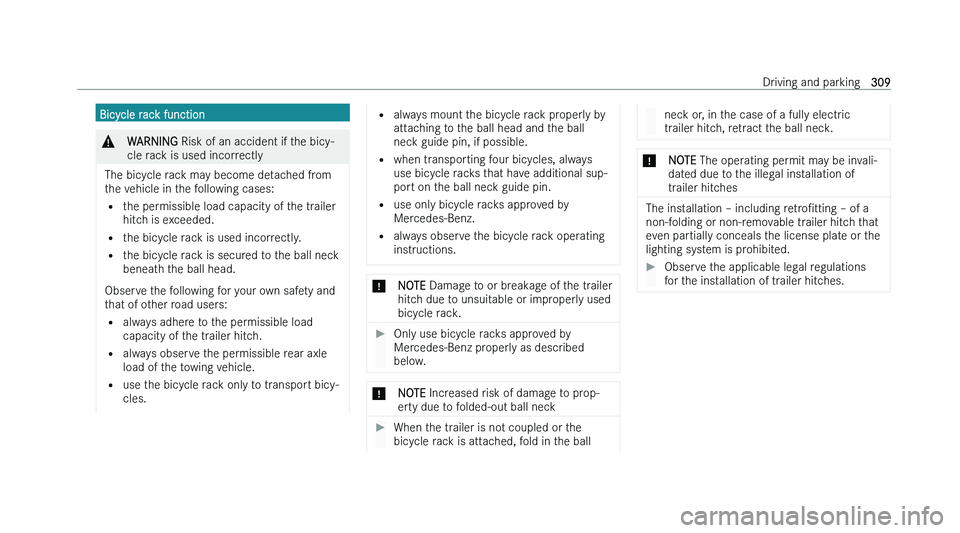

Bicycle rack function
&
WARNING Risk of an accident if t he bicy-
cle rack is used incorrectly
The bicycle rack may become detached from
t
he vehicle in the following cases:
= the permissible load capacity of the trailer
hitch is exceeded.
= the bicycle rack is used incorrectly.
= the bicycle rack is secured to the ball neck
beneath the ball head.
Observe the following for your own safety and
that of other road users:
= always adhere to the permissible load
capacity of the trailer hitch.
= always observe the permissible rear axle
load of the towing vehicle.
= use the bicycle rack only to transport bicy-
cles. =
alw
ays mount the bicycle rack properly by
attaching to the ball head and the ball
neck guide pin, if possible.
= when transporting four bicycles, always
use bicycle racks that have additional sup-
port on the ball neck guide pin.
= use only bicycle racks approved by
Mercedes-Benz.
= always observe the bicycle rack operating
instructions. *
NOTE Damag
e to or breakage of the trailer
hitch due to unsuitable or improperly used
bicycle rack.
Only use bicycle racks approved by
Mer
cedes-Benz properly as described
below. *
NOTE Incr
eased risk of damage to prop-
erty due to folded-out ball neck
When the trailer is not coupled or the
bicy
cle rack is attached, fold in the ball neck or, in the case of a fully electric
tr
ailer hitch, retract the ball neck. *
NOTE The oper
ating permit may be invali-
dated due to the illegal installation of
trailer hitches The installation !
