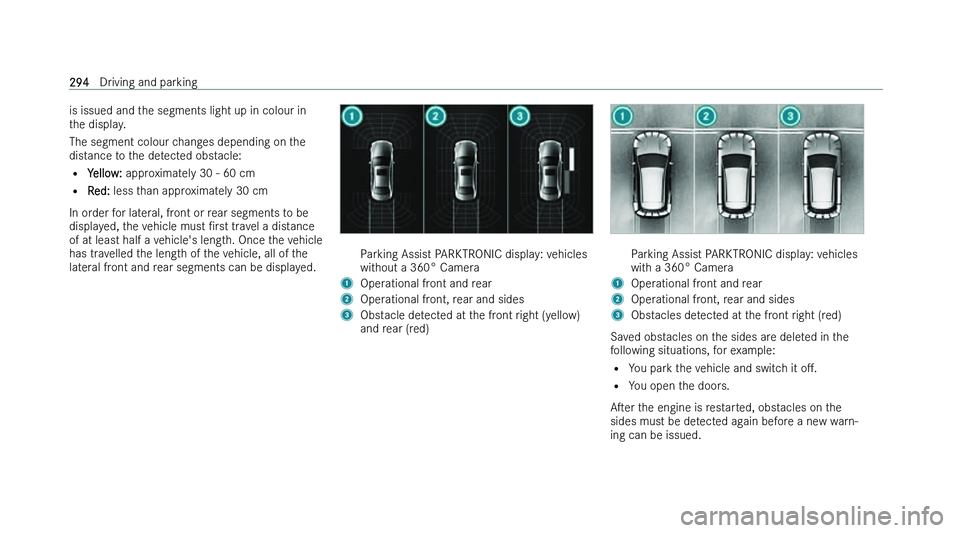

is issued and the segments light up in colour in
t
he display.
The segment colour changes depending on the
distance to the detected obstacle:
= Yellow: approximately 30 - 60 cm
= Red: less than approximately 30 cm
In order for lateral, front or rear segments to be
displayed, the vehicle must Nrst travel a distance
of at least half a vehicle's length. Once the vehicle
has travelled the length of the vehicle, all of the
lateral front and rear segments can be displayed. Parking Assist PARKTRONIC display: vehicles
wit
hout a 360° Camera
1 Operational front and rear
2 Operational front, rear and sides
3 Obstacle detected at the front right (yellow)
and r
ear (red) Parking Assist PARKTRONIC display: vehicles
wit
h a 360° Camera
1 Operational front and rear
2 Operational front, rear and sides
3 Obstacles detected at the front right (red)
Saved obstacles on the sides are deleted in the
f
ollowing situations, for example:
= You park the vehicle and switch it oM.
= You open the doors.
Aser the engine is restarted, obstacles on the
sides must be detected again before a new warn-
ing can be issued. 294
Driving and parking

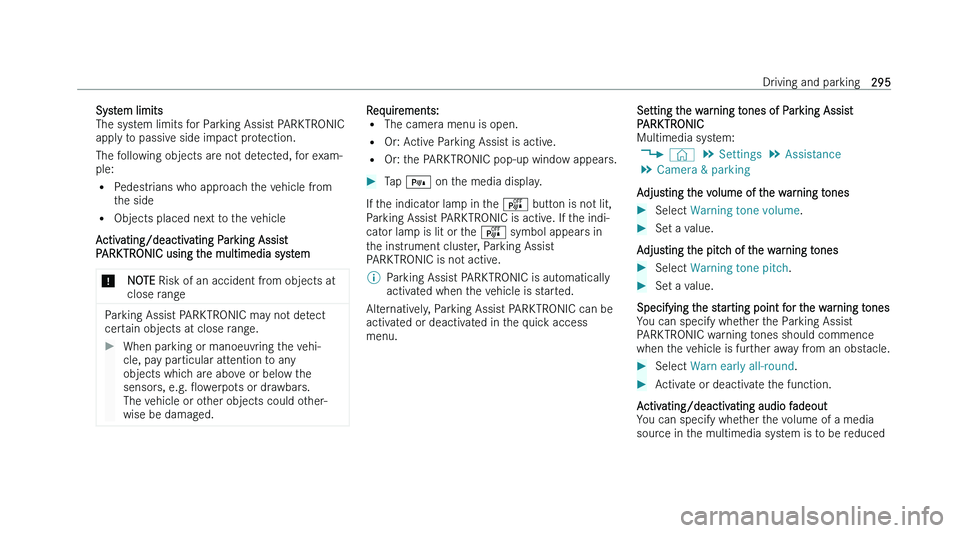

System limits
The sy
stem limits for Parking Assist PARKTRONIC
apply to passive side impact protection.
The following objects are not detected, for exam-
ple:
= Pedestrians who approach the vehicle from
the side
= Objects placed next to the vehicle
Activating/deactivating Parking Assist
PARKTRONIC using the multimedia system
* NOTE Risk of an accident fr
om objects at
close range Parking Assist PARKTRONIC may not detect
cer
tain objects at close range.
When parking or manoeuvring the vehi-
cle, pa

y particular attention to any
objects which are above or below the
sensors, e.g. Oowerpots or drawbars.
The vehicle or other objects could other-
wise be damaged. Requirements:
= The camer

a menu is open.
= Or: Active Parking Assist is active.
= Or: the PARKTRONIC pop-up window appears.
Tap on t
he media display.
If the indicator lamp in the

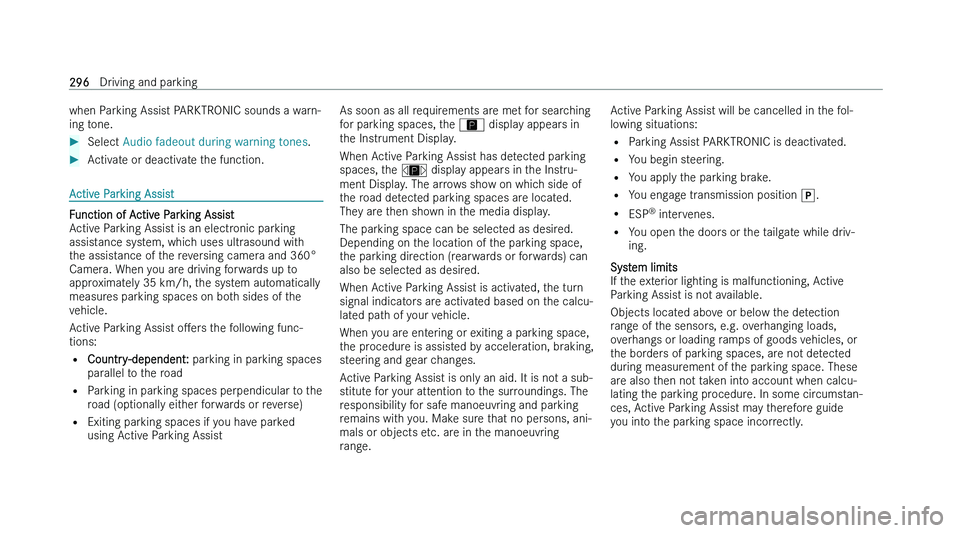

when Parking Assist PARKTRONIC sounds a warn-
ing t
one.
Select Audio fadeout during warning tones .
Activate or deactivate the function. Active Parking Assist
Function of Active Parking Assist
A

ctive Parking Assist is an electronic parking
assistance system, which uses ultrasound with
the assistance of the reversing camera and 360°
Camera. When you are driving forwards up to
approximately 35 km/h, the system automatically
measures parking spaces on both sides of the
vehicle.
Active Parking Assist oMers the following func-
tions:
= Country-dependent: parking in parking spaces
parallel to the road
= Parking in parking spaces perpendicular to the
road (optionally either forwards or reverse)
= Exiting parking spaces if you have parked
using Active Parking Assist As soon as all requirements are met for searching
f
or parking spaces, the Ç display appears in
the Instrument Display.
When Active Parking Assist has detected parking
spaces, the È display appears in the Instru-
ment Display. The arrows show on which side of
the road detected parking spaces are located.
They are then shown in the media display.
The parking space can be selected as desired.
Depending on the location of the parking space,
the parking direction (rearwards or forwards) can
also be selected as desired.
When Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
When you are entering or exiting a parking space,
the procedure is assisted by acceleration, braking,
steering and gear changes.
Active Parking Assist is only an aid. It is not a sub-
stitute for your attention to the surroundings. The
responsibility for safe manoeuvring and parking
remains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
range. Active Parking Assist will be cancelled in the fol-
lo wing situations:
= Parking Assist PARKTRONIC is deactivated.
= You begin steering.
= You apply the parking brake.
= You engage transmission position j.
= ESP n
intervenes.
= You open the doors or the tailgate while driv-
ing.
System limits
If the exterior lighting is malfunctioning, Active
Parking Assist is not available.
Objects located above or below the detection
range of the sensors, e.g. overhanging loads,
overhangs or loading ramps of goods vehicles, or
the borders of parking spaces, are not detected
during measurement of the parking space. These
are also then not taken into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
you into the parking space incorrectly. 296
Driving and parking

&

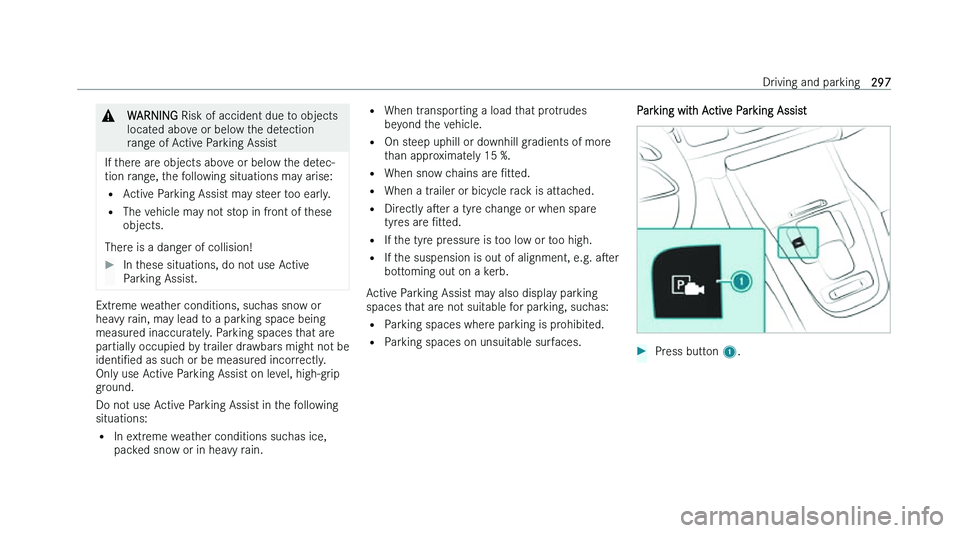

WARNING Risk of accident due t o objects
located above or below the detection
range of Active Parking Assist
If there are objects above or below the detec-
tion r
ange, the following situations may arise:
= Active Parking Assist may steer too early.
= The vehicle may not stop in front of these
objects.
There is a danger of collision!
In these situations, do not use Active
P
arking Assist. Extreme weather conditions, suchas snow or
hea
vy rain, may lead to a parking space being
measured inaccurately. Parking spaces that are
partially occupied by trailer drawbars might not be
identiNed as such or be measured incorrectly.
Only use Active Parking Assist on level, high-grip
ground.
Do not use Active Parking Assist in the following
situations:
= In extreme weather conditions suchas ice,
packed snow or in heavy rain. =
When tr
ansporting a load that protrudes
beyond the vehicle.
= On steep uphill or downhill gradients of more
than approximately 15 %.
= When snow chains are Ntted.
= When a trailer or bicycle rack is attached.
= Directly aser a tyre change or when spare
tyres are Ntted.
= If the tyre pressure is too low or too high.
= If the suspension is out of alignment, e.g. aser
bottoming out on a kerb.
Active Parking Assist may also display parking
spaces that are not suitable for parking, suchas: = Parking spaces where parking is prohibited.
= Parking spaces on unsuitable surfaces. Parking with Active Parking Assist

Press button 1. Driving and parking
297

The media display shows the view of Active Park-
ing Assis
t. Area 2 displays detected parking
spaces 4 and vehicle path 3.
% Vehicle path 3 sho
wn on the media display
may diMer from the actual vehicle path.
If a parking space is displayed: stop the vehi-
cle.
Select desired parking space 4 and conNr
m.
If necessary, select the parking direction (for-
w

ards or reverse), and conNrm.
Vehicle path 3 is shown, depending on
selected parking space 4 and the parking
direction. %
The turn signal indicator is switched on auto-
maticall
y when the parking procedure begins.
You are responsible for selecting the turn signal
indicat
or in accordance with the traPc condi-
tions. If necessary, select the turn signal indicator
accordingly. &
WARNING Risk of accident due t
o vehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
v
ehicle swings out and can drive onto areas of
the oncoming lane.
This could cause you to collide with objects or
other road users.
Pay attention to objects and other road
user

s.
Where necessary, stop the vehicle or
cancel t

he parking procedure with Active
Parking Assist.
If, for example, the Please engage reverse
gear messag

e appears in the media display: select the corresponding transmission posi-
tion.
The v

ehicle drives into the selected parking
space.
% During the parking procedure with Active
P

arking Assist, the lane markings are dis-
played in green in the camera image.
On completion of the parking procedure, the
Ø Parking Assist finished, take control of
vehicle displa

y message appears. Further
manoeuvring may still be necessary.
Aser com
pletion of the parking procedure,
safeguard the vehicle against rolling away.
When required by legal requirements or local
conditions: turn the wheels towards the kerb.
% You can stop the vehicle and change the
tr
ansmission position during the parking pro-
cedure. The system then calculates a new
vehicle path. If no new vehicle path is availa-
ble, the system can change the transmission
position again or cancel the parking proce-
dure. 298
Driving and parking

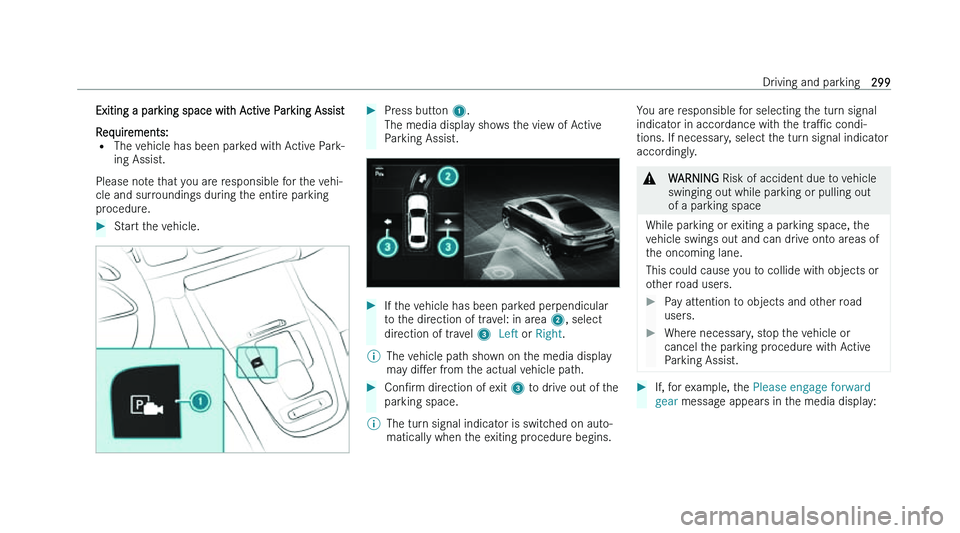

Exiting a parking space with Active Parking Assist
R
equirements:
= The vehicle has been parked with Active Park-
ing Assist.
Please note that you are responsible for the vehi-
cle and surroundings during the entire parking
procedure.
Start the vehicle.
Press button 1.
The media displa
y shows the view of Active
Parking Assist.
If the vehicle has been parked perpendicular
t
o the direction of travel: in area 2, select
direction of travel 3 Left or Right.
% The vehicle path shown on the media display
ma

y diMer from the actual vehicle path.
ConNrm dir
ection of exit 3 to drive out of the
parking space.
% The turn signal indicator is switched on auto-
maticall
y when the exiting procedure begins. You are responsible for selecting the turn signal
indicat
or in accordance with the traPc condi-
tions. If necessary, select the turn signal indicator
accordingly. &
WARNING Risk of accident due t
o vehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
v
ehicle swings out and can drive onto areas of
the oncoming lane.
This could cause you to collide with objects or
other road users.
Pay attention to objects and other road
user

s.
Where necessary, stop the vehicle or
cancel t

he parking procedure with Active
Parking Assist.
If, for example, the Please engage forward
gear messag

e appears in the media display: Driving and parking
299

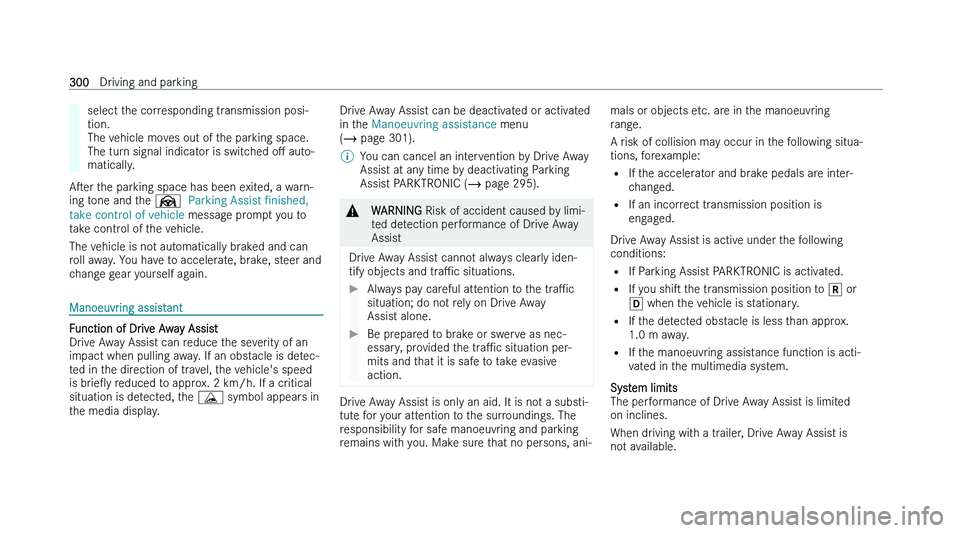

select the corresponding transmission posi-
tion.
The v
ehicle moves out of the parking space.
The turn signal indicator is switched oM auto-
matically.
Aser t
he parking space has been exited, a warn-
ing tone and the Ø Parking Assist finished,
take control of vehicle message prompt you to
take control of the vehicle.
The vehicle is not automatically braked and can
roll away. You have to accelerate, brake, steer and
change gear yourself again. Manoeuvring assistant
Function of Drive Away Assist
Dr
ive Away Assist can reduce the severity of an
impact when pulling away. If an obstacle is detec-
ted in the direction of travel, the vehicle's speed
is brieOy reduced to approx. 2 km/h. If a critical
situation is detected, the É symbol appears in
the media display. Drive Away Assist can be deactivated or activated
in t
he Manoeuvring assistance menu
(  page 301).
% You can cancel an intervention by Drive Away
Assis
t at any time by deactivating Parking
Assist PARKTRONIC ( page 295). &
WARNING Risk of accident caused b
y limi-
ted detection performance of Drive Away
Assist
Drive Away Assist cannot always clearly iden-
tify objects and tr

aPc situations.
Always pay careful attention to the tr
aPc
situation; do not rely on Drive Away
Assist alone.
Be prepared to brake or swerve as nec-
essar

y, provided the traPc situation per-
mits and that it is safe to take evasive
action. Drive Away Assist is only an aid. It is not a substi-
tut

e for your attention to the surroundings. The
responsibility for safe manoeuvring and parking
remains with you. Make sure that no persons, ani- mals or objects etc. are in the manoeuvring
r
ange.
A risk of collision may occur in the following situa-
tions, forexample: = If the accelerator and brake pedals are inter-
changed.
= If an incorrect transmission position is
engaged.
Drive Away Assist is active under the following
conditions:
= If Parking Assist PARKTRONIC is activated.
= If you shis the transmission position to k or
h when the vehicle is stationary.
= If the detected obstacle is less than approx.
1.0 m away.
= If the manoeuvring assistance function is acti-
vated in the multimedia system.
System limits
The performance of Drive Away Assist is limited
on inclines.
When driving with a trailer, Drive Away Assist is
not available. 300
Driving and parking

%

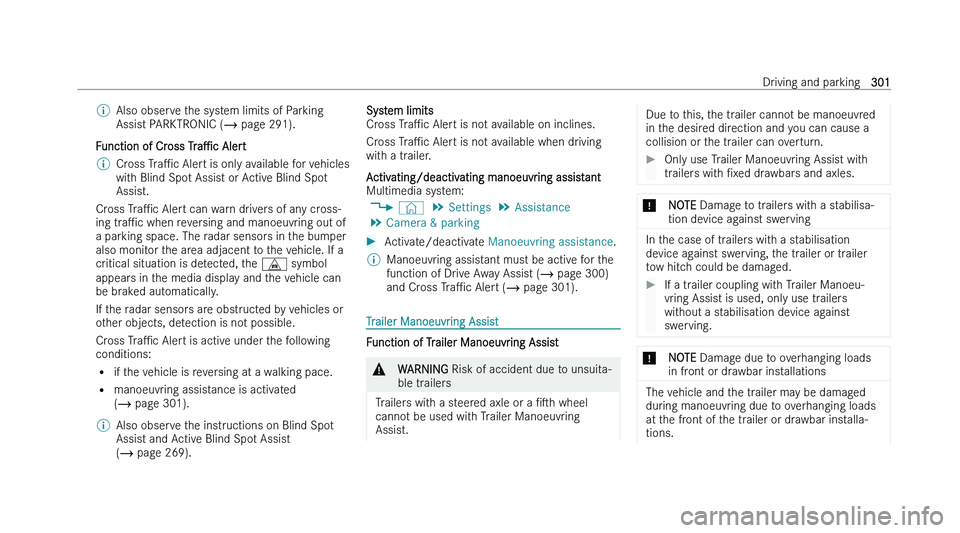

Also observe the system limits of Parking
Assis
t PARKTRONIC ( page 291).
Function of Cross T
raPc Alert
% Cross T
raPc Alert is only available for vehicles
with Blind Spot Assist or Active Blind Spot
Assist.
Cross T
raPc Alert can warn drivers of any cross-
ing traPc when reversing and manoeuvring out of
a parking space. The radar sensors in the bumper
also monitor the area adjacent to the vehicle. If a
critical situation is detected, the / symbol
appears in the media display and the vehicle can
be braked automatically.
If the radar sensors are obstructed by vehicles or
other objects, detection is not possible.
Cross TraPc Alert is active under the following
conditions:
= if the vehicle is reversing at a walking pace.
= manoeuvring assistance is activated
( page 301).
% Also observe the instructions on Blind Spot
Assis
t and Active Blind Spot Assist
(  page 269). System limits
Cr

oss TraPc Alert is not available on inclines.
Cross TraPc Alert is not available when driving
with a trailer.
Activating/deactivating manoeuvring assistant
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking
Activate/deactivate Manoeuvring assistance.
% Manoeuvring assistant must be active for the
function of Dr

ive Away Assist (  page 300)
and Cross TraPc Alert (  page 301). Trailer Manoeuvring Assist
Function of Trailer Manoeuvring Assist
&
WARNING Risk of accident due t
o unsuita-
ble trailers
Trailers with a steered axle or a Nsh wheel
canno
t be used with Trailer Manoeuvring
Assist. Due to this, the trailer cannot be manoeuvred
in t
he desired direction and you can cause a
collision or the trailer can overturn.
Only use Trailer Manoeuvring Assist with
tr
ailers with Nxed drawbars and axles. *
NOTE Damag
e to trailers with a stabilisa-
tion device against swerving In the case of trailers with a stabilisation
de
vice against swerving, the trailer or trailer
tow hitch could be damaged.
If a trailer coupling with Trailer Manoeu-
vr

ing Assist is used, only use trailers
without a stabilisation device against
swerving. *
NOTE Damag
e due to overhanging loads
in front or drawbar installations The vehicle and the trailer may be damaged
dur

ing manoeuvring due to overhanging loads
at the front of the trailer or drawbar installa-
tions. Driving and parking
301
