This function must be activated in vehicles
without Driving Assis tance Package, so that
Emer gency Stop Assist is fully available.
Fu rther information on Emer gency Stop Assist
(/ page 241) AIRMA
AIRMA
TIC
TIC F F
unction of AIRMA unction of AIRMA TIC
TIC
AIRMATIC is an air suspension system with varia-
ble damping for impr oved driving comfort. The all-
ro und le vel control system ensures the best possi-
ble suspension and constant ground clearance,
ev en with a laden vehicle. When driving at speed,
th eve hicle is lo wered automatically toimpr ove
driving saf ety and toreduce energy consumption.
Yo u also ha vethe option of manually adjusting the
ve hicle le vel.
AIRMATIC includes thefo llowing components and
functions:
R air suspension with automatic all-round le vel
cont rol
R ADS PLUS (Adaptive Damping System with
constant damping forc e adjustment) R
speed-dependent lo wering of theve hicle le vel
R increased vehicle le velfo rgre ater ground
clearance, selected via the multimedia system
R a comfor table suspension setting in drive pro-
gr ams A and;
R a /rmer, sporty suspension setting in drive
prog ram C
R lowe ring theve hicle at speeds abo ve
120 km/h in order toreduce energy con-
sum ption
When driving at speeds below 80 km/h, the
ve hicle is raised again tothe normal le vel.
% Oper
Oper ation wit ation wit h a tr
h a trailer or bicy
ailer or bicy cle r
cle rac
ack:
k: if
transport equipment, such as a trailer or a
bicycle rack , is attached tothe trailer hitch
and the electrical connection has been cor-
re ctly es tablished, theve hicle remains at nor-
mal le vel ir respecti veof speed or the drive
prog ram selected. Se
Se
tting t
tting t he v
he vehicle lev
ehicle lev el
el &
W
WARNING
ARNING Risk of accident because vehi-
cle le vel is too high
Driving characteristics may be impaired.
The vehicle can driT outwards, forex ample,
when steering or cornering. #
Choose a vehicle le vel which is suited to
th e driving style and thero ad sur face
conditions. &
W
WARNING
ARNING Risk of ent rapment from vehi-
cle lo wering
When lo wering theve hicle, other people could
become trapped if their limbs are between the
ve hicle body and the tyres or underneath the
ve hicle. #
Make sure no one is underneath the
ve hicle or in the immediate vicinity of the
wheel ar ches when theve hicle is being
lo we red. 262
262
Driving and parking
Page 266 of 541

&
W
W ARNI NG
ARNI NGRisk of becoming trapped due
to theve hicle lo wering
V
V ehicles wit
ehicles wit h AIRMA
h AIRMATIC or lev
TIC or lev el contr
el control:
ol:when
yo u unload luggage or lea vetheve hicle, the
ve hicle /rst rises slightly and then returns to
th e set le vel shortly aTer wards.
Yo u or an yone else in the vicinity of the wheel
ar ch es or the underbody could thus become
trapped.
The vehicle can also be lo wered aTer being
loc ked. #
When leaving theve hicle, make sure that
nobody is in the vicinity of the wheel
ar ch es or the underbody. *
N
NO OTE TE Damage due tovehicle lo wering Pa
rts of the body could be damaged when the
ve hicle is lo wered. #
Make sure that there are no obstacles
such as kerbs underneath or in the
immediate vicinity of the body when the
ve hicle is being lo wered. R
R
eq
eq uir
uir ements:
ements:
R The vehicle has been star ted.
R The vehicle is not moving faster than
40 km/h.
R When the trailer soc ket is contacted (trailer/
bicycle rack ):th eve hicle is not moving faster
th an 30 km/h.
Multimedia system: 4 © 5
ß 5
y
R
R aising t
aising t he v
he vehicle
ehicle #
Select t.
The indicator lamp lights up continuousl y.
The vehicle is raised tohigh le vel +1.
Yo ur selection is sa ved. High le vel +1 set remains
stored even aTer theve hicle has been switched
o..
The vehicle is lo wered again in thefo llowing situa-
tions:
R When driving faster than 50 km/h. R
When the trailer soc ket is contacted (trailer/
bicycle rack ):th eve hicle is moving faster than
30 km/h.
GPS-based r
GPS-based r aising aising
If th e function is activated, it is possible tosave
th eve hicle position when theve hicle le vel is
ra ised. #
Con/ rmthe prom pt.
The position of theve hicle is stored. When the
pr ev iously stored position is reached again, a
prom ptappears in the Zero La yer as to
whe ther theve hicle le vel should be raised
again.
% Settings for GPS-based raising (/ page 264)
% Zero La yer function (/ page 305)
Low
Low er
ering t
ing t he v
he vehicle
ehicle #
Select t.
The indicator lamp goes out.
The vehicle is adjusted tothe normal le vel.
% Use the normal le vel in trailer operation. High
le ve l driving is not permitted in trailer opera-
tion on public roads. Driving and parking
263 263
Page 267 of 541

Se
Se
tting GPS-based r
tting GPS-based r aising of t
aising of the v
he vehicle
ehicle
Multimedia system:
4 © 5
Settings 5
Vehicle 5
Driving
5 GPS-based raising #
Select Positions saved on request ,Always
save positions orDelete all saved positions .R
R
e
ev
ver
er sing came ra
sing camera F
F
unction of t
unction of t herev
he rever
ersing camera
sing camera
The reve rsing camera monitors the area behind
yo ur vehicle. If you ha veactivated the function
(/ page 271), the image from there ve rsing cam-
era is automatically displa yed in the central dis-
play when reve rsege ar is engaged.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that there are no
persons, animals or objects etc., in the manoeu-
vring area while manoeuvring and parking.
% The area behind theve hicle is displ ayed as a
mir ror image, as in the inside rear view mir ror. Camera views
menu (top view)
1 Parking Assistance menu
2 Reversing camera with top view
3 Wide-angle view
4 Trailer view
5 Activates/deacti vatesPa rking Assist
PA RKTRONIC (/ page 275) 6
Warning display of Parking Assist
PA RKTRONIC (/ page 271)
7 Guide lines at a distance of app roximately
0.5 m, 1.0 m, 1.5 mand 3.0 m from there ar
area
8 Path marking the course the tyres will take
with the cur rent steering wheel angle
(dynamic)
9 Driven sur face depending on the cur rent
steering wheel angle (dynamic)
A Guide line at a distance of app roximately
0.3 m from there ar area
% When Active Parking Assist is active, lanes 8
are displa yed in green (/ page 275). 264
264
Driving and parking
Page 268 of 541

Wi

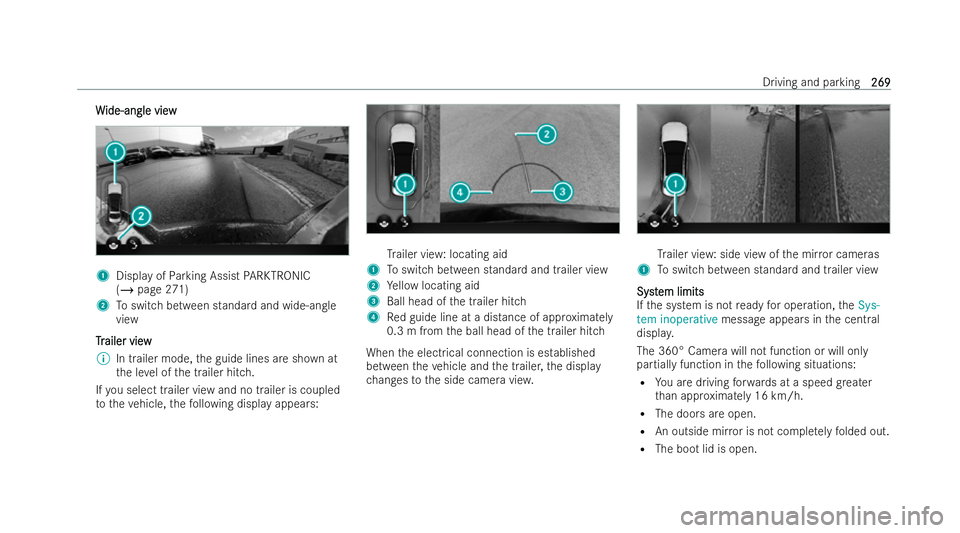

de-angle view Tr
ailer view
1 Yellow guide line, locating aid
2 Red guide line at a distance of appr oximately
0.3 m from the ball head of the trailer hitch
3 Ball head of the trailer hitch Syst
Syst
em limits
em limits
If th e system is not ready for operation, theSys-
tem inoperative message appears in the central
displa y.
The reve rsing camera will not function or will only
partially function in thefo llowing situations:
R You are driving forw ards at a speed greater
th an appr oximately 16 km/h.
R The tailgate is open.
R The weather conditions are poor, e.g. heavy
ra in, sno w,fog, storm or spr ay.
R The light conditions are poo r,e.g. at night or if
light is shining into the camera.
R The camera lens is obstructed, dirty or misted
up. Obser vethe no tes on cleaning there ve rs-
ing camera (/ page 373).
R The camera or rear of your vehicle is dam-
aged. In this case, ha vethe camera and its
position and setting checked at a quali/ed
specialist workshop.
R The de tection range is limited byadditional
ve hicle attachments at there ar, suc has a
licence plate brac ket or bicycle rack. Driving and parking
265 265
Page 269 of 541

Also obser
vethe information on vehicle senso rs
and cameras (/ page 217).
% Do not use there ve rsing camera in these
types of situations. You could otherwise injure
ot hers or collide with objects when parking
th eve hicle.
% The cont rast of the display may be impaired
by direct sunlight or by other light sources,
e.g. when driving out of a garage . In this case,
pay particular attention.
% Have the display repaired or replaced if,
fo re xamp le, pixel er rors considerably restrict
its use. 360° Came
ra
360° Camera F
F
unction of t
unction of t he 360° Camera
he 360° Camera
The 360° Camera is a system that consists of
fo ur cameras which co verth e immediate sur-
ro undings of theve hicle. The cameras assist you
when you are parking, fore xamp le, or at exits with
re duced visibility.
If yo u ha veactivated the function, the image from
th ere ve rsing camera is automatically displa yed in th
e central display when reve rsege ar is selected
(/ page 271).
The 360° Camera includes thefo llowing cameras
and evaluates their images:
R Reversing camera
R Front camera
R Two side cameras in the outside mir rors
The cameras are only an aid and may sh owa dis-
to rted view of obstacles, show them incor rectly or
not show them at all. They are not a substitute for
yo ur attention tothe sur roundings. The responsi-
bility for safe manoeuvring and parking remains
with you. Make sure that there are no persons,
animals or objects etc., in the manoeuvring area
while manoeuvring and parking. Menu
ov
Menu overervie
vie w
wCamera views 1
Menu Parking Assistance
2 Top view with image from the front camera
3 Top view with image from there ve rsing cam-
era
4 3D vie w,leT-hand side of theve hicle
5 3D vie w,right-hand side of theve hicle
6 3D auto view 266
266
Driving and parking
Page 270 of 541

7
Toactivate/deacti vate Parking Assist
PA RKTRONIC (/ page 275)
8 Toset the GPS activation point (/ page 271)
9 Toswitch between standard and wide-angle
view
A Toswitch between standard and trailer view
% In all vie ws,th ePa rking Assist PARKTRONIC
wa rning display is shown (/ page 271).F
F unction of t
unction of t he guide lines
he guide lines 1
Guide lines at a distance of appr oximately
0.5 m, 1.0 m, 1.5 m and 3.0 m from there ar
area
2 Path marking the course the tyres will take
with the cur rent steering wheel angle
(dynamic)
3 Driven sur face depending on the cur rent
steering wheel angle (dynamic)
4 Guide line at a distance of app roximately
0.3 m from there ar area %
When Active Parking Assist is active, lanes
and guide lines are displa yed in green ins tead
of yellow (/ page 275).
T
T op vie
op vie w wit
w with imag
h imag e fr
e fr om t
om t he fr
he fr ont or rev
ont or rever
ersing
sing
camera
camera
If yo u ha veactivated the function, the image from
th ere ve rsing camera is automatically displa yed in
th e central display when reve rsege ar is selected
(/ page 271). 1
Warning display of Parking Assist
PA RKTRONIC (/ page 271)
2 Your vehicle from abo ve
3 Lane indicating thero ute theve hicle will take
at the cur rent steering angle Driving and parking
267 267
Page 271 of 541

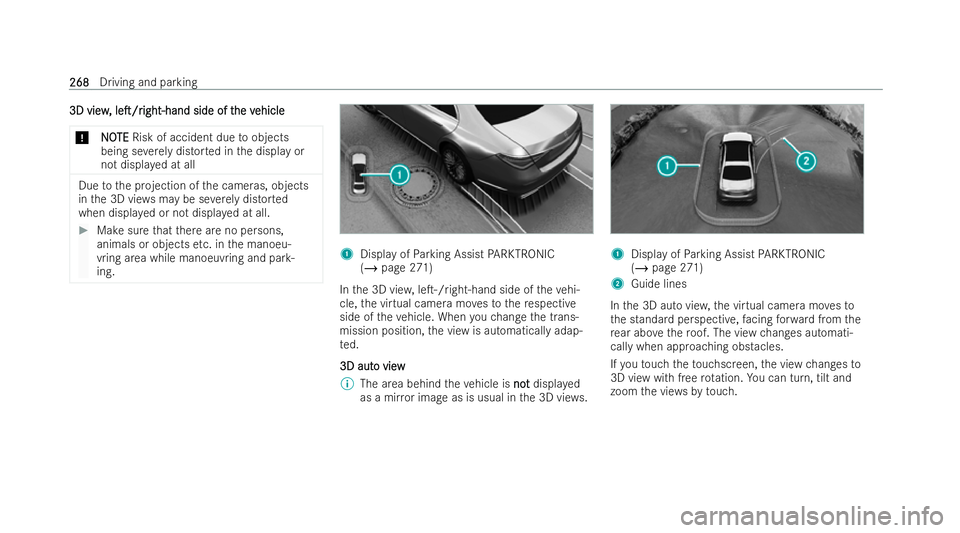

3D view
3D view
,
,leT/r
leT/r ight-hand
ight-hand side of t
side of the v
he vehicle
ehicle
* NO
NOTE
TERisk of accident due toobjects
being se verely distor ted in the display or
not displa yed at all Due
tothe projection of the cameras, objects
in the 3D vie wsmay be se verely distor ted
when displa yed or not displa yed at all. #
Make sure that there are no persons,
animals or objects etc. in the manoeu-
vring area while manoeuvring and par k-
ing. 1
Display of Parking Assist PARKTRONIC
(/ page 271)
In the 3D vie w,leT-/ right-hand side of theve hi-
cle, the virtual camera mo vesto there specti ve
side of theve hicle. When youch ange the trans-
mission position, the view is automatically adap-
te d.
3D aut
3D aut o view
o view
% The area behind theve hicle is no not
tdispl ayed
as a mir ror image as is usual in the 3D vie ws. 1
Display of Parking Assist PARKTRONIC
(/ page 271)
2 Guide lines
In the 3D auto vie w,the virtual camera mo vesto
th e standard perspective, facing forw ard from the
re ar abo vethero of. The view changes automati-
cally when approaching obs tacles.
If yo uto uch theto uchscreen, the view changes to
3D view with free rotation. You can turn, tilt and
zoom the vie wsbytouch. 268
268
Driving and parking
Page 272 of 541

W
W
ide-angle view
ide-angle view 1
Display of Parking Assist PARKTRONIC
(/ page 271)
2 Toswitch between standard and wide-angle
view
T
T r
railer view
ailer view
% In trailer mode, the guide lines are shown at
th e le vel of the trailer hitch.
If yo u select trailer view and no trailer is coupled
to theve hicle, thefo llowing display appears: Tr
ailer vie w:locating aid
1 Toswitch between standard and trailer view
2 Yellow locating aid
3 Ball head of the trailer hitch
4 Red guide line at a distance of appr oximately
0.3 m from the ball head of the trailer hitch
When the electrical connection is established
between theve hicle and the trailer, the display
ch anges tothe side camera vie w. Tr
ailer vie w:side view of the mir ror cameras
1 Toswitch between standard and trailer view
Syst
Syst em limits
em limits
If th e system is not ready for operation, theSys-
tem inoperative message appears in the central
displa y.
The 360° Camera will not function or will only
partially function in thefo llowing situations:
R You are driving forw ards at a speed greater
th an appr oximately 16 km/h.
R The doors are open.
R An outside mir ror is not comple tely folded out.
R The boot lid is open. Driving and parking
269
269
