2022 HYUNDAI PALISADE Owners Manual

888
Specifications & Consumer information
8
Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE Viscosity Number .........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Ccertification Label................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13

8-2
Specifications, Consumer information and Reporting safety defects
D DI IM M E EN N S SI IO O N NS S
E E N N G GI IN N E E
Itemsin (mm)
Overall length196.06 (4,980)
Overall width77.75 (1,975)
Overall height68.89 (1,750)
Front tread245/60 R1867.24 (1,708)
245/50 R2067.24 (1,708)
Rear tread245/60 R1867.56 (1,716)
245/50 R2067.56 (1,716)
Wheelbase114.17 (2,900)
ItemGasoline 3.8 GDI
Displacement cu. in (cc)
230.55
(3,778)
Bore x Stroke in. (mm)
3.78 x 3.43 (96 x 87)
Firing order
1-2-3-4-5-6
No. of cylinders
6, V-type

B BU U L LB B W W A AT TT TA A G G E E
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb Type Wattage
FrontHeadlamp
Low
Type A HB3 60
Type B LED LED
High Type A H7 55
Type B LED LED
Daytime running lamp(DRL) & Parking lamp Type A LED LED
Type B LED LED
Turn signal lamp LEDLED
Turn signal lamp (Outside mirror)LEDLED
Side marker lamp LED LED
Rear Tail lamp
Type A P28/8W 28/8
Type B LED LED
Tail/Stop lamp Type A P28/8W 28/8
Type B LED LED
Turn signal lamp Type A P28/8W 28/8
Type B LED LED
Side marker lamp Type A LED LED
Type B LED LED
Back up lamp P21W 21
Rear fog lampLEDLED
High mounted stop lamp LED LED
License plate lamp W5W 5
8-3

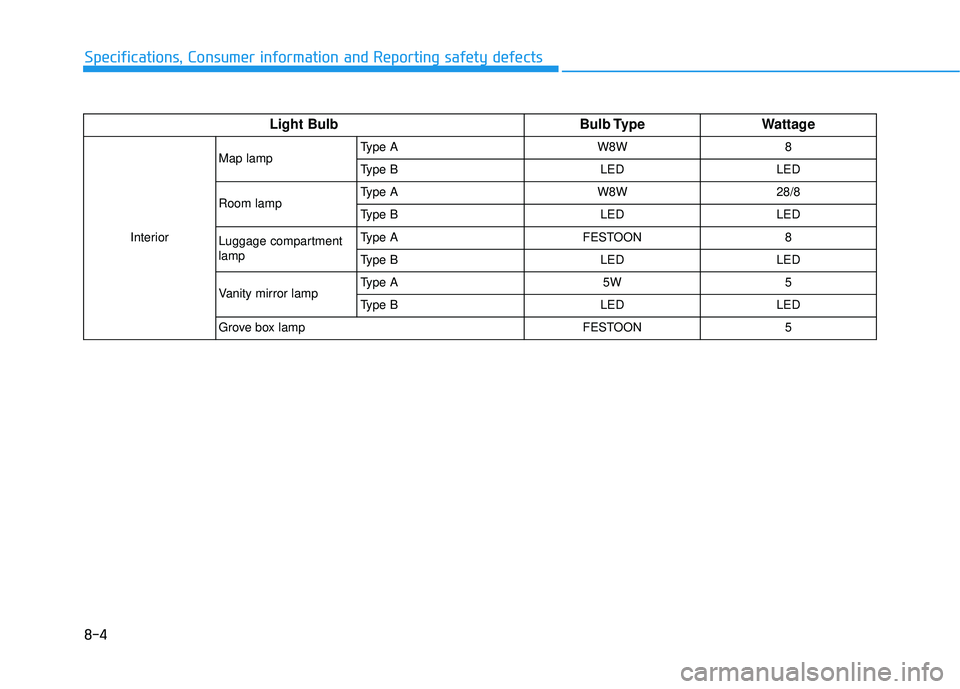

8-4
Specifications, Consumer information and Reporting safety defects
Light BulbBulb TypeWattage
InteriorMap lamp
Type A W8W 8
Type B LED LED
Room lamp Type A W8W 28/8
Type B
LEDLEDLuggage compartment
lampType AFESTOON8
Type BLEDLED
Vanity mirror lampType A5W5
Type BLEDLED
Grove box lampFESTOON5

T TI IR R E ES S A A N N D D W W H HE EE EL LS S
8-5
88
Specifications, Consumer information and Reporting safety defects
• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE
Item Tire Size Wheel Size Cold tire inflation pressure, kPa (psi)
Wheel Lug Nut
Torque
kgf·m (lbf·ft, N·m)
Front
Rear
Full size tire 245/60 R18 7.5J X 18
240 (35)240 (35)
11~13
(79~94,107~127)
245/50 R20 7.5J X 20
Compact spare tire T155/90 R18 4.0T X 18 420 (60)
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION

8-6
Specifications, Consumer information and Reporting safety defects
V VO O L LU U M M E E A A N N D D W W E EI IG G H H T T
A A I IR R C C O O N ND DI IT T I IO O N NI IN N G G S S Y Y S ST T E EM M
Contact an authorized HYUNDAI dealer for more details.
Items3.8 GDI
2WDAWD
Gross vehicle weight
7 Seater
lbs. (kg)5,732 (2,600)5,871 (2,663)
8 Seaterlbs. (kg)5,732 (2,600)5,871 (2,663)
Luggage volume (SAE) cu. ft (l)Behind 1strow : 86.4 (2447)
Behind 2strow : 45.8 (1297)
Behind 3strow : 18 (509)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 31.75 (900) ± 0.88 (25)R134a
Compressor lubricantoz. (cc) 6.35 (180)PA G

8-7
88
Specifications, Consumer information and Reporting safety defects
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
R RE EC CO O M M M ME EN N D DE ED D L L U U B BR RI IC C A A N N T TS S A A N N D D C C A A P PA A C CI IT T I IE E S S
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
Recommends
1.71 US gal. (6.5 l) ACEA A5 or above*3/
5W-30 /(SAE Viscosity Number)
Automatic transmission fluid1.85 US gal. (7.0 l)
MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV or other
brands meeting the above specification
approved by HYUNDAI Motor Co.
*1: Refer to the recommended SAE viscosity numbers on the 9 page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year's time, they can offer significant cost and energy savings.
*
3: If the ACEA A5 engine oil is not available in your country, you are able to use API SM & ILSAC GF-4 (or above) or ACEA A3.

8-8
Specifications, Consumer information and Reporting safety defects
LubricantVolumeClassification
Transfer case oil (AWD)
0.19 US gal. (0.7 l) HYPOID GEAR OIL API GL-5, SAE 75W/85
(SK HCT-5 GEAR OIL 75W/85 or EQUIVALENT)
Rear differential oil (AWD)
0.19 US gal. (0.7 l)
Coolant
2.35 US gal. (8.9 l) Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for alu-
minum radiator)
Brake fluid
As required FMVSS116 DOT-4
Fuel18.75 US gal. (71 l)Refer to "Fuel requirements" in the Foreword chapter.
