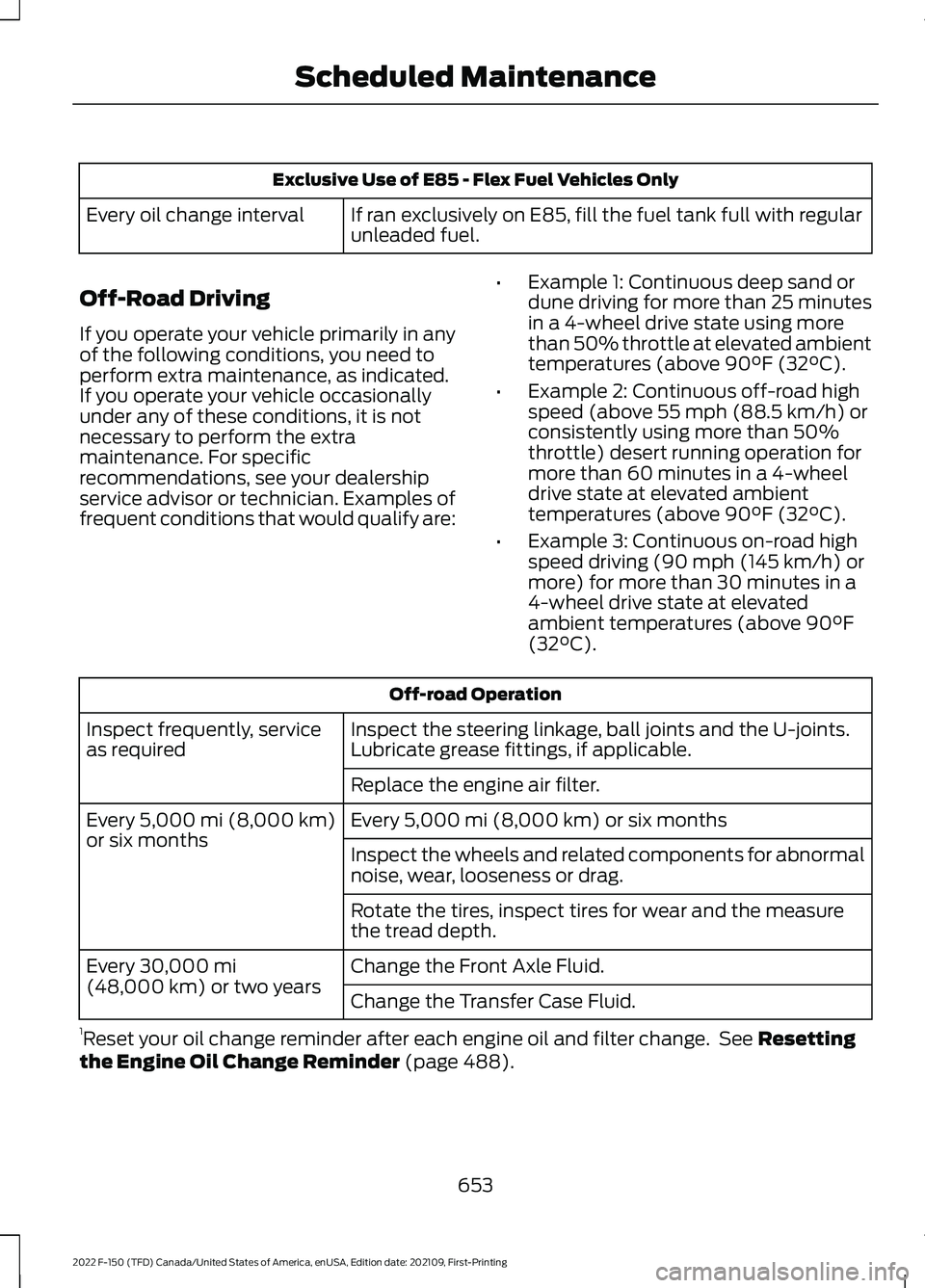

2022 FORD F-150 Owners Manual

Exclusive Use of E85 - Flex Fuel Vehicles Only
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change interval
Off-Road Driving
If you operate your vehicle primarily in any
of the following conditions, you need to
perform extra maintenance, as indicated.
If you operate your vehicle occasionally
under any of these conditions, it is not
necessary to perform the extra
maintenance. For specific
recommendations, see your dealership
service advisor or technician. Examples of
frequent conditions that would qualify are: •
Example 1: Continuous deep sand or
dune driving for more than 25 minutes
in a 4-wheel drive state using more
than 50% throttle at elevated ambient
temperatures (above 90°F (32°C).
• Example 2: Continuous off-road high
speed (above
55 mph (88.5 km/h) or
consistently using more than 50%
throttle) desert running operation for
more than 60 minutes in a 4-wheel
drive state at elevated ambient
temperatures (above
90°F (32°C).
• Example 3: Continuous on-road high
speed driving (
90 mph (145 km/h) or
more) for more than 30 minutes in a
4-wheel drive state at elevated
ambient temperatures (above
90°F
(32°C). Off-road Operation
Inspect the steering linkage, ball joints and the U-joints.
Lubricate grease fittings, if applicable.
Inspect frequently, service
as required
Replace the engine air filter.
Every
5,000 mi (8,000 km) or six months
Every 5,000 mi (8,000 km)
or six months Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Rotate the tires, inspect tires for wear and the measure
the tread depth.
Change the Front Axle Fluid.
Every
30,000 mi
(48,000 km) or two years Change the Transfer Case Fluid.
1 Reset your oil change reminder after each engine oil and filter change. See
Resetting
the Engine Oil Change Reminder (page 488).
653
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Scheduled Maintenance

Exceptions
There are several exceptions to the Normal
Schedule.
Axle and Transfer Case Maintenance
In four-wheel drive vehicle's axle(s) and
transfer case, fluid changes or level checks
are not required unless a leak is suspected
or the assembly has been submerged in
water. Contact an authorized dealer for
service.
California Fuel Filter Replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company urges you
to have all recommended maintenance
services performed at the specified
intervals and to record all vehicle service.
Hot Climate Oil Change Intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an oil
that meets our specification or has an
American Petroleum Institute certified for
gasoline engines (certification mark) oil,
the normal oil change interval is 3,000 mi
(4,800 km).
Engine Air Filter Replacement
The life of the engine air filter is dependent
on exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and
replacement of the engine air filter.
654
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Scheduled Maintenance

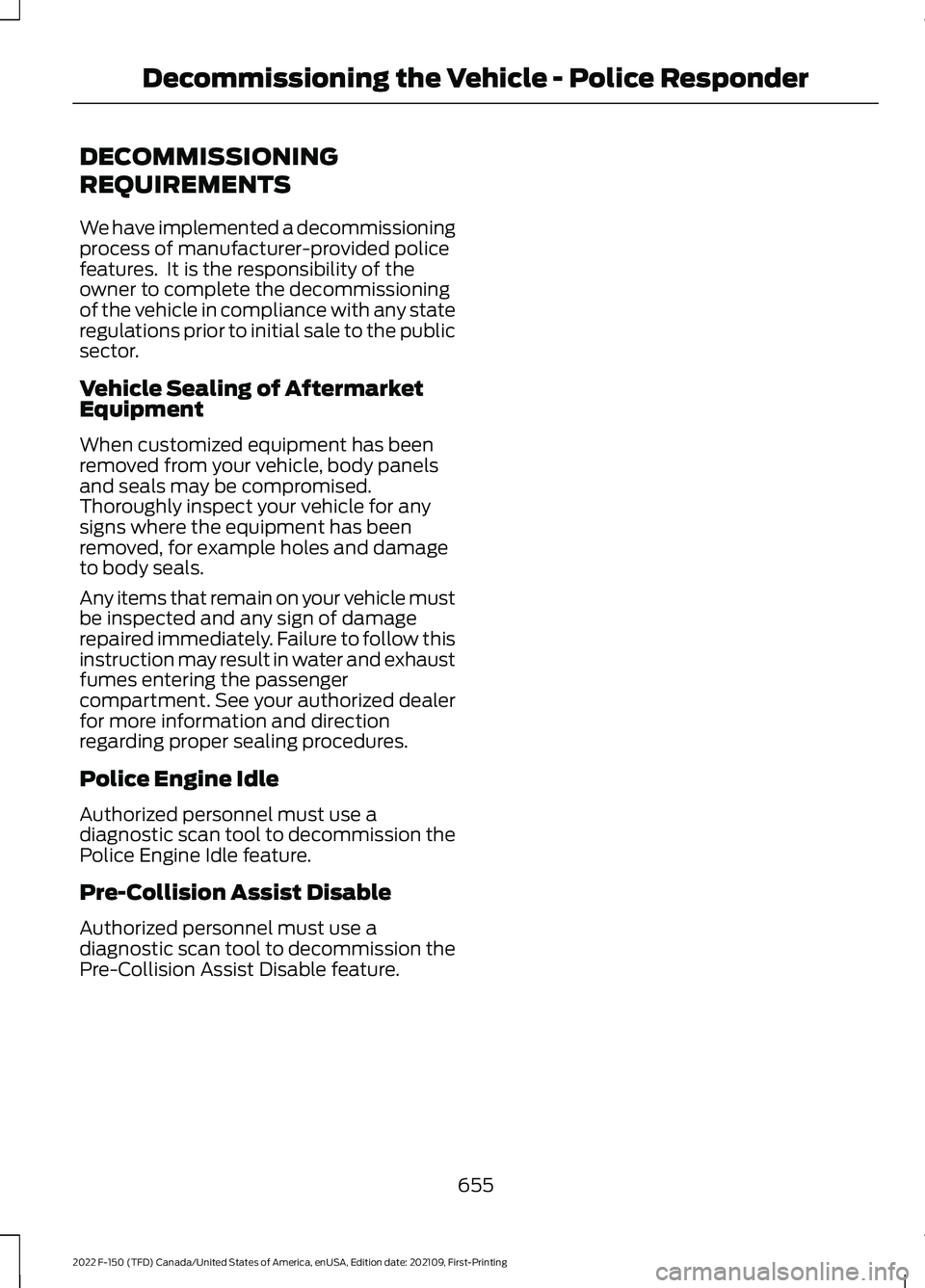

DECOMMISSIONING
REQUIREMENTS
We have implemented a decommissioning
process of manufacturer-provided police
features. It is the responsibility of the
owner to complete the decommissioning
of the vehicle in compliance with any state
regulations prior to initial sale to the public
sector.
Vehicle Sealing of Aftermarket
Equipment
When customized equipment has been
removed from your vehicle, body panels
and seals may be compromised.
Thoroughly inspect your vehicle for any
signs where the equipment has been
removed, for example holes and damage
to body seals.
Any items that remain on your vehicle must
be inspected and any sign of damage
repaired immediately. Failure to follow this
instruction may result in water and exhaust
fumes entering the passenger
compartment. See your authorized dealer
for more information and direction
regarding proper sealing procedures.
Police Engine Idle
Authorized personnel must use a
diagnostic scan tool to decommission the
Police Engine Idle feature.
Pre-Collision Assist Disable
Authorized personnel must use a
diagnostic scan tool to decommission the
Pre-Collision Assist Disable feature.
655
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Decommissioning the Vehicle - Police Responder

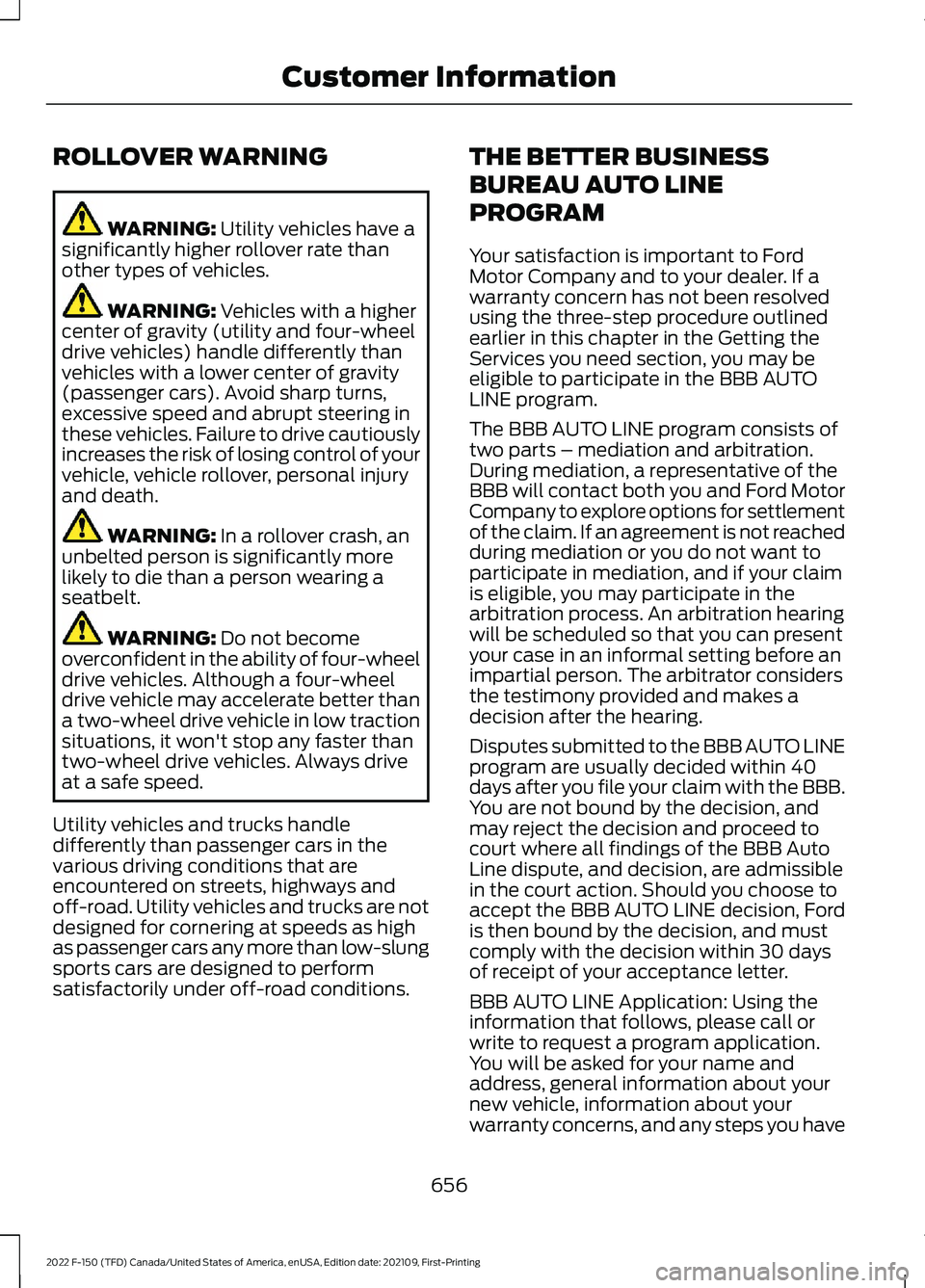

ROLLOVER WARNING
WARNING: Utility vehicles have a
significantly higher rollover rate than
other types of vehicles. WARNING:
Vehicles with a higher
center of gravity (utility and four-wheel
drive vehicles) handle differently than
vehicles with a lower center of gravity
(passenger cars). Avoid sharp turns,
excessive speed and abrupt steering in
these vehicles. Failure to drive cautiously
increases the risk of losing control of your
vehicle, vehicle rollover, personal injury
and death. WARNING:
In a rollover crash, an
unbelted person is significantly more
likely to die than a person wearing a
seatbelt. WARNING:
Do not become
overconfident in the ability of four-wheel
drive vehicles. Although a four-wheel
drive vehicle may accelerate better than
a two-wheel drive vehicle in low traction
situations, it won't stop any faster than
two-wheel drive vehicles. Always drive
at a safe speed.
Utility vehicles and trucks handle
differently than passenger cars in the
various driving conditions that are
encountered on streets, highways and
off-road. Utility vehicles and trucks are not
designed for cornering at speeds as high
as passenger cars any more than low-slung
sports cars are designed to perform
satisfactorily under off-road conditions. THE BETTER BUSINESS
BUREAU AUTO LINE
PROGRAM
Your satisfaction is important to Ford
Motor Company and to your dealer. If a
warranty concern has not been resolved
using the three-step procedure outlined
earlier in this chapter in the Getting the
Services you need section, you may be
eligible to participate in the BBB AUTO
LINE program.
The BBB AUTO LINE program consists of
two parts – mediation and arbitration.
During mediation, a representative of the
BBB will contact both you and Ford Motor
Company to explore options for settlement
of the claim. If an agreement is not reached
during mediation or you do not want to
participate in mediation, and if your claim
is eligible, you may participate in the
arbitration process. An arbitration hearing
will be scheduled so that you can present
your case in an informal setting before an
impartial person. The arbitrator considers
the testimony provided and makes a
decision after the hearing.
Disputes submitted to the BBB AUTO LINE
program are usually decided within 40
days after you file your claim with the BBB.
You are not bound by the decision, and
may reject the decision and proceed to
court where all findings of the BBB Auto
Line dispute, and decision, are admissible
in the court action. Should you choose to
accept the BBB AUTO LINE decision, Ford
is then bound by the decision, and must
comply with the decision within 30 days
of receipt of your acceptance letter.
BBB AUTO LINE Application: Using the
information that follows, please call or
write to request a program application.
You will be asked for your name and
address, general information about your
new vehicle, information about your
warranty concerns, and any steps you have
656
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Customer Information

already taken to try to resolve them. A
Customer Claim Form will be mailed that
needs to be completed, signed and
returned to the BBB along with proof of
ownership. Upon receipt, the BBB reviews
the claim for eligibility under the Program
Summary Guidelines.
You can get more information by
calling BBB AUTO LINE at
1-800-955-5100, or writing to:
BBB AUTO LINE a Division of BBB
National Programs, Inc.
1676 International Drive, Suite 550
McLean, VA 22102
BBB AUTO LINE applications can also be
requested by calling the Ford Motor
Company Customer Relationship Center
at 1-800-392-3673.
For additional information, refer to the
Better Business Bureau website.
Note:
Ford Motor Company reserves the
right to change eligibility limitations, modify
procedures, or to discontinue this process
at any time without notice and without
obligation.
THE MEDIATION AND
ARBITRATION PROGRAM
For vehicles delivered to authorized
Canadian dealers. In those cases where
you continue to feel that the efforts by Ford
of Canada and the authorized dealer to
resolve a factory-related vehicle service
concern have been unsatisfactory, Ford of
Canada participates in an impartial third
party mediation/arbitration program
administered by the Canadian Motor
Vehicle Arbitration Plan (CAMVAP). The CAMVAP program is a straightforward
and relatively speedy alternative to resolve
a disagreement when all other efforts to
produce a settlement have failed. This
procedure is without cost to you and is
designed to eliminate the need for lengthy
and expensive legal proceedings.
In the CAMVAP program, impartial
third-party arbitrators conduct hearings at
mutually convenient times and places in
an informal environment. These impartial
arbitrators review the positions of the
parties, make decisions and, when
appropriate, render awards to resolve
disputes. CAMVAP decisions are fast, fair,
and final as the arbitrator
’s award is
binding on both you and Ford of Canada.
CAMVAP services are available in all
Canadian territories and provinces. For
more information, without charge or
obligation, call your CAMVAP Provincial
Administrator directly at 1-800-207-0685
or visit www.camvap.ca.
ORDERING A CANADIAN
FRENCH OWNER'S MANUAL
You can obtain a French owner's manual
from an authorized dealer or by contacting
Helm, LLC at:
HELM, LLC
47911 Halyard Drive, Suite 200
Plymouth, Michigan 48170
Attention: Customer Service
Call toll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m. EST
For additional information, visit
www .helminc. c om .
657
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Customer Information

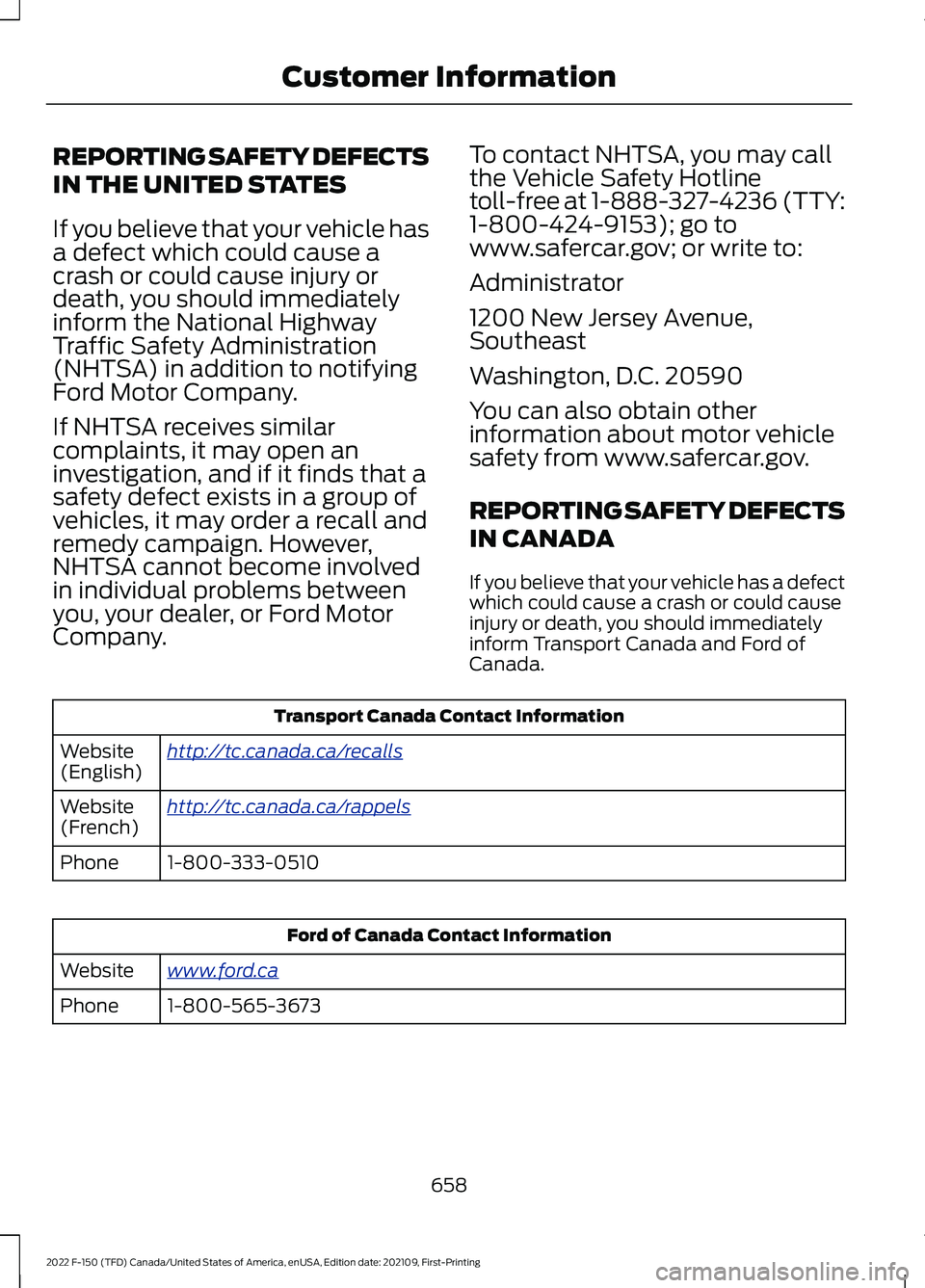

REPORTING SAFETY DEFECTS
IN THE UNITED STATES
If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Ford Motor Company.
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.
To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
www.safercar.gov; or write to:
Administrator
1200 New Jersey Avenue,
Southeast
Washington, D.C. 20590
You can also obtain other
information about motor vehicle
safety from www.safercar.gov.
REPORTING SAFETY DEFECTS
IN CANADA
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.Transport Canada Contact Information
ht tp:/ / t c. c ana da. c a/ r e c all sWebsite
(English)
ht tp:/ / t c. c ana da. c a/ r appel sWebsite
(French)
1-800-333-0510
Phone Ford of Canada Contact Information
www .f or d . c aWebsite
1-800-565-3673
Phone
658
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Customer Information

RADIO FREQUENCY
CERTIFICATION LABELS
BLIND SPOT INFORMATION
SYSTEM SENSORS
Argentina
Europe Union EU Ghana
Jamaica
Paraguay
2020-10-I-0753
659
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Customer InformationE338548 E310043 E344037 E344038 E339812

South Korea
Taiwan
United Arab Emirates (U.A.E.) United States and Canada
WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
FCC ID: L2CF5TR
IC: 3432A-F5TR
This device complies with Part 15 of the
FCC Rules and with Innovation, Science
and Economic Development Canada ’s
licence-exempt RSS(s). Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired
operation.
BODY CONTROL MODULE
Argentina 660
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Customer InformationR-C-1Ap-F5TRE338319 E356894 E344039 E338547
