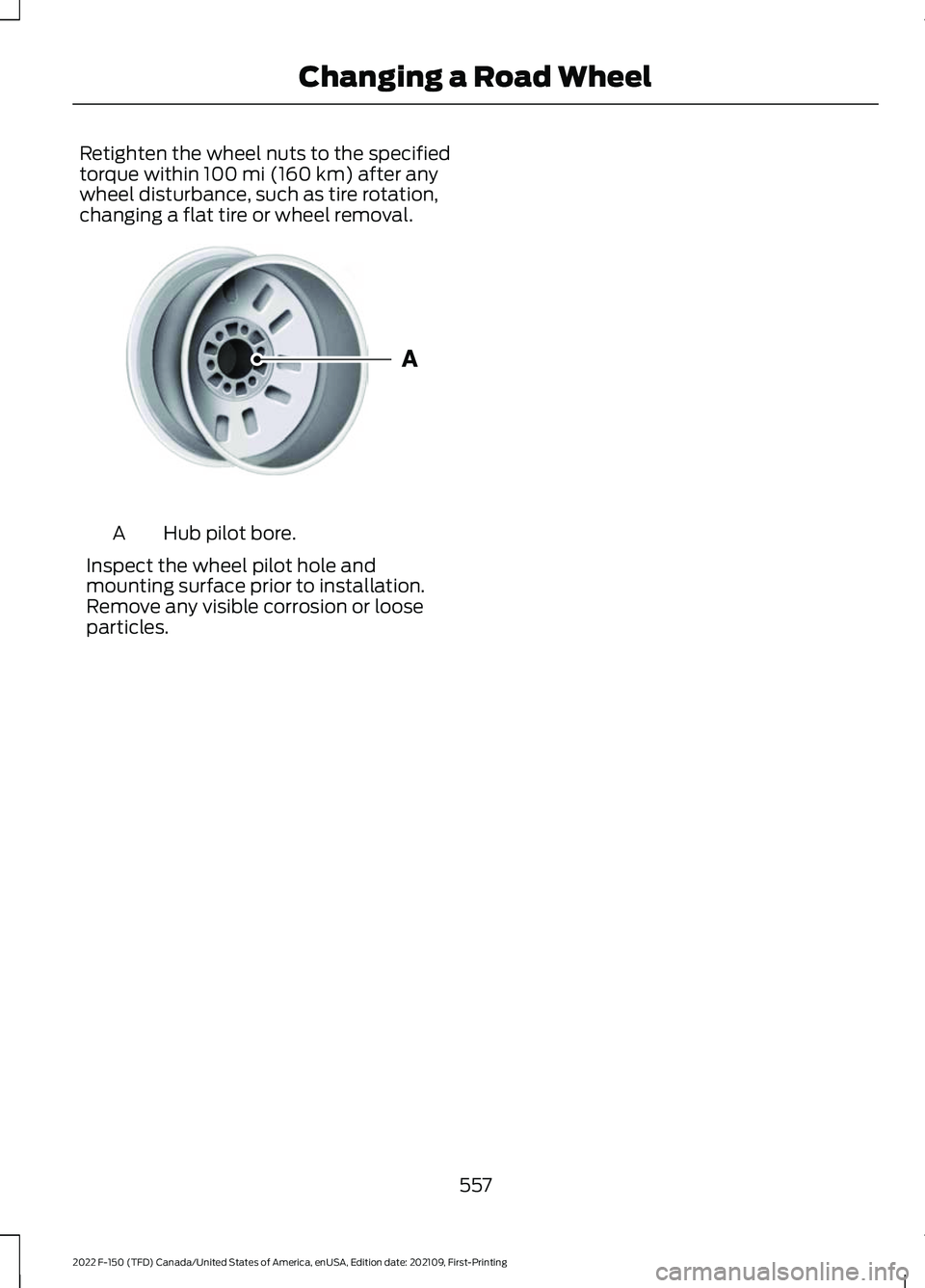

Retighten the wheel nuts to the specified
torque within 100 mi (160 km) after any
wheel disturbance, such as tire rotation,
changing a flat tire or wheel removal. Hub pilot bore.
A
Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
557
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Changing a Road WheelE145950

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
Specification
Engine
10.0:1
Compression ratio.
165 in³ (2,700 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap.
558
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Capacities and Specifications

ENGINE SPECIFICATIONS - 3.3L
Specification
Engine
12:1
Compression ratio.
203.8 in³ (3,340 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.049 in (1.25 mm) - 0.053 in (1.35 mm)
Spark plug gap.
559
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Capacities and Specifications

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™
Specification
Engine
10.5:1
Compression ratio.
213.4 in³ (3,497 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap.
560
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Capacities and Specifications

ENGINE SPECIFICATIONS - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Specification
Engine
10.5:1
Compression ratio.
213.4 in³ (3,497 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap.
561
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Capacities and Specifications

ENGINE SPECIFICATIONS - 5.0L
Specification
Engine
12:1
Compression ratio.
307 in³ (5,038 cm³)
Displacement.
1-3-7-2-6-5-4-8
Firing order.
Coil on plug, coil near plug
Ignition system.
Minimum 87 octane
Required fuel.
0.039 in (1 mm) - 0.043 in (1.1 mm)
Spark plug gap.
562
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Capacities and Specifications

MOTORCRAFT PARTS - 2.7L ECOBOOST™
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-48H6-760
Battery.
FP-92
Cabin air filter.
FL-2062-A
Engine oil filter. 1
SP-578
Spark plug.
WW-2208
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
563
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Capacities and Specifications

MOTORCRAFT PARTS - 3.3L
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-48H6-760
Battery.
FP-92
Cabin air filter.
FL-500-S
Engine oil filter. 1
SP-520
Spark plug.
WW-2208
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
564
