SERVICING AND MAINTENANCE263
4. Replace the bayonet-fitted bulb.

Bulb Assembly

5. Finally, refit the inspection door, fully tightening fixing screws.
Fog Lights (Halogen)
See below steps for bulb replacement:

1. Turn the front wheels completely.

2. Use a suitable tool to remove the access door.
Fog Light Access

3. Turn the bulb and bulb holder assembly counterclockwise and then remove it sliding it
outwards.

Fog Lamp Bulb Location
4. Replace the bayonet-fitted bulb.

Bulb Assembly

5. Finally, refit the inspection door, fully tightening fixing screws.
Side Indicators on External Rear View Mirrors –
If Equipped
1 — Bulb Holder
2 — Bulb
1 — Screws
2 — Access Door
1 — Bulb Holder
2 — Bulb
CAUTION!
The procedure is described as a guideline. For
the replacement of the lamp it is recommended
that you contact an authorized dealer.
8

22_FD_OM_EN_USC_t.book Page 263

264SERVICING AND MAINTENANCE
See below steps for bulb replacement:

1. Remove the mirror cap on the outside rear view mirror.

Mirror Cap

2. Remove the transparent lens assembly as shown.
3. Remove the bulb socket and bulb from the transparent lens assembly by rotating the
socket counterclockwise. 4. Remove the bulb from the bulb socket by
pulling the bulb straight out.
5. Insert the new bulb, making sure that it is locked into place
6. Reinstall the socket in to the transparent lens assembly.
7. Reinstall the cover on the outside rear view mirror, making sure it is locked into place.
Rear Tail Lamps

Tail Light
Tail Lamps
The tail lights are LED-type. For replacing these
bulbs, contact an authorized dealership.
Brake Lights
The brake lights are LED-type. For replacing these
bulbs, contact an authorized dealership.
Side Marker
Side marker lights are LED-type. For replacing
these bulbs, contact an authorized dealer
3th Stop Lamp
The CHMSL is LED. For their replacement see an
authorized dealer.
1 — Mirror Cover
2 — Side Indicator Lens
3 — Side Indicator Bulb Location
1 — Tail lights/Brake Lights
2 — Direction indicator
3 — REVERSE lights

22_FD_OM_EN_USC_t.book Page 264

SERVICING AND MAINTENANCE265

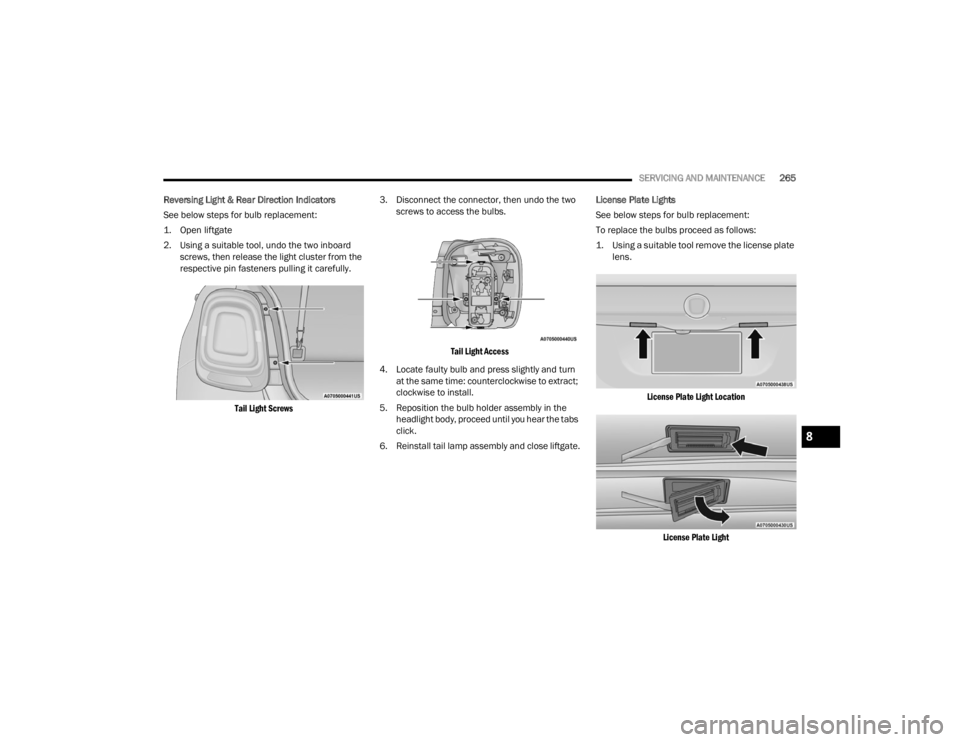

Reversing Light & Rear Direction Indicators
See below steps for bulb replacement:

1. Open liftgate

2. Using a suitable tool, undo the two inboard screws, then release the light cluster from the
respective pin fasteners pulling it carefully.

Tail Light Screws
3. Disconnect the connector, then undo the two
screws to access the bulbs.

Tail Light Access

4. Locate faulty bulb and press slightly and turn at the same time: counterclockwise to extract;
clockwise to install.
5. Reposition the bulb holder assembly in the headlight body, proceed until you hear the tabs
click.
6. Reinstall tail lamp assembly and close liftgate. License Plate Lights
See below steps for bulb replacement:
To replace the bulbs proceed as follows:

1. Using a suitable tool remove the license plate
lens.

License Plate Light Location
License Plate Light

8

22_FD_OM_EN_USC_t.book Page 265

266SERVICING AND MAINTENANCE
2. Remove the bulbs from the individual side contacts.

Lamp Assembly

3. Insert the new bulbs, and ensure that they are properly locked between the contacts.
4. Reinstall the license plate lens.
NOTE:If removal the license plate lens using a suitable
tool, be sure to cover the tip of the suitable with a
cloth so no damage is done to the lenses or the
vehicle paint.
Replacing Interior Bulbs
Front Courtesy Light
See below steps for bulb replacement:

1. Using a suitable tool remove the front courtesy light as shown.

Front Courtesy Light Housing

2. Release the retainer clips and bulb housing as shown.
Front Courtesy Bulb Housing

3. Replace the bulbs by pulling straight out of bulb housing.

Front Courtesy Bulb Housing

1 — Bulb Holder
2 — Bulb
1 — Retaining Clips
2 — Bulb Housing

22_FD_OM_EN_USC_t.book Page 266

SERVICING AND MAINTENANCE267
4. Insert the new bulbs, making sure that they are properly locked.
5. Reassemble the bulb housing and courtesy light housing making sure that they are
properly locked.
6. Install the front courtesy light making sure that it is properly locked.
Dome Light Vanity Mirror
See below steps for bulb replacement:

1. Lift the cover of the mirror and pull out the visor mirror light cover.

2. Replace the bulb, releasing it from the side contacts, and then insert the new bulb, making
sure that it is properly locked between the
contacts.
Visor Mirror Cover

3. Reinstall the visor mirror light cover making sure that it is properly locked.
4. Finally lower the visor mirror cover to the mirror. Dome Light Glove Compartment
See below steps for bulb replacement:

1. Open the glove compartment.

2. Place your fingers inside the light assembly,
pull the bulb to replace it.

Bulb Removal/Installation

3. Insert the new bulb, making sure it is properly locked.
1 — Visor Mirror Cover
2 — Visor Mirror Light
8

22_FD_OM_EN_USC_t.book Page 267

268SERVICING AND MAINTENANCE
(Continued)
Rear Dome Light — Without Retractable Roof
See below steps for bulb replacement:

1. Using a suitable tool release the lamp
assembly at both the ends.

2. Open the flap and replace the bulb.

Rear Dome Light

3. Insert the new bulb, locking it between the contacts.
4. Reinstall the dome light.
Dome Light
See below steps for bulb replacement:
1. Lower the handle in the direction shown
remove the dome light.

Retractable Roof Light

2. Replace the bulb by removing it from the side contacts.

Bulb
3. Insert the new bulb, locking it between the
contacts.
4. Reinstall the dome light.
Interior Cargo Lights
See below steps for bulb replacement:

1. Open the luggage compartment and remove the dome light assembly.

2. Open the light cover and replace the bulb.

Light Cover

3. Close the light cover over the bulb.
4. Reinstall the dome light in its correct position.
1 — Bulb
2 — Flap
WARNING!
Before proceeding with the lamp replace
-
ment, wait for the lamp to cool: DANGER OF
BURNS!

22_FD_OM_EN_USC_t.book Page 268

SERVICING AND MAINTENANCE269
TIRES
TIRE SAFETY INFORMATION
Tire safety information will cover aspects of the
following information: Tire Markings, Tire
Identification Numbers, Tire Terminology and
Definitions, Tire Pressures, and Tire Loading.
Tire Markings

Tire Markings

NOTE:
P (Passenger) — Metric tire sizing is based on US
design standards. P-Metric tires have the letter
“P” molded into the sidewall preceding the size
designation. Example: P215/65R15 95H.
European — Metric tire sizing is based on Euro -
pean design standards. Tires designed to this
standard have the tire size molded into the side -
wall beginning with the section width. The letter
"P" is absent from this tire size designation.
Example: 215/65R15 96H.
LT (Light Truck) — Metric tire sizing is based on
US design standards. The size designation for
LT-Metric tires is the same as for P-Metric tires
except for the letters “LT” that are molded into
the sidewall preceding the size designation.
Example: LT235/85R16.
Temporary spare tires are designed for tempo -
rary emergency use only. Temporary high pres -
sure compact spare tires have the letter “T” or
“S” molded into the sidewall preceding the size
designation. Example: T145/80D18 103M.
High flotation tire sizing is based on US design
standards and it begins with the tire diameter
molded into the sidewall. Example: 31x10.5
R15 LT.
Modifications or repair of the electrical system
performed incorrectly and without taking into
account the technical characteristics can
cause malfunctions with the risk of fire.
Halogen lamps contain gas under pressure, in
the event of breakage be careful of the projec -
tion of fragments of glass.
Halogen lamps must be handled by touching
only the metallic part. If the transparent bulb
is in contact with the fingers, reduces the
intensity of the emitted light and you can also
affect the life of the lamp. In case of acci -
dental contact, rub the bulb with a cloth damp -
ened with alcohol and allow to dry.
WARNING!

1 — US DOT Safety Standards Code (TIN)

2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and
Temperature Grades
8

22_FD_OM_EN_USC_t.book Page 269

270SERVICING AND MAINTENANCE
TIRE SIZING CHART
EXAMPLE:
Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)
Ratio of section height to section width of tire, or
10.5 = Section width in inches (in)
R = Construction code
"R" means radial construction, or
"D" means diagonal or bias construction
15, 16, 18 = Rim diameter in inches (in)
Service Description:
95 = Load Index
A numerical code associated with the maximum load a tire can carry
H = Speed Symbol
A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions
The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading,
road conditions, and posted speed limits)
