ISOFIX mountings (child
seats)
(The legislation on carrying children is specific
to each country. Refer to the legislation in force
in your country.)
ISOFIX is an ISO standard for child seat
mountings (ISO standard 13216 -1: 1999).
This system avoids the use of the vehicle's seat
belts for securing the child seat: two latches
on the child seat engage on two anchorage
points (1) positioned between the seat cushion
and backrest at the left-hand and right-hand
seating positions of the rear bench seat of your
E-MEHARI.
The aim of the ISOFIX system is to facilitate
the installation of a
child seat and its transfer
to another vehicle, while avoiding the problems
inherent in fixing systems that use the vehicle's
seat belts.
Your E-MEHARI is fitted with ISOFIX
mountings at the left-hand and right-hand
seating positions of the rear bench seat.
This system simplifies the installation and fixing
of a
child seat while improving the safety of the
installation at the same time. (1)
Locations of ISOFIX mountings.
(1) Location of the Top Tether rings for fixing
the upper strap. The ISOFIX standard is overseen by the
International Standards Organisation.
Always use child seats compatible with
this standard when using the dedicated
anchorage points.
Using a
child seat incompatible with the
ISOFIX standard may increase the risks
of an accident and injury for the child, but
also for other occupants of the vehicle.
Installation of a child
s eat compatible with the
ISOFIX standard
Failure to obser ve the instructions and
warnings related to the installation of
a
child seat or child restraint system would
expose the child and the other occupants
of the vehicle to the risk of serious injury in
the event of a
collision or sudden braking.
Always use child seats that meet the
European standards and carefully follow
the installation and fixing instructions
provided with the child seat.
5
Safety

48
Before installing a child seat, check that
t here is nothing that might inter fere with its
fixing to the two anchorage points.
You will not be able to correctly secure
a
child seat to the two anchorage points if
they are not clear of obstruction.
A child restraint system in a
vehicle parked
in the sun can become very hot.
Always check the sur face of the child seat
before placing the child in it, to avoid any
risk of injury.
The incorrect installation of a
child seat
compromises the protection and safety of
the child and the occupants of the vehicle
in the event of a
collision.Visual indicators
Direction indicators
To operate the right-hand direction indicators:
push up the control stalk located on the left
behind the steering wheel.
To operate the left-hand direction indicators:
pull down the control stalk.
The control stalk automatically returns to its
middle position once the change of direction
has been completed.Before changing direction, always signal
your intention well in advance, using the
direction indicators.
Before changing direction, check the
vehicle's immediate surroundings using
the mirrors, also taking account of the
blind spots. Poorly prepared changes of direction can
lead to collisions and accidents.
Hazard warning lamps
Press the hazard warning lamp button to warn
other drivers that you are in abnormal driving or
traffic conditions, or have to stop in an unusual
place.
When you press the hazard warning lamp
button, all of your E-MEHARI's direction
indicator lamps and the button indicator lamp
flash at the same time.
To switch off the hazard warning lamps: press
the button again.
In the event of stopping in an emergency,
always move your vehicle off the
carriageway, where possible, to avoid the
risk of accident.
Safety

49
Use the hazard warning lamps only to
signal unusual action on your part and
only if your vehicle presents a safety
risk to other drivers: an emergency stop
because of a
vehicle failure, the need to
drive abnormally slowly, etc...
While the hazard warning lamps are on,
your E-MEHARI's direction indicators can
no longer be used to indicate changes of
direction.
Horns and audible
warnings
" Standard " horn
To use the "standard" horn: press the central
hub of the steering wheel.
Horn for pedestrians
Operation
Your E-MEHARI produces no noise from its
electric motor.
It has a
special horn for warning pedestrians of
your approach.
This horn sounds when the vehicle's speed is
between approximately 0.6
and 18 mph (1 and
30


km/h).
Deactivation
In certain driving conditions you can deactivate
the system.
Make a
short press on the end of the wiper
control stalk.
Another press reactivates the system.
Before deactivating the system, make
sure that you are not driving in an area
frequented by pedestrians. The system is reactivated automatically at
every new start.
Audible warning emergency
services
Your E-MEHARI has an audible warning
system should there be a
problem with the
LMP
® battery fitted to the vehicle. A message
also appears on the dashboard instrument
panel.
For more information on the Instruments and
indicators on your E-MEHARI , refer to the
corresponding section.
If operation of this system is triggered (the
audible warning cannot be switched off), you
must stop the vehicle as soon as it is safe to do
so, get out of the vehicle, and call CITROËN
ASSISTANCE.
Please tell the call handler that your
vehicle is an electric vehicle.
Stay at least ten metres away from your
vehicle when an LMP
® battery warning
has been triggered.
An LMP
® battery is an energy storage
device.
5
Safety

50
Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
As a safety measure, the driver must only carry
out any operations that require close attention
when the vehicle is stationary.
On a
long journey, a break every two hours is
strongly recommended.
In bad weather, drive smoothly, anticipate the
need to brake and increase the distance from
other vehicles.
Important!
Never drive with the parking brake applied
– Risk of overheating and damage to the
braking system!
Never leave a
vehicle unsuper vised with
the motor running. If you have to leave
your vehicle with the motor running,
apply the parking brake and put the drive
selector into position N or P .
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the motor or gearbox, as well as to the
electrical systems of your vehicle.
If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 6
inches (15 cm), taking account
of waves that might be generated by other
users,
-

d
rive as slowly as possible. In all cases, do
not exceed 6
mph (10 km/h),
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt about the state of your vehicle,
contact a
CITROËN dealer or a qualified
workshop.
Driving your E-MEHARI
Never leave a child or a disabled adult
w ho usually needs help from others alone
in the vehicle.
Pets should not be left alone in the
vehicle.
Secure any loads in your vehicle so that
they cannot slide about.
Do not load the vehicle higher than the
seat backrests.
A badly supported load may result in
serious physical injuries if there is an
abrupt stop or collision.
If the vehicle is not handled carefully and
in a
safe way, you risk losing control of it
and causing an accident.
Driving

51
The following actions may increase the
risk of losing control of the vehicle if
the tyres are not properly inflated:
-
s
udden harsh application of the
brakes,
-

r
eleasing the accelerator pedal
suddenly,
-

t
urning the steering wheel too quickly.
Note: The vehicle generally moves
towards or pulls in the direction of the
under-inflated tyre.
Never drive under the influence of alcohol
or drugs.
The presence of alcohol or drugs in your
bloodstream reduces coordination, slows
reaction and impairs judgement.
Driving after taking alcohol or drugs
increases the risk of being involved in
an accident causing injuries, suffered by
yourself or inflicted on others.
Note also that, in the event of an accident,
there is a
risk that the alcohol or drugs
will increase the severity of the injuries
suffered.
Never take medicines that might affect
your ability to drive and control the vehicle
before setting off. Never leave the starting switch in the
"MAR" position for a
long period when the
vehicle is not being used.
This can reduce the range of the vehicle.
When you stop your vehicle on a
rising
slope, do not hold the vehicle by pressing
the accelerator.
Always use the brake pedal for this.
Starting/Switching off the
vehicle
The starting switch is located on the right-hand
side under the steering wheel. Before moving off, check that the position
of the drive selector agrees with your
intention.
The drive direction is indicated on the
drive selector by illumination of the green
ring.
Starting switch
(1)
STOP position: your E-MEHARI is
stationary.
(2) MAR position: the 12
V battery is
connected and the accessories can be
used.
(3) AV V position: switching on the electric
motor.
6
Driving

52
Starting the vehicle
To start your E-MEHARI, you should:
1.Unlock your E-MEHARI using your
personal RFID key ring.
2. Insert the key in the starting switch then
turn it to the MAR position. The welcome
screen appears.
3. When you are invited to do so, turn
the key to the AV V position, holding it
until you hear an audible signal (beep).
Release the key, the switch automatically
returns to the MAR position. The
message "Ready to move off, Select D
or R" appears in the instrument panel
screen. 4.
Press the brake pedal.
5. Put the drive selector to position "D"
(Drive) or "R" (Reverse).
6. Release the manual parking brake.
Your E-MEHARI is a silent electric vehicle.
Your E-MEHARI does not generate any
noise when its electrical motor is started.
When performing any manoeuvre:
please pay increased attention to your
environment, especially to pedestrians,
cyclists and other vehicles moving on the
road.
Switching off the vehicle
To park your E-MEHARI, you should:
1. Place the vehicle in a
secure area
suitable for parking.
2. Immobilise the vehicle.
3. Put the drive selector to position "N".
4. Apply the manual parking brake.
5. Switch off and remove the key from the
starting switch.
Control pedals
Your E-MEHARI has two control pedals:
(1) Accelerator pedal.
(2) Brake pedal.
Ensure that the pedals are always freely
accessible.
Driving

53

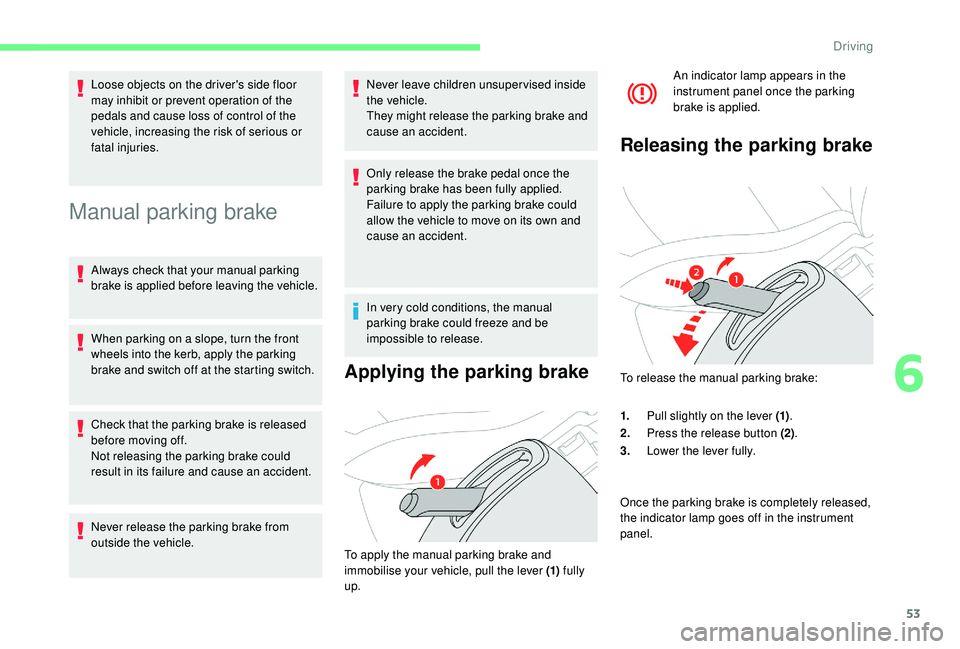

Manual parking brake
Always check that your manual parking
brake is applied before leaving the vehicle.
When parking on a slope, turn the front
wheels into the kerb, apply the parking
brake and switch off at the starting switch.
Check that the parking brake is released
before moving off.
Not releasing the parking brake could
result in its failure and cause an accident.
Never release the parking brake from
outside the vehicle. Never leave children unsuper vised inside
the vehicle.
They might release the parking brake and
cause an accident.
Only release the brake pedal once the
parking brake has been fully applied.
Failure to apply the parking brake could
allow the vehicle to move on its own and
cause an accident.
In very cold conditions, the manual
parking brake could freeze and be
impossible to release.
Applying the parking brake
To apply the manual parking brake and
immobilise your vehicle, pull the lever (1)
fully
up. An indicator lamp appears in the
instrument panel once the parking
brake is applied.
Releasing the parking brake
Loose objects on the driver's side floor
may inhibit or prevent operation of the
pedals and cause loss of control of the
vehicle, increasing the risk of serious or
fatal injuries.
To release the manual parking brake:
1.Pull slightly on the lever (1) .
2. Press the release button (2) .
3. Lower the lever fully.
Once the parking brake is completely released,
the indicator lamp goes off in the instrument
panel.
6
Driving

54
Drive selector
(1)Drive selector.
Selector modes
(N)"NEUTRAL" position: no drive engaged.
(D) "DRIVE" position: for ward.
(R) "REVERSE" position: reverse.
It is essential to keep the brake pedal applied
when changing selector position. Do not press the accelerator pedal when
moving the selector lever from position "N"
to position "D" or "R". All changes of drive selector position must
be made with the vehicle stationary.
Failure to follow this advice leads to the
risk of an accident.
Do not change drive direction with the
selector when the accelerator pedal is
pressed down.
This can cause the vehicle to move off
suddenly and cause an accident.
Electric power steering
system
If this warning lamp is visible on
your E-MEHARI's instrument
panel: your E-MEHARI's power
steering has a


technical problem.
If this happens, you must contact
CITROËN ASSISTANCE as soon as
possible.
It is recommended that the vehicle not be
used while this warning lamp is on: you
could lose control of your vehicle, cause
an accident and be injured. The electric power steering system is designed
to provide power assistance to the steering
when parking or driving at low speed so that
you can manoeuvre the vehicle with less effort.
When driving in town, the level of electric
assistance can be increased by using the City
function.
To activate the City function, press the control
button.
With the City function activated, the
CIT Y indicator lamp comes on in the
instrument panel of your E-MEHARI.
To deactivate the City function: press the
control button again. The green "City" indicator
lamp goes off.
The City function is switched off automatically
when the ignition is switched off.
Driving
