2021 TOYOTA TACOMA Accessories, Audio & Navigation (in English)

1133-4. Setup
3
Navigation system
*: This function may not be avail-
able immediately after purchase
of the vehicle.

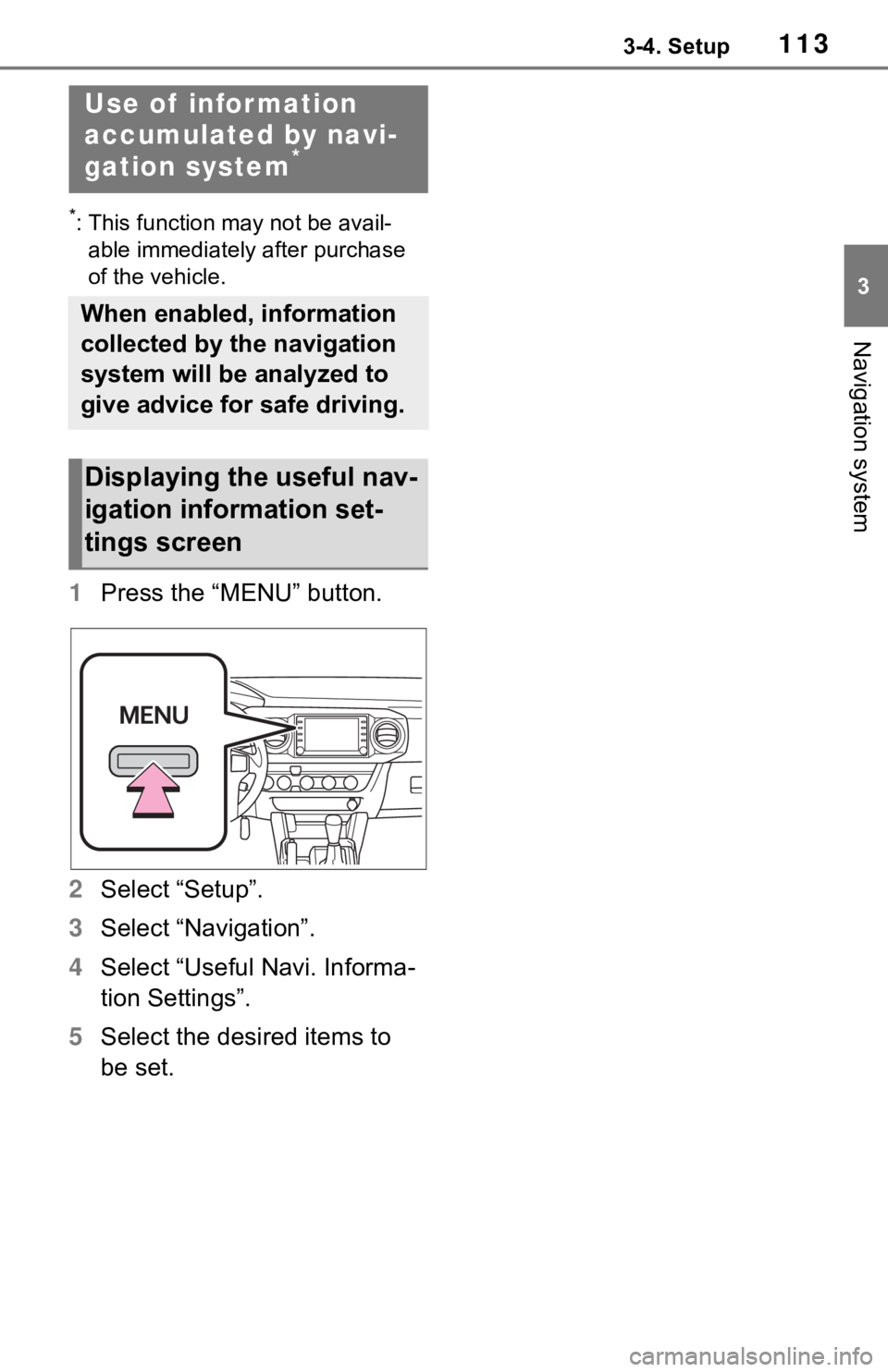

1Press the “MENU” button.
2Select “Setup”.
3Select “Navigation”.
4Select “Useful Navi. Informa-
tion Settings”.
5Select the desired items to
be set.
Use of infor mation
accumulated by navi-
gation system
*
When enabled, information
collected by the navigation
system will be analyzed to
give advice for safe driving.
Displaying the useful nav-
igation information set-
tings screen

1143-5. Tips for operating the navigation system
3-5.Tips for operating the navigation system
The Global Positioning System
(GPS) developed and operated
by the U.S. Department of
Defense provides an accurate
current position, normally using
4 or more satellites, and in some
case 3 satellites. The GPS sys-
tem has a certain level of inac-
curacy. While the navigation
system compensates for this
most of the time, occasional
positioning errors of up to 300 ft.
(100 m) can and should be
expected. Generally, position
errors will be corrected within a
few seconds.
When the vehicle is not receiv-
ing signals from satellites, the
unreceived GPS mark appears
on the map screen. When the
vehicle is receiving the signals,
the unreceived GPS mark does not appear on the map screen.
The GPS signal may be physi-
cally obstructed, leading to inac-
curate vehicle position on the
map screen. Tunnels, tall build-
ings, trucks, or even the place-
ment of objects on the
instrument panel may obstruct
the GPS signals.
The GPS satellites may not
send signals due to repairs or
improvements being made to
them.
Even when the navigation sys-
tem is receiving clear GPS sig-
nals, the vehicle position may
not be shown accurately or inap-
propriate route guidance may
occur in some cases.
Accurate current position may
not be shown in the following
cases:
• When driving on a small angled
Y-shaped road.
• When driving on a winding road.
• When driving on a slippery road
such as in sand, gravel, snow,
etc.
GPS (Global Position-
ing System)
This navigation system cal-
culates the current position
using satellite signals, vari-
ous vehicle signals, map
data, etc. However, an accu-
rate position may not be
shown depending on satel-
lite conditions, road config-
uration, vehicle condition or
other circumstances.
Limitations of the naviga-
tion system
NOTICE
●The installation of window tint-
ing may obstruct the GPS sig-
nals. Most window tinting
contains some metallic content
that will interfere with GPS sig-
nal reception of the antenna in
the instrument panel. We advise
against the use of window tint-
ing on vehicles equipped with
navigation systems.

1153-5. Tips for operating the navigation system
3
Navigation system
• When driving on a long straight
road.
• When freeway and surface
streets run in parallel.
• After moving by ferry or vehicle
carrier.
• When a long route is searched
during high speed driving.
• When driving without setting the
current position calibration cor-
rectly.
• After repeating a change of direc-
tion by going forward and back-
ward, or turning on a turntable in
a parking lot.
• When leaving a covered parking
lot or parking garage.
• When a roof carrier is installed.
• When driving with tire chains
installed.
• When the tires are worn.
• After replacing a tire or tires.
• When using tires that are smaller
or larger than the factory specifi-
cations.
• When the tire pressure in any of
the 4 tires is not correct.
If the vehicle cannot receive
GPS signals, the current posi-
tion can be adjusted manu-
ally. For information on setting
the current position calibra-
tion: P. 1 0 8
Inappropriate route guidance
may occur in the following
cases:
• When turning at an intersection
off the designated route guid-
ance.• If you set more than 1 destination
but skip any of them, auto reroute
will display a route returning to
the destination on the previous
route.
• When turning at an intersection
for which there is no route guid-
ance.
• When passing through an inter-
section for which there is no route
guidance.
• During auto reroute, the route
guidance may not be available for
the next turn to the right or left.
• During high speed driving, it may
take a long time for auto reroute
to operate. In auto reroute, a
detour route may be shown.
• After auto reroute, the route may
not be changed.
• If an unnecessary U-turn is
shown or announced.
• If a location has multiple names
and the system announces 1 or
more of them.
• When a route cannot be
searched.
• If the route to your destination
includes gravel, unpaved roads or
alleys, the route guidance may
not be shown.
• Your destination point might be
shown on the opposite side of the
street.
• When a portion of the route has
regulations prohibiting the entry
of the vehicle that vary by time,
season or other reasons.
• The road and map data stored in
the navigation system may not be
complete or may not be the latest

1163-5. Tips for operating the navigation system
version.
After replacing a tire: P.108
●This navigation system uses tire
turning data and is designed to
work with factory-specified tires
for the vehicle. Installing tires that
are larger or smaller than the orig-
inally equipped diameter may
cause inaccurate display of the
current position. The tire pressure
also affects the diameter of the
tires, so make sure that the tire
pressure of all 4 tires is correct.
1Select on the map
screen. (P. 7 2 )
2Select “Map Data”.
3Check that the map data
screen is displayed.
Map version
Select to display map cover-
age areas.
Select to display legal infor-
mation.
Select to update map.
●For map data updates, contact
your Toyota dealer.
*: This function is not made avail-
Map database version
and covered area
Coverage areas and legal
information can be dis-
played and map data can be
updated.
Map information
Temporary updates of the
map*
A
B
C
D

1173-5. Tips for operating the navigation system
3
Navigation system
able in some countries or areas.
If the map data has been pro-
vided from the Cloud for any of
the following areas and the map
data in the navigation system is
older than what has been pro-
vided, the displayed map will be
updated temporarily:
• Areas around the area dis-
played on the map screen
(example: areas around cur-
rent position)
• Areas around destinations
• Areas along the set route
●The updated data will temporarily
be saved in the navigation sys-
tem.
●If temporary update data exceeds
the available memory in the tem-
porary map cache, the oldest data
will be deleted.
●The temporary map data will dis-
appear when the expiration date
has passed.

1183-5. Tips for operating the navigation system

119
4
4
Audio/visual system
Audio/visual system
4-1. Basic operation
Quick reference...........120
Some basics ...............121
4-2. Radio operation
AM/FM/SiriusXM
® Satellite
Radio .........................125
4-3. Media operation
USB memory...............133
iPod/iPhone (Apple Car-
Play) ..........................135
Android Auto ...............138
Bluetooth
® audio .........139
4-4. Audio/visual remote con-
trols
Steering switches ........143
4-5. Setup
Audio settings .............144
4-6. Tips for operating the
audio/visual system
Operating information .146

1204-1. Basic operation
4-1.Basic operation
The audio control screen can be reached by the following methods:
From the “AUDIO” button
1Press the “AUDIO” button.
From the “MENU” button
1Press the “MENU” button, then select “Audio”.
Using the radio (P.125)
Playing a USB memory (P.133)
Playing an iPod/iPhone (Apple CarPlay
*) (P.135)
Using the Android Auto
* (P.138)
Playing a Bluetooth
® device (P.139)
Using the steering wheel audio switches (P.143)
Audio system settings (P.144)
*: This function is not made available in some countries or areas.
Quick reference
Functional overview
