2021 TOYOTA TACOMA Accessories, Audio & Navigation (in English)

733-1. Basic operation
3
Navigation system
Select to mute the voice guidance. When set to on, the indicator
will illuminate.
Zoom in/out button (P. 7 4 )
Select to magnify or reduce the map scale. When either button is
selected, the map scale indicator bar appears at the bottom of the
screen.
Micro city map button (P. 7 4 )
Select to display the micro city map screen.
Route information bar (P.95)
Displays the distance with the estimated travel time/arrival time to
the destination. The route information bar fills from left to right as
the vehicle progresses on the route.
Delete destination button (P.22)
Select to delete destinations.
Speed limit icon (P.76)
Indicates the speed limit on the current road. The display of the
speed limit icon can be set to on/off.
●When the vehicle is not receiving GPS signals, such as when driving in a
tunnel, will be displayed at the bottom left corner of the screen.
●Press the “MAP” button to display the address of the current position on
the map screen or repeat voice guidance.
F
G
H
I
J

743-1. Basic operation
1Press the “MAP” button.
2Check that the current posi-
tion map is displayed.
To correct the current posi-
tion manually: P.108
●While driving, the current position
mark is fixed on the screen and
the map moves.
●The current position is automati-
cally set as the vehicle receives
signals from the GPS (Global
Positioning System). If the current
position is not correct, it is auto-
matically corrected after the vehi-
cle receives signals from the GPS.
●After the 12-volt battery discon-
nection, or on a new vehicle, the
current position may not be cor-
rect. As soon as the navigation
system receives signals from the
GPS, the correct current position
is displayed.
1Select or to change
the scale of the map screen.
●The scale indicator bar appears at
the bottom of the screen.
●Select and hold or to con-
tinue changing the scale of the
map screen.
●The scale of the map screen can
also be changed by selecting the
scale bar directly. This function is
not available while driving.
●Pinch outward on the screen to
zoom in and pinch inward to zoom
out.
●In areas where a micro city map is
available, will change to
when the map screen is set to the
smallest scale.
For areas covered by the micro
city map (some major cities), a
micro city map on a scale of 75
ft. (25 m) can be selected.
When the map is scaled down to
150 ft. (50 m), changes to
and can be selected to dis-
play the micro city map.
Map screen operation
Current position display
Map scale
Micro city map

753-1. Basic operation
3
Navigation system
1Select on the map
screen.
2Check that the micro city
map is displayed.
●To return to the normal map dis-
play, select .
●If the map or the current position
is moved to the area which is not
covered by the micro city map, the
screen scale automatically
changes to 150 ft. (50 m).
●On the micro city map, a one way
street is displayed by .
●Scrolling the micro city map is not
available while driving.
●Certification
Building micro cities in the database
were created and provided by
HERE.
The orientation of the map can
be changed between 2D north-
up, 2D heading-up and 3D
heading-up by selecting the ori-
entation symbol displayed at the
top left of the screen.
: North-up symbol
Regardless of the direction of
vehicle travel, north is always up.
: Heading-up symbol
The direction of vehicle travel is
always up.
: 3D Heading-up symbol
The direction of vehicle travel is
always up.
The letter(s) under this sym-
bol indicate the vehicle’s
heading direction (e.g. N for
north).
The map can be scrolled to view
locations that are different than
your current position.
1Select the desired point on
the map screen.
Move the desired point on the
center of the map screen.
Cursor mark
Distance from the current
position to the cursor mark
Select to set as a destination.
(P.91)
Select to register as a mem-
ory point. To change the icon,
Orientation of the map
Map scroll operation
A
B
C
D

763-1. Basic operation
name, etc.: P. 1 0 2
●The map screen can be scrolled
by touching, dragging or flicking it.
(P. 2 7 )
●Press the “MAP” button to return
to the current position.
1Select on the map
screen. (P. 7 2 )
2Select the desired items to
be displayed.
Select to display the desired
map mode. (P.77)
Select to select or change
POI icons. (P.77)
Select to display speed limit
icon.
Select to display traffic infor-
mation.
* (P. 8 1 )
Select to display route trace.
(P.79)
Select to display the map
version and coverage area.
Map screen informa-
tion
Information such as POI
icons, route trace, speed
limit, etc. can be displayed
on the map screen.
Displaying the map
options screen
A
B
C
D
E
F

773-1. Basic operation
3
Navigation system
(P.116)
*: This function is not made avail-
able in some countries or areas.
1Select on the map
screen. (P.72)
2Select “Map Mode”.
3Select the desired configura-
tion button.
Select to display the single
map screen.
Select to display the dual
map screen. (P.77)
Select to display the com-
pass mode screen. (P. 7 8 )
Select to display the turn list
screen. (P.98)
Select to display the freeway
exit list screen. (P. 9 6 )
Select to display the intersec-
tion guidance screen or the
guidance screen on the free-
way. (P. 9 7 )
Select to display the turn-by-
turn arrow screen. (P.98)Depending on the conditions,
certain screen configuration
buttons cannot be selected.
The map on the left is the main
map. The right side map can be
edited.
1Select any point on the right
side map.
2Select the desired item.
Select to change the orienta-
tion of the map. (P. 7 5 )
Select to display POI icons.
(P.78)
Select to show traffic infor-
mation.
* (P. 8 1 )
Select to change the map
scale. (P. 7 4 )
*: This function is not made avail-
able in some countries or areas.
Switching the map mode
A
B
C
D
E
F
G
'XDOPDS
A
B
C
D

783-1. Basic operation
3Select “OK”.
Information about the destina-
tion, current position and a com-
pass are displayed on the
screen.
●The destination mark is displayed
in the direction of the destination.
When driving, refer to the longi-
tude and latitude coordinates, and
the compass, to make sure that
the vehicle is headed in the direc-
tion of the destination.
●When the vehicle travels out of
the coverage area, the guidance
screen changes to the whole com-
pass mode screen.
1Select on the map
screen. (P.72)
2Select “POI Icons”.
3Select the desired POI cate-
gory and select “OK”.
Displays up to 5 selected POI
icons on the map screen.
Select to cancel the selected
POI icons.Displays up to 6 POI icons as
favorite POI categories.
(P.107) If a POI category is
selected to be displayed on
the map, its icon will be dis-
played above.
Select to display other POI
categories if the desired POIs
cannot be found on the
screen.
Select to search for the near-
est POIs. (P.78)
1Select “Other POIs”.
2Select the desired POI cate-
gories and select “OK”.
“List All Categories”: Select to
display all POI categories.
POIs that are within 20 miles (32
km) of the current position will
be listed from among the
selected categories.
1Select “Around Me”.
2Select the desired POI.
“Sort/Search Area”: Select to
sort (distance, name, category)
POIs or search area.
Select “Near Here” to search
for POIs near the current
position.
Select “Along My Route” to Compass
Selecting the POI icons
A
B
6HOHFWLQJRWKHU32,LFRQVWR
EHGLVSOD\HG
'LVSOD\LQJWKHORFDO32,OLVW
C
D
E

793-1. Basic operation
3
Navigation system
search for POIs along the
route.
3Check that the selected POI
is displayed on the map
screen.
The traveled route can be stored
and retraced on the map screen.
This feature is available when
the map scale is 30 miles (50
km) or less.
1Select on the map
screen. (P.72)
2Select “Route Trace”.
The route trace starts.
3Check that the traveled line is
displayed.
1Select on the map
screen. (P.72)
2Select “Route Trace” again.3A confirmation screen will be
displayed.
“Yes”: Select to keep the recorded
route trace.
“No”: Select to erase the recorded
route trace.
●The traveled route can be stored
up to approximately 621 miles
(1000 km).
When the cursor is placed over
an icon on the map screen, the
name is displayed at the top of
the screen. If is shown to the
right of the name, detailed infor-
mation can be displayed.
1Place the cursor over an
icon.
2Select . Route trace
Start recording the route
trace
Stop recording the route
trace
Displaying information
about the icon where the
cursor is set

803-1. Basic operation

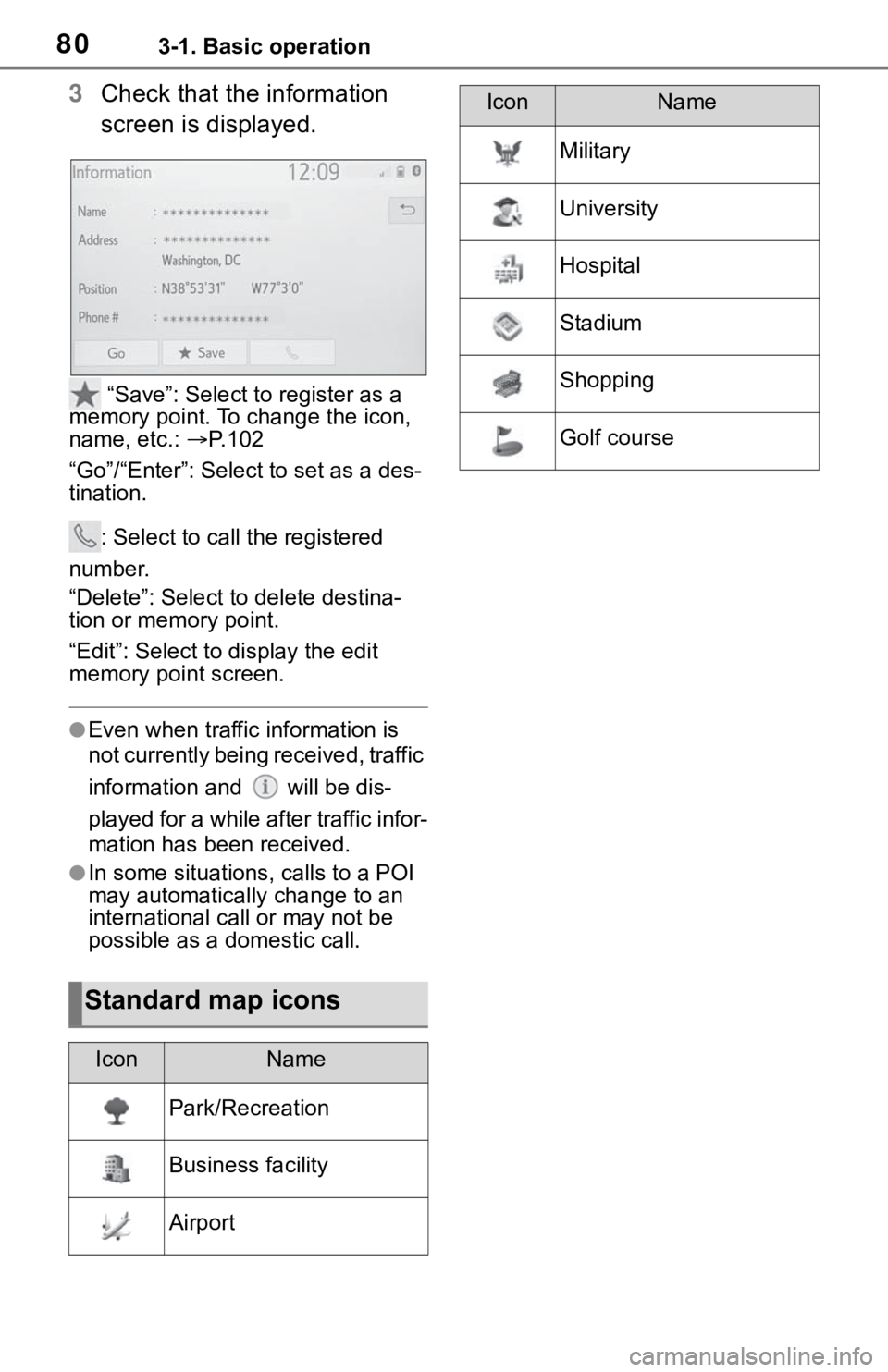

3Check that the information
screen is displayed.
“Save”: Select to register as a
memory point. To change the icon,
name, etc.: P. 1 0 2
“Go”/“Enter”: Select to set as a des-
tination.
: Select to call the registered
number.
“Delete”: Select to delete destina-
tion or memory point.
“Edit”: Select to display the edit
memory point screen.
●Even when traffic information is
not currently being received, traffic
information and will be dis-
played for a while after traffic infor-
mation has been received.
●In some situations, calls to a POI
may automatically change to an
international call or may not be
possible as a domestic call.
Standard map icons
IconName
Park/Recreation
Business facility
Airport
Military
University
Hospital
Stadium
Shopping
Golf course
IconName
