2021 Peugeot Landtrek Owner's Manual

135
Peugeot Connect 10" Touchscreen
11Accepting the call
Press this button on the steering-mounted
controls to answer the call.
Or
Select "Answer" on the touch screen.
Refusing the call
Press this button on the steering-mounted
controls to refuse the call.
Or
Select "End call" on the touch screen.
Making a call
Using the telephone is strongly
discouraged while driving.
Park the vehicle.
Make the call using the steering-mounted
controls.
Calling a new number
Press Telephone to display the main
page.
Press Call then enter the number using
the numeric keypad.
Press this button to make the call.
Calling a contact
Press Telephone to display the main
page.
Select "Contacts".
Search then select the desired contact in the
displayed list.
Press this button to call.
Calling a recently used
number
Press Telephone to display the main
page.
Select "Call".
The list of last numbers dialled is displayed on
the right of the screen.
Select the contact.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Applications
USB ports
Depending on equipment, for more information
on the USB ports compatible with CarPlay®,
MirrorLinkTM or Android Auto applications, refer
to the "Ease of use and comfort" section.
For the list of suitable smartphones, visit
the Brand's national website.
Synchronising a smartphone enables
users to display applications that support
the smartphone’s MirrorLinkCarPlay®, TM or
Android Auto

technology on the vehicle’s
screen. For CarPlay
® technology, the
CarPlay® function must first be activated on
the smartphone.
Unlock the smartphone for the communication
process between the smartphone and the
system to work.
As principles and standards are constantly
changing, we recommend keeping the
smartphone's operating system up-to-
date, together with the date and time on
the smartphone and the system.
Connectivity
Press on one the CarPlay®, MirrorLinkTM
or Android Auto

menus

to access the
corresponding functions.
CarPlay® smartphone
connection
Depending on country.
On connecting the USB cable, the
CarPlay® function deactivates the
system's Bluetooth® mode.
The "CarPlay " function requires the use of
a compatible smartphone and compatible
applications.

136
Peugeot Connect 10" Touchscreen
– To configure the display when the screen is
off, choose Digital, Analogue or Black.
Audio settings
Press Settings to display the main page.
Select “Audio settings” then “Treble” or
“Medium” or “Bass”.
Press Reset to restore the default settings.
BT settings
Press Settings to display the main page.
Select “BT settings”.
Activate or deactivate the Bluetooth®
search.
Activate or deactivate the synchronisation of the contacts on the paired telephone.
– Press "Local name" to change the name of
the system.
– Manage paired telephones in " Suitable
devices”.
– Press "Add device" to update the list of
detected telephones.
Customising the theme
Press Settings to display the main page.
Select "Customise".
Choose one of the themes from those offered.
Connect the USB cable. The smartphone
charges when connected by the USB
cable.
A message appears on the smartphone.
Read it and then confirm with the " Authorise"
button.
Press "CarPlay" to display the CarPlay®
interface.
MirrorLinkTM smartphone
connection
Depending on country.
The "MirrorLinkTM" function requires the
use of a compatible smartphone and
compatible

applications.
Check the compatibility of the telephone on
the Brand's website (services).
When connecting a smartphone to the
system, we recommend enabling
Bluetooth
® on the smartphone.Connect the USB cable. The smartphone
charges when connected by the USB
cable.
Press "MirrorLinkTM" to start the
application in the system.
Depending on the smartphone, it may be
necessary to activate the "MirrorLink
TM"
function.
During the procedure, several screen
pages relating to certain features are
displayed.
Accept to start and complete the connection.
Once the connection is established, a page is
displayed, showing the applications already
downloaded to the smartphone that are
compatible with MirrorLink
TM technology.
Access to the menus for the system is possible
at any time using the dedicated buttons.
There may be a pause before applications become available,
depending on the quality of the network.
Android Auto smartphone connection
Depending on country.
Install the "Android Auto" application on
the smartphone via "Google Play".
The "Android Auto" function requires the use
of a compatible smartphone and compatible
applications.
Connect the USB cable. The smartphone
charges when connected by the USB
cable.
Press "Android Auto" to start the
application in the system.
During the procedure, several screen
pages relating to certain features are
displayed.
Accept to start and complete the connection.
Access to the menus for the system is possible
at any time using the dedicated buttons.
There may be a pause before applications become available,
depending on the quality of the network.
Settings
System settings
Press Settings to display the main page.
Select "System".
–

T

o change the language, select “ Languages”.
–

T

o set the date and time automatically, choose
the time zone corresponding to the country in
which the vehicle is being driven in " Time zone".
Then choose the time display format ( 12h/24h).
–

T

o adjust the tone when touching the screen,
select "Key tone".
–

T

o adjust the volume of the touch screen and
telephone calls, move the " Automatic volume
control" and "Mobile " sliders.
Display
Press Settings to display the main page.
Select "Display".
–

T

o adjust the screen brightness, move the
"Brightness" slider.
–

Activate or deactivate video playback while
driving.

137

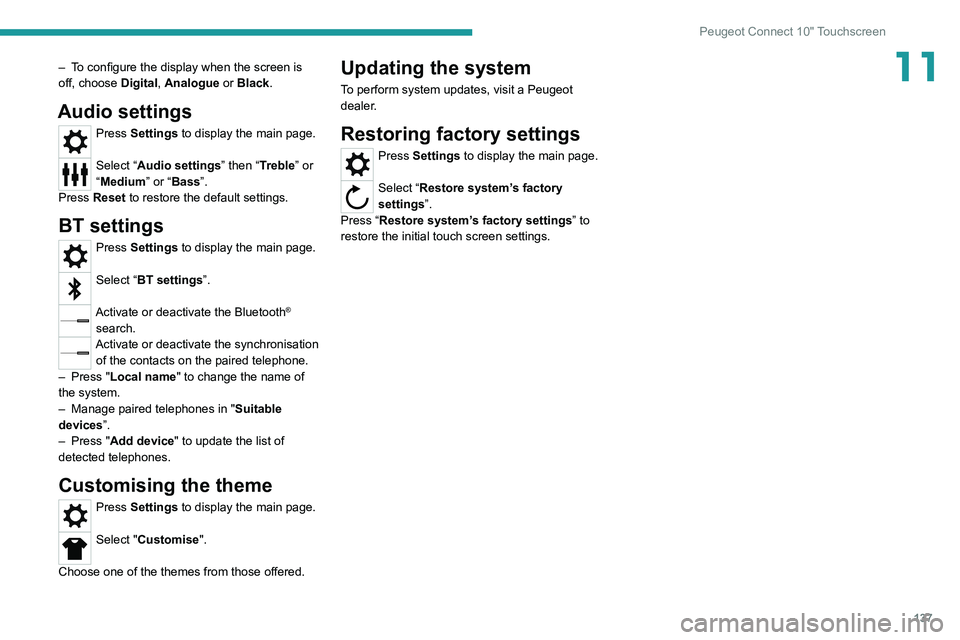

Peugeot Connect 10" Touchscreen
11– To configure the display when the screen is
off, choose Digital, Analogue or Black.
Audio settings
Press Settings to display the main page.
Select “Audio settings” then “Treble” or
“Medium” or “Bass”.
Press Reset to restore the default settings.
BT settings
Press Settings to display the main page.
Select “BT settings”.
Activate or deactivate the Bluetooth®
search.
Activate or deactivate the synchronisation of the contacts on the paired telephone.
–

Press "
Local name" to change the name of
the system.
–

Manage paired telephones in " Suitable
devices

”.
–

Press "
Add device" to update the list of
detected telephones.
Customising the theme
Press Settings to display the main page.
Select "Customise".
Choose one of the themes from those offered.
Updating the system
To perform system updates, visit a Peugeot
dealer.
Restoring factory settings
Press Settings to display the main page.
Select “Restore system’s factory
settings”.
Press “Restore system’s factory settings” to
restore the initial touch screen settings.

138
Alphabetical index
4x4 transmission selector 67
360° camera
82
A
ABS 49
Accessories
48
Additive, Diesel

95
Adjusting headlamp beam height

44
Adjusting headlamps

44
Adjusting head restraints

25
Adjusting seat

26
Adjusting the air distribution

34
Adjusting the air flow

34
Adjusting the date

13, 136
Adjusting the height and reach of
the steering wheel

27
Adjusting the seat angle

26
Adjusting the seat belt height

53
Adjusting the temperature

34
Adjusting the time

13, 136
Advice on care and maintenance

102
Advice on driving

6, 61–62
Airbags

54–56, 58
Airbags, curtain

55–56
Airbags, front

55–56, 58
Airbags, lateral

55–56
Air conditioning

31, 33, 34
Air conditioning, automatic

35
Air conditioning, dual-zone automatic

33–35
Air conditioning, manual

32, 35
Air intake 34
Air vents
31
Alarm

22–23
Android Auto connection

136
Anti-lock braking system (ABS)

49
Antitheft / Immobiliser

17
Apple CarPlay connection

135
Area, loading

40
Armrest, front

36–37
Armrest, rear

38
Assistance, emergency braking

49
Audible warning

49
Audio streaming (Bluetooth)

129
B
Battery 98
Battery, 12 V
94, 98, 116–119
Battery, charging

11 8
Battery, remote control

20–21
Bluetooth (hands-free)

129–130, 134
Bluetooth (telephone)

134
Bodywork

103
Bonnet

90–91
Brake discs

95
Brake lamps

11 2
Brakes

95
Braking assistance system

49
Bulbs

111
Bulbs (changing)

110, 112
C
Capacity, fuel tank 88
Cap, fuel filler
88
Care of the bodywork

103
Central locking

17, 19
Changing a bulb

110, 112
Changing a fuse

113–115
Changing a wheel

105–107
Changing a wiper blade

46
Changing the engine oil

99
Changing the remote control battery

20
Checking the levels

92–94
Checks

91, 94–96
Checks, routine

94–95, 97
Child lock

60
Children

54, 59
Children (safety)

60
Child seats

54, 56–58
Child seats, ISOFIX

59
Cigar lighter

36
Cleaning (advice)

101–103
Cleaning the engine throttle housing

101
Closing the boot

18, 22
Closing the doors

18–19, 21
Configuration, vehicle

13–15
Connection, Bluetooth

130, 134
Connection, MirrorLink

136
Connectivity

135
Control, emergency door

20
Control stalk, lighting

42, 44
Control stalk, wipers

45, 47

139
Alphabetical index
Courtesy lamp, rear 38
Courtesy lamps
38
Cruise control

76–78
Cup holder

36
D
Date (setting) 13, 136
Daytime running lamps
43, 110
Deactivating the passenger airbag

55, 58
Defrosting

35
Defrosting, front

35
Demisting

35
Demisting, front

35
Demisting, rear

35
Demisting, rear screen

35
Dials and gauges

7
Dimensions

125
Dipstick

92
Direction indicators

43–44, 110–112
Display screen, instrument panel

7
Door pockets

36
Doors

21
Driving

61–62
Driving aids camera (warnings)

74
Driving aids (recommendations)

74
Driving economically

6
Dynamic stability control (DSC)

49–50
E
EBFD 49
Eco-driving (advice)
6
ECO mode

71
Electric windows

24
Electronic brake force distribution (EBFD)

49
Emergency braking assistance (EBA)

49
Emergency switching off

66
Emergency warning lamps

48, 104
Engine

96
Engine compartment

91
Engine, Diesel

88, 91, 105, 124
Engine, petrol

91, 123
Engines

122–124
Environment

6, 21
ESC (electronic stability control)

49
Extinguisher

104
F
Filling the fuel tank 88
Filter, air
94, 99
Filter, Diesel fuel

100
Filter, oil

94, 100
Filter, particle

95
Filter, passenger compartment

31, 94, 98
Fitting a wheel

107, 109
Fitting roof bars

90
Fittings, front

36
Fittings, interior

36–37
Fittings, rear 38–39
Flap, fuel filler
88
Flashing indicators

43–44, 111
Floor storage compartment

30
Fluid, brake

93
Fluid, engine coolant

93
Fluid, power steering

93
Foglamps, front

42–43, 110
Foglamps, rear

42
Folding bench seat

30
Folding the rear seat backrest

27
Folding the rear seats

29–30
Front map reading lights

38
Fuel

6, 88
Fuel consumption

6
Fuel tank

88
Fusebox, dashboard

11 3
Fusebox, engine compartment

113, 115
Fuses

113–115
G
Gauge, fuel 88
Gearbox, automatic
69, 72, 95, 118
Gearbox, manual

69, 72, 95
Gear lever, manual gearbox

69
Gear shift indicator ~ Gear efficiency
indicator

73
Glove box

36
Grab handles

36

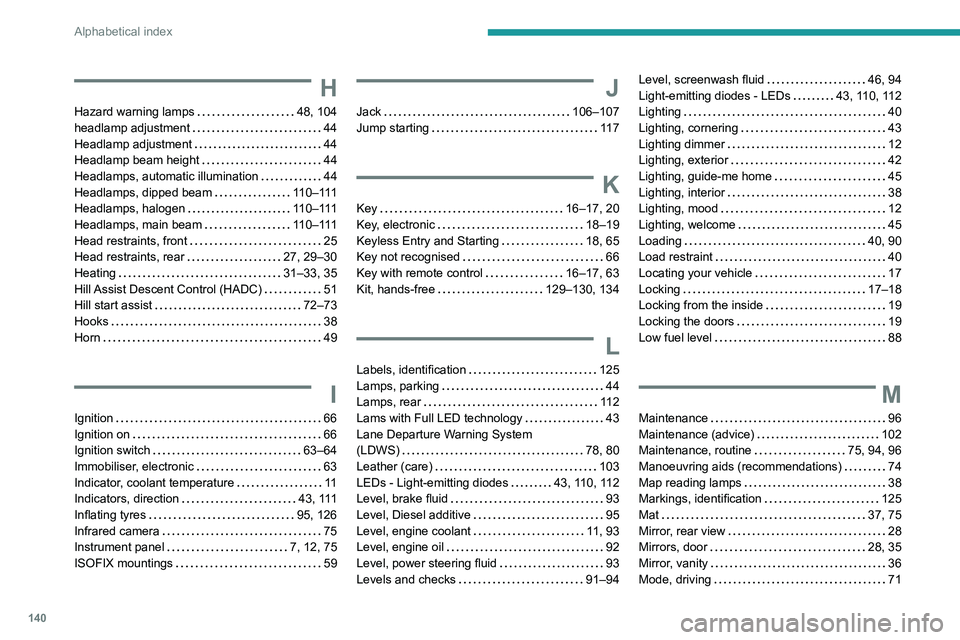

140
Alphabetical index
H
Hazard warning lamps 48, 104
headlamp adjustment
44
Headlamp adjustment

44
Headlamp beam height

44
Headlamps, automatic illumination

44
Headlamps, dipped beam

11 0 – 111
Headlamps, halogen

11 0 – 111
Headlamps, main beam

11 0 – 111
Head restraints, front

25
Head restraints, rear

27, 29–30
Heating

31–33, 35
Hill Assist Descent Control (HADC)

51
Hill start assist

72–73
Hooks

38
Horn

49
I
Ignition 66
Ignition on
66
Ignition switch

63–64
Immobiliser, electronic

63
Indicator, coolant temperature

11
Indicators, direction

43, 111
Inflating tyres

95, 126
Infrared camera

75
Instrument panel

7, 12, 75
ISOFIX mountings

59
J
Jack 106–107
Jump starting
11 7
K
Key 16–17, 20
Key, electronic
18–19
Keyless Entry and Starting

18, 65
Key not recognised

66
Key with remote control

16–17, 63
Kit, hands-free

129–130, 134
L
Labels, identification 125
Lamps, parking
44
Lamps, rear

11 2
Lams with Full LED technology

43
Lane Departure Warning System
(LDWS)

78, 80
Leather (care)

103
LEDs - Light-emitting diodes

43, 110, 112
Level, brake fluid

93
Level, Diesel additive

95
Level, engine coolant

11, 93
Level, engine oil

92
Level, power steering fluid

93
Levels and checks

91–94
Level, screenwash fluid 46, 94
Light-emitting diodes - LEDs
43, 110, 112
Lighting

40
Lighting, cornering

43
Lighting dimmer

12
Lighting, exterior

42
Lighting, guide-me home

45
Lighting, interior

38
Lighting, mood

12
Lighting, welcome

45
Loading

40, 90
Load restraint

40
Locating your vehicle

17
Locking

17–18
Locking from the inside

19
Locking the doors

19
Low fuel level

88
M
Maintenance 96
Maintenance (advice)
102
Maintenance, routine

75, 94, 96
Manoeuvring aids (recommendations)

74
Map reading lamps

38
Markings, identification

125
Mat

37, 75
Mirror, rear view

28
Mirrors, door

28, 35
Mirror, vanity

36
Mode, driving

71

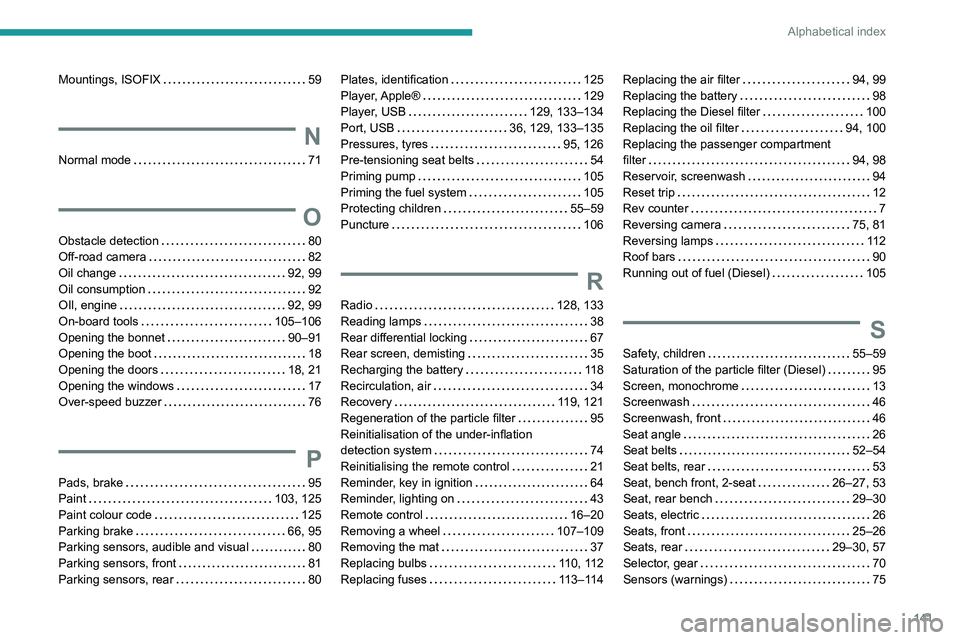

141
Alphabetical index
Mountings, ISOFIX 59
N
Normal mode 71
O
Obstacle detection 80
Off-road camera
82
Oil change

92, 99
Oil consumption

92
OIl, engine

92, 99
On-board tools

105–106
Opening the bonnet

90–91
Opening the boot

18
Opening the doors

18, 21
Opening the windows

17
Over-speed buzzer

76
P
Pads, brake 95
Paint
103, 125
Paint colour code

125
Parking brake

66, 95
Parking sensors, audible and visual

80
Parking sensors, front

81
Parking sensors, rear

80
Plates, identification 125
Player, Apple®
129
Player, USB

129, 133–134
Port, USB

36, 129, 133–135
Pressures, tyres

95, 126
Pre-tensioning seat belts

54
Priming pump

105
Priming the fuel system

105
Protecting children

55–59
Puncture

106
R
Radio 128, 133
Reading lamps
38
Rear differential locking

67
Rear screen, demisting

35
Recharging the battery

11 8
Recirculation, air

34
Recovery

119, 121
Regeneration of the particle filter

95
Reinitialisation of the under-inflation
detection system

74
Reinitialising the remote control

21
Reminder, key in ignition

64
Reminder, lighting on

43
Remote control

16–20
Removing a wheel

107–109
Removing the mat

37
Replacing bulbs

110, 112
Replacing fuses

113–114
Replacing the air filter 94, 99
Replacing the battery
98
Replacing the Diesel filter

100
Replacing the oil filter

94, 100
Replacing the passenger compartment
filter

94, 98
Reservoir, screenwash

94
Reset trip

12
Rev counter

7
Reversing camera

75, 81
Reversing lamps

11 2
Roof bars

90
Running out of fuel (Diesel)

105
S
Safety, children 55–59
Saturation of the particle filter (Diesel)
95
Screen, monochrome

13
Screenwash

46
Screenwash, front

46
Seat angle

26
Seat belts

52–54
Seat belts, rear

53
Seat, bench front, 2-seat

26–27, 53
Seat, rear bench

29–30
Seats, electric

26
Seats, front

25–26
Seats, rear

29–30, 57
Selector, gear

70
Sensors (warnings)

75

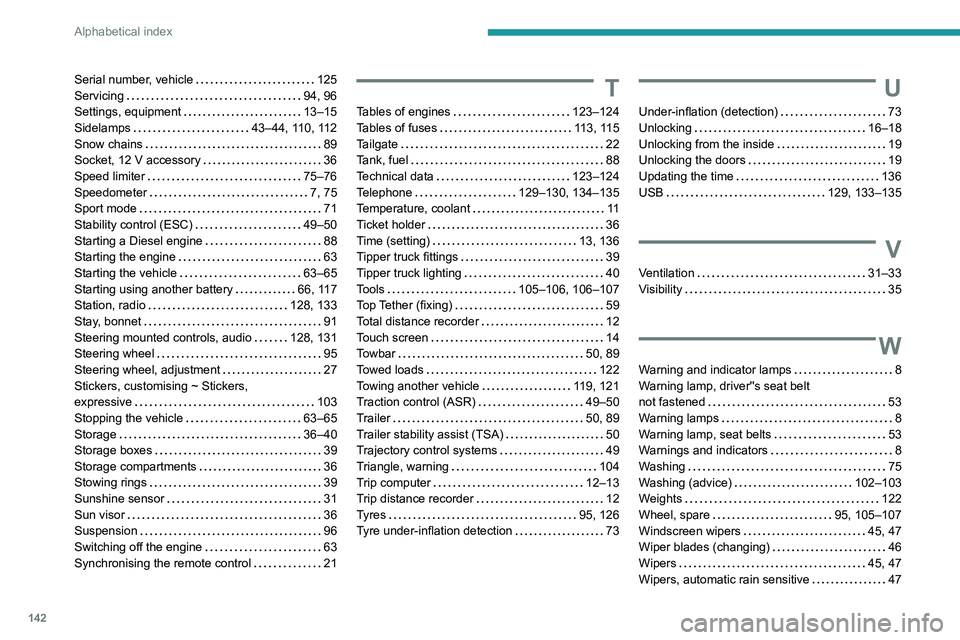

142
Alphabetical index
Serial number, vehicle 125
Servicing
94, 96
Settings, equipment

13–15
Sidelamps

43–44, 110, 112
Snow chains

89
Socket, 12 V accessory

36
Speed limiter

75–76
Speedometer

7, 75
Sport mode

71
Stability control (ESC)

49–50
Starting a Diesel engine

88
Starting the engine

63
Starting the vehicle

63–65
Starting using another battery

66, 117
Station, radio

128, 133
Stay, bonnet

91
Steering mounted controls, audio

128, 131
Steering wheel

95
Steering wheel, adjustment

27
Stickers, customising ~ Stickers,
expressive

103
Stopping the vehicle

63–65
Storage

36–40
Storage boxes

39
Storage compartments

36
Stowing rings

39
Sunshine sensor

31
Sun visor

36
Suspension

96
Switching off the engine

63
Synchronising the remote control

21T
Tables of engines 123–124
Tables of fuses
113, 115
Tailgate

22
Tank, fuel

88
Technical data

123–124
Telephone

129–130, 134–135
Temperature, coolant

11
Ticket holder

36
Time (setting)

13, 136
Tipper truck fittings

39
Tipper truck lighting

40
Tools

105–106, 106–107
Top Tether (fixing)

59
Total distance recorder

12
Touch screen

14
Towbar

50, 89
Towed loads

122
Towing another vehicle

119, 121
Traction control (ASR)

49–50
Trailer

50, 89
Trailer stability assist (TSA)

50
Trajectory control systems

49
Triangle, warning

104
Trip computer

12–13
Trip distance recorder

12
Tyres

95, 126
Tyre under-inflation detection

73
U
Under-inflation (detection) 73
Unlocking
16–18
Unlocking from the inside

19
Unlocking the doors

19
Updating the time

136
USB

129, 133–135
V
Ventilation 31–33
Visibility
35
W
Warning and indicator lamps 8
Warning lamp, driver''s seat belt
not fastened

53
Warning lamps

8
Warning lamp, seat belts

53
Warnings and indicators

8
Washing

75
Washing (advice)

102–103
Weights

122
Wheel, spare

95, 105–107
Windscreen wipers

45, 47
Wiper blades (changing)

46
Wipers

45, 47
Wipers, automatic rain sensitive

47
