2021 MERCEDES-BENZ V-CLASS MPV climate control

Re
sidual heat utilisation will switch off automati‐
cally in thefo llowing cases:
R afte r a running time of appr oximately
30 minutes
R ifth est ar ter battery's charge status is too
low
R when the ignition is switched on
R when the hot-wa ter auxiliary heater is
switched on Operating air
vents Ad
justing the air vents &
WARNING Risk of burn s and frostbite
due tobeing too close tothe air vents
Ve ry hot or very cold air can flow from the air
ve nts. #
Makesure that all vehicle occupants
alw ays maintain a suf ficient dis tance
from the air vents. #
If necessa ry, direct the air flow to
ano ther area of theve hicle interior. Ad
justing the centre air vents #
Toopen/close: turn controller 3or4 to
th eright or left as far as it will go. #
Toadjust the airflow direction: hold centre
air vent 1 or2 bycontroller 3or4 and
mo veit up or down or tothe left or right. Ad
justing the side air vents: #
Toopen/close: turn controller 2tothe
ri ght or left as far as it will go. #
Toadjust the airflow direction: hold side air
ve nt 1 bycontroller 2and mo veit up or
down or tothe left or right.
Opening/closing there ar air vents: 1
Adjustment wheel forve rtically adjusting and
re gulating air flow
2 Adjustment wheel for horizontally adjusting
air flow
The air vents can be adjus ted only on vehicles
with rear-compartment air conditioning. #
Toopen: turn adjustment wheel 1ofthe
re ar air vent tothe cent reposition. #
Toclose: turn adjustment wheel 1tothe
upper or lo wer end position. Au
xiliary heating Information about auxiliary heating
&
DANG ER Risk of fata l injury due topoi‐
sonous exhaust gases
If th eta ilpipe is bloc ked or suf ficient ventila‐
tion is not possible, poisonous exhaust gases
such as carbon monoxide may enter theve hi‐
cle. This is the case in enclosed spaces or if
th eve hicle getsst uck in sn ow,fo rex ample. 12 6
Climate cont rol

#
Always switch thest ationary heater off
in enclosed spaces without an air
ex traction sy stems, e.g. in garage s. #
Keep theta ilpipe and the area around
th eve hicle free from snow when the
engine or thest ationary heater are run‐
ning. #
Open a window on the windward side of
th eve hicle toensure an adequate sup‐
ply of fresh air. &
WARNING Risk offire due tohot station‐
ary heater components and exhaust
ga ses
Flammable materials such as lea ves, grass or
twigs may ignite. #
When thest ationary heater is swit ched
on, make sure that:
R hot vehicle parts do not come into
contact with flammable materials.
R theex haust gas can flow out of the
st ationary heater exhaust pipe
unhindered.
R theex haust gas does not come into
contact with flammable materials. The heater
forth e auxiliary heating is fitted at the
front of theve hicle underbody. The emissions
outlet is on the left side of theve hicle below the
front door. &
WARNING Risk of poisoning duri ngwork
on the auxiliary warm-air hea ter
If wo rkon the heat exchanger of the auxiliary
wa rm-air hea ter is not per form ed cor rectl y,
ex haust fumes could leak into the passenger
compartment. #
Have all workon the auxiliary warm-air
hea ter car ried out at a qualified special‐
ist workshop. If
yo u are transpo rting hazardous materials, com‐
ply with there leva nt sa fety regulations. Place
objects a suf ficient dis tance from the auxiliary
heating outlet opening.
* NO
TEDama getothe auxiliary heating
due toove rheating If
th eflow of hot air is bloc ked, the auxiliary
heating may overheat and switch off. #
Do not block theflow of hot air. *
NO
TEBattery discharge caused bysta‐
tionary heater or stationary ventilation
ope ration Ope
rating thest ationary heater or stationary
ve ntilation drains the batter y. #
After heating or ventilating theve hicle
twice, drive for a longer period of time. Yo
ur vehicle may be equipped with either a hot-
wate r auxiliary heater or an auxiliary warm-air
hea ter.
The hot-water auxiliary heater is adjusted and
operated using the003B rock er switch on the cli‐
mate cont rol sy stem cont rol panel and via the
multimedia sy stem or byremo tecontrol.
The auxiliary warm-air heater is adjusted and
operated via the switch clock on the lo wer centre
console or byremo tecontrol Hot-water auxiliary heater
Fu
nction of the hot- water auxiliary hea ter
Obser vethe no tes on auxiliary heating
(/ page 126).
The hot-water auxiliary hea ter has a heater boos‐
te r,stationary heater and stationary ventilation
function. In addition, the auxiliary heating sy stem
heats the engine coolant toprotect the engine.
The stationary heater automatically adapts its
operating mode tochanges in outside temp era‐
ture and weather conditions. It is therefore possi‐
ble that thest ationary heater may swit chfrom
ve ntilation toheating mode or from heating to
ve ntilation mode.
The stationary heater will automatically swit ch
itself off af ter a maximum of 50 minutes. The
heater boos ter function helps toheat up theve hi‐
cle while the engine is running and at low outside
te mp eratures.
Yo u can set up tothre e departure times for pre-
entry clima tecontrol byremo tecontrol or via the
multimedia sy stem. The switch-on time is then
calculated based on the outside temp erature and
th e activated departure time. This means that
yo ur vehicle is preheated or precooled bythe set
departure time.
If th e departure time is reached and the engine is
not star ted, the auxiliary heating will continue to Climate cont
rol127

ru
nfo r appro ximately five more minutes. It will
th en switch off automaticall y.
When the auxiliary heating is heating and the
engine is star ted, the heater boos ter function of
th e auxiliary heating will be activated.
When the auxiliary heating is ventilating and the
engine is star ted, the auxiliary heating will be
automatically switched off.
Switching the hot- water auxiliary hea ter
on/off with the but ton
Requ irements
R The fuel tank is filled abo vethere ser veleve l. The coloured indicator lamps abo
vethe003B
rock er switch ha vethefo llowing meanings:
R Blue – stationary ventilation is switched on
R Red – thest ationary heater is swit ched on
R Yellow – a departure time is preselec ted#
Toswitch on: presstheto p or bottom sec‐
tion of rocker switch 1.
The red or blue indicator lamp abo verock er
switch 1will light up.
The multimedia sy stem will be activated for
appr oximately one minute. #
Set the desired temp erature via the multime‐
dia sy stem. #
Toswitch off: presstheto p or bottom sec‐
tion of rocker switch 1again.
The red or blue indicator lamp abo verock er
switch 1will go out. Ad
justing the hot-water auxiliary hea terby
re mo tecontrol
Re quirements:
R The fuel tank is filled abo vethere ser veleve l.
Switching on immediately #
Press and hold the008B button until theON
message appears on there mo tecontrol's dis‐
pla y.
Setting the departu retime #
Brie fly press the 008B button. #
Continue topress the006A or0066 button
until the time tobe changed appears on the
displa y. #
Press the008B and0078 buttons simultane‐
ously.
The 004Dsymbol on there mo tecontrol display
will flash. #
Set therequ ired departure time with
th e006A and0066 buttons. #
Press the008B and0078 buttons simultane‐
ously.
The new departure time will be sa ved.
Up tothre e departure times can be sa ved. #
Toactivate the departu retime: briefly
press the008B button. #
Select there qu ired departure time with
th e006A and0066 buttons. #
Press and hold the 008B button.
The 004Csymbol, the departure time and,
depending on the selected departure time,
letter A,Bor Cwill appear on there mo tecon‐
trol's displa y. 12 8
Climate cont rol

#

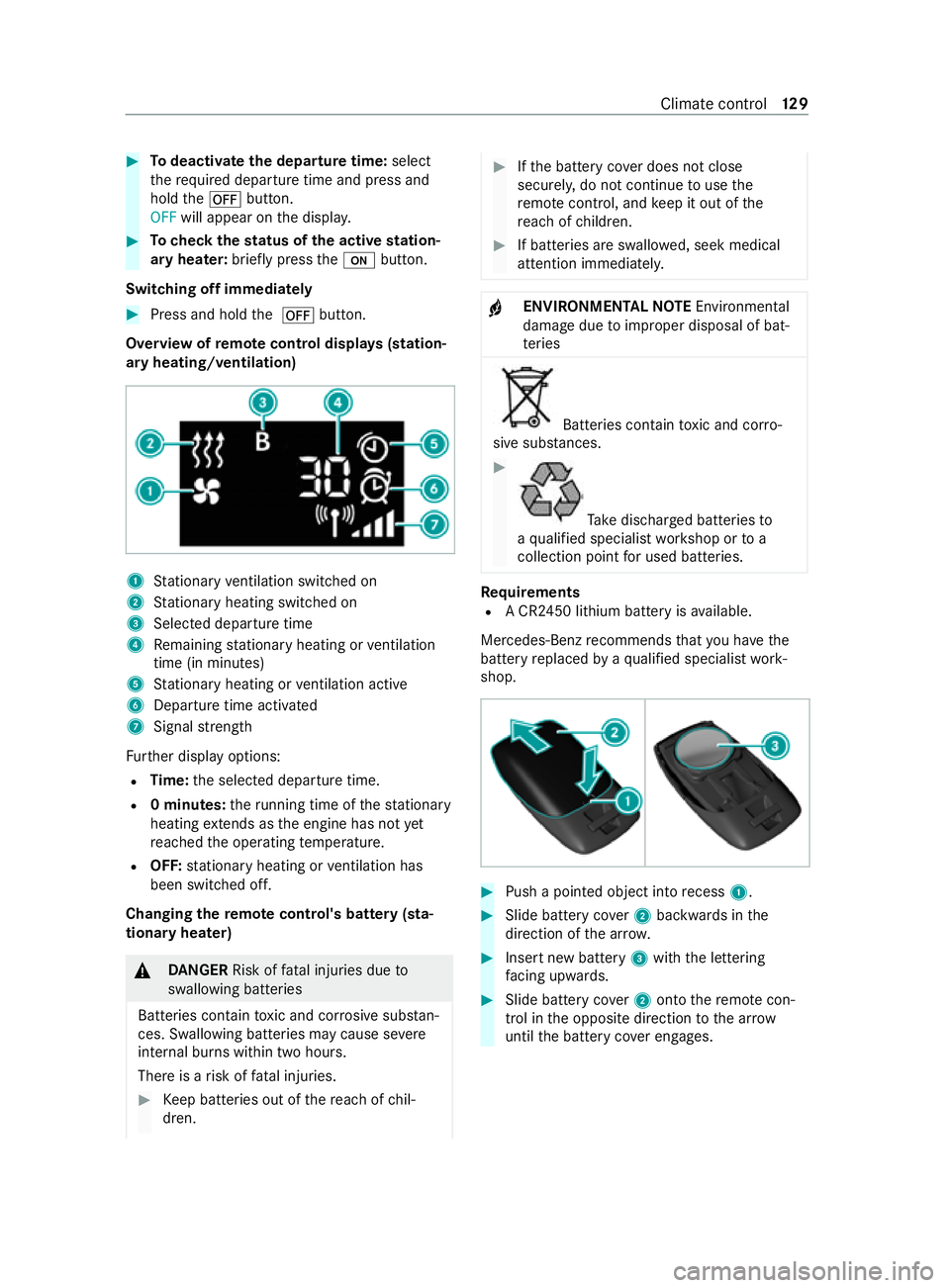

Todeactivate the departure time: select
th ere qu ired departure time and press and
hold the0078 button.
OFF will appear on the displa y. #
Tocheck thest atus of the active station‐
ary heater: briefly press the008B button.
Switching off immediately #
Press and hold the 0078 button.
Overview of remo tecontrol displa ys(station‐
ary heating/ventilation) 1
Stationary ventilation switched on
2 Stationary heating swit ched on
3 Selected departure time
4 Remaining stationary heating or ventilation
time (in minu tes)
5 Stationary heating or ventilation acti ve
6 Departure time acti vated
7 Signal stre ngth
Fu rther display options:
R Time: the selected departure time.
R 0 minutes: theru nning time of thest ationary
heating extends as the engine has not yet
re ached the operating temp erature.
R OFF: stationary heating or ventilation has
been switched off.
Changing the remo tecontrol's bat tery (sta‐
tiona ryheater) &
DANG ER Risk of fata l injuries due to
swallowing batteries
Batteries contain toxic and cor rosive subs tan‐
ces. Swallowing batteries may cause se vere
internal burns within two hours.
There is a risk of fata l injuries. #
Keep batteries out of there ach of chil‐
dren. #
Ifth e battery co ver does not close
securely, do not continue touse the
re mo tecontrol, and keep it out of the
re ach of children. #
If batteries are swallo wed, seek medical
attention immediately. +
ENVIRONMEN
TALNO TEEnvironmental
damage due toimproper disposal of bat‐
te ries Batteries contain
toxic and cor ro‐
sive subs tances. #
Ta
ke dischar ged batteries to
a qu alified specialist workshop or to a
collection point for used batteries. Re
quirements
R A CR2450 lithium battery is available.
Mercedes-Benz recommends that you ha vethe
battery replaced byaqu alified specialist work‐
shop. #
Push a pointed object into recess 1. #
Slide battery co ver2 backwards in the
direction of the ar row. #
Insert new battery 3with the lettering
fa cing up wards. #
Slide battery co ver2 onto there mo tecon‐
trol in the opposite direction tothe ar row
until the battery co ver engages. Climate control
12 9

Re
ctifying problems with the hot- water auxili‐
ary hea ter
FA IL00A3 00A3 appea rson there mo tecontrol dis‐
play
Po ssible cause:
R Signal transmission between transmitter and
receiver is malfunctioning. #
Change your position in relation totheve hi‐
cle, moving closer if necessar y.
FA IL appea rson there mo tecontrol display
Po ssible cause:
R The star ter battery is not suf ficiently charge d. #
Charge thest ar ter batter y.
Po ssible cause:
R The fuel tank is not filled up tothere ser ve
le ve l. #
Refuel at the nearest filling station.
FA IL appea rson there mo tecontrol dis‐
play 0099 0099
Po ssible cause:
R The auxiliary heating has malfunctioned. #
Have the auxiliary heating checked at a quali‐
fi ed specialist workshop. Au
xiliary warm-air heater Fu
nction of the auxiliary warm-air heater
Obse rveth e no tes on auxiliary heating
(/ page 126).
The air-intake opening forth e auxiliary warm-air
hea ter is located on the inner side of the left
front seat base. The warm-air outlet is on there ar
side of the left front seat.
The auxiliary warm-air hea ter supplements the
climate control sy stem of your vehicle and has an
auxiliary heating function.
The stationary heater will swit choff automatically
when the engine is switched off or when the set
heating duration has elapsed.
The immediate heating mode of the auxiliary
heating supports the climate cont rol sy stem
when the engine is running and the outside tem‐
perature is lo w. Yo
u ha vethefo llowing options for operating the
auxiliary heating:
R The swit chclock in thestow age compartment
below the cent reconsole
R The switch clock on the lo wer centre console
R Remo tecontrol
Yo u can use the switch clock toset up tothree
departure times for pre-entry clima tecontrol.
Au xiliary warm-air heater switch clo ckove r‐
vi ew
Use the switch clock toconfigu rethefo llowing
settings:
R Swit ching immediate heating mode on/off
R Setting up tothre e preselection times
R Setting the operating duration within a range
of 10 to120 minutes or tocontinuous ope ra‐
tion
R Adjusting the heating le vel (preselec tedte m‐
perature). 1
Program column on the display
0059 Selects preselection memory number
1–3
Mon–Sun, sets da ys
2 Menu bar on the display
0084 Switches immediate heating mode
on/o ff
0045 Setsthe preselection periods
0045 Setsthe da y,time and operating du ra‐
tion
00D1 Setsthe heating le vel
3 Displ aysection for time, heating le vel and
operating duration on the display
00D5 Continuous operation on 13 0
Climate cont rol

Preselecte
d heating mode
Preselected heating mode is available only for
ve hicles that are not equipped totranspo rthaz‐
ardous goods.
Yo u can set thre e preselection periods using the
switch cloc k.
When setting the preselection period, make sure
th at it cor responds not tothe switch-on time but
to the switch-off or departure time. The auxiliary
heating will start up automatically prior todepar‐
ture and runfo rth e set operating duration.
If identical preselection periods (time and day)
are set in the preselection memor y,only the last
preselection period set will be sa ved.
When switching on the auxiliary heating forthe
fi rs t time following a malfunction or voltage sup‐
ply inter ruption, you will need toset the preselec‐
tion periods again. #
Toset the switch-on time: activatethe
switch cloc k. #
Press the00CF or00DB button until the0045
symbol flashes on menu bar 2. #
Press the0076 button.
The preselection memory numbers 0059will
be shown in program column 1. The selec‐
te d preselection memory number will flash. #
Press the00CF or00DB button toselect the
desired preselection memory number. #
Press the0076 button.
The preselection memory number will be
selected. The da yswill be displa yed. #
Set the day and time as described in the "Set‐
ting the da y,time and operating du ration"
section.
The preselection pe riod will be stored. Pro‐
gram column 1will be hidden. The message
on and symbol 0084will appear on display
section 3. #
Press the0076 button.
The operating duration will flash on display
section 3. #
Set the operating duration.
The operating duration forth e preselection
period will be stored. The time and the num‐
ber of the set preselection memory will be
shown.
% An underscore deno
testh e preselection
memory that will be next tobe activated in
chro nological orde r.The selected day will
also be shown. #
Todeactivate the switch-on time: complete
th esteps as described in the "Setting the
switch-on time" section. #
Ifth e0084 symbol is shown on display sec‐
tion 3: press the00CF or00DB button until
off appears. #
Press the0076 button.
The preselection period will be deactivated
and the time will be shown on display section
3.
Operating the auxiliary heating byremo te
control (auxilia rywa rm-air heater)
Yo u can swit chthe auxiliary heating on and off as
we ll as set the operating duration with a remo te
control. The remo tecontrol must be synchron‐
ised wi th the auxiliary heating sy stem receiver.
Fo r more information, please contact a qualified
specialist workshop.
St ore there mo tecontrol forth e auxiliary heating
such that the auxiliary heating function cann otbe
switched on unintentionally. In particular, ensure
th at there mo tecontrol is kept out of there ach of
ch ildren.
The remo tecontrol has a range of appr oximately
300 m. The range is reduced bysources of radio
inter fere nce or solid objects, forex ample. 1
Indicator lamps
2 Confirms settings
3 Swit ches there mo tecontrol on/off
Changing the operating duration or cancel‐
ling or term inating settings
Indicator lamp 1lights up in various ways to
show dif fere nt ope rating modes:
R Lights up red – remo tecontrol switched on
R Flashes red – auxiliary heating switched off 13 2
Climate cont rol

R
Lights up green – auxiliary heating switched
on
R Flashes green – change operating duration
option active
R Flashes alternately red and green – remo te
control in synchronising mode
When there mo tecontrol battery is weak, indica‐
to r lamp 1will flash redra pidl y. #
Replace there mo tecontrol battery
(/ page 132).
% Yo
u can find fur ther information on lamp sta‐
tuses under "Problems with the auxiliary
heating" .
Switching there mo tecontrol on/off
The remo tecontrol will switch tostandby mode
af te rte n seconds. Indicator lamp 1will go out. #
Toswitch on: press and hold the00D0 but‐
to n until indica tor lamp 1lights up red. #
Toswitch off: press and hold button 00D0
until indicator lamp 1goes out.
Switching auxiliary heating on and off #
Switch on there mo tecontrol. #
Toswitch on: when indicator lamp 1
fl ashes red, press the0076 button.
During data transfer, indicator lamp 1will
light up red.
When indicator lamp 1lights up green, the
auxiliary heating is swit ched on. #
Toswitch off: when indicator lamp 1lights
up green, press the0076 button.
During data transfer, indicator lamp 1will
light up red.
When indicator lamp 1flashes red, the aux‐
iliary heating is switched off.
Changing the operating du ration #
Switch on there mo tecontrol. #
When indicator la mp1flashes red, press
th e00D0 and0076 buttons simultaneousl y.
Indicator lamp 1will flash green. #
Press the00D0 button repeatedly until the
desired operating duration is shown. R 20 minutes – indicator lamp 1will flash
green tw ice.
R 30 minutes – indicator lamp 1will flash
green thre e times.
R 40 minutes – indicator lamp 1will flash
green four times. #
Press the0076 button.
During data transfer, indicator lamp 1will
light up red.
When indicator lamp 1emits two long,
green flashes, the selected operating duration
is stored.
If no adjustment is made tothe operating
duration, indicator lamp 1will flash six
times and there mo tecontrol will enter
st andby mode.
Re placing the remo tecontrol bat tery (auxili‐
ary warm-air heater) &
DANG ER Risk of fata l injuries due to
swallowing batteries
Batteries contain toxic and cor rosive subs tan‐
ces. Swallowing batteries may cause se vere
internal burns within two hours.
There is a risk of fata l injuries. #
Keep batteries out of there ach of chil‐
dren. #
Ifth e battery co ver does not close
securely, do not continue touse the
re mo tecontrol, and keep it out of the
re ach of children. #
If batteries are swallo wed, seek medical
attention immediately. +
ENVIRONMEN
TALNO TEEnvironmental
damage due toimproper disposal of bat‐
te ries Batteries contain
toxic and cor ro‐
sive subs tances. #
Ta
ke dischar ged batteries to
a qu alified specialist workshop or to a
collection point for used batteries. Re
quirements
R A CR2430 lithium battery is available.
Mercedes-Benz recommends that you ha vethe
battery replaced byaqu alified specialist work‐
shop. Climate
control 13 3

#
Turn battery co ver2 anticlockwise using a
suita ble object, e.g. a coin, and remo veit. #
Check the seal on battery co ver2 for dam‐
age and replace it if necessar y. #
Remo vebattery 3. #
Insert a new battery 3into the battery com‐
partment with the positive term inal facing
up wa rds.
Use a lint-free clo thtodo so. #
Position battery co ver2 sothat mark 1on
th era ised area points between two recesses
4. #
Turn the battery co ver clockwise as far as it
will go. #
Check all the functions of there mo tecontrol.
Re ctifying problems with the auxiliary warm-
air heater
The display section of the switch clock sho ws
th e message Err.
Po ssible cause:
R The fuel le vel in the fuel tank is too lo w.
The auxiliary heating switches off automati‐
call y. #
Refuel theve hicle. #
Start the auxiliary heating se veral times until
th e fuel lines are full.
Po ssible cause:
R A malfunction has occur red.
The auxiliary heating switches off automati‐
call y. #
Have the auxiliary heating checked at a quali‐
fi ed specialist workshop. The message
iniappears on the display sec‐
tion of the switch clock or the clock is flash‐
ing.
Po ssible cause:
R The on-board electrical sy stem voltage has
been inter rupte d. All sa ved settings ha ve
been dele ted.
Au tomatic hardware de tection is cur rently
acti ve. #
When automatic hardware de tection is com‐
ple te, set the da y,time, operating du ration
and preselection pe riod (/ page131).
The indicator lamp on the remo tecontrol
flashes redra pidl y.
Po ssible cause:
R The remo tecontrol battery is dis charge d.
Data transmission is not possible. #
Replace there mo tecontrol battery
(/ page 133).
The indicator lamp on there mo tecontrol
flashes red and green in rapid succession.
Po ssible cause:
R There is no connection between there mo te
control and there ceiver in theve hicle. #
Change your position in relation totheve hi‐
cle, e.g. hold there mo tecontrol higher or
mo veitto the side. #
Movecloser.
If yo u cannot make a connection and the auxiliary
heating is switched on, you can swit choff the
auxiliary heating only via the switch clock in the
ve hicle.
Po ssible cause:
R The remo tecontrol is not synchronised. #
Have there mo tecontrol synchronised at a
qu alified specialist workshop.
The indicator lamp on there mo tecontrol
slo wly flashes red and green alternatel y.
Po ssible cause:
R The remo tecontrol is not synchronised. #
Have there mo tecontrol synchronised at a
qu alified specialist workshop. 134
Climate cont rol
