Headlight aim
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area around the
headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4

498
GX460_OM_OM60T19U_(U)6-3. Do-it-yourself maintenance
Using a Phillips-head screwdriver, turn bolt A in either direction.
Remember the turning directio
n and the number of turns.
Turn bolt B the same number of turns
and in the same direction as step .
If the headlight cannot be adjusted using
this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.
Adjusting the headlight aim
1
Left-hand sideRight-hand side
2
1

499
GX460_OM_OM60T19U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Light bulbs
Check the wattage and color of the light bulb being replaced. (
P. 569)
■Front
Front turn signal light
You may replace the following bulbs your self. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
Preparing for light bulb replacement
Bulb locations
1

500
GX460_OM_OM60T19U_(U)6-3. Do-it-yourself maintenance
■Rear
Rear turn signal light
Back-up light
Rear side marker light
Running board lights1
2
3
4

GX460_OM_OM60T19U_(U)
5016-3. Do-it-yourself maintenance
6
Maintenance and care
■Front turn signal lightsTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3

502
GX460_OM_OM60T19U_(U)6-3. Do-it-yourself maintenance
■Rear turn signal lights an
d rear side marker lights
Open the back door.
Left-hand side
Remove the bolts and lamp assem-
bly.
Right-hand side Remove the bolts.
Close the back door half way
and remove the lamp assem-
bly.
1
1
2

GX460_OM_OM60T19U_(U)
5036-3. Do-it-yourself maintenance
6
Maintenance and care
Unplug the connector while
pushing the lock release.
Turn the bulb bases counter-
clockwise.Rear turn signal light
Rear side marker light
Remove the light bulb. Rear turn signal light
Rear side marker light
When installing, reverse the steps listed.2
3
1
2
4
1
2
5

504
GX460_OM_OM60T19U_(U)6-3. Do-it-yourself maintenance

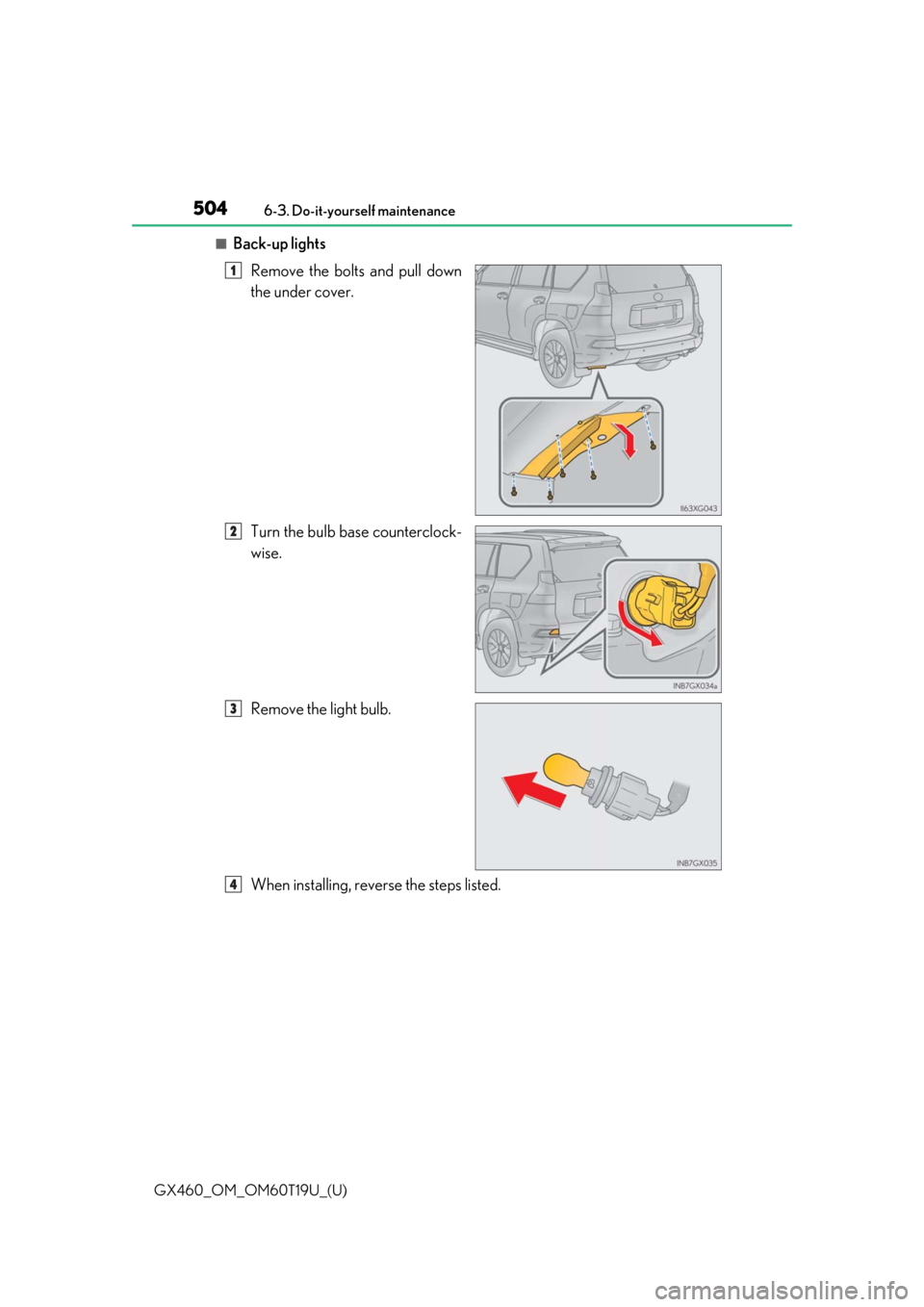

■Back-up lights
Remove the bolts and pull down
the under cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
