2021 KIA NIRO HYBRID EV Owners Manual

6 8
Specifications, Consumer information and Reporting safety defects

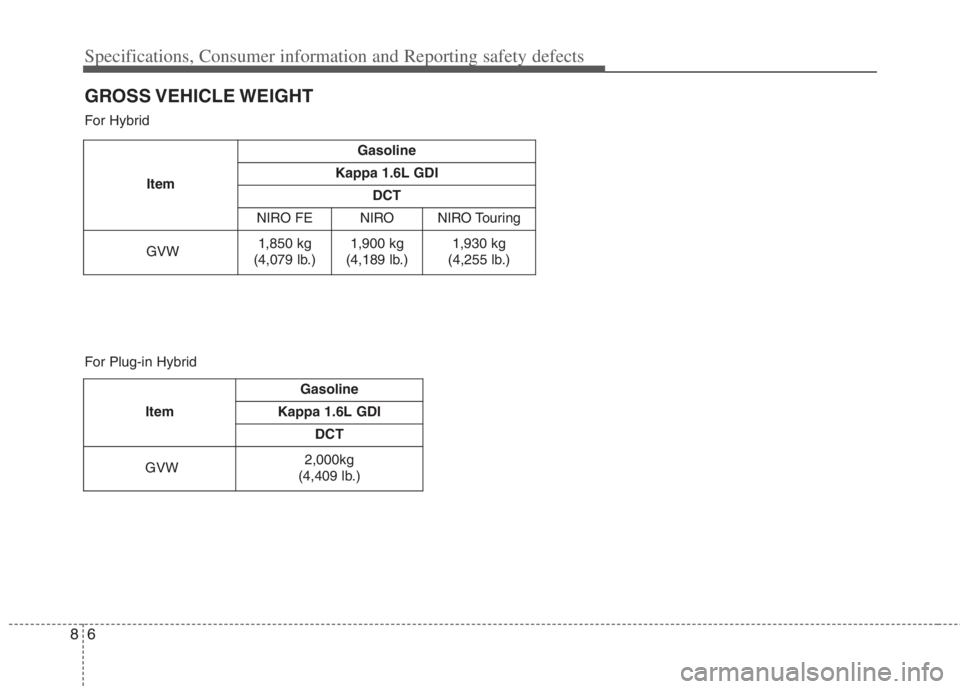

GROSS VEHICLE WEIGHT
Item
Gasoline
Kappa 1.6L GDI
DCT
NIRO FENIRONIRO Touring
GVW1,850 kg
(4,079 lb.)1,900 kg
(4,189 lb.)1,930 kg
(4,255 lb.)
For Hybrid
For Plug-in Hybrid
Item
Gasoline
Kappa 1.6L GDI
DCT
GVW2,000kg
(4,409 lb.)

87
Specifications, Consumer information and Reporting safety defects

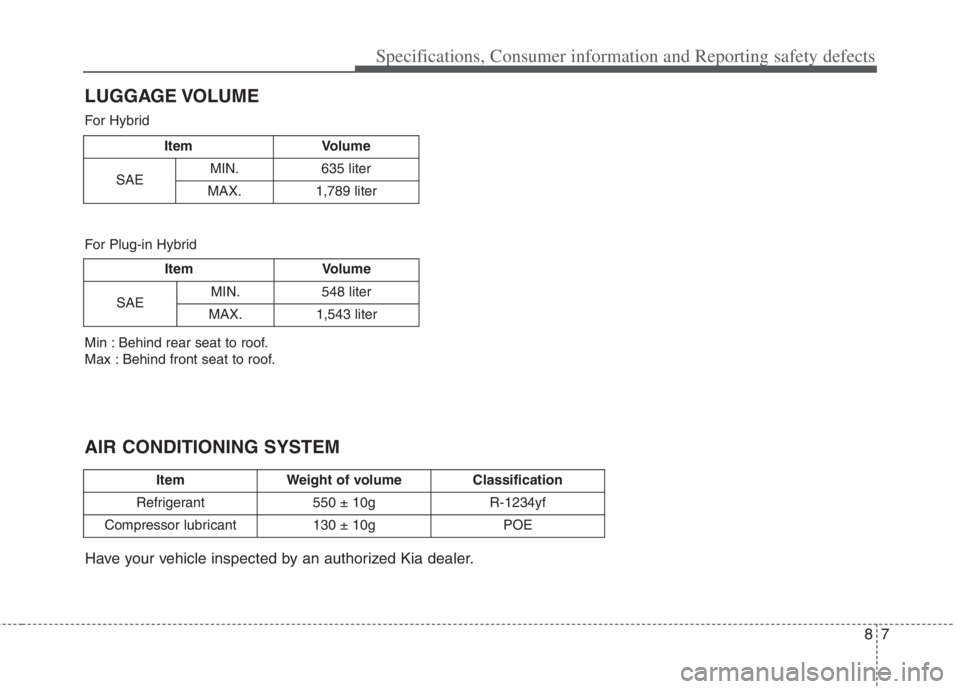

LUGGAGE VOLUME
Have your vehicle inspected by an authorized Kia dealer.
ItemWeight of volumeClassification
Refrigerant550 ± 10gR-1234yf
Compressor lubricant130 ± 10gPOE
AIR CONDITIONING SYSTEM
Min : Behind rear seat to roof.
Max : Behind front seat to roof.
ItemVolume
SAEMIN.635 liter
MAX.1,789 liter
ItemVolume
SAEMIN.548 liter
MAX.1,543 liter
For Plug-in Hybrid For Hybrid

8 8
Specifications, Consumer information and Reporting safety defects

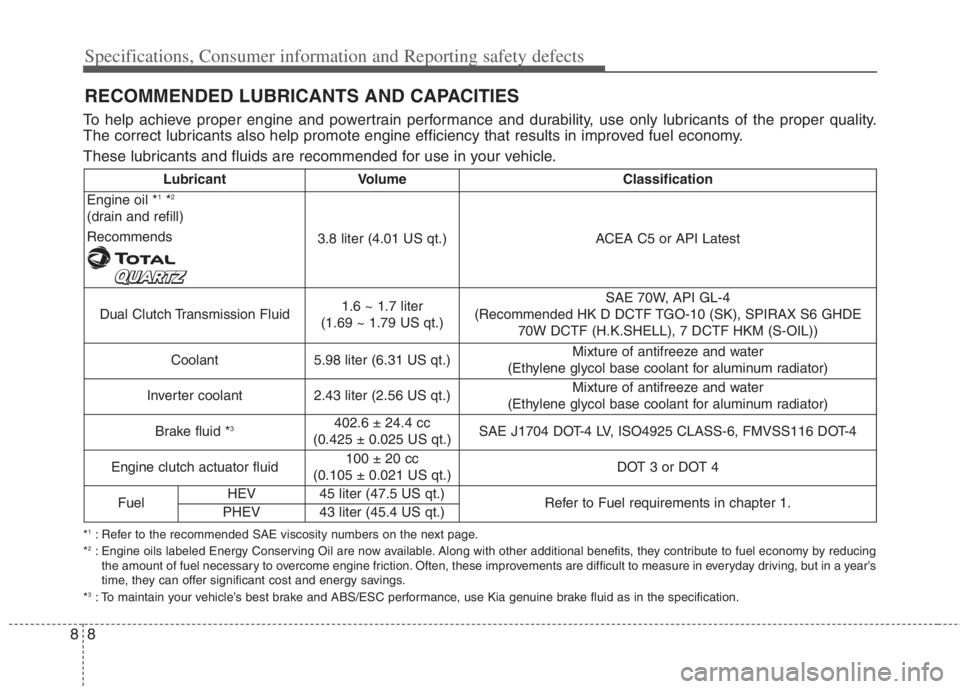

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3: To maintain your vehicle’s best brake and ABS/ESC performance, use Kia genuine brake fluid as in the specification.
Lubricant VolumeClassification
Engine oil *1*2
(drain and refill)
Recommends
3.8 liter (4.01 US qt.)ACEA C5 or API Latest
Dual Clutch Transmission Fluid1.6 ~ 1.7 liter
(1.69 ~ 1.79 US qt.)SAE 70W, API GL-4
(Recommended HK D DCTF TGO-10 (SK), SPIRAX S6 GHDE
70W DCTF (H.K.SHELL), 7 DCTF HKM (S-OIL))
Coolant5.98 liter (6.31 US qt.)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Inverter coolant2.43 liter (2.56 US qt.)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid *3402.6 ± 24.4 cc
(0.425 ± 0.025 US qt.)SAE J1704 DOT-4 LV, ISO4925 CLASS-6, FMVSS116 DOT-4
Engine clutch actuator fluid100 ± 20 cc
(0.105 ± 0.021 US qt.)DOT 3 or DOT 4
FuelHEV45 liter (47.5 US qt.)Refer to Fuel requirements in chapter 1.PHEV43 liter (45.4 US qt.)

89
Specifications, Consumer information and Reporting safety defects

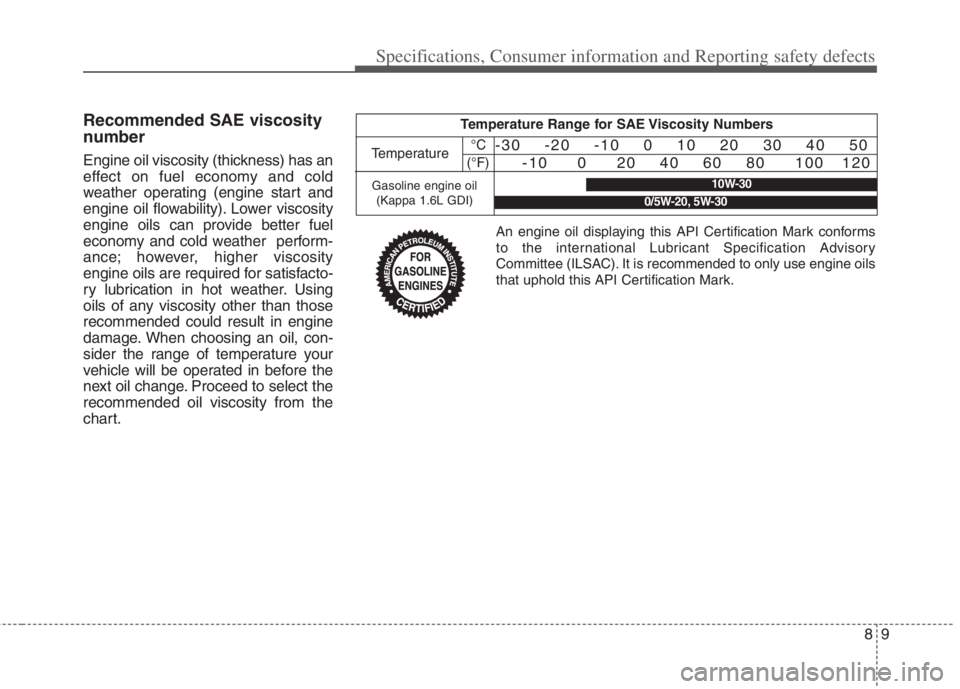

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfacto-
ry lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select the
recommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Gasoline engine oil
(Kappa 1.6L GDI)10W-30
0/5W-20, 5W-30
An engine oil displaying this API Certification Mark conforms
to the international Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.

10 8
Specifications, Consumer information and Reporting safety defects

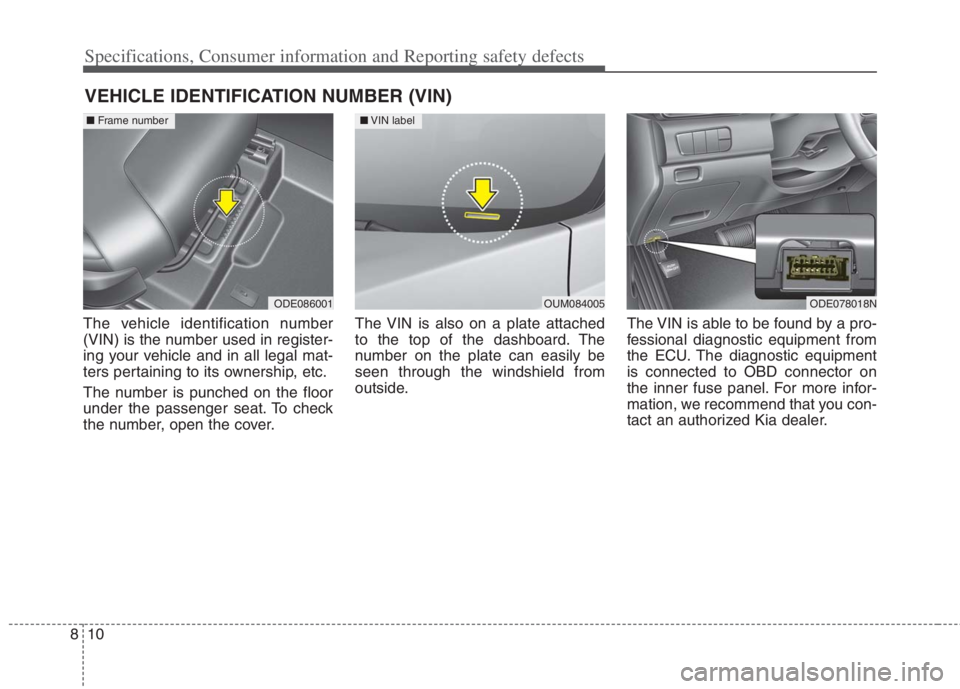

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The VIN is able to be found by a pro-
fessional diagnostic equipment from
the ECU. The diagnostic equipment
is connected to OBD connector on
the inner fuse panel. For more infor-
mation, we recommend that you con-
tact an authorized Kia dealer.
ODE086001
■Frame number
OUM084005
■VIN label
ODE078018N

811
Specifications, Consumer information and Reporting safety defects

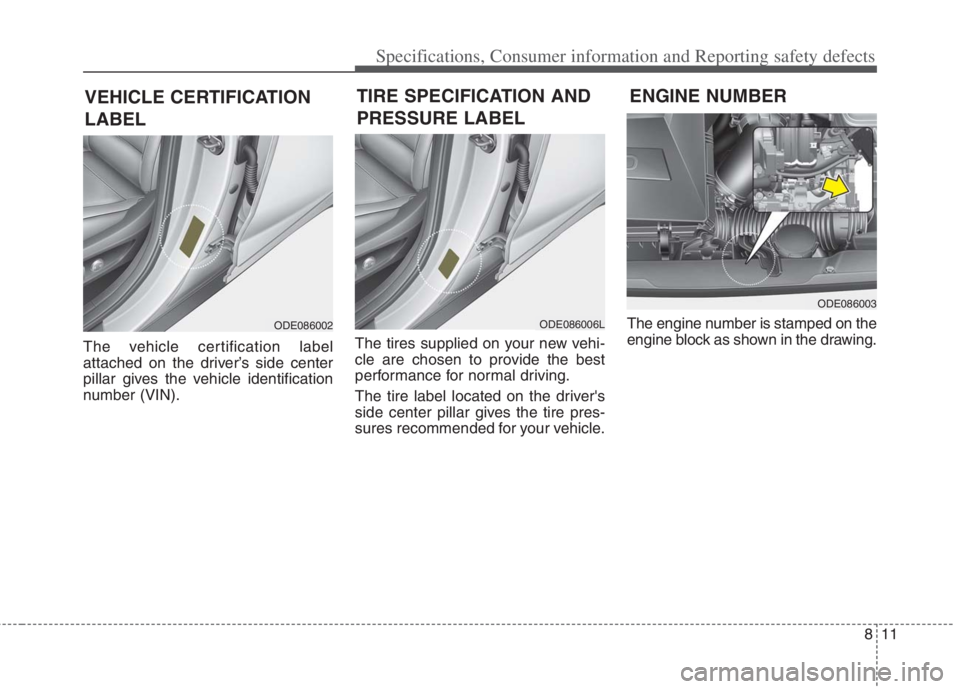

The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on the
engine block as shown in the drawing.
ENGINE NUMBER TIRE SPECIFICATION AND
PRESSURE LABEL
ODE086006L
ODE086003
ODE086002
VEHICLE CERTIFICATION
LABEL

12 8
Specifications, Consumer information and Reporting safety defects

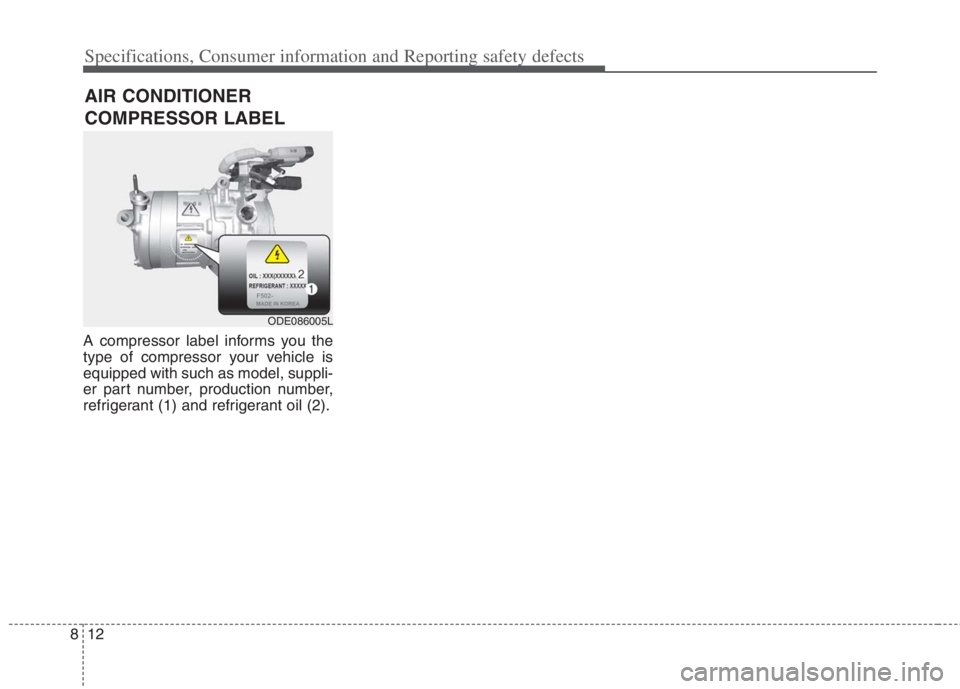

A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant (1) and refrigerant oil (2).
AIR CONDITIONER
COMPRESSOR LABEL
ODE086005L

813
Specifications, Consumer information and Reporting safety defects

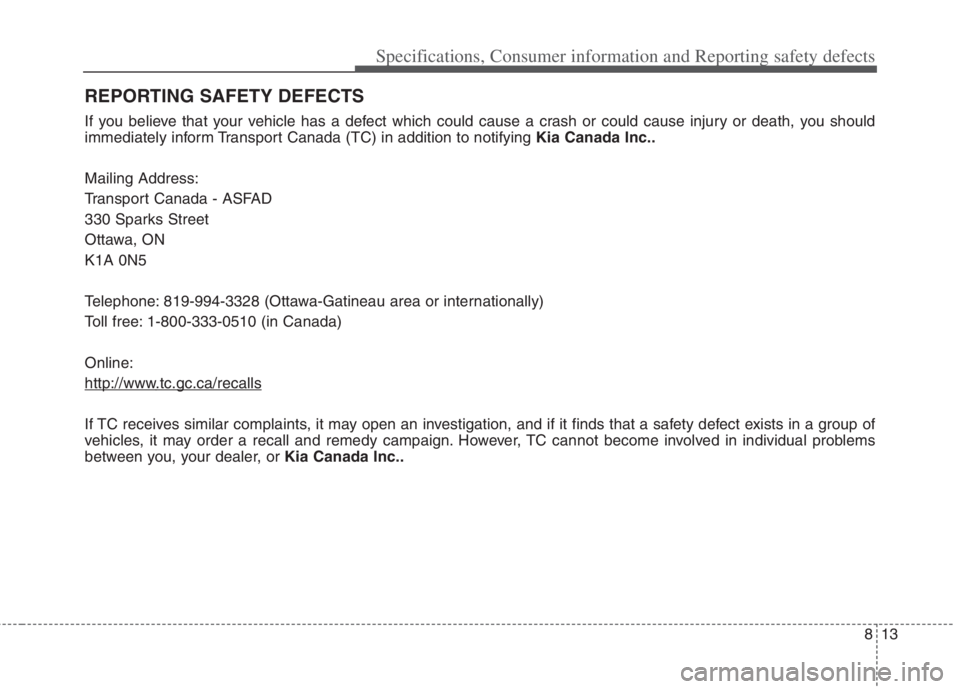

REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should
immediately inform Transport Canada (TC) in addition to notifying Kia Canada Inc..
Mailing Address:
Transport Canada - ASFAD
330 Sparks Street
Ottawa, ON
K1A 0N5
Telephone: 819-994-3328 (Ottawa-Gatineau area or internationally)
Toll free: 1-800-333-0510 (in Canada)
Online:
http://www
.tc.gc.ca/recalls
If TC receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of
vehicles, it may order a recall and remedy campaign. However, TC cannot become involved in individual problems
between you, your dealer, or Kia Canada Inc..
