2021 KIA NIRO HYBRID EV Owners Manual

599
Driving your vehicle
✽ ✽

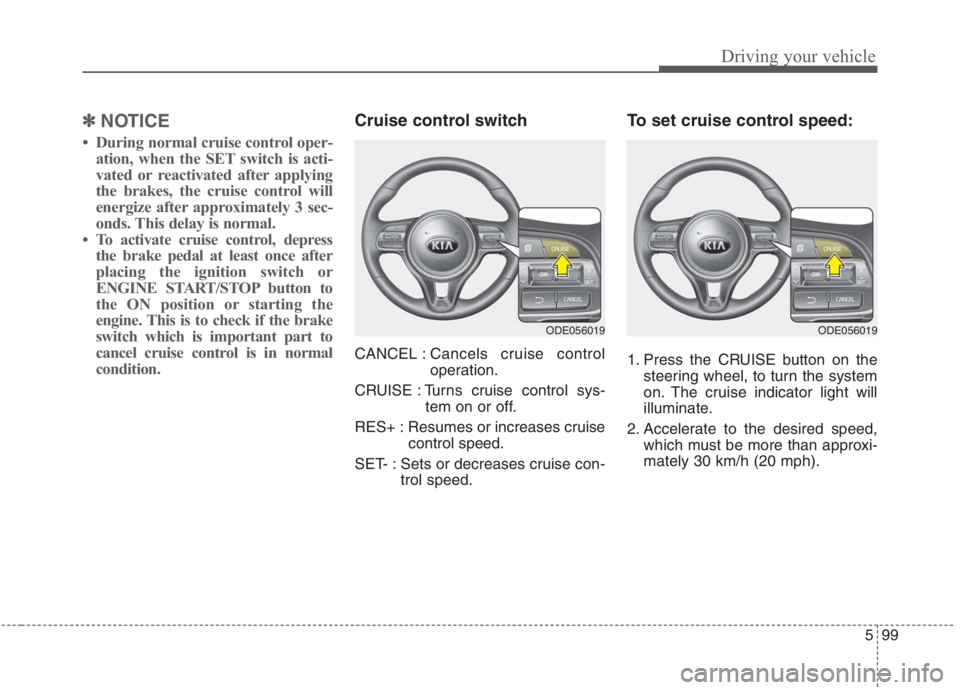

NOTICE
• During normal cruise control oper-
ation, when the SET switch is acti-
vated or reactivated after applying
the brakes, the cruise control will
energize after approximately 3 sec-
onds. This delay is normal.
• To activate cruise control, depress
the brake pedal at least once after
placing the ignition switch or
ENGINE START/STOP button to
the ON position or starting the
engine. This is to check if the brake
switch which is important part to
cancel cruise control is in normal
condition.
Cruise control switch
CANCEL :Cancels cruise control
operation.
CRUISE : Turns cruise control sys-
tem on or off.
RES+ : Resumes or increases cruise
control speed.
SET- : Sets or decreases cruise con-
trol speed.
To set cruise control speed:
1. Press the CRUISE button on the
steering wheel, to turn the system
on. The cruise indicator light will
illuminate.
2. Accelerate to the desired speed,
which must be more than approxi-
mately 30 km/h (20 mph).
ODE056019ODE056019

Driving your vehicle
100 5

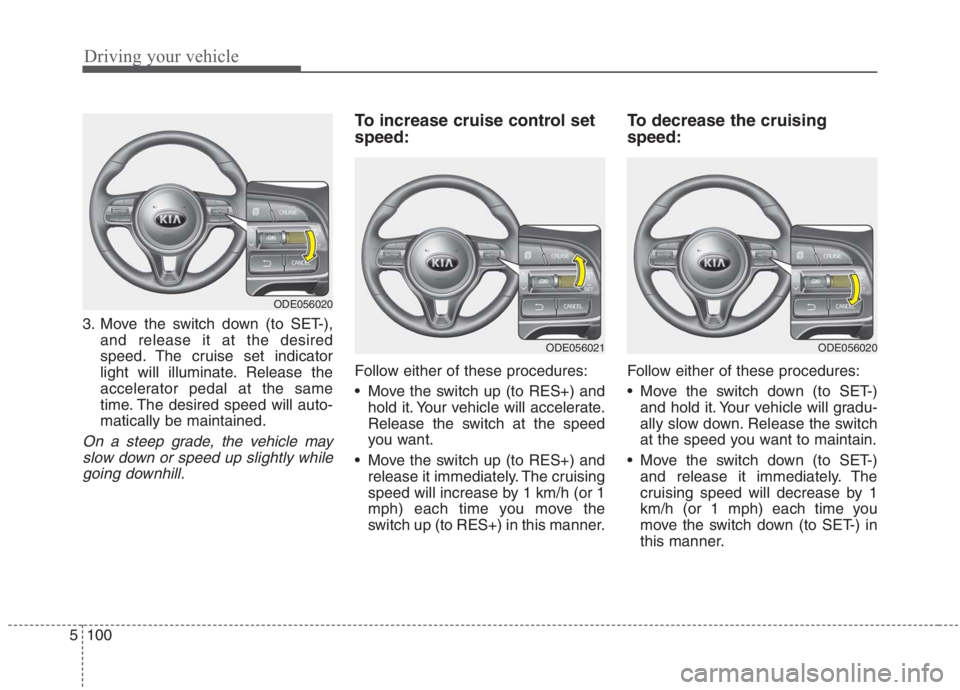

3. Move the switch down (to SET-),
and release it at the desired
speed. The cruise set indicator
light will illuminate. Release the
accelerator pedal at the same
time. The desired speed will auto-
matically be maintained.
On a steep grade, the vehicle may
slow down or speed up slightly while
going downhill.
To increase cruise control set
speed:
Follow either of these procedures:
Move the switch up (to RES+) and
hold it. Your vehicle will accelerate.
Release the switch at the speed
you want.
Move the switch up (to RES+) and
release it immediately. The cruising
speed will increase by 1 km/h (or 1
mph) each time you move the
switch up (to RES+) in this manner.
To decrease the cruising
speed:
Follow either of these procedures:
Move the switch down (to SET-)
and hold it. Your vehicle will gradu-
ally slow down. Release the switch
at the speed you want to maintain.
Move the switch down (to SET-)
and release it immediately. The
cruising speed will decrease by 1
km/h (or 1 mph) each time you
move the switch down (to SET-) in
this manner.
ODE056020
ODE056021ODE056020

5101
Driving your vehicle

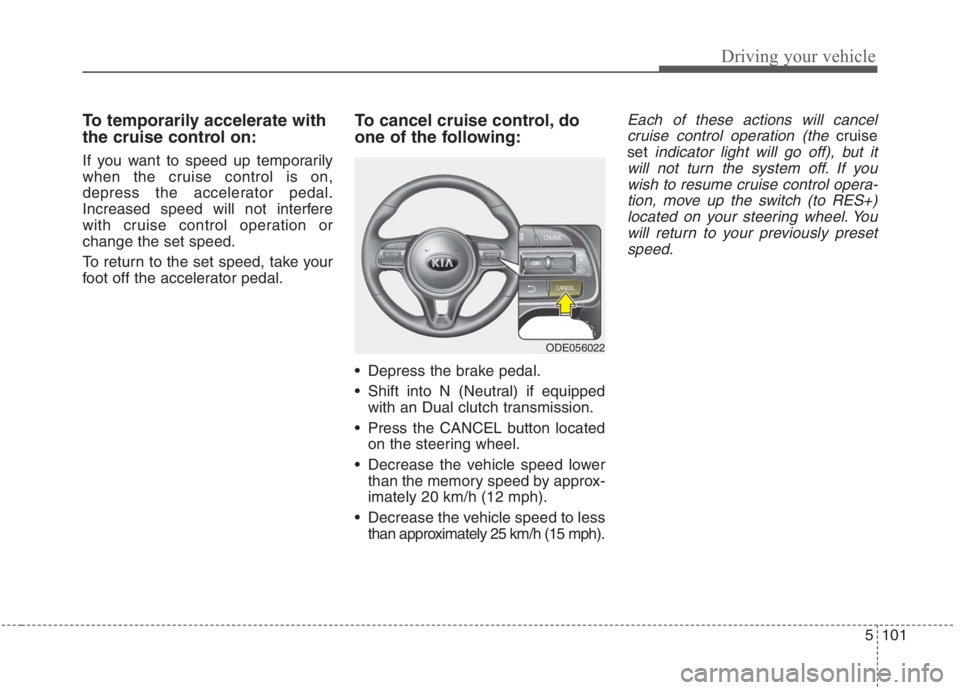

To temporarily accelerate with
the cruise control on:
If you want to speed up temporarily
when the cruise control is on,
depress the accelerator pedal.
Increased speed will not interfere
with cruise control operation or
change the set speed.
To return to the set speed, take your
foot off the accelerator pedal.
To cancel cruise control, do
one of the following:
Depress the brake pedal.
Shift into N (Neutral) if equipped
with an Dual clutch transmission.
Press the CANCEL button located
on the steering wheel.
Decrease the vehicle speed lower
than the memory speed by approx-
imately 20 km/h (12 mph).
Decrease the vehicle speed to less
than approximately 25 km/h (15 mph).
Each of these actions will cancel
cruise control operation (the
cruise
set
indicator light will go off), but it
will not turn the system off. If you
wish to resume cruise control opera-
tion, move up the switch (to RES+)
located on your steering wheel. You
will return to your previously preset
speed.
ODE056022

Driving your vehicle
102 5

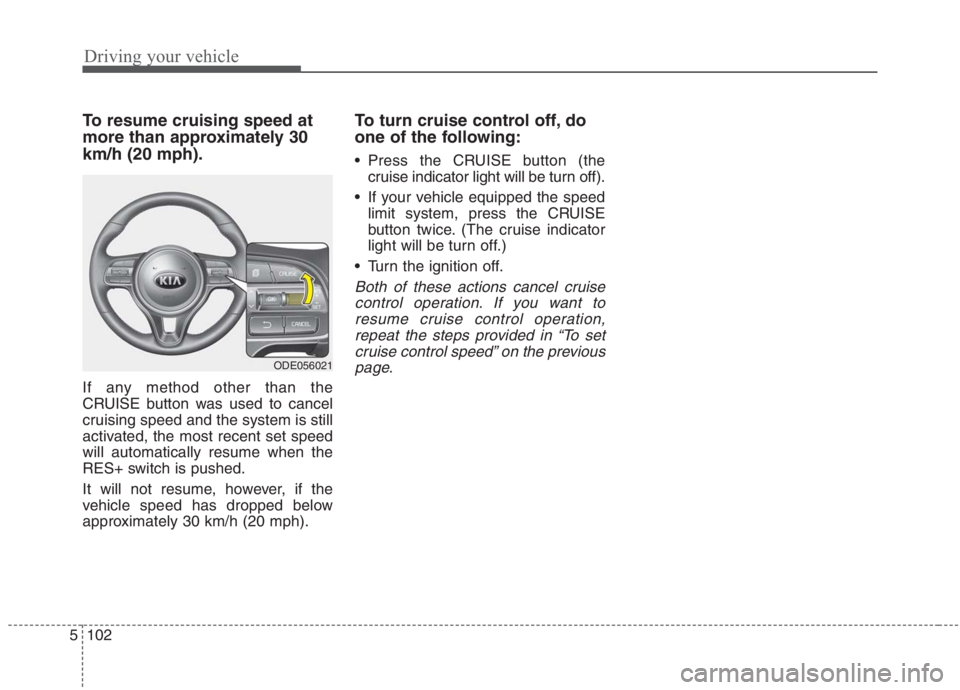

To resume cruising speed at
more than approximately 30
km/h (20 mph).
If any method other than the
CRUISE button was used to cancel
cruising speed and the system is still
activated, the most recent set speed
will automatically resume when the
RES+ switch is pushed.
It will not resume, however, if the
vehicle speed has dropped below
approximately 30 km/h (20 mph).
To turn cruise control off, do
one of the following:
Press the CRUISE button (the
cruise indicator light will be turn off).
If your vehicle equipped the speed
limit system, press the CRUISE
button twice. (The cruise indicator
light will be turn off.)
Turn the ignition off.
Both of these actions cancel cruise
control operation. If you want to
resume cruise control operation,
repeat the steps provided in “To set
cruise control speed” on the previous
page.
ODE056021

5103
Driving your vehicle
➀Cruise indicator ( CRUISE)
➁Set speed
➂Vehicle-to-vehicle distance
Smart Cruise Control system allows
you to program the vehicle to maintain
constant speed and distance detect-
ing the vehicle ahead without depress-
ing the accelerator or brake pedal.
To see SCC screen on the LCD dis-
play on the cluster, select Driving
Assist ( ). For more informations,
refer to “LCD Display Modes” in
chapter 4.
✽ ✽
NOTICE
To activate Smart Cruise Control,
depress the brake pedal at least once
after placing the ignition switch or
ENGINE START/STOP button to
the ON position or starting the
engine. This is to check if the brake
switch which is important part to
cancel smart cruise control is in nor-
mal condition.
Smart Cruise Control switch
CANCEL :Cancels cruise control
operation.
CRUISE : Turns cruise control sys-
tem on or off.
RES + : Sets or increases cruise
control speed.
SET - : Sets or decreases cruise
control speed.
: Sets vehicle-to-vehicle distance
SMART CRUISE CONTROL (SCC) (IF EQUIPPED)
WARNING
For your safety, please read the
owner's manual before using
Smart Cruise Control system.
ODEP059080L

Driving your vehicle
104 5

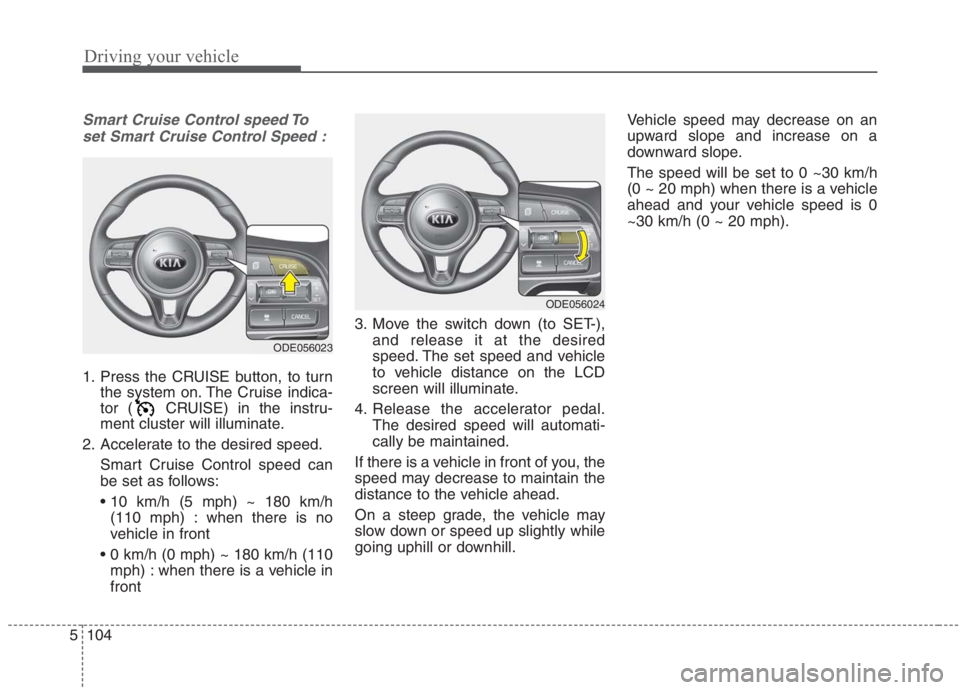

Smart Cruise Control speed To
set Smart Cruise Control Speed :
1. Press the CRUISE button, to turn
the system on. The Cruise indica-
tor ( CRUISE) in the instru-
ment cluster will illuminate.
2. Accelerate to the desired speed.
Smart Cruise Control speed can
be set as follows:

(110 mph) : when there is no
vehicle in front

mph) : when there is a vehicle in
front3. Move the switch down (to SET-),
and release it at the desired
speed. The set speed and vehicle
to vehicle distance on the LCD
screen will illuminate.
4. Release the accelerator pedal.
The desired speed will automati-
cally be maintained.
If there is a vehicle in front of you, the
speed may decrease to maintain the
distance to the vehicle ahead.
On a steep grade, the vehicle may
slow down or speed up slightly while
going uphill or downhill.Vehicle speed may decrease on an
upward slope and increase on a
downward slope.
The speed will be set to 0 ~30 km/h
(0 ~ 20 mph) when there is a vehicle
ahead and your vehicle speed is 0
~30 km/h (0 ~ 20 mph).
ODE056023
ODE056024

5105
Driving your vehicle

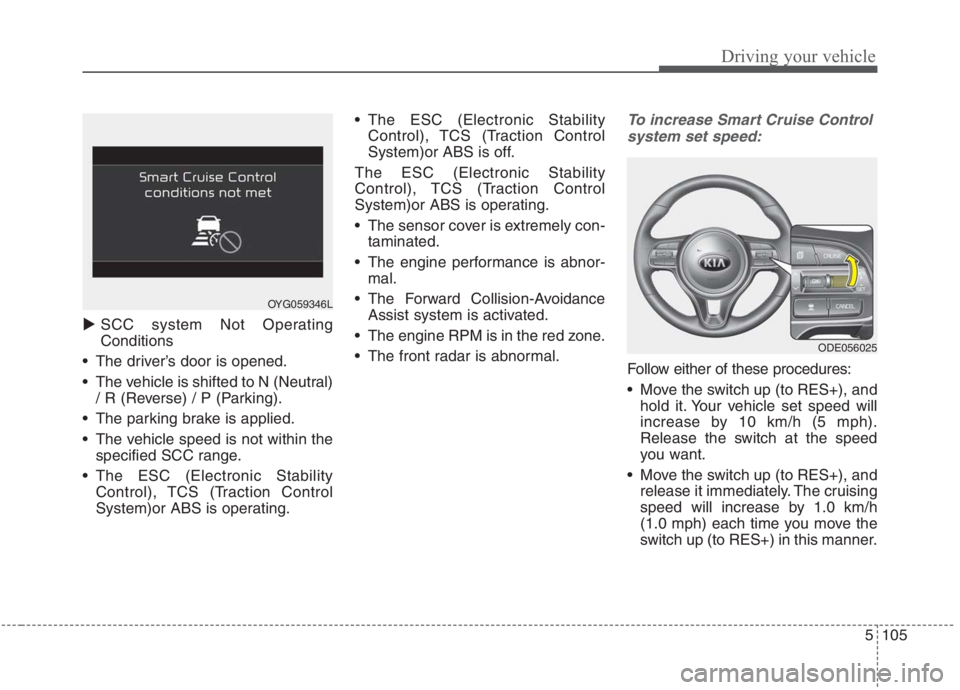

SCC system Not Operating
Conditions
The driver’s door is opened.
The vehicle is shifted to N (Neutral)
/ R (Reverse) / P (Parking).
The parking brake is applied.
The vehicle speed is not within the
specified SCC range.
The ESC (Electronic Stability
Control), TCS (Traction Control
System)or ABS is operating. The ESC (Electronic Stability
Control), TCS (Traction Control
System)or ABS is off.
The ESC (Electronic Stability
Control), TCS (Traction Control
System)or ABS is operating.
The sensor cover is extremely con-
taminated.
The engine performance is abnor-
mal.
The Forward Collision-Avoidance
Assist system is activated.
The engine RPM is in the red zone.
The front radar is abnormal.
To increase Smart Cruise Control
system set speed:
Follow either of these procedures:
Move the switch up (to RES+), and
hold it. Your vehicle set speed will
increase by 10 km/h (5 mph).
Release the switch at the speed
you want.
Move the switch up (to RES+), and
release it immediately. The cruising
speed will increase by 1.0 km/h
(1.0 mph) each time you move the
switch up (to RES+) in this manner.
OYG059346L
ODE056025

Driving your vehicle
106 5

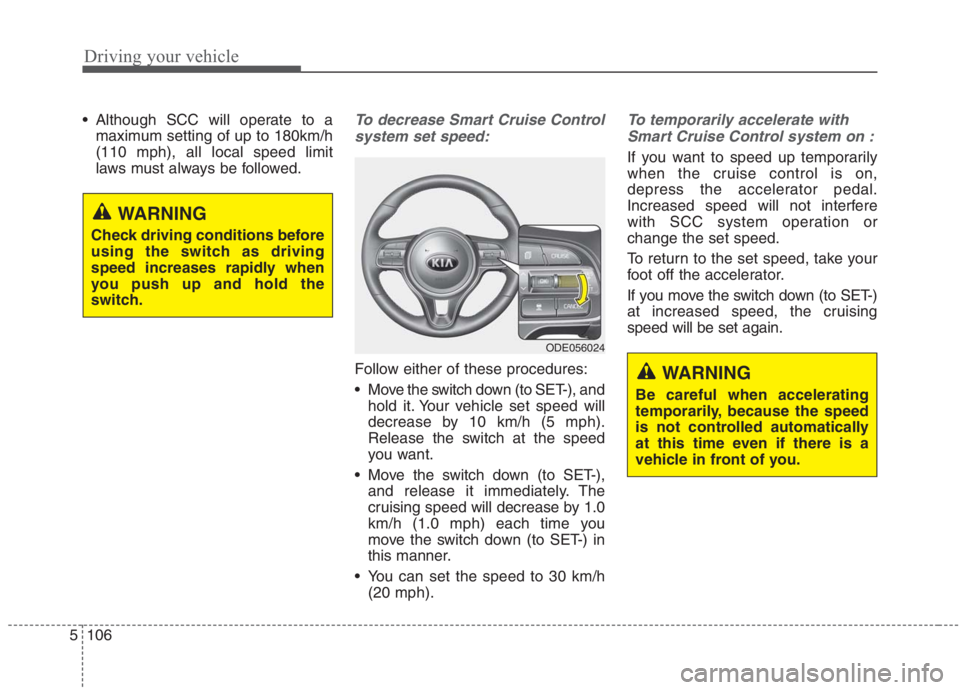

Although SCC will operate to a
maximum setting of up to 180km/h
(110 mph), all local speed limit
laws must always be followed.To decrease Smart Cruise Control
system set speed:
Follow either of these procedures:
Move the switch down (to SET-), and
hold it. Your vehicle set speed will
decrease by 10 km/h (5 mph).
Release the switch at the speed
you want.
Move the switch down (to SET-),
and release it immediately. The
cruising speed will decrease by 1.0
km/h (1.0 mph) each time you
move the switch down (to SET-) in
this manner.
You can set the speed to 30 km/h
(20 mph).
To temporarily accelerate with
Smart Cruise Control system on :
If you want to speed up temporarily
when the cruise control is on,
depress the accelerator pedal.
Increased speed will not interfere
with SCC system operation or
change the set speed.
To return to the set speed, take your
foot off the accelerator.
If you move the switch down (to SET-)
at increased speed, the cruising
speed will be set again.
WARNING
Check driving conditions before
using the switch as driving
speed increases rapidly when
you push up and hold the
switch.
ODE056024
WARNING
Be careful when accelerating
temporarily, because the speed
is not controlled automatically
at this time even if there is a
vehicle in front of you.
