Maintenance

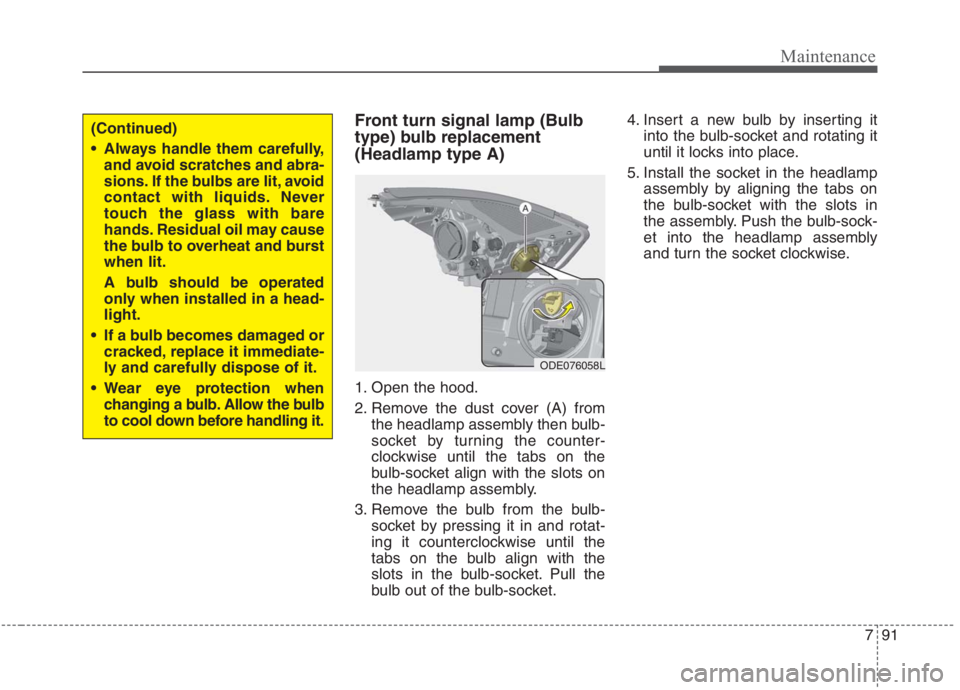

Front turn signal lamp (Bulb
type) bulb replacement
(Headlamp type A)
1. Open the hood.
2. Remove the dust cover (A) from
the headlamp assembly then bulb-
socket by turning the counter-
clockwise until the tabs on the
bulb-socket align with the slots on
the headlamp assembly.
3. Remove the bulb from the bulb-
socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket.4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp
assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
(Continued)
Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit.
A bulb should be operated
only when installed in a head-
light.
If a bulb becomes damaged or
cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when
changing a bulb. Allow the bulb
to cool down before handling it.
ODE076058L

Maintenance
92 7

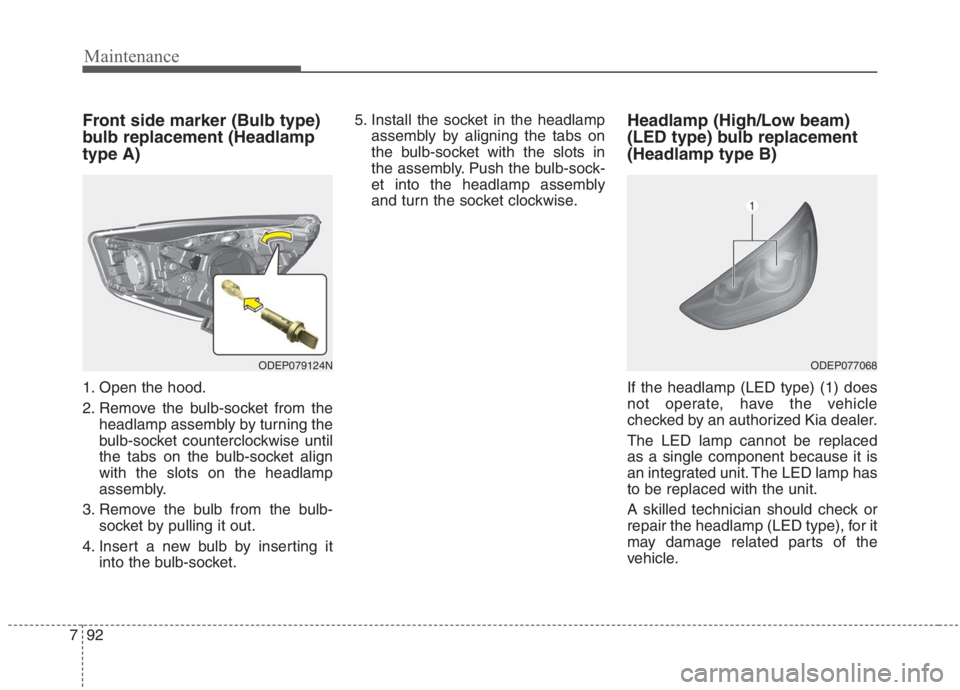

Front side marker (Bulb type)
bulb replacement (Headlamp
type A)
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb-
socket by pulling it out.
4. Insert a new bulb by inserting it
into the bulb-socket.5. Install the socket in the headlamp
assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Headlamp (High/Low beam)
(LED type) bulb replacement
(Headlamp type B)
If the headlamp (LED type) (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the headlamp (LED type), for it
may damage related parts of the
vehicle.
ODEP079124NODEP077068

793
Maintenance

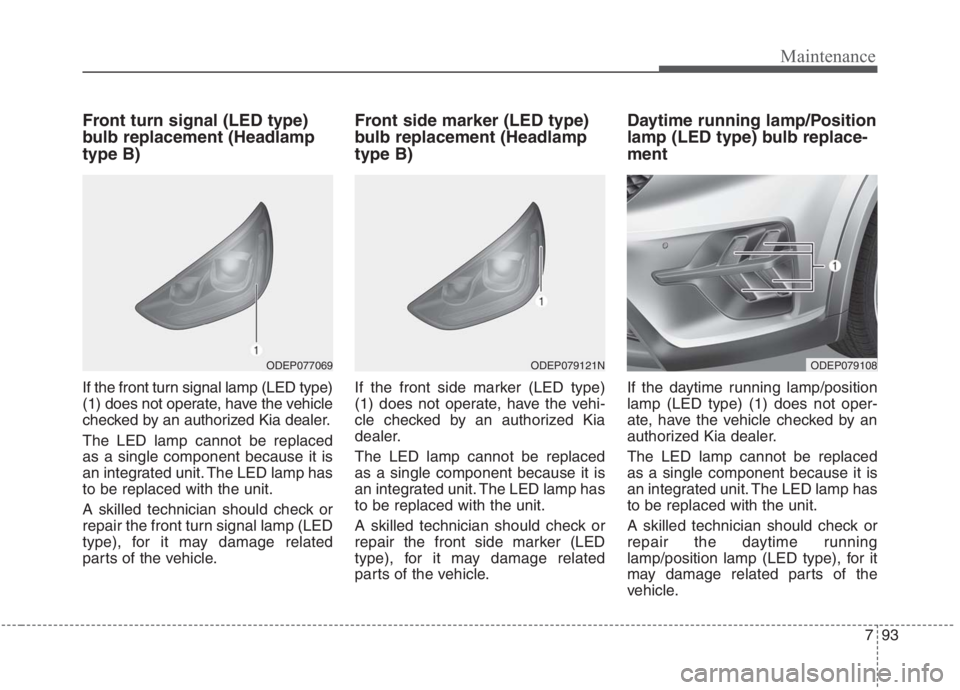

Front turn signal (LED type)
bulb replacement (Headlamp
type B)
If the front turn signal lamp (LED type)
(1) does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the front turn signal lamp (LED
type), for it may damage related
parts of the vehicle.
Front side marker (LED type)
bulb replacement (Headlamp
type B)
If the front side marker (LED type)
(1) does not operate, have the vehi-
cle checked by an authorized Kia
dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the front side marker (LED
type), for it may damage related
parts of the vehicle.
Daytime running lamp/Position
lamp (LED type) bulb replace-
ment
If the daytime running lamp/position
lamp (LED type) (1) does not oper-
ate, have the vehicle checked by an
authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the daytime running
lamp/position lamp (LED type), for it
may damage related parts of the
vehicle.
ODEP077069ODEP079121NODEP079108

Maintenance
94 7

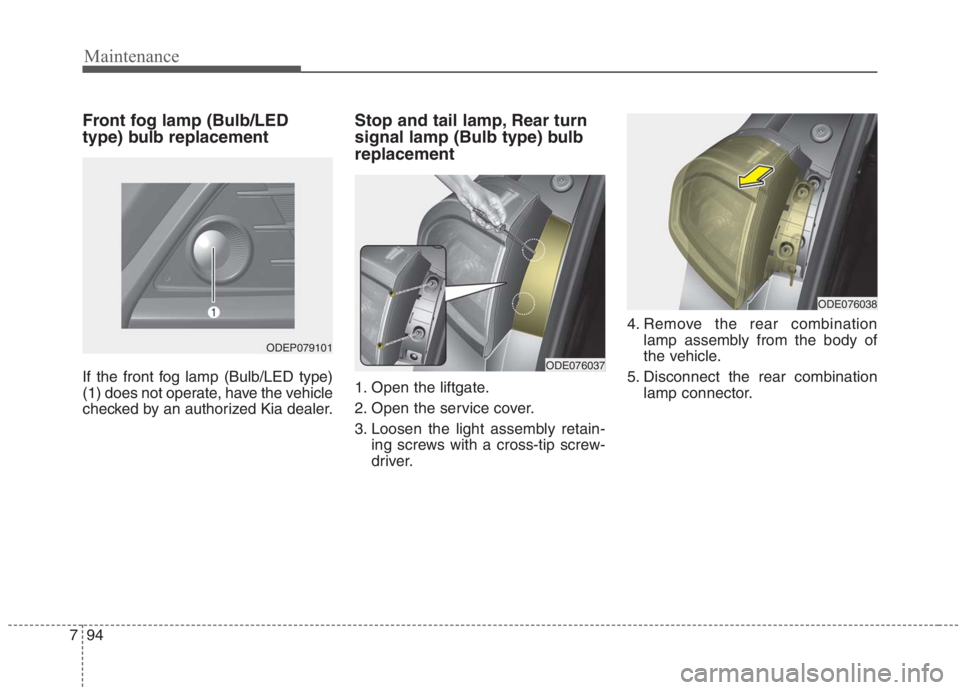

Front fog lamp (Bulb/LED
type) bulb replacement
If the front fog lamp (Bulb/LED type)
(1) does not operate, have the vehicle
checked by an authorized Kia dealer.
Stop and tail lamp, Rear turn
signal lamp (Bulb type) bulb
replacement
1. Open the liftgate.
2. Open the service cover.
3. Loosen the light assembly retain-
ing screws with a cross-tip screw-
driver.4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Disconnect the rear combination
lamp connector.
ODE076037
ODE076038
ODEP079101

795
Maintenance

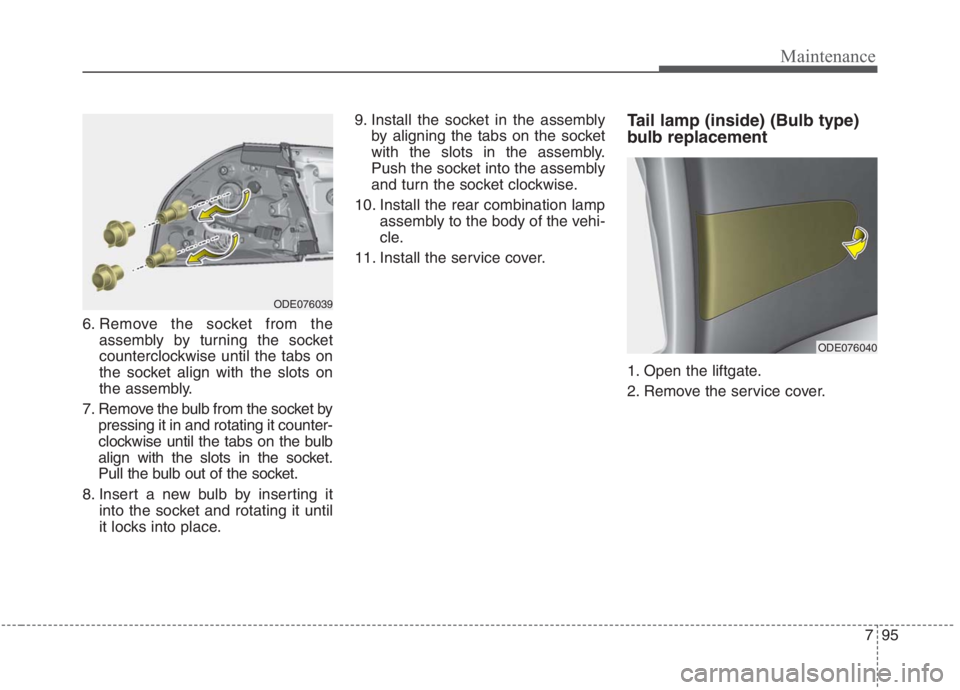

6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
8. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.9. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp
assembly to the body of the vehi-
cle.
11. Install the service cover.
Tail lamp (inside) (Bulb type)
bulb replacement
1. Open the liftgate.
2. Remove the service cover.
ODE076039
ODE076040

Maintenance
96 7

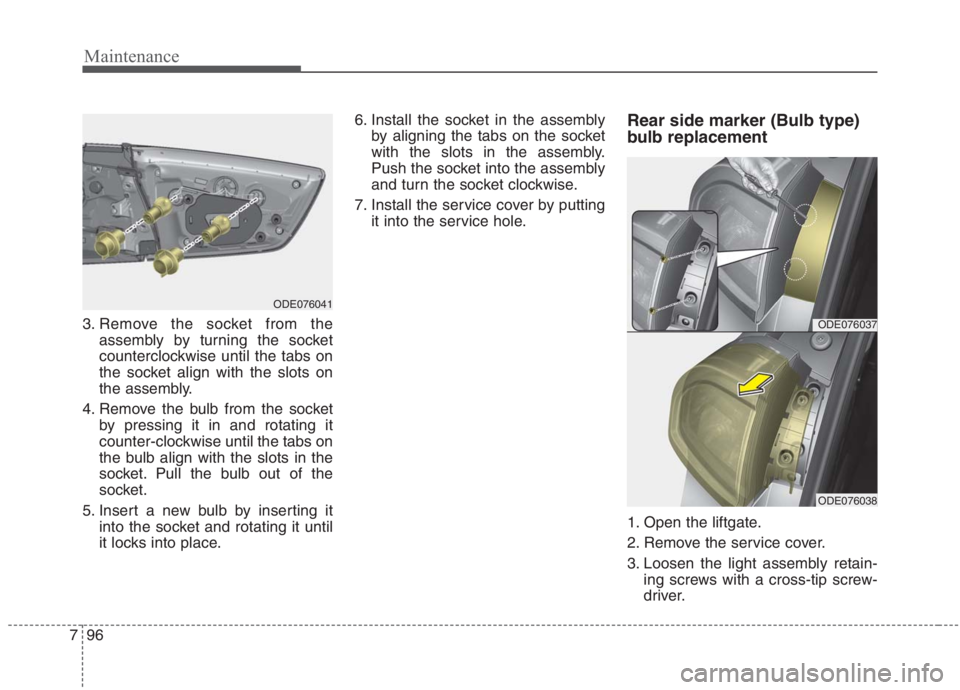

3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket
by pressing it in and rotating it
counter-clockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting
it into the service hole.
Rear side marker (Bulb type)
bulb replacement
1. Open the liftgate.
2. Remove the service cover.
3. Loosen the light assembly retain-
ing screws with a cross-tip screw-
driver.
ODE076041
ODE076037
ODE076038

797
Maintenance

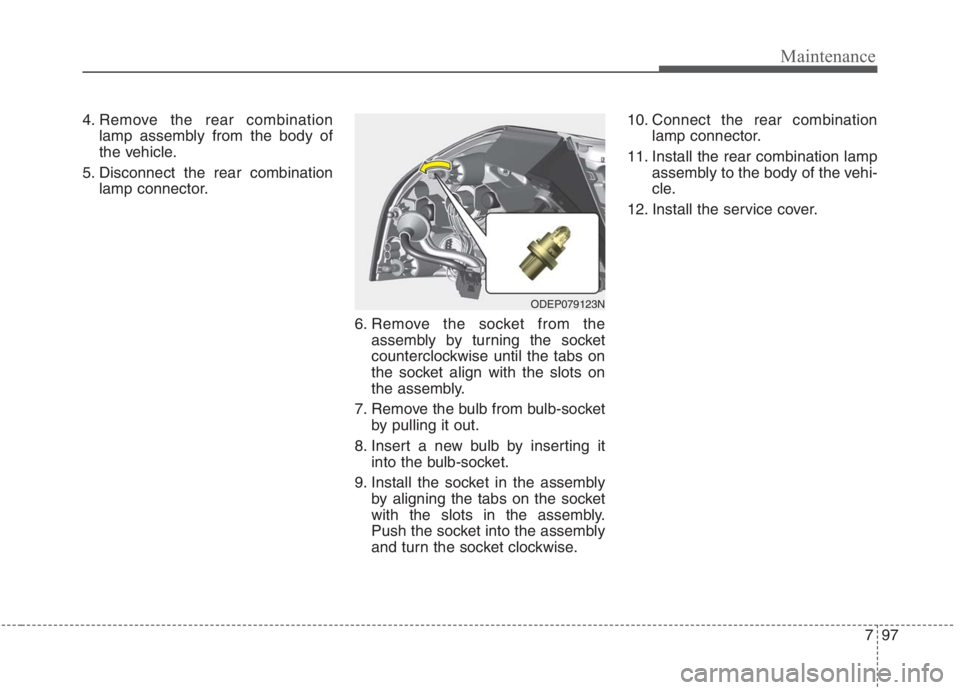

4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Disconnect the rear combination
lamp connector.
6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from bulb-socket
by pulling it out.
8. Insert a new bulb by inserting it
into the bulb-socket.
9. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.10. Connect the rear combination
lamp connector.
11. Install the rear combination lamp
assembly to the body of the vehi-
cle.
12. Install the service cover.
ODEP079123N

Maintenance
98 7

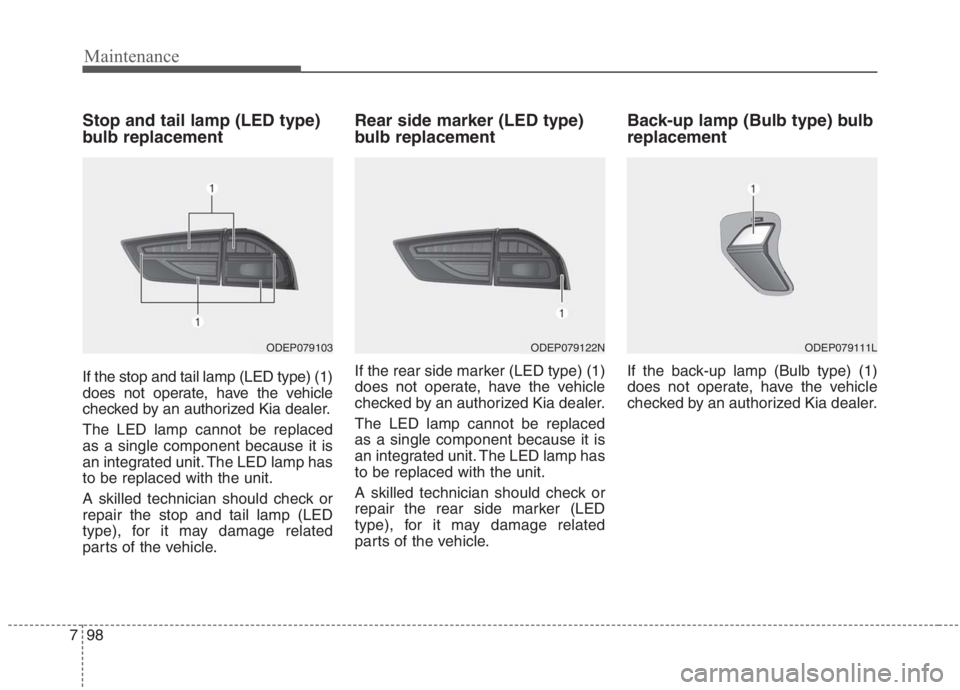

Stop and tail lamp (LED type)
bulb replacement
If the stop and tail lamp (LED type) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the stop and tail lamp (LED
type), for it may damage related
parts of the vehicle.
Rear side marker (LED type)
bulb replacement
If the rear side marker (LED type) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the rear side marker (LED
type), for it may damage related
parts of the vehicle.
Back-up lamp (Bulb type) bulb
replacement
If the back-up lamp (Bulb type) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
ODEP079103ODEP079122NODEP079111L
