2021 HONDA PASSPORT Navigation Manual (in English)

15
Quick Reference Guide
Controls (P121)
Clock (P122)
To adjust time
To adjust date
aSelect , then select Settings.
bSelect System , then Date & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
eSelect Set Date or Set Time.
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
ENGINE START/STOP
Button
(P156)
Press the button to ch ange the vehicle’s
power mode.
34
Models with navigation system
Turn Signals (P159)
Lights (P160)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
21 PASSPORT-31TGS6200.book 15 ページ ２０２０年９月４日　金曜日　午後２時３５分

16
Quick Reference Guide
Wipers and Washers
(P168)
*1:Models with automatic intermittent operation
*2:Models with manual intermittent operation
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO: Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:
( +:(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P176)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
pull up the lever back in place.
Models with automatic intermittent wipersUnlocking the Front
Doors from the Inside
(P136)
●Pull either front door inner handle to
unlock and open it at the same time.
21 PASSPORT-31TGS6200.book 16 ページ ２０２０年９月４日　金曜日　午後２時３５分

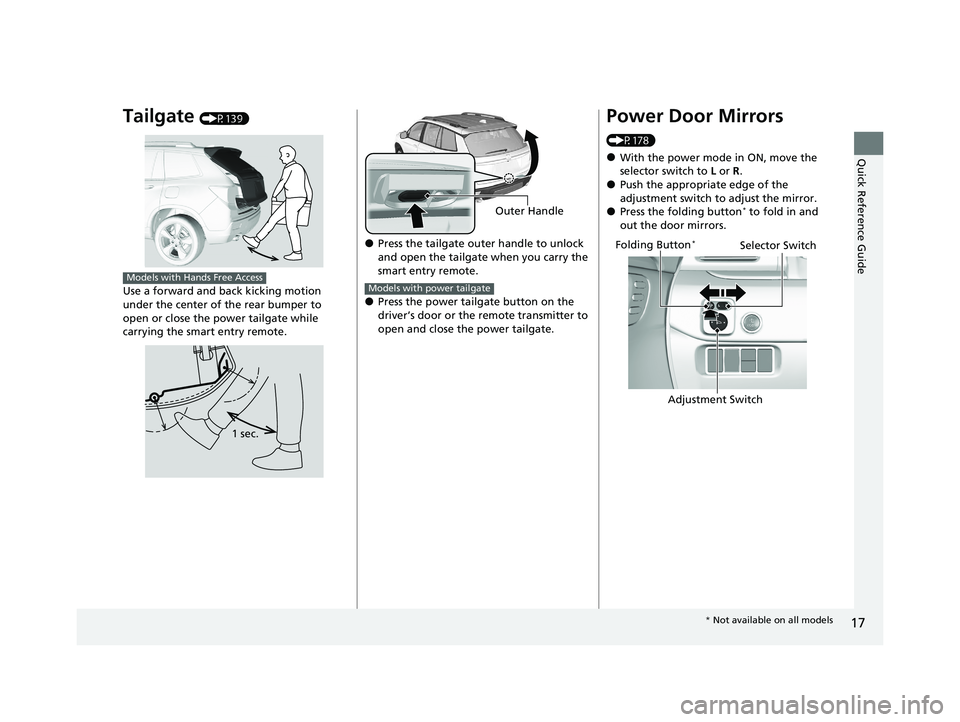

17
Quick Reference Guide
Tailgate (P139)
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the smart entry remote.
Models with Hands Free Access
1 sec.
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
smart entry remote.
●Press the power tailgate button on the
driver’s door or the remote transmitter to
open and close the power tailgate.
Outer Handle
Models with power tailgate
Power Door Mirrors
(P178)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button* to fold in and
out the door mirrors.
Selector Switch
Adjustment Switch
Folding Button*
*
Not available on all models
21 PASSPORT-31TGS6200.book 17 ページ ２０２０年９月４日　金曜日　午後２時３５分

18
Quick Reference Guide
Power Windows (P152)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock ButtonIndicator
Window Switch
21 PASSPORT-31TGS6200.book 18 ページ ２０２０年９月４日　金曜日　午後２時３５分

19
Quick Reference Guide
Climate Control System (P210)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
Fan Control
Button (Windshield
Defroster) Button
A/C (Air
Conditioning)
Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation)
Button
Passenger’s Side
Temperature
Control Switch
AUTO
Button
Driver’s Side
Temperature
Control Switch
Mode Control Button
SYNC

(Synchronization) Button (On/Off) Button
Rear Climate Control* (P215)●Press the
AUTO button to activate the
rear climate control system.
●Press the button to turn the system
on or off.
Rear Temperature
Control Buttons /
(Rear Fan
Control) Buttons
Rear AUTO
Button
(Rear On/
Off) Button
Mode Control Button
Air flows from the rear floor vents. Air flow from the rear console
vents and floor vents. Air flows from the rear console vents.
* Not available on all models
21 PASSPORT-31TGS6200.book 19 ページ ２０２０年９月４日　金曜日　午後２時３５分

20
Quick Reference Guide
Features (P217)
Audio system (P218)
VOL/ AUDIO (Volume/Power) Knob
(Home) Icon
(Back) Icon
(Day/Night) Icon
Audio/Information Screen
For navigation system operation () See the Navigation System Manual
21 PASSPORT-31TGS6200.book 20 ページ ２０２０年９月４日　金曜日　午後２時３５分

21
Quick Reference Guide
Audio Remote Controls
(P222)
●(+ / (- Bar
Press to adjust the volume up/down.
● / / / /ENTER Buttons
Press or to select Now Playing on
the home screen of the driver
information interface, and then press the
ENTER button.
Press or to cycl e through the audio
mode as follows:
Android Auto/Apple CarPlay/SiriusXM ®
*/
AUX Input/AM/ Bluetooth® Audio/Social
Playlist/FM/My Honda Music/USB/iPod
ENTER Button
/ / / Buttons34
(+ / (- Bar
34
34
34
Radio: Press / to change the
preset station.
USB device/My Honda Music/ Bluetooth®
Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
* Not available on all models
21 PASSPORT-31TGS6200.book 21 ページ ２０２０年９月４日　金曜日　午後２時３５分

22
Quick Reference Guide
Driving (P373)
Automatic Transmission (P401)
●Select (P and depress the brake pedal when starting the engine.
ParkPress the (P button.
Used when parking or before
turning off or starting the
engine.
Transmission is locked.
ReversePull back the ( R button.
Used when reversing.
NeutralPress the ( N button.
Transmission is not locked.
Gear Position Indicator
The gear position indicator and the
shift button indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
●Gear selection
Intelligent Traction
Management Button
Drive/S PositionEach time you press th
e button, the mode
switches between Drive and S position mode.
Used for:
●Normal driving (gears change between 1st and
9th automatically)
●Temporarily driving in the sequential mode
●Automatically changing gears between 1st and
8th (8th gear is used only at high speed)
●Driving in the sequential mode
D/S
Drive
S Position
