2021 HONDA PASSPORT Navigation Manual (in English)

Continued143
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Controls
To open or close the power tailgate, press the
power tailgate button for about one second.
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will reverse direction.
■Using the Power Tailgate Button1 Opening/Closing the Power Tailgate*
If the power tailgate meet s resistance while opening
or closing, the auto reverse feature reverses the
direction. The beeper sounds three times.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailga te does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
Power Tailgate Button
* Not available on all models
21 PASSPORT-31TGS6200.book 143 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
144
Controls
If you press the outer ha ndle of the tailgate for
no longer than one second, the tailgate opens
automatically. u The beeper sounds.
u If you want to open the tailgate
manually, press the button for more than
one second.
2 Opening and Closing the Tailgate
P. 139
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
If you press the outer handle again while the
power tailgate is mo ving, it will reverse
direction.
■Using the Tailgate Outer Handle1 Opening/Closing the Power Tailgate*
Do not leave the key, remote transmitter, or smart
entry remote in the cargo area before closing the
tailgate.
Even if you are not carrying the smart entry remote,
you can lock/unlock the tail gate while someone else
with the remote is within range.
You can change the power tailgate operation setting
on and off. 2 Customized Features P. 324
Outer
Handle
* Not available on all models
21 PASSPORT-31TGS6200.book 144 ページ ２０２０年９月４日　金曜日　午後２時３５分

145
uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
Continued
Controls
Press the button on the tailgate to close the
power tailgate.
u The beeper sounds.
If you press the button again while the power
tailgate is moving, it will reverse direction.
■Using the Tailgate Inner Button
21 PASSPORT-31TGS6200.book 145 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
146
Controls
If you manually close the power ta ilgate, it latches automatically.
Automatically lowers the power tailgate wh en there is a possibility that the fully
opened power tailgate can fall down by it s own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.
■Auto-Closer
■Power Tailgate Fall Detection
1 Auto-Closer
The auto-closer feature does not activate if you press
the tailgate outer handle while the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailga te and let it latch
automatically. It is dange rous to put your hands
around the tailgate as it st arts to latch itself.
1Power Tailgate Fall Detection
If you try to manually close the power tailgate
immediately after it full y opens, the power tailgate
fall detection ma y be activated.
Once the power tailgate fall detection activates, wait
until the power tailgate full y closes. Keep away from
the power tailgate when it is in motion.
If the power tailgate fa ll detection constantly
activates, consult at a dealer.
21 PASSPORT-31TGS6200.book 146 ページ ２０２０年９月４日　金曜日　午後２時３５分

147
uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
Continued
Controls

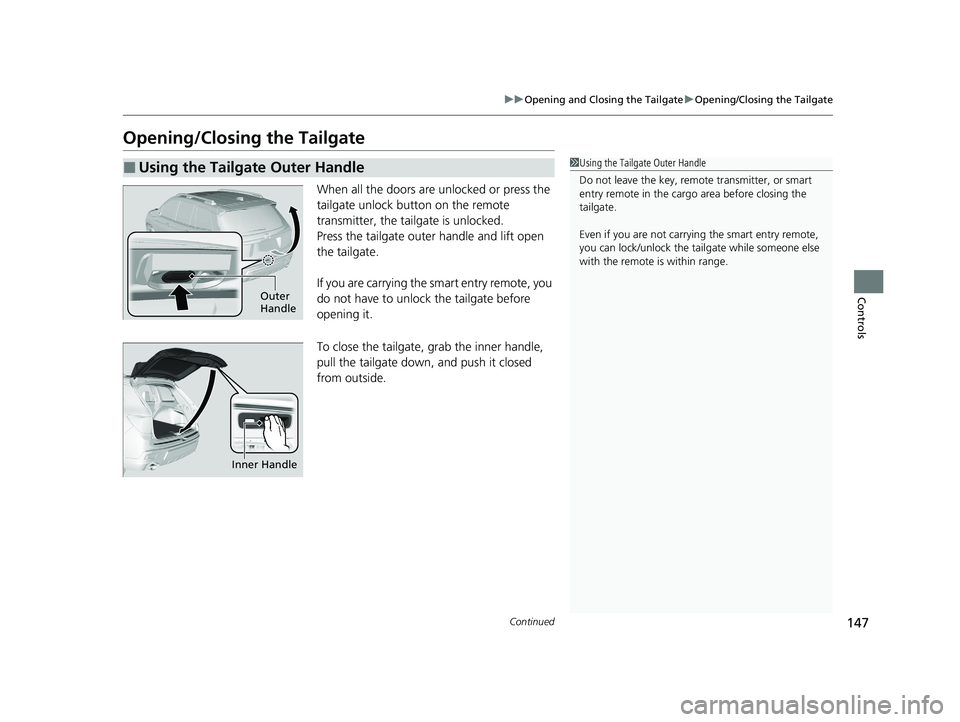

Opening/Closing the Tailgate
When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the tailgate outer handle and lift open
the tailgate.
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
■Using the Tailgate Outer Handle1Using the Tailgate Outer Handle
Do not leave the key, remote transmitter, or smart
entry remote in the cargo area before closing the
tailgate.
Even if you are not carrying the smart entry remote,
you can lock/unlock the tail gate while someone else
with the remote is within range.
Outer
Handle
Inner Handle
21 PASSPORT-31TGS6200.book 147 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
148
Controls
Press the tailgate unlock button to unlock the
tailgate.
■Using the Remote Transmitter1Using the Remote Transmitter
If you have unlocked and opened the tailgate using
the remote transmitter or smart entry remote, when
closing, the tailgate locks automatically.
Tailgate
Unlock
Button
21 PASSPORT-31TGS6200.book 148 ページ ２０２０年９月４日　金曜日　午後２時３５分

149Continued
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. El ectronic device, such as televisions and
audio systems emit strong magnetic fiel ds. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the tailgate, hood or doors are forcibly
opened. The alarm does not activate if the tailgate or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm activates if a door is opened with the key and then the hood is
opened before the power mode is set to ON.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.
21 PASSPORT-31TGS6200.book 149 ページ ２０２０年９月４日　金曜日　午後２時３５分

uuSecurity System uSecurity System Alarm
150
Controls
■When the security sy stem alarm activates
The horn sounds intermittently, and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter or smart entry system. The
system, along with the horn and flashing lights, is deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood is closed.
• All doors and the tailgate are locked from outside with the key, remote
transmitter, or smart entry system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks and the blinking
interval changes after about 15 seconds.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or smart entry system, or wh en the power mode is set to ON. The
security system alarm indicator goes off at the same time.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the key, remote transmitter or
smart entry system.
21 PASSPORT-31TGS6200.book 150 ページ ２０２０年９月４日　金曜日　午後２時３５分
