2021 HONDA CR-V Owner's Manual (in English)

136
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

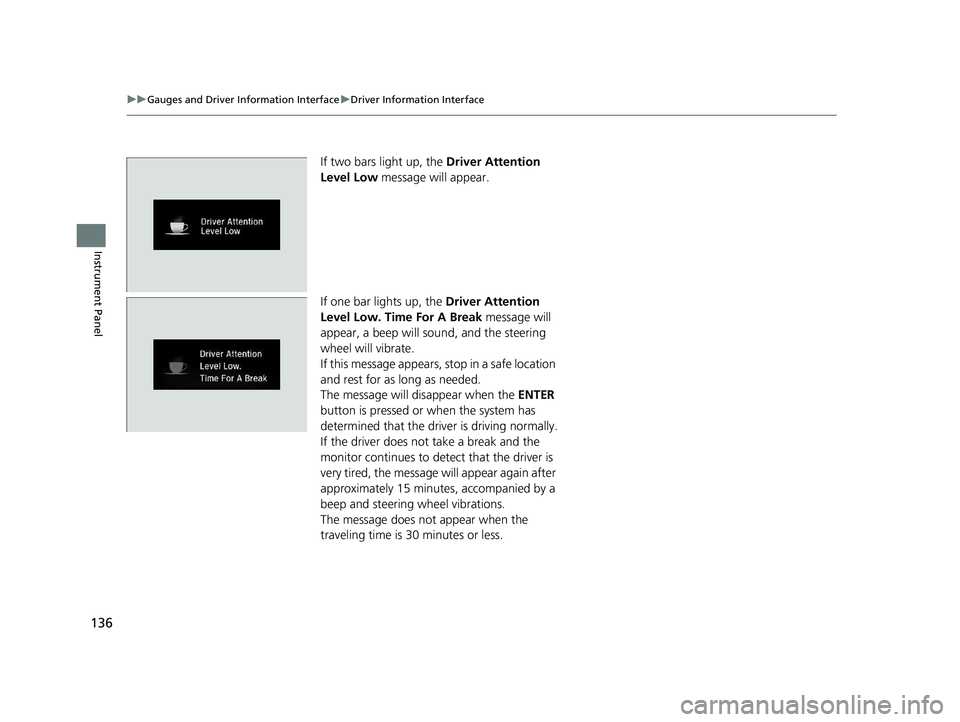

If two bars light up, the Driver Attention
Level Low message will appear.
If one bar lights up, the Driver Attention
Level Low. Time For A Break message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the ENTER
button is pressed or when the system has
determined that the driver is driving normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
21 CR-V HYBRID HMIN-31TPG6100.book 136 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued137
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■The Driver Attention Monitor resets when
• the power system is turned off.
• the driver unfastens the seat belt and op ens the door while the vehicle is stopped.
■For the Driver Attention Monitor to function
• the vehicle must be traveling above 25 mph (40 km/h).
• the electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances.
• the steering assist function of the Lane K eeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 532
•the condition of the road is poor, e.g. the surface is unpaved or bumpy.
• it is windy.
• the driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■Customizing
You can change the Driver Attention Monitor settings. Select Tactile And Audible
Alert , Tactile Alert , or OFF .
2Customized Features P. 140, 368
1For the Driver Attention Monitor to function
The bars in the Driver Information Interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
21 CR-V HYBRID HMIN-31TPG6100.book 137 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuGauges and Driver Information Interface uDriver Information Interface
138
Instrument Panel
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM P. 490
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature read ing by up to ±5°F if the temperature reading seems
incorrect.
■AWD Torque Distribution Monitor
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading.
2 Customized Features P. 140, 368
21 CR-V HYBRID HMIN-31TPG6100.book 138 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

Continued139
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android AutoTM P. 335
Show the current audio information.
2Audio System Basic Operation P. 270
Show the current phone information.
2Bluetooth ® HandsFreeLink ® P. 421
■Navigation*
■Audio*
■Phone*
1 Navigation*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 368
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 139 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

uuGauges and Driver Information Interface uDriver Information Interface
140
Instrument Panel
Use the driver information interfac e to customize certain features.
■How to customize
Select the screen by pressing the button while the power mode is in ON,
and the vehicle is at a complete stop, and the shift position is in
(P. Select , then
press the ENTER button.
■Customized Features
Models with color audio system
1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 143
2 Example of customization settings P. 147
Put the transmission into
( P before you attempt to
change any customized setting.
34
ENTER Button
Press to set your
selection.
Button
Press to go to Vehicle
Settings. Button
Press to go to the next
display.4
Button
Press to go back to the
previous display.3
21 CR-V HYBRID HMIN-31TPG6100.book 140 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

141
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Customization flow
Press the button.
ENTER
TPMS Calibration
Vehicle Settings
Lane Keeping Assist Suspend Beep
Forward Collision Warning Distance
Road Departure Mitigation Setting
Driver Attention Monitor
Driver Assist System SetupENTER
ACC Forward Vehicle Detect Beep
“Trip B” Reset Timing
Language Selection
“Trip A” Reset Timing
Adjust Alarm Volume
Speed/Distance Units
Reverse Alert Tone
Meter SetupENTER
Adjust Outside Temp. Display
3
4
3
4
3
4
3
4
3
4
3
4
ENTER
Fuel Efficiency Backlight
21 CR-V HYBRID HMIN-31TPG6100.book 141 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

142
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
Default All
Auto Door Lock
Walk Away Auto Lock
Security Relock Timer
Headlight Auto OFF Timer
Auto Headlight ON With Wiper ON
ENTER
ENTER
Lighting Setup
Door Setup
ENTER
Auto Interior Illumination Sensitivity
Door Unlock Mode
Remote Start System ON/OFF
ENTERKeyless Access SetupKeyless Access Light Flash
Keyless Access Beep
3
4
3
4
3
4
3
4
3
4
3
4
3
4Interior Light Dimming Time
Auto Light Sensitivity
Key And Remote Unlock Mode
Keyless Lock Answer Back
Auto Door Unlock
Maintenance Reset
3
4
3
4
3
4
21 CR-V HYBRID HMIN-31TPG6100.book 142 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

143
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges the distance at which CMBSTM alerts.Long /Normal*1/ Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects
a vehicle, or when the vehicle goes out of ACC
range.
ON /OFF*1
Road Departure
Mitigation SettingChanges the setting fo r the road departure
mitigation system.Narrow/ Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
Driver Attention MonitorChanges the setting for the driver attention monitor.Tactile And Audible Alert*1/
Tactile Alert /OFF
