2021 HONDA CR-V Owner's Manual (in English)

24
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P162)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P166)
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
smart entry remote on you.
●Press the power tailgate button on the
driver’s side control panel, or press the
remote transmitter to unlock and open
the tailgate when you have the smart
entry remote on you.
Models with power tailgate
Outer Handle
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the smart entry remote.
Models with hands free access
1 sec.
21 CR-V HYBRID HMIN-31TPG6100.book 24 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

25
Quick Reference Guide

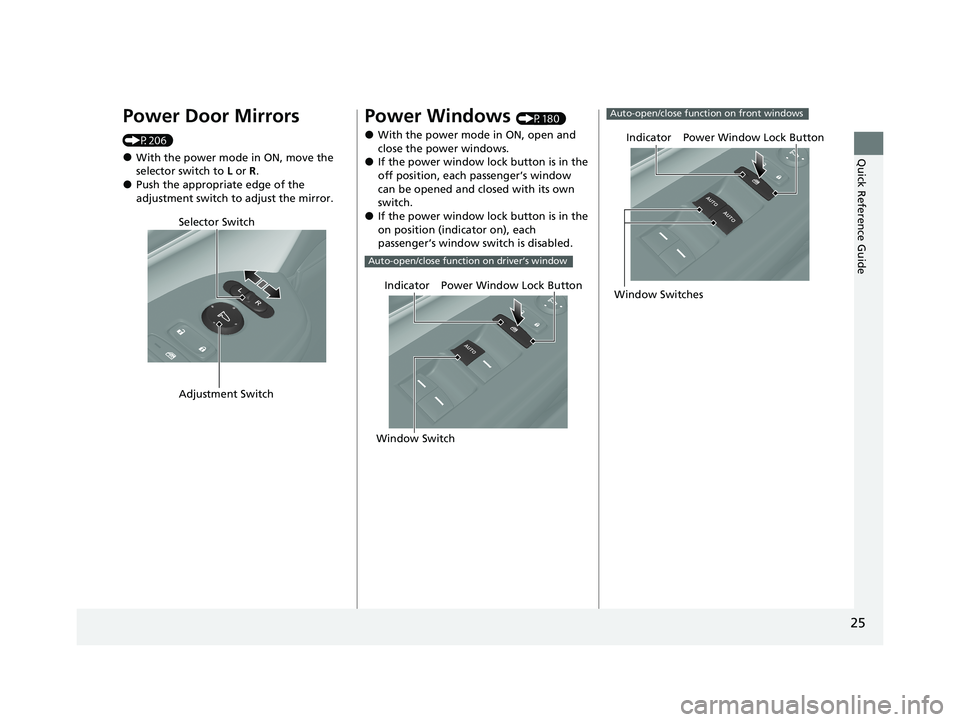

Power Door Mirrors
(P206)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P180)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Auto-open/close function on driver’s window
Power Window Lock Button
Window Switch Indicator
Auto-open/close function on front windows
Power Window Lock Button
Window Switches Indicator
21 CR-V HYBRID HMIN-31TPG6100.book 25 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

26
Quick Reference Guide
Climate Control System (P234)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Models without SYNC button
Fan Control Dial
(Fresh Air) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and dashboard vents,
and back of the center console.
Air flows from dashboard vents,
and back of the center console.
(Recirculation) ButtonMODE Control Button
(ON/OFF) Button
AUTO
Button
A/C (Air Conditioning) Button
(Windshield Defroster) Button
21 CR-V HYBRID HMIN-31TPG6100.book 26 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

27
Quick Reference Guide
Models with SYNC button
Passenger’s side Temperature
Control Dial
(Windshield Defroster) ButtonDriver’s side Temperature
Control Dial (Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
SYNC (Synchronization) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and dashboard vents,
and back of the center console.
Air flows from dashboard vents,
and back of the center console.
(Fresh Air) Button
Fan Control Buttons
21 CR-V HYBRID HMIN-31TPG6100.book 27 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

28
Quick Reference Guide
Features (P241)
Audio Remote Controls
(P246)
●(+ / ( - Bar
Press to adjust the volume up/down.
● / Button
Press or to cycle through the audio
mode as follows:
FM1/FM2/AM/USB or iPod/Pandora ®/
Bluetooth ®Audio
FM/AM/SiriusXM® /USB/iPod/
Bluetooth ®Audio/Pandora® /Apps/
Audio Apps
ENTER Button
/ / / Button34
(+ / (- Bar
Button
3434
Models with color audio system
Models with Display Audio
●ENTER Button
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
Models with Display Audio
34
34
34
34
34
• When listening to Pandora®
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
21 CR-V HYBRID HMIN-31TPG6100.book 28 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

29
Quick Reference Guide
● / Button
● (Display/Information) Button:
Press to change contents. 2 Driver Information Interface
(P128)
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Pandora ®:
Press to skip to the next track.
Press and hold to select the next or
previous station.
21 CR-V HYBRID HMIN-31TPG6100.book 29 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

30
Quick Reference Guide
Audio System (P242)
(P249)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
21 CR-V HYBRID HMIN-31TPG6100.book 30 ページ ２０２０年９月１４日　月曜日　午前１１時３６分

31
Quick Reference Guide
(P270)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Audio) Icon
(Back) Icon
Audio/Information Screen (Instrument Panel) Icon (Day/Night) Icon
*
VOL/ AUDIO (Volume/
Power Audio) Knob
(Home) Icon
(Map) Icon*
(Phone) Icon
Compass Icon*
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 31 ページ ２０２０年９月１４日　月曜日　午前１１時３６分
