2021 HONDA CIVIC HATCHBACK Owner's Manual (in English)

567
Driving
Turbo Engine Vehicle
Handling Precautions
The turbocharger is a high-precision device to obtain greater horsepower by
delivering a large volume of compressed air in to the engine using a turbine driven by
the engine’s exhaust gas pressure.
• When the engine is cold just after sta rting, avoid revving the engine or sudden
acceleration.
• Always replace the engine oil and engine oil filter according to the Maintenance
Minder
TM. The turbine rotates at very high speeds over 100,000 rpm and its
temperature reaches over 1,2 92°F (700°C). It is lubricated and cooled by engine
oil. If you fail to replace the engine oil and filter at the scheduled distance or
interval, deteriorated engine oil may caus e failure such as sticking and abnormal
noise of the turbine bearing.
1 Turbo Engine Vehicle
The scheduled maintenance intervals for replacing
the filter is indicated on the driver information
interface. Follow the information of when to replace
them. 2 Maintenance Minder
TM P. 573
The temperature gauge pointer is at the mark
when you restart the engi ne after driving under high
load conditions such as at high speed or in hilly
terrain. This is normal. The gauge goes down after
you idle or drive the vehi cle for about one minute.
H
21 CIVIC 5D HUM-31TGG6400_01.book 567 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

568
21 CIVIC 5D HUM-31TGG6400_01.book 568 ページ ２０２０年８月２８日　金曜日　午後１時４８分

569
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 570
Safety When Performing Maintenance .... 571Parts and Fluids Used in Maintenance Service ........................................... 572
Maintenance Minder
TM..................... 573
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 579Opening the Hood ........................... 581
Recommended Engine Oil ................ 582
Oil Check ......................................... 583
Adding Engine Oil ............................ 585
Changing the Engine Oil and Oil Filter..... 586
Engine Coolant ................................ 589
Transmission Fluid ............................ 591
Brake/Clutch
* Fluid .......................... 592
Refilling Window Washer Fluid......... 593
Replacing Light Bulbs ....................... 594
Checking and Maintaining Wiper
Blades .......................................... 604
Checking and Maintaining Tires
Checking Tires ................................. 609
Tire and Loading Information Label ..... 610Tire Labeling .................................... 610DOT Tire Quality Grading (U.S. Vehicles) ...... 612Wear Indicators................................ 614 Tire Service Life ................................ 614
Tire and Wheel Replacement ........... 615
Tire Rotation .................................... 616
Winter Tires ..................................... 617
Cold Weather Driving ...................... 619
Battery ............................................... 620
Remote Transmitter Care Replacing the Button Battery ........... 622
Climate Control System Maintenance .. 624Cleaning
Interior Care .................................... 625
Exterior Care.................................... 628
Accessories and Modifications ........ 631
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 569 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

570

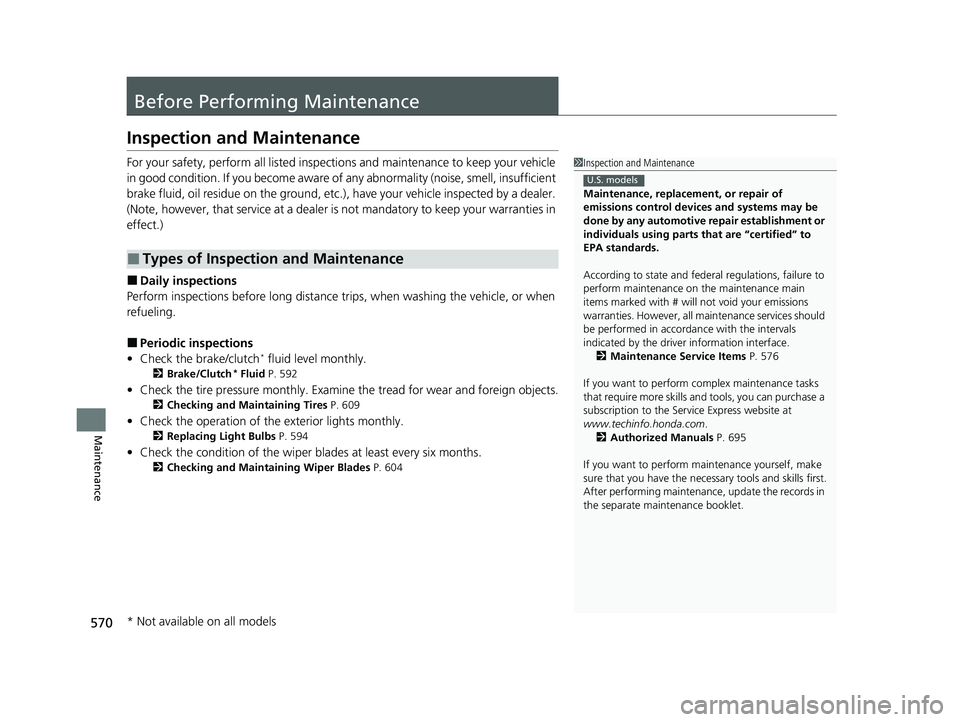

Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of an y abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake/clutch* fluid level monthly.
2 Brake/Clutch* Fluid P. 592
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 609
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 594
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 604
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 576
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 695
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenanc e, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 570 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

571
uuBefore Performing Maintenance uSafety When Performing Maintenance
Maintenance
Safety When Performing Maintenance
Some of the most important safety precau tions are given here. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether you should perform a given task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreaser or parts cleaner, not
gasoline.
• Wear eye protection and prot ective clothing when working with the battery or
compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on le vel ground, the parking brake is set, and
the engine is off.
• Be aware that hot parts can burn you.
u Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not start the engine unless instruct ed, and keep your hands and limbs away
from moving parts.
■Maintenance Safety
■Vehicle Safety
1 Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner's manual.
3WARNING
Failure to properly follow maintenance
instructions and prec autions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner's manual.
21 CIVIC 5D HUM-31TGG6400_01.book 571 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

572
uuBefore Performing Maintenance uParts and Fluids Used in Maintenance Service
Maintenance
Parts and Fluids Used in Maintenance Service
The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.1Parts and Fluids Used in Maintenance Service
NOTICE
Do not press the engine cover* forcibly. This may
damage the engine cover and component parts.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 572 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

573
Maintenance
Maintenance MinderTM
Select the Maintenance Minder to see maintenance items that are due soon and to
see the percentage of life remaining in the engine oil.
When the engine oil life is less than 15%, a Maintenance Minder message will
appear every time you turn the ignition switch to ON
(w*1, reminding you to bring
your vehicle to a dealer for service.
21 CIVIC 5D HUM-31TGG6400_01.book 573 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

574
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
To Use Maintenance MinderTM
Certain maintenance items due soon, along with the estimated remaining oil life,
appear on the driver information interface.
You can view them on the Maintenance Minder screen at any time.
1. Turn the ignition switch to ON
(w*1.
2. Press the (Display/Information) button several times until is displayed.
3. Press ENTER button to go to the Maintenance Minder screen. The engine oil
life appears on the driver information in terface along with maintenance items due
soon.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Displaying the Maintenance Minder Information1 Displaying the Maintena nce Minder Information
Based on the engine opera ting conditions and oil
age, the remaining engine oi l life is calculated and
displayed as a percentage.
There is a list of maintena nce main and sub items you
can view on the driver information interface.
2 Maintenance Service Items P. 576
Displayed Engine Oil
Life (%)Calculated Engine Oil Life (%)
100 100 to 91
9090 to 81
80 80 to 71
7070 to 61
60 60 to 51
5050 to 41
40 40 to 31
3030 to 21
20 20 to 16
1515 to 11
10 10 to 6
55 to 1
0 0
Sub Item
Engine Oil Life
Main Item
ENTER Button
(Display/Information) Button
21 CIVIC 5D HUM-31TGG6400_01.book 574 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分
