2021 HONDA CIVIC HATCHBACK steering

Contents
Child Safety P. 64Exhaust Gas Hazard P. 79Safety Labels P. 80
Hatch P. 160 Security System P. 163 Opening and Closing the Windows P. 167
Operating the Switches Around the Steering Wheel P. 171 Adjusting the Mirrors P. 190
Interior Lights/Interior Convenience It ems P. 201 Climate Control System P. 217
Audio Error Messages P. 320General Information on the Audio System P. 324
Bluetooth ® HandsFreeLink ® P. 383, 410
When Driving P. 451 Honda Sensing®P. 488 Braking P. 549
Refueling P. 562 Fuel Economy and CO
2 Emissions P. 566 Turbo Engine Vehicle P. 567
Maintenance Under the Hood P. 579 Replacing Light Bulbs P. 594
Checking and Maintaining Tires P. 609 Battery P. 620 Remote Transmitter Care P. 622
Cleaning P. 625 Accessories and Modifications P. 631
Handling of the Jack* P. 656Engine Does Not Start P. 659If the Battery Is Dead P. 662
Indicator, Coming On/Blinking P. 668 Fuses P. 674 Emergency Towing P. 679
If You Cannot Open the Hatch P. 681 Refueling P. 682
Devices that Emit Radio Waves P. 687 Reporting Safety Defects P. 688
Authorized Manuals P. 695 Customer Service Information P. 696
Quick Reference GuideP. 6
Safe DrivingP. 35
Instrument PanelP. 81
ControlsP. 143
FeaturesP. 225
DrivingP. 443
MaintenanceP. 569
Handling the UnexpectedP. 633
InformationP. 683
IndexP. 698
21 CIVIC 5D HUM-31TGG6400_01.book 5 ページ ２０２０年８月２８日　金曜日　午後１時４８分

6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Ignition Switch* (P171)
❚ENGINE START/STOP Button*1 (P172)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Pre-instal led on U.S. models only.
❚System Indicators (P82)
❚Gauges (P122)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P495)
❚ (Vehicle Stability AssistTM (VSA ®)
System OFF) Button
(P476)
❚Road Departure Mitigation (RDM)
Button
(P543)
❚Navigation System*
() See the Navigation System Manual
❚Audio System (P233, 251)
❚Hazard Warning Button
❚Rear Defogger (P188)
❚Heated Door Mirror Button* (P188)
❚Climate Control System (P217)
❚Front Seat Heater Buttons* (P215)
❚Steering Wheel Adjustments (P189)
❚Driver Information Interface (P124)
❚USB Extension Cable*2 (P227)
❚USB Port (P227)
21 CIVIC 5D HUM-31TGG6400_01.book 6 ページ ２０２０年８月２８日　金曜日　午後１時４８分

12
Quick Reference Guide
Safe Driving (P 35)
Airbags (P 48)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 64)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 79)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 39)
●Before driving, check that the front seats, head restraints*,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 40)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
21 CIVIC 5D HUM-31TGG6400_01.book 12 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

13
Quick Reference Guide

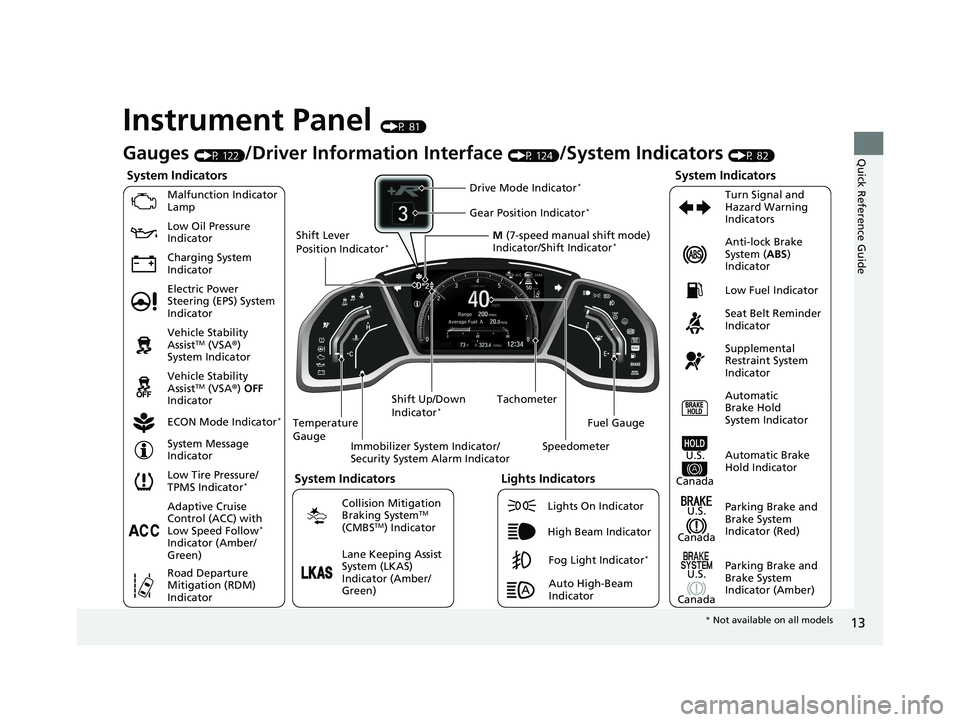

Instrument Panel (P 81)
System Indicators
Malfunction Indicator
Lamp
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist
TM (VSA ®)
System Indicator
Vehicle Stability
Assist
TM (VSA ®) OFF
Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Lever
Position Indicator
*
Low Fuel Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic
Brake Hold
System Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
Temperature
Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
*
Indicator (Amber/
Green)
System Message
Indicator
Collision Mitigation
Braking System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green) M
(7-speed manual shift mode)
Indicator/Shift Indicator
*
Auto High-Beam
Indicator
Shift Up/Down
Indicator
*
Drive Mode Indicator*
Speedometer
Fuel Gauge
Gear Position Indicator*
Gauges (P 122)/Driver Informat
ion Interface (P 124)/System Indicators (P 82)
Low Oil Pressure
Indicator
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 13 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

15
Quick Reference Guide
Turn Signals (P 176)
Lights (P 177)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 184)
*1:Models with automatic intermittent wipers
*2:Models without auto matic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring
*
(-: Low sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P 189)
●To adjust, pull the adjustment lever
toward you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 15 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

25
Quick Reference Guide7-Speed Manual Shift Mode (P465)
Allows you to manually shift the transmission up or down without releasing your hands
from the steering wheel.
When the shift lever is in (S●Pulling a paddle shifter changes the mode from continuously variable transmission to
7-speed manual shift mode.
●The M indicator and the selected speed number are displayed in the shift indicator.
When the shift lever is in (D●Pulling a paddle shifter temporarily changes the mode from continuously variable
transmission to 7-speed manual shift mode. The selected speed number is displayed in
the shift indicator.
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Continuously variable transmission models with paddle shifters
Shift Indicator M Indicator
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 25 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

27
Quick Reference Guide
Honda Sensing® (P488)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the lower bumper next to the fog
light
* and a front sensor camera mounted to
the interior side of the windshield, behind
the rearview mirror.
The camera is
located behind the
rearview mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is in
the lower bumper.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 491)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when the
potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* (P 501)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Adaptive Cruise Control
(ACC)
* (P 518)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS)
(P 533)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P 541) Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 27 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

30
Quick Reference Guide
What to Do If
*1:U.S. models with manual transmission and Canadian models
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after
pressing the ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2 Anti-lock Brake System (ABS) (P556)
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
