2021 HONDA CIVIC HATCHBACK stop start

6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Ignition Switch* (P171)
❚ENGINE START/STOP Button*1 (P172)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Pre-instal led on U.S. models only.
❚System Indicators (P82)
❚Gauges (P122)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P495)
❚ (Vehicle Stability AssistTM (VSA ®)
System OFF) Button
(P476)
❚Road Departure Mitigation (RDM)
Button
(P543)
❚Navigation System*
() See the Navigation System Manual
❚Audio System (P233, 251)
❚Hazard Warning Button
❚Rear Defogger (P188)
❚Heated Door Mirror Button* (P188)
❚Climate Control System (P217)
❚Front Seat Heater Buttons* (P215)
❚Steering Wheel Adjustments (P189)
❚Driver Information Interface (P124)
❚USB Extension Cable*2 (P227)
❚USB Port (P227)
21 CIVIC 5D HUM-31TGG6400_01.book 6 ページ ２０２０年８月２８日　金曜日　午後１時４８分

14
Quick Reference Guide
Controls (P 143)
Clock (P 144)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect Set, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aPress the (Home) button, then
select Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The clock is automatically updated through
the audio system.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 172)
●Press the button to ch ange the vehicle’s
power mode.
21 CIVIC 5D HUM-31TGG6400_01.book 14 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

16
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P 157)
●Pull either front door inner handle to
unlock and open it at the same time.
Hatch (P160)
●With all the doors unlocked, press the
hatch release button and lift open the
hatch.
●Press the hatch release button to unlock
and open the hatch when you carry the
smart entry remote.
Hatch Release
Button
Models without smart entry system
Models with smart entry system
Power Door Mirrors
(P 192)
●With the ignition switch in ON ( w*1, move
the selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Selector Switch
Adjustment Switch
Power Windows (P 167)
●With the ignition switch in ON ( w*1, open
and close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
21 CIVIC 5D HUM-31TGG6400_01.book 16 ページ ２０２０年８月２８日　金曜日　午後１時４
８分

30
Quick Reference Guide
What to Do If
*1:U.S. models with manual transmission and Canadian models
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after
pressing the ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2 Anti-lock Brake System (ABS) (P556)
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
21 CIVIC 5D HUM-31TGG6400_01.book 30 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

uuSeat Belts uAbout Your Seat Belts
42
Safe DrivingThe seat belt system in cludes an indicator on
the instrument panel to remind the driver or a
front passenger or both to fasten their seat
belts. If the ignition switch is turned to ON
(w*1 and a seat belt is not fastened, a beeper
will sound and the indicator will blink. After a
few seconds, the beeper will stop and the
indicator will come on and remain illuminated
until the seat belt is fastened.
The beeper will periodically sound and the
indicator will blink while the vehicle is moving
until the seat belt is fastened.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Seat Belt Reminder1 Seat Belt Reminder
The indicator will also co me on if a front passenger
does not fasten their seat be lt within six seconds after
the ignition switch is turned to ON
( w*1.
When no one is sitting in th e front passenger’s seat,
the indicator will not come on and the beeper will not
sound.
The indicator also may no t come on and the beeper
may not sound when the occupant is not heavy
enough to trigger the weight sensor. Such occupants
(e.g., infants and smaller children) should be moved
to the rear seat as a deploying front airbag likely will
injure or kill them.
2 Protecting Child Passengers P. 64
21 CIVIC 5D HUM-31TGG6400_01.book 42 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

49
uuAirbags uAirbag System Components
Continued
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG.
cTwo side curtain ai rbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, abov e the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG .
dAn electronic control unit that, when the
ignition switch is in ON
(w*1, continually
monitors information about the various
impact sensors, seat and buckle sensors,
rollover sensor, airbag activators, seat
belt tensioners, and other vehicle
information. During a crash event the
unit can record such information.
eAutomatic front seat belt tensioners. In
addition, the driver’s and front
passenger’s seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
fDriver’s seat position sensor. This sensor
detects the driver’s s eat slide position to
help determine the optimal deployment
of the driver’s airbag.
gWeight sensors in the front passenger’s
seat. The sensors are used for occupant
classification to activate or deactivate the
front passenger’s airbag.
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator on the dashboard that alerts
you that the front passenger’s front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possib le problem with your
airbag system or seat belt tensioners.
kA rollover sensor that can detect if your
vehicle is about to ro ll over and signal the
control unit to deploy both side curtain
airbags.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an
ignition switch.
21 CIVIC 5D HUM-31TGG6400_01.book 49 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

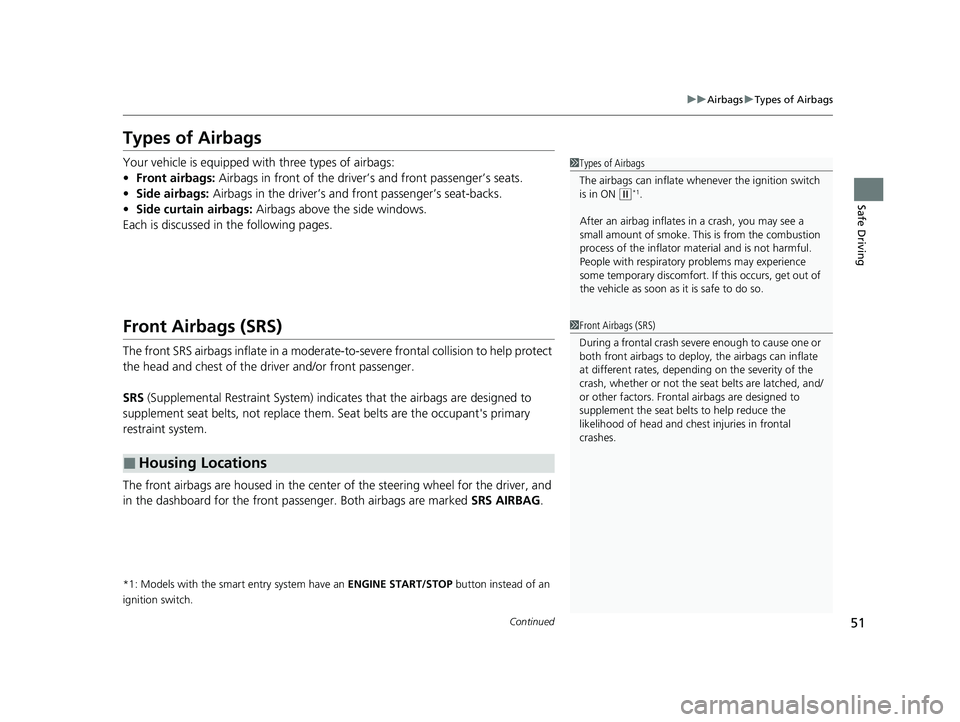

51
uuAirbags uTypes of Airbags
Continued
Safe Driving
Types of Airbags
Your vehicle is equipped wi th three types of airbags:
• Front airbags: Airbags in front of the driver’s and front passenger’s seats.
• Side airbags: Airbags in the driver’s and front passenger’s seat-backs.
• Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect
the head and chest of the driver and/or front passenger.
SRS (Supplemental Restraint System) indica tes that the airbags are designed to
supplement seat belts, not replace them . Seat belts are the occupant's primary
restraint system.
The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the front pass enger. Both airbags are marked SRS AIRBAG.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Housing Locations
1 Types of Airbags
The airbags can inflate whenever the ignition switch
is in ON
(w*1.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the infl ator material and is not harmful.
People with respiratory pr oblems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
1 Front Airbags (SRS)
During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, dependi ng on the severity of the
crash, whether or not the se at belts are latched, and/
or other factors. Frontal airbags are designed to
supplement the seat belts to help reduce the
likelihood of head and chest injuries in frontal
crashes.
21 CIVIC 5D HUM-31TGG6400_01.book 51 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

60
uuAirbags uAirbag System Indicators
Safe Driving
Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the driver information interface.
■When the ignition sw itch is turned to
ON
(w*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as po ssible. If you don’t, your airbags and seat
belt tensioners may not work properly when they are needed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Supplemental Restraint System (SRS) Indicator
1 Supplemental Restraint Sy stem (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if th e SRS indicator alerts
you to a possible problem.
