2021 HONDA CIVIC HATCHBACK Owner's Manual (in English)

655
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), Tire
Pressures Monitor Problem will appear on the driver information interface and
the indicator will start blinking for a shor t time and then stay on; however, this is
normal and is no cause for concern.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 483
■TPMS and the Compact Spare Tire*
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 655 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

656
Handling the Unexpected
Handling of the Jack*
How to Set Up the Jack
1.Turn and pull the tab to open the
compartment cover located on the left side
of the cargo area.
2. Turn the jack’s end br acket to loosen it,
then remove it.1 How to Set Up the Jack
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.Tab
Cover
Jack
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 656 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

Continued657
uuHandling of the Jack*uHow to Set Up the Jack
Handling the Unexpected
3. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
4. Place the jack under the jacking point
closest to the tire to be changed.
5. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.•Use only where the ground is firm and level.
•Use only at the jacking points.
•Do not get in the vehicl e while using the jack.•Do not put anything on top of or underneath the
jack.
Jacking Points
Jacking Point
21 CIVIC 5D HUM-31TGG6400_01.book 657 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

658
uuHandling of the Jack*uHow to Set Up the Jack
Handling the Unexpected

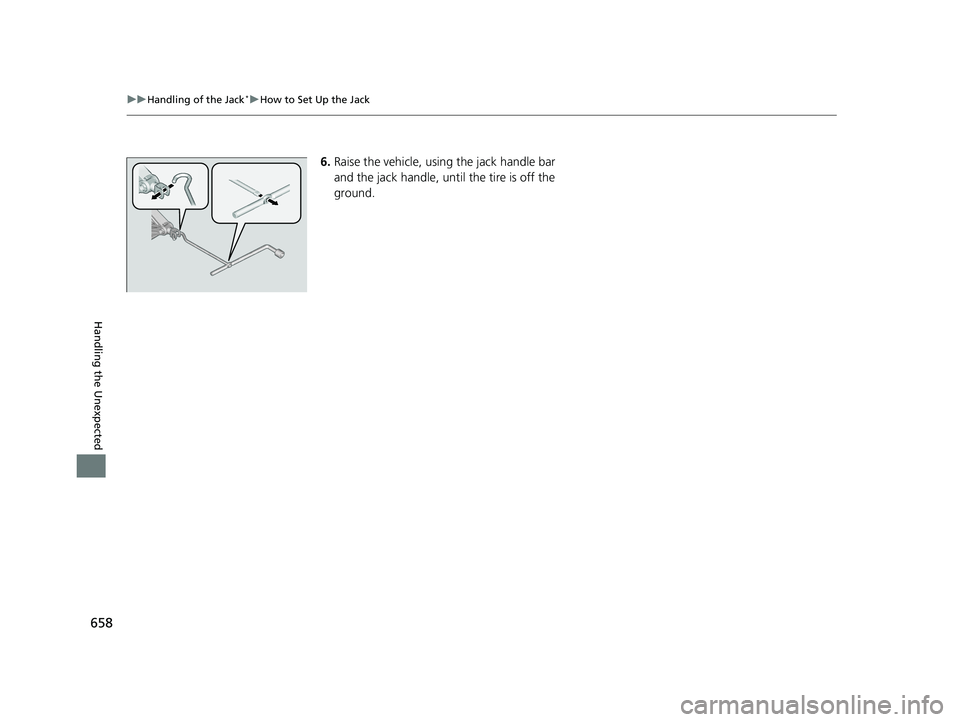

6. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
21 CIVIC 5D HUM-31TGG6400_01.book 658 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

659
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the driver information interface.●If the To Start, Hold Remote Near Start Button message appears2If the Smart Entry Remote Battery is Weak P. 660
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 172
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all2 Battery P. 620●If the interior lights come on normally2 Fuses P. 674
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 451
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 163
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 122
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 678
If the problem continues:2Emergency Towing P. 679
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the Battery Is Dead P. 662
Models with smart entry system
21 CIVIC 5D HUM-31TGG6400_01.book 659 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

660
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, and the ENGINE START/STOP button
flashes, and the engine won’t star t, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal (continuously
variable transmission) or clutch pedal
(manual transmission) and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
Models with smart entry system
21 CIVIC 5D HUM-31TGG6400_01.book 660 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

661
uuEngine Does Not StartuEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button about for two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into
(P after the vehicle
comes to a complete stop.
Then press the ENGINE START/STOP button twice without depressing the brake
pedal.
The power mode changes to VEHICLE OFF.
Models with smart entry system
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
Continuously variable transmission models
Canadian continuously variable transmission models
Manual transmission models
21 CIVIC 5D HUM-31TGG6400_01.book 661 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

662
Handling the Unexpected
If the Battery Is Dead
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Open the cover on your vehicle’s battery
positive + terminal.
2. Connect the first jump er cable to your
vehicle’s battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1If the Battery Is Dead
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster Battery
1.5 L engine models
2.0 L engine models
Booster Battery
Cover
