uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation*
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver 's responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
21 CIVIC 5D HUM-31TGG6400_01.book 487 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

488
Driving
Honda Sensing®
Honda Sensing® is a driver support system which employs the use of two distinctly
different kinds of sensors: a radar sensor located in the lower bumper and a front
sensor camera mounted to th e interior side of the windshield, behind the rearview
mirror.
Honda Sensing® has following functions.
■The functions whic h do not require switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 491
• Road Departure Mitigation (RDM) System 2 P. 541
■The functions wh ich require switch op erations to activate
• Adaptive Cruise Control ( ACC) with Low Speed Follow* 2 P. 501
• Adaptive Cruise Control (ACC)* 2 P. 518
• Lane Keeping Assist System (LKAS) 2 P. 533
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 488 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

489
uuHonda Sensing ®u
Continued
Driving

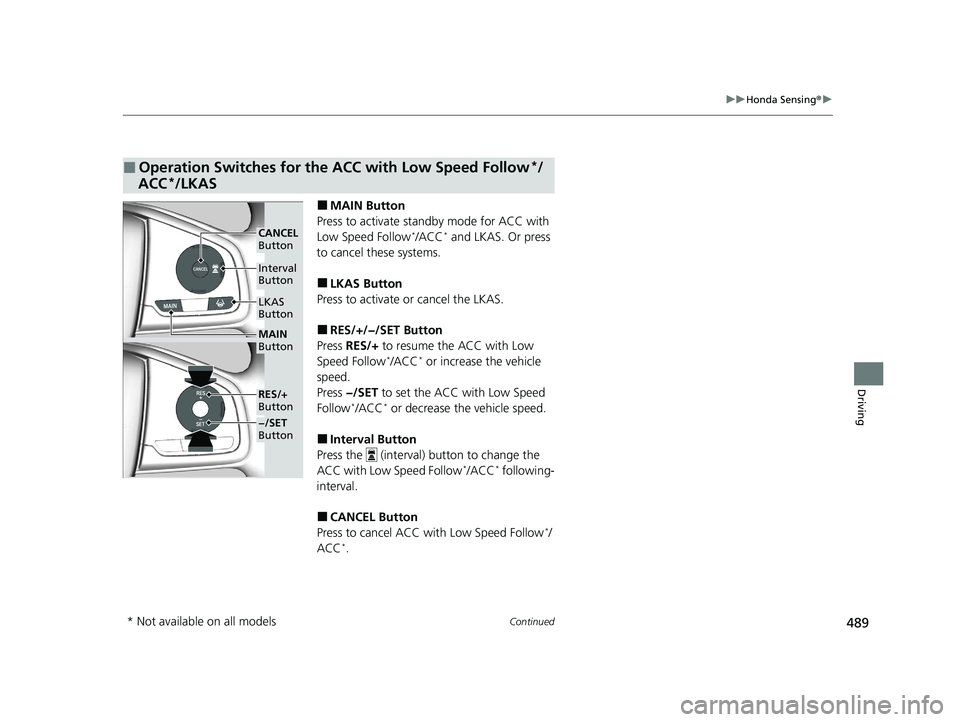

■MAIN Button
Press to activate sta ndby mode for ACC with
Low Speed Follow
*/ACC* and LKAS. Or press
to cancel these systems.
■LKAS Button
Press to activate or cancel the LKAS.
■RES/+/−/SET Button
Press RES/+ to resume the ACC with Low
Speed Follow
*/ACC* or increase the vehicle
speed.
Press −/SET to set the ACC with Low Speed
Follow
*/ACC* or decrease the vehicle speed.
■Interval Button
Press the (interval) button to change the
ACC with Low Speed Follow
*/ACC* following-
interval.
■CANCEL Button
Press to cancel ACC wi th Low Speed Follow*/
ACC*.
■Operation Switches for the ACC with Low Speed Follow*/
ACC*/LKAS
MAIN
Button
Interval
Button
CANCEL
Button
LKAS
Button
RES/+
Button
−/SET
Button
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 489 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

490
uuHonda Sensing ®u
Driving

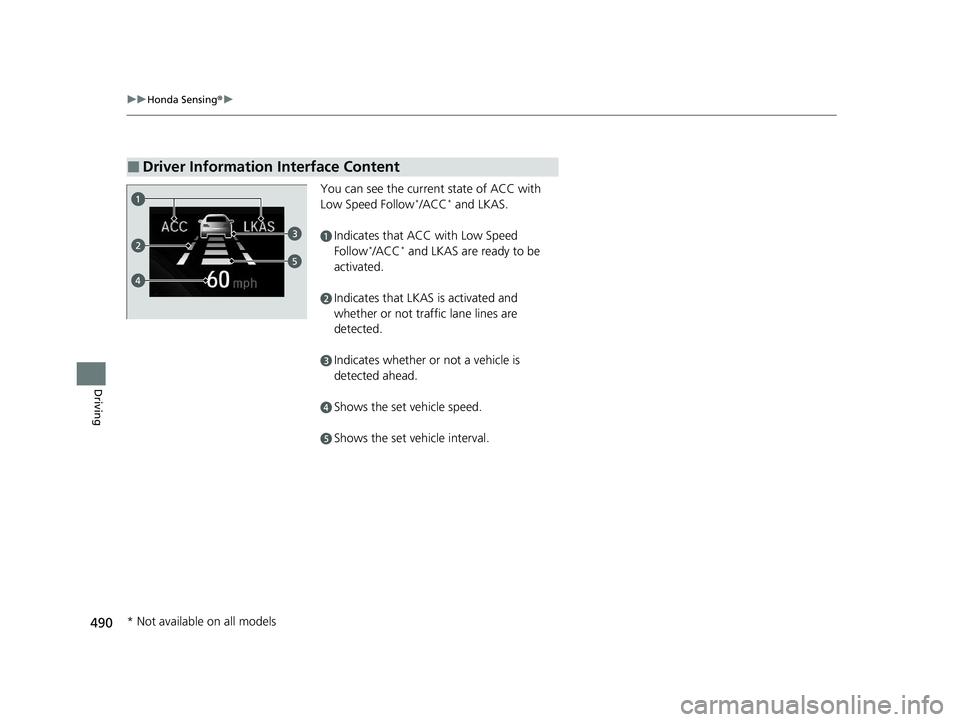

You can see the current state of ACC with
Low Speed Follow*/ACC* and LKAS.
■Driver Information Interface Content
aIndicates that ACC with Low Speed
Follow*/ACC* and LKAS are ready to be
activated.
bIndicates that LKAS is activated and
whether or not traffic lane lines are
detected.
cIndicates whether or not a vehicle is
detected ahead.
dShows the set vehicle speed.
eShows the set vehicle interval.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 490 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

491
uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
Collision Mitigation Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when the
potential for a collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
1 Collision Mitigation Braking SystemTM (CMBSTM)
When the CMBS
TM activates, the engine may stop
automatically.
Start the engine by normal operation if the engine
stops.
2 Starting the Engine P. 451, 454
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It does not prevent collisions
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions: 2 CMBS
TM Conditions and Limitations P. 496
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 546
For directions on the prop er handling of the radar
sensor, refer to the following page.
2 Radar Sensor P. 548
Manual transmission models
21 CIVIC 5D HUM-31TGG6400_01.book 491 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
492
Driving
■How the system works1How the system works
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
CMBS
TM does not function while VSA® is completely
disabled.
2.0 L engine models
The radar sensor is in
the lower bumper
next to the fog light
*.
The camera is located
behind the rearview
mirror.
The system starts monitoring the roadway ah ead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you.
When to use
The CMBSTM activates when:●The speed difference between your vehicle and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and the system determines
there is a chance of a collision with:
- Vehicles detected in front of you that are stationary, oncoming, or traveling in
your same direction.
- A pedestrian who is detected in front of you.
●Your vehicle speed is above 62 mph (100 km/h), and the system determines there
is a chance of a collision with a vehicle detected in front of you traveling in your
same direction.
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 492 ページ ２０２０年８月２８日　金曜日　午後１時 ４８分

Continued493
uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Driving
■When the system activates
You can change the distance ( Long/Normal /Short ) between vehicles at which the
system’s earliest collision alert will come on through driver information interface or
audio/information screen setting options.
2 List of customizable options P. 137, 359
1When the system activates
The camera in the CMBS
TM is also designed to detect
pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list. 2 CMBS
TM Conditions and Limitations P. 496
The system provides visual and audible alerts of a possible collision, and stops if the
collision is avoided.
u Take appropriate action to prevent a collision (apply the brakes, change
lanes, etc.)
Visual Alerts
BeepAudible Alert
21 CIVIC 5D HUM-31TGG6400_01.book 493 ページ ２０２０年８月２８日　金曜日　午後１時
４８分

494
uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Driving
The system has three alert stages for a possible collision. However, depending on circumstances, the CMBSTM may not go through all of
the stages before initiating the last stage.
■Collision Alert Stages
Distance between vehicles
CMBSTM
The radar sensor detects a vehicleAudible & Visual WARNINGSBraking
Stage one
There is a risk of a
collision with the vehicle
ahead of you.
When in Long, visual and audible alerts
come on at a longer distance from a
vehicle ahead than in Normal setting, and
in Short , at a shorter distance than in
Normal .
—
Stage two
The risk of a collision has
increased, time to
respond is reduced.
Visual and audible alerts.
Lightly applied
Stage three
The CMBSTM determines
that a collision is
unavoidable.
Forcefully applied
Your Vehicle Vehicle
Ahead
Normal
Short
Long
Your
Vehicle Vehicle
Ahead
Your
Vehicle
Vehicle
Ahead
