2021 GENESIS G80 Owner's Manual

5-95
05
„„Rear seat
ORG3050102
1. Fan speed control
2. Temperature control
3. OFF (system off)
4. AUTO (automatic control)
5. Mode selection
Information
Temperature, Mode selection (air flow direction) can be controlled individually from the
rear seat.
However, if ‘Setup → Vehicle Settings → Climate → Climate Features → Lock the Rear
Climate Control’ is selected, the rear climate control can be operated only from the front
seat. Deselect ‘Lock the Rear Climate Control’ before using it from the rear seats.

Convenient Features
5-96
Automatic Temperature Control
Mode
The Automatic Climate Control System
is controlled by setting the desired
temperature.
1. Press the AUTO button.
The mode selection, fan speed,
air intake and air-conditioning will
be controlled automatically by the
temperature setting you select.
OJX1059246
2. When the climate control system is
being automatically controlled, fan
speed can be selected (Low/Medium/
High).
-HIGH: Use when quick heating or
cooling is preferred with higher fan
speed capability.
-MEDIUM: Use when medium fan
speed is preferred for cooling or
heating with moderate fan speed
capability.
-LOW: Use when low fan speed is
preferred for cooling or heating with
lower fan speed capability.
3. Turn the temperature control knob
to the desired temperature. If the
temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.
After the interior has cooled
sufficiently, adjust the knob to
a higher temperature set point
whenever possible.
To turn the automatic operation off,
select any function of the following:
- Mode selection button
-Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’
sign will illuminate on the climate
information screen once again.)
-Fan speed control icon or knob
-A/C (air conditioning) icon
The selected function will be controlled
manually while other functions operate
automatically.
For your convenience and to improve the
efficiency of the climate control, use the
AUTO button and set the temperature to
72 °F (22 °C).
To change the temperature unit from °C
to °F or °F to °C:
Press the AUTO button for 3 seconds
while pressing the OFF button.

05
5-97
Information
ORG3050065
Never place anything near the ambient
light/solar sensor to ensure better control
of the heating and cooling system.
Manual Temperature Control
Mode
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected.
When pressing any button except the
AUTO button while using automatic
operation, the functions not selected will
be controlled automatically.
1. Start the vehicle.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
-Heating:
-Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to Fresh or
Recirculation mode.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button to revert
back to full automatic control of the
system.
The climate control system settings
will be maintained, even when the
vehicle is turned OFF. However, the
climate control system settings will be
initialized when the battery has been
discharged, or when the cables have
been disconnected.
In this case, adjust the climate control
system settings again.
When starting the vehicle in cold
weather the more efficient way to heat
the passenger compartment is to do the
following.
- Turn off or lower the blower, right
after starting the engine.
• Allow the engine to warm up during
this time since the air flow from the
heater is still cold.
-After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting to hot.

Convenient Features
5-98

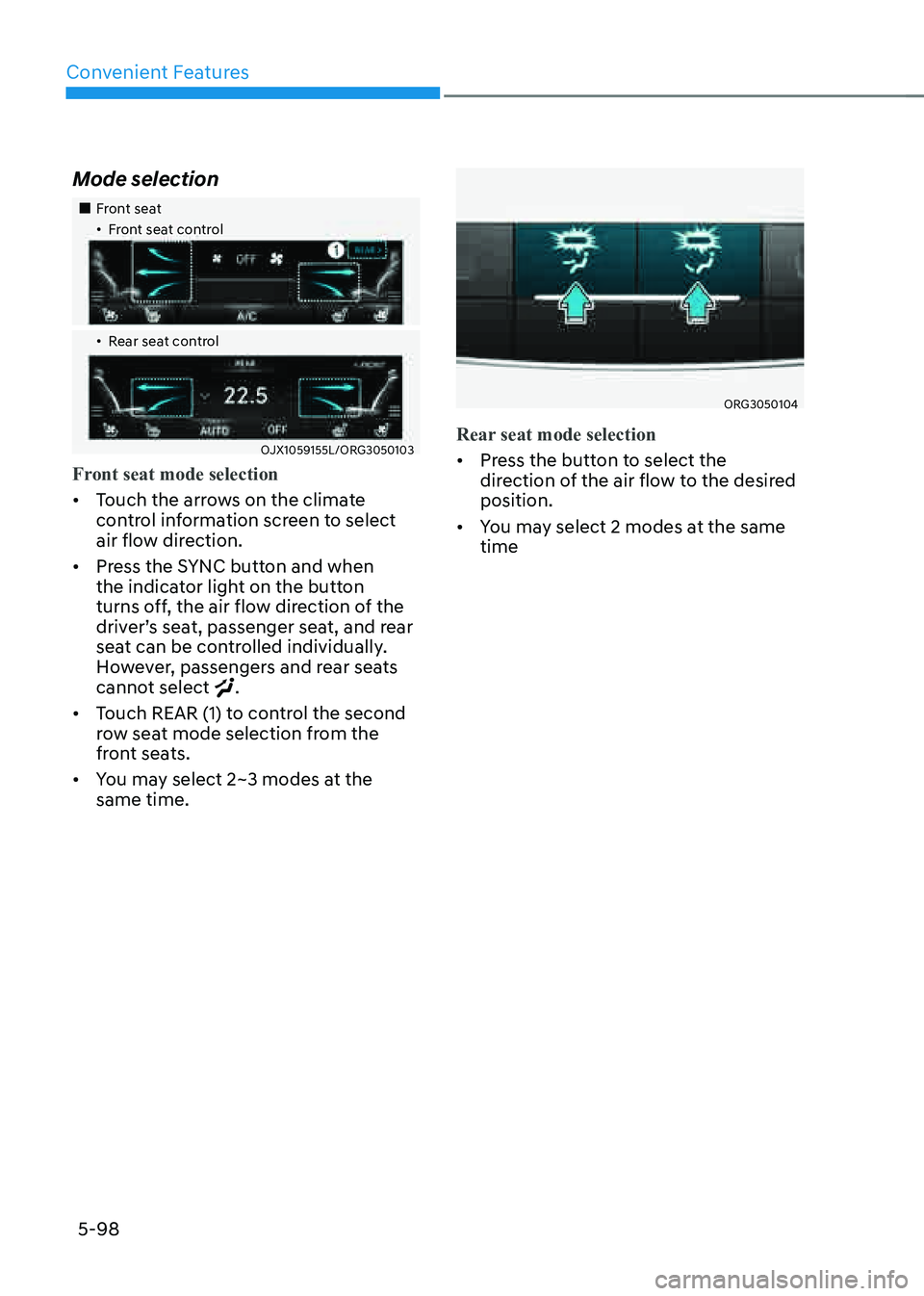

Mode selection
„„Front seat„ǴFront seat control
„ǴRear seat control
OJX1059155L/ORG3050103
Front seat mode selection
• Touch the arrows on the climate
control information screen to select
air flow direction.
• Press the SYNC button and when
the indicator light on the button
turns off, the air flow direction of the
driver’s seat, passenger seat, and rear
seat can be controlled individually.
However, passengers and rear seats
cannot select
.
• Touch REAR (1) to control the second
row seat mode selection from the
front seats.
• You may select 2~3 modes at the
same time.
ORG3050104
Rear seat mode selection
• Press the button to select the
direction of the air flow to the desired
position.
• You may select 2 modes at the same
time

05
5-99
ORG3050105
Air flow direction
The mode selection Icon or button controls the direction of the air flow through the
ventilation system.

Convenient Features
5-100
Defrost (A, D)
Most of the air flow is directed to the
windshield.
Face-level (B, D, E)
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Floor-level (A, C, F)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
Face-level (E)
Air flow is directed toward the upper
body and face.
Floor-level (F)
Most of the air flow is directed to the
floor.
Front windshield defroster
ORG3050106
Defrost-level (A, D)
Press the button, and the indicator light
on the button will illuminate and the
windshield defroster indicator will appear
on the climate control information
screen.
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
When Defogging logic is enabled, Fresh
mode is selected and air conditioning
is selected according to outside
temperature.
Press the button again, the indicator light
will turn off and the previous settings will
be selected.

05
5-101
Instrument panel vents
„„Front seat
ORG3050107
„„Rear seat
ORG3050108
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
The air flow can also be CLOSED using
the vent adjustment lever.
Move the lever to
position to close, and to position to open. However, the third row air vent cannot be closed.
Temperature control
„„Front seat„ǴFront seat control„ǴRear seat control
OJX1059163ORG3050109
„„Rear seat
ORG3050110
Turn the knob to the right to increase the
temperature. Turn the knob to the left to
decrease temperature.
Also, touch the
or icon to select
the temperature for second row seats
from the front row.
The Set Temperature can be increased or
decreased by increments of 1 °F (0.5 °C)
for each incremental location. When set
to the lowest temperature setting, the air
conditioning will operate continuously
to quickly cool the interior of the vehicle
initially. After interior temperature has
been cooled down sufficiently, press the
AUTO button and set the temperature to
72 °F (22 °C).

Convenient Features
5-102
SYNC
ORG3050111
Adjusting the temperature, air flow
direction and fan speed equally
Press the SYNC button (indicator light
ON), the rear seat’s temperature, air flow
direction and fan speed will be adjusted
same as the driver’s control.
Air intake control
ORG3050112
The air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).
Recirculation mode
When Recirculation mode is selected, air from the
passenger compartment will
be recirculated through the
system and heated or cooled
according to the function
selected.
Fresh mode
When Fresh mode is selected, air enters the vehicle from
outside and is heated or
cooled according to the
function selected.
