2021 CITROEN C4 AIRCROSS Handbook (in English)

87

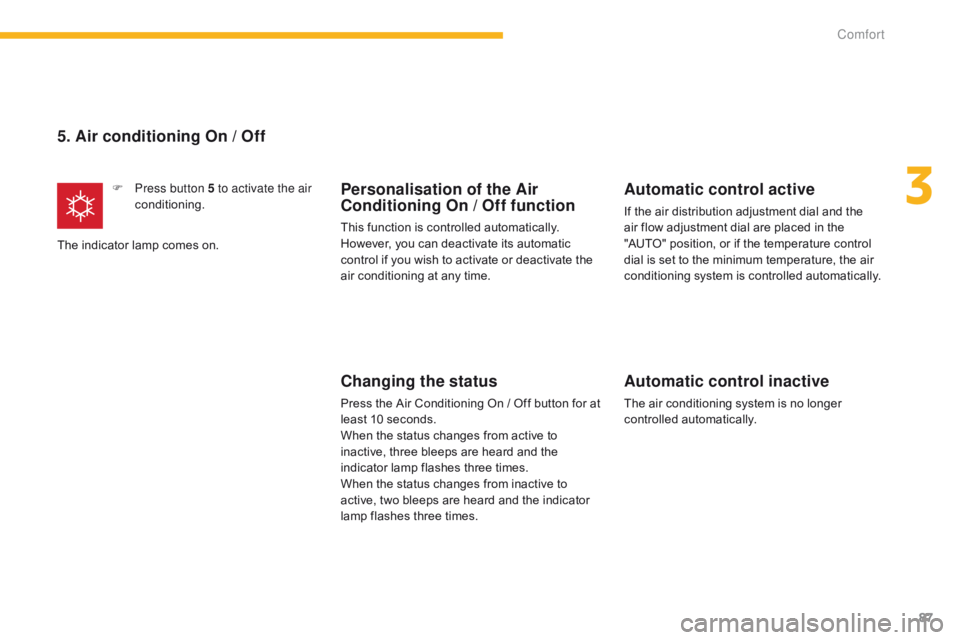

5. Air conditioning On / Off
F Press button 5 to activate the air
conditioning.
The indicator lamp comes on.Personalisation of the Air
Conditioning On / Off function
This function is controlled automatically.
However, you can deactivate its automatic
control if you wish to activate or deactivate the
air conditioning at any time.
Changing the status
Press the Air Conditioning On / Off button for at
least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp flashes three times.
When the status changes from inactive to
active, two bleeps are heard and the indicator
lamp flashes three times.
Automatic control active
If the air distribution adjustment dial and the
air flow adjustment dial are placed in the
"AUTO" position, or if the temperature control
dial is set to the minimum temperature, the air
conditioning system is controlled automatically.
Automatic control inactive
The air conditioning system is no longer
controlled automatically.
3
Comfort

88
Front Demist - Defrost
1. Press button A, to select "exterior air intake". The lamp in the button
is off.
2.
P

lace the air distribution dial in the "windscreen, side windows and
footwells" position.
3.
S

elect the desired level of air flow.
4.
S

elect the desired temperature.
5.
I

f your vehicle has air conditioning, switch it on by pressing button B.
The lamp in this button comes on.Rapid demisting
1. Place the distribution control on the "windscreen and side window" position.
2.
S

elect maximum air flow.
3.
Sel

ect maximum temperature.
Comfort

89
Rear screen demist - defrost
Switching on
The rear screen demisting/defrosting can only
operate when the engine is running.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
F
I
t is possible to stop the demisting/
defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.
F

S
witch off the demisting/defrosting of the
rear screen and door mirrors as soon as
appropriate, as lower current consumption
results in reduced fuel consumption.
The control button is located on the air conditioning system control panel.
F

P

ress this button to demist /defrost
the rear screen and (depending
on version) the door mirrors. The
indicator lamp associated with the
button comes

on.
3
Comfort

90
Front fittings
1. Sun visor.
2. Glove box.
3.
P

ortable ashtray.
4.
C

igarette lighter
1

2 V socket (120 W max).
5.
A

rmrest with storage compartments.
6.
C

up holder.
7.
B

ottle holder.
Comfort

91
Mat
When removing the mat on the driver's side,
move back the seat as far as possible and
remove the fixings.
When refitting, position the mat correctly on the
pins and clip the fixings. Check that the mat is
secured firmly.
To prevent any risk of jamming under the
pedals:
-
o
nly use mats suited to the fixings already
present in the vehicle; it is imperative that
these fixings are used.
-

n
ever fit one mat on top of another.
Sun visor Glove box
It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
F

T
o open the glove box, raise the handle.
It is illuminated when the lid is opened.
It houses the front passenger airbag
deactivation switch A.
If the vehicle is fitted with air conditioning,
it has a ventilation nozzle B , distributing the
same conditioned air as the vents in the
passenger compartment.
If your vehicle is fitted with the "Keyless Entry
and Starting" system, it contains the back-up
starting unit C .
The sun visors fold for wards, and to the side
when they are unhooked.
They are fitted with a courtesy mirror and a
ticket holder.
3
Comfort

92
Portable ashtray
F Pull the cover to open the ashtray.
F T o empty it, remove the ashtray by pulling it
upwards.
Cigarette lighter /
1 2 V accessory
socket
F To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.
F

T
o connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter
back into
place straight away.
Comfort

93
Front armrest
Pull the right-hand lever to open the storage
compartment lid, which serves as an armrest.
To close, fold down the lid until it locks.Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
This storage compartment may contain up
to 3 accessory sockets.This operates when the ignition switch is in the
"LOCK", "ACC" or "ON" position.
Open the cover of the front armrest to gain
access to the socket.
Upper storage compartment
Lower storage compartment
Check that the electrical equipment
operates on 12 V and that its maximum
electrical power is 120 W.
The prolonged use of electrical
equipment without running the engine
may discharge the battery.
12 V socket
(120 W max)
3
Comfort

94
It permits the connection of a portable device,
such as a digital audio player of the iPod® or
USB memory stick type.
Open the front armrest cover for access to
the
po

rt.
It reads certain audio file formats allowing them
to be heard via the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel. For more information on the use of this
equipment, see "Audio and Telematics".
USb port
Connected to the USB port, the
portable device charges automatically
while in use.
Auxiliary sockets
(RC
a

)
They are used to connect a portable device
(MP3 player...).
Open the front armrest cover for access to the
sockets.
For more information on using this equipment,
see "Audio and Telematics".
Comfort
