Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Keys, Doors, and Windows . . . . . . . . . . . . . . . 6

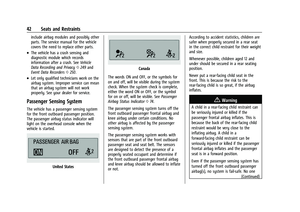

Seats and Restraints . . . . . . . . . . . . . . . . . . . . . 25
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Instruments and Controls . . . . . . . . . . . . . . . 67
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

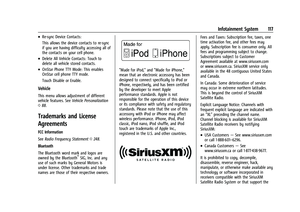

Infotainment System . . . . . . . . . . . . . . . . . . . . 97
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . 119
Driving and Operating . . . . . . . . . . . . . . . . . . 124

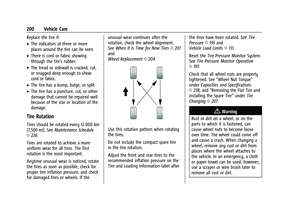

Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

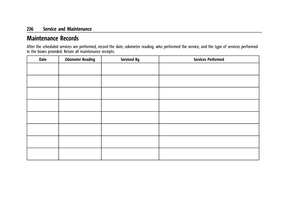

Service and Maintenance . . . . . . . . . . . . . . . 225
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Customer Information . . . . . . . . . . . . . . . . . . 240
Reporting Safety Defects . . . . . . . . . . . . . . . 248
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Connected Services . . . . . . . . . . . . . . . . . . . . . 256

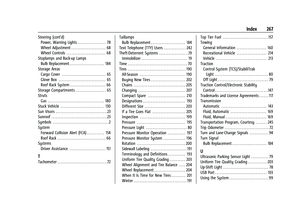

Index . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Introduction
The names, logos, emblems, slogans, vehicle
model names, and vehicle body designs
appearing in this manual including, but not
limited to, GM, the GM logo, CHEVROLET,
the CHEVROLET Emblem, and SPARK are
trademarks and/or service marks of General
Motors LLC, its subsidiaries, affiliates,
or licensors.
For vehicles first sold in Canada, substitute
the name“General Motors of Canada
Company” for Chevrolet Motor Division
wherever it appears in this manual.
This manual describes features that may or
may not be on the vehicle because of
optional equipment that was not purchased
on the vehicle, model variants, country
specifications, features/applications that may not be available in your region, or changes
subsequent to the printing of this owner’s
manual.
Refer to the purchase documentation
relating to your specific vehicle to confirm
the features.
Keep this manual in the vehicle for quick
reference.Canadian Vehicle Owners
A French language manual can be obtained
from your dealer, at www.helminc.com,
or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide
en français auprès du concessionnaire ou à
l'adresse suivante:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Litho in U.S.A.
Part No. 84732004 C Third Printing©2021 General Motors LLC. All Rights Reserved.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
2 Introduction
Using this Manual
To quickly locate information about the
vehicle, use the Index in the back of the
manual. It is an alphabetical list of what is
in the manual and the page number where
it can be found.
Danger, Warning, and Caution
Warning messages found on vehicle labels
and in this manual describe hazards and
what to do to avoid or reduce them.
{Danger
Danger indicates a hazard with a high
level of risk which will result in serious
injury or death.
{Warning
Warning indicates a hazard that could
result in injury or death.
Caution
Caution indicates a hazard that could
result in property or vehicle damage.
A circle with a slash through it is a safety
symbol which means“Do not,” “Do not do
this,” or“Do not let this happen.”
Symbols
The vehicle has components and labels that
use symbols instead of text. Symbols are
shown along with the text describing the
operation or information relating to a
specific component, control, message, gauge,
or indicator.
M:Shown when the owner’s manual has
additional instructions or information.
*: Shown when the service manual has
additional instructions or information.
0: Shown when there is more information
on another page — “see page.” Vehicle Symbol Chart
Here are some additional symbols that may
be found on the vehicle and what they
mean. See the features in this manual for
information.
u:
Air Conditioning System
G:Air Conditioning Refrigerant Oil
9:Airbag Readiness Light
!:Antilock Brake System (ABS)
$:Brake System Warning Light
9:Dispose of Used Components Properly
P:Do Not Apply High Pressure Water
B:Engine Coolant Temperature
_:Flame/Fire Prohibited
H: Flammable
[:Forward Collision Alert
R:Fuse Block Cover Lock Location
+:Fuses
j:ISOFIX/LATCH System Child Restraints

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 1/28/21
Introduction 3
Q:Keep Fuse Block Covers Properly
Installed
|: Lane Change Alert
@:Lane Departure Warning
A:Lane Keep Assist
*: Malfunction Indicator Lamp
::Oil Pressure
X:Park Assist
~:Pedestrian Ahead Indicator
O:Power
7:Rear Cross Traffic Alert
I:Registered Technician
/:Remote Vehicle Start
h:Risk of Electrical Fire
>:Seat Belt Reminders
I:Side Blind Zone Alert
h:Stop/Start
7:Tire Pressure Monitor
d:Traction Control/StabiliTrak/Electronic
Stability Control (ESC)
a: Under Pressure
V: Vehicle Ahead Indicator

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
4 Introduction
Instrument Panel Overview

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20

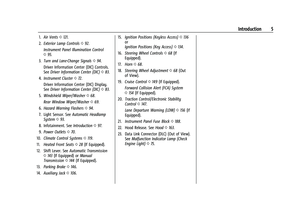

Introduction 5
1.Air Vents 0121.
2. Exterior Lamp Controls 092.
Instrument Panel Illumination Control
0 95.
3. Turn and Lane-Change Signals 094.
Driver Information Center (DIC) Controls.
See Driver Information Center (DIC) 083.
4. Instrument Cluster 072.
Driver Information Center (DIC) Display.
See Driver Information Center (DIC) 083.
5. Windshield Wiper/Washer 068.
Rear Window Wiper/Washer 069.
6. Hazard Warning Flashers 094.
7. Light Sensor. See Automatic Headlamp
System 093.
8. Infotainment. See Introduction097.
9. Power Outlets 070.
10. Climate Control Systems 0119.
11. Heated Front Seats 028 (If Equipped).
12. Shift Lever. See Automatic Transmission
0 143 (If Equipped) or Manual
Transmission 0144 (If Equipped).
13. Parking Brake 0146.
14. Auxiliary Jack 0106. 15.
Ignition Positions (Keyless Access) 0136
or
Ignition Positions (Key Access) 0134.
16. Steering Wheel Controls 068 (If
Equipped).
17. Horn 068.
18. Steering Wheel Adjustment 068 (Out
of View).
19. Cruise Control 0149 (If Equipped).
Forward Collision Alert (FCA) System
0 154 (If Equipped).
20. Traction Control/Electronic Stability
Control 0147.
Lane Departure Warning (LDW) 0156 (If
Equipped).
21. Instrument Panel Fuse Block 0188.
22. Hood Release. See Hood0163.
23. Data Link Connector (DLC) (Out of View). SeeMalfunction Indicator Lamp (Check
Engine Light) 075.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
6 Keys, Doors, and Windows
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Keyless Entry (RKE) System . . . . . 8
Remote Keyless Entry (RKE) SystemOperation (Key Access) . . . . . . . . . . . . . . . . 9
Remote Keyless Entry (RKE) System Operation (Keyless Access) . . . . . . . . . . . . 11
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . 15
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 15
Automatic Door Locks . . . . . . . . . . . . . . . . . . . 15
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 16
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 18
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 18
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Immobilizer Operation (Key Access) . . . . . 19
Immobilizer Operation (Keyless Access) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 20
Manual Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 20
Power Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 21
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 21
Interior Mirrors
Interior Rearview Mirrors . . . . . . . . . . . . . . . 21
Manual Rearview Mirror . . . . . . . . . . . . . . . . 21
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Manual Windows . . . . . . . . . . . . . . . . . . . . . . . 22
Power Windows . . . . . . . . . . . . . . . . . . . . . . . . 22
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with the
ignition key is dangerous and children or
others could be seriously injured or killed.
They could operate the power windows
or other controls or make the vehicle
move. The windows will function with
the keys in the ignition, and children or
others could be caught in the path of a
closing window. Do not leave children in
a vehicle with the ignition key.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Keys, Doors, and Windows 7
{Warning
If the key is unintentionally rotated while
the vehicle is running, the ignition could
be moved out of the RUN position. This
could be caused by heavy items hanging
from the key ring, or by large or long
items attached to the key ring that could
be contacted by the driver or steering
wheel. If the ignition moves out of the
RUN position, the engine will shut off,
braking and steering power assist may be
impacted, and airbags may not deploy.
To reduce the risk of unintentional
rotation of the ignition key, do not
change the way the ignition key and
Remote Keyless Entry (RKE) transmitter,
if equipped, are connected to the
provided key rings.
The ignition key and key rings, and RKE
transmitter, if equipped, are designed to
work together as a system to reduce the
risk of unintentionally moving the key out
of the RUN position. The ignition key has a
small hole to allow attachment of the
provided key ring. It is important that any replacement ignition keys have a small hole.
See your dealer if a replacement key is
required.
The combination and size of the rings that
came with your keys were specifically
selected for your vehicle. The rings are
connected to the key like two links of a
chain to reduce the risk of unintentionally
moving the key out of the RUN position. Do
not add any additional items to the ring
attached to the ignition key. Attach
additional items only to the second ring,
and limit added items to a few essential
keys or small, light items no larger than an
RKE transmitter.
Interference from radio-frequency
identification (RFID) tags may prevent the
key from starting the vehicle. Keep RFID
tags away from the key when starting the
vehicle.
