2021 AUDI A8 Owners Manual

4N0012721BF
Sitting correctly and safely

— The distance between your upper body and the
steering wheel or instrument panel is at least
10 inches (25 cm)
— The distance between your knees and the in-
strument panel is at least 4 inches (10 cm)
— Your thighs are lightly supported by the front
surface of the seat
— The backrest is in an upright position and your
back
is resting against it
— You have a sufficient view of the area around
the vehicle
— You have a clear view of the instrument cluster,
indicator lights, and the head-up display*
Seat settings menu: quick access
If you press on the image of the driver's or front
passenger's seat in the climate control system
menu & page 100, fig. 89 @, you will go directly
to the seat settings for that seat.

ZA WARNING
— If you are too close to the steering wheel or
instrument panel, the airbag system cannot
provide the optimal protection, which in-
creases the risk of injury and death.
—To reduce the risk of injury in the event of
sudden braking maneuvers or accidents,
never drive with the backrest reclined very
far. The airbag system and seat belts can on-
ly provide optimal protection when the back-
rest is in an upright position and the driver
is wearing the seat belt correctly. If the
backrest is angled back too far, the safety
belt can shift to soft areas of the body, such
as the stomach, which increases the risk of
injury.
—To reduce the risk of an accident, only adjust
the seats when the vehicle is stationary.
— Be careful when adjusting the seat. Lack of
control or attention when adjusting can re-
sult in injuries due to pinching to vehicle oc-
cupants both in the front seats and rear
seats.
— Never place objects in the driver's footwell.
Objects could shift and enter the area
around the pedals, which could prevent you
from using them. You would then be unable
to use the pedals if sudden driving or brak-

ing maneuvers were needed, which increas-
es the risk of an accident.
— Make sure that the floor mats are always se-
curely attached.
—To reduce the risk of an accident, never place
additional floor mats or other floor covers
over the installed floor mats, because this
reduces the pedal's range of motion and can
impair pedal operation.
—To reduce the risk of injury, never place your
feet on the instrument panel, out of the
window, or on the seat surfaces. This also
applies to passengers in the rear seats.
G) Tips
At the same time, only move the respective
seat using the controls.


Pete ma Rice ee Lm m el ace) y

RAZ-0172
%


Fig. 55 Front seat: seat adjustment buttons
You can adjust the basic settings using the but-
tons.
The settings depend on the vehicle equipment.
Adjusting the seat position
> To move the seat forward or backward, push
the button @ forward or backward.
> To adjust the seat upward or downward, push
the rear section of the button @ upward or
downward.
> To adjust the seat surface, press the front part
of the button @) upward or downward.
Adjusting the backrests
> To move the backrest forward or backward,
press the button @) forward or backward.
71

Sitting correctly and safely

Adjusting the head restraints
> See > page 78
Adjusting the lumbar support
> To adjust the lumbar support, press the button
@) in the desired direction.
Massage function
Switching the massage function on or off @). Set-
ting
the massage type and intensity > page 72.

ZA\ WARNING
The power front seats can also be adjusted
when the ignition is switched off. To reduce
the risk of injury, children should never be left
unattended in the vehicle.

Adjusting the front seats in the MMI
oe
@-

RAZ-0589,
-O

©=-c3
Fig. 56 Upper display: seat setting
You can adjust additional settings in the MMI.
The settings and the number of menus and but-
tons depend on the vehicle equipment.
Operating
Applies to: MMI
> Select on the home screen: VEHICLE > Seats.
> To access the various menus ®, swipe to the
left or right.
> To display the various seats, press ) or ¢ @.
The red coloring in the symbol G) indicates which
seat is selected.
Seat setting
Applies to: MMI
> To select a seat setting, press ( if necessary.
> Press the respective arrow (2) until the desired
position is reached.
72

Massage
See > page 72
Seat temperature balance
Using the seat temperature balance, you can heat
the backrest and seat surface to different tem-
peratures > A\ in Settings on page 103.
> To adjust the seat temperature balance, slide
the control upward or downward.
Additional seat settings
See > page 73
G) Tips
Applies to: reclining rear seats: Only the up-
per thigh support can be adjusted on the
front passenger's seat.
Front seat massage function
Applies to: vehicles with massage function
Selecting the massage function
Applies to: MMI
> To open the Massage menu, press the ~ button
@ > page 71, fig. 55.
Switching the massage function on or off
Applies to: MMI
> To switch the massage function on or off, press
the J button @ © page 71, fig. 55. Or:
> Press Start/Stop on the MMI.
Setting the massage type and intensity
Applies to: MMI
> To adjust the massage type, press the desired
button on the MMI, for example Wave.
> To adjust the intensity of the massage, press
Intensity on the MMI repeatedly until the de-
sired level is reached.
@ Tips
The massage function switches off automati-
cally after approximately 10 minutes.

4N0012721BF

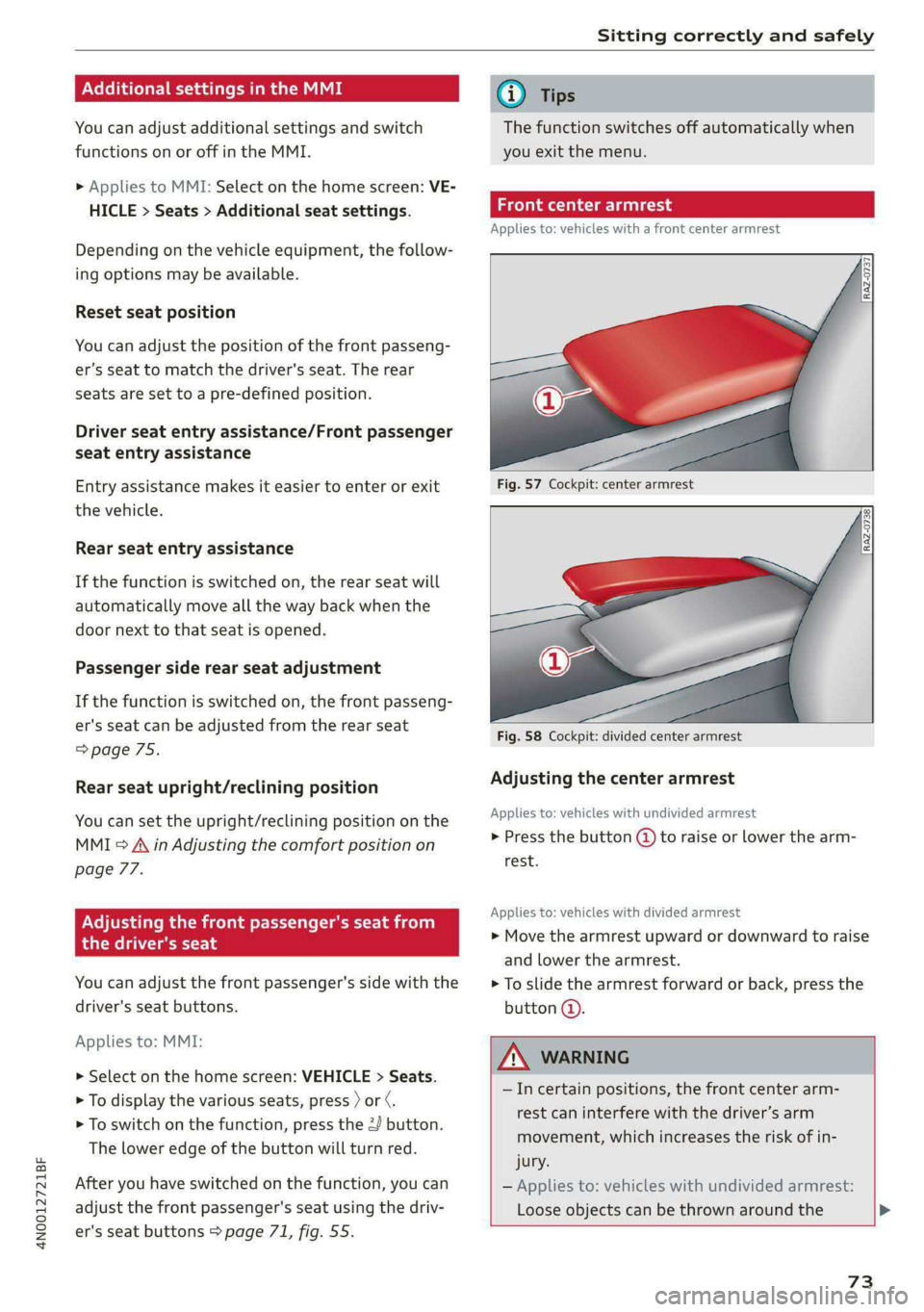

Sitting correctly and safely

Xe)

nal settings in the MMI
You can adjust additional settings and switch
functions on or off in the MMI.
> Applies to MMI: Select on the home screen: VE-
HICLE > Seats > Additional seat settings.
Depending on the vehicle equipment, the follow-
ing options may be available.
Reset seat position
You can adjust the position of the front passeng-
er’s seat to match the driver's seat. The rear
seats are set to a pre-defined position.
Driver seat entry assistance/Front passenger
seat entry assistance
Entry assistance makes it easier to enter or exit
the vehicle.
Rear seat entry assistance
If the function is switched on, the rear seat will
automatically move all the way back when the
door next to that seat is opened.
Passenger side rear seat adjustment
If the function is switched on, the front passeng-
er's seat can be adjusted from the rear seat
=> page 75.
Rear seat upright/reclining position
You can set the upright/reclining position on the
MMI ®& A\ in Adjusting the comfort position on
page 77.
Adjusting the front passenger's seat from
bates leer
You can adjust the front passenger's side with the
driver's seat buttons.
Applies to: MMI:
> Select on the home screen: VEHICLE > Seats.
> To display the various seats, press ) or ¢.
> To switch on the function, press the 2/ button.
The lower edge of the button will turn red.
After you have switched on the function, you can
adjust the front passenger's seat using the driv-
er's seat buttons > page 71, fig. 55.


The function switches off automatically when
you exit the menu.
een eller
Applies to: vehicles with a front center armrest

Fig. 57 Cockpit: center armrest


Fig. 58 Cockpit: divided center armrest
Adjusting the center armrest
Applies to: vehicles with undivided armrest
> Press the button /@ to raise or lower the arm-
rest.
Applies to: vehicles with divided armrest
> Move the armrest upward or downward to raise
and lower the armrest.
> To slide the armrest forward or back, press the
button @).

ZA WARNING
—Incertain positions, the front center arm-
rest can interfere with the driver’s arm
movement, which increases the risk of in-
jury.
— Applies to: vehicles with undivided armrest:
Loose objects can be thrown around the

73

Sitting correctly and safely


vehicle interior during sudden driving or
braking maneuvers, which increases the risk
of an accident. Store objects securely while
driving.
— Applies to: vehicles with front center arm-
rest The center armrest must remain closed
while driving. Otherwise, the protective
function of the front center airbag could be
impaired because it deploys from the driv-
er's seat backrest. This increases the risk of
injury.



Rear seats
ZA\ WARNING
— The power seats can also be adjusted when
the ignition is switched off. To reduce the
risk of injury, children should never be left
unattended in the vehicle for this reason.
— Be careful when adjusting the seat. Unsu-
pervised or careless seat adjustment could
cause parts of the body to get pinched,
which increases the risk of injury.
@) Note
Before adjusting the seat position, you must
remove the retainers for the LATCH child safe-
ty seat restraint system, if installed.
@ Tips
At the same time, only move the respective
seat using the controls.


74
Adjusting seats with buttons

Applies to: vehicles with power adjustable rear seats
| BFY.0106
|
Fig. 59 Rear center armrest/full-length center console:
seat adjustment buttons
You can adjust the basic settings using the but-
tons.
The settings depend on the vehicle equipment.
Adjusting the lumbar support
> To adjust the curvature of the lumbar support,
press the left or right button @.
> To adjust the height of the lumbar support,
press the upper or lower button @.
Adjusting the backrests
> To move the backrest forward or backward,
press the button @) to the left or right.
Adjusting the head restraints
> See > page 79
Adjusting the seat position
> To adjust the seat forward or backward, press
the button @) to the left or right. The backrest
will automatically adjust with it.
> To move the seat upward or downward, press
the button @) upward or downward.
Adjusting the front passenger's seat
See > page 75
Adjusting the comfort position
See > page 76

4N0012721BF
Sitting correctly and safely

Adjusting seats with the Rear Seat Remote
Applies to: vehicles with Rear Seat Remote

Fig. 60 Rear Seat Remote: selecting the seat to be adjust-
ed
You can adjust the rear seat using the Rear Seat
Remote.
Pay attention to the safety precautions for
vehicles with reclining seat systems > A\ in Ad-
justing the comfort position on page 77.
For general use of the Rear Seat Remote, read
the information in > page 26.
Operating
Applies to: Rear Seat Remote
> Press SEATS on the home screen.
> To display the various seats, press the button
©.
The red coloring in the symbol Q) indicates which
seat is selected.
Depending on the vehicle equipment, the func-
tions listed below may be available.
Seat setting
> Select on the home screen: SEATS > Seat set-
ting.
> If necessary, press ) or ¢.
> If necessary, press the desired seat on the Rear
Seat Remote.
> To select a seat setting, press a button if neces-
sary, for example #J.
> Press the respective arrow until the desired po-
sition is reached.
Massage
> Select on the home screen: SEATS > Massage.
> If necessary, press ) or ¢.
> If necessary, press the desired seat on the Rear
Seat Remote.
> To switch the massage function on or off, press
the Start/Stop button.
> To adjust the massage type, press the desired
button, for example Wave.
> To adjust the intensity of the massage, press
the Intensity button repeatedly until the de-
sired level is reached.
> Applies to: foot massage on the front passeng-
er's seat: Requirement: the leg support must be
folded out. To adjust the foot size, press the (if)
button and select S, M, or L. You can adjust the
foot heating in the climate control menu
=> page 102.
Seat temperature balance
Using the seat temperature balance, you can heat
the backrest and seat surface to different tem-
peratures > A\ in Settings on page 103.
> Select on the home screen: SEATS > Seat tem-
perature balance.
> If necessary, press ) or ¢.
> If necessary, press the desired seat on the Rear
Seat Remote.
> To adjust the seat temperature balance, slide
the control upward or downward.
C@) Note
— Do not wear shoes when using the foot mas-
sage and the leg support.
— Do not place any objects on the leg support.
— Do not exceed the maximum load of 110 lb.
@ Tips
The massage function switches off automati-
cally after approximately 10 minutes.
Adjusting the front passenger's seat from
the rear
Applies to: vehicles with power adjustable rear seats
Depending on the equipment, you may be able to
adjust the front passenger's seat using the but-
tons in the center armrest/center console or on
the Rear Seat Remote.
The settings depend on the vehicle equipment.
75

Sitting correctly and safely

Requirements
> Read and follow the important safety precau-
tions about the reclining rear seats > /\ in Ad-
justing the comfort position on page 77.
> Make sure Passenger side rear seat adjustment
is switched on in the MMI > page 73.
> To activate the front passenger's seat adjust-
ment, press the button @)= page 74, fig. 59.
The LED in the button will turn on.
» Applies to: Rear Seat Remote: Press SEATS on
the Rear Seat Remote. Press the desired func-
tion and select the front passenger seat
=> page 75, fig. 60.
Adjusting the backrests
> Applies to: buttons in the center console/center
armrest: Press the button (2) to the left or right
=> page 74, fig. 59.
> Applies to: Rear Seat Remote: Press the < but-
ton. Press the respective arrow until the desired
position is reached.
Adjusting the front passenger seat forward
or backward
> Applies to: buttons in the center armrest/
center console: Push the button @) > page 74,
fig. 59 to the left or right.
> Applies to: Rear Seat Remote: Press the 2 but-
ton.
Press the respective arrow until the desired
position is reached.
Adjusting the front passenger seat upward
and downward
» Applies to: buttons in the center armrest/
center console: Press the button @) > page 74,
fig. 59 upward or downward.
> Applies to: Rear Seat Remote: Press the 2 but-
ton. Press the respective arrow until the desired
position is reached.
Adjusting the leg support
Applies to: reclining rear seats
Requirement: the reclining position must be se-
lected.
>» Applies to: Rear Seat Remote: Press the 24 but-
ton to fold the leg support out and in. Press the
respective arrow until the desired position is
reached.
76
> To adjust the height or depth of the leg sup-
port, adjust the front passenger seat forward/
backward or upward/downward.
> To adjust the foot massage area, adjust the an-
gle of the front passenger seat backrest.

Z\ WARNING
Applies to: reclining seats: To reduce the risk
of injury, make sure the area between the leg
support and the front passenger's seat back-
rest is clear before folding in the leg support.
G@) Tips
— If the settings cannot be applied from the
rear, then the child safety lock may be
switched on or the front passenger’s seat
adjustment for the rear seats may be
switched off in the MMI > page 73. If the
child safety lock is switched on, the @ but-
ton in the driver's door > page 51 turns on.
PNA m da Meolicela a eth ela|
Applies to: vehicles with reclining/upright position or reclin-
ing seat system

Depending on the equipment, you may be able to
adjust the comfort position using the buttons in
the rear door or on the Rear Seat Remote.
Selecting the reclining position
> Applies to: buttons in the rear door for the re-
clining/upright position: To adjust the reclining
position, press the =% button until the seat has
reached its end position.
> Applies to: Rear Seat Remote: Select on the
home screen: SEATS > Seat setting.
> Press ) or ( until the x= or = symbol is dis-
played.
> Press & or =.
Selecting the upright position
> Applies to: buttons in the rear door for the re-
clining/upright position: To set the upright po-
sition, press the & or J button until the seat
has reached its end position.
> Applies to: Rear Seat Remote: Select on the
home screen: SEATS > Seat setting.

4N0012721BF
Sitting correctly and safely

> Press ) or (until the & or J symbol is dis-
played.
> Press & or J.
Reclining rear seat
Applies to: reclining rear seats
In the reclining position, the front passenger
seat is moved forward, the head restraint on the
front passenger seat is folded forward, and the
backrest is tilted forward. Depending on the last
setting in the Rear Seat Remote, the leg support
may fold out and the screen on the front pas-
senger's seat may tilt forward.
In the reclining position, you can adjust the foot
massage, for example > page 75.
In the upright position, the leg support is folded
in, the front passenger seat is moved back into
the original position, and the head restraint is
moved to the upright position > /A\.


AN WARNING
Applies to: reclining rear seats:
— Due to the risk of fatal injury, the front pas-
senger's seat must not be used as a seat
when it is in the reclining position.
— Due to the risk of injury, never select the re-
clining position when the front passenger's
seat is occupied.
— Do not tilt the screens in the rear if the driv-
er's view of the right exterior mirror will be
obstructed.



@® Tips
— Applies to: reclining rear seats and screens
in the rear: When adjusting the screen on
the front passenger's seat, make sure the
driver has a clear view of the exterior mir-
rors. Make sure that the view of the exterior
mirror is not obstructed in the MMI. Other-
wise, move the screen back to an upright
position.
— If the settings cannot be applied from the
rear, the child safety lock might be switched
on. If the child safety lock is switched on,
the @ button in the driver's door > page 51
turns on.
Clare slg
Applies to: vehicles with footrests in rear


BGA-0030

8 3 3 < G a

Fig. 62 Rear footwell: footrest
The angle of the footrest can be adjusted to two
positions > fig. 61:
@ Higher angle
Lower angle
® Note
To reduce the risk of damaging the footrests,
you must make sure the footrests under the
seat will not be crushed when adjusting the
driver's or front passenger's seat.
Steering wheel
General information
Make sure that:
— The distance between your upper body and the
steering wheel is at least 10 inches (25 cm)
— Your arms are bent slightly at the elbows
— You have a sufficient view of the area around
the vehicle and you have a clear view of the in-
strument cluster and head-up display”.
77
>

Sitting correctly and safely

— You are always holding the steering wheel with
both hands on the outer edge at the sides (9:00
and 3:00 position) when driving

ZA\ WARNING
—To reduce the risk of an accident, make sure
the steering wheel is adjusted correctly and
cannot be moved out of position before you
start to drive.
— If you are too close to the steering wheel,
the driver's airbag cannot provide optimal
protection, which increases the risk of injury
or fatality.
— Never hold the steering wheel in the 12:00
position or in any other way, such as holding
the center of the steering wheel. Otherwise,
your arms, hands, and head could be injured
in the event that the driver's airbag deploys.

Adjusting the steering wheel pos

BFY-0110

Fig. 63 Steering column: switch for adjusting the steering
wheel position
The steering wheel position can be adjusted elec-
trically up/down and forward/back.
> To move the steering wheel upward or down-
ward, press the switch upward or downward.
> To move the steering wheel forward or back-
ward, press the switch forward or backward.
The steering wheel can also be adjusted when the
ignition is switched off.
78

Head restraints
General information
Applies to: vehicles with adjustable head restraints

B4G-0454


Fig. 64 Correctly-adjusted head restraint
Make sure that:
— The upper edge of the head restraint is as even
as possible with the top of your head
— The head restraint is as close as possible to the
back of the head
— The head restraints on the occupied rear seats
are positioned all the way up or folded upward.

Z\ WARNING
— There is one head restraint for each seat. All
vehicle occupants must adjust the head re-
straint correctly before every trip. Having
head restraints that are not adjusted cor-
rectly or not installed in the vehicle increas-
es the risk of a neck injury during sudden or
unexpected driving or braking maneuvers or
in a collision.
— Only remove the rear seat head restraints if
it is necessary to install a child safety seat
= page 88. Stow the removed head re-
straints securely, for example in the luggage
compartment. Reinstall the head restraints
immediately once the child safety seat has
been removed. Driving without head re-
straints increases the risk of serious neck in-
juries.
— Depending on the equipment, the front
head restraints may be active head re-
straints. If triggered, a part of the head re-
straint will move several inches forward to
provide additional support to the head. If

triggered, have the head restraints serviced
