2020 YAMAHA YXZ1000R SS Owners Manual

9-10
9
The service items contained herein should not be considered exhaustive, therefore:
• have your YXZ1000R checked and serviced by your Yamaha dealer at regular intervals.
• replace any damaged or visibly worn part immediately. UBAS7AE0.book Page 10 Wednesday, June 19, 2019 11:51 AM

9-11
9
EBU35080HoodTo remove
Remove the bolts, and then pull the hood off
as shown.
To install
Place the hood in the original position, and
then install the bolts.
EBU36932PanelsThe panels shown need to be removed to
perform some of the maintenance jobs de-
scribed in this chapter. Refer to this section
each time a panel needs to be removed and
installed.
1. Hood
2. Bolt
2
1
2
UBAS7AE0.book Page 11 Wednesday, June 19, 2019 11:51 AM

9-12
9
Panel A
To remove the panel1. Unhook the projections as shown.
2. Disconnect the interior light couplers(equipped models), and then remove the
panel.
1. Panel A
2. Panel B
1. Panel C
2. Panel D
1
2
1
2
1. Panel A
2. Projection
1
2
2
UBAS7AE0.book Page 12 Wednesday, June 19, 2019 11:51 AM

9-13
9
For interior-light-equipped models
To install the panel1. Connect the interior light couplers.(equipped models)
2. Place the panel in the original position. Panel B
To remove the panel
1. Remove the hood. (See page 9-11.)
2. Remove panel A.
3. Remove the top cover by removing the
quick fastener screw and the bolts.
1. Interior light coupler
1
1
UBAS7AE0.book Page 13 Wednesday, June 19, 2019 11:51 AM

9-14
9
4. Remove the passenger seat cushion.(See page 5-25.)
5. Remove the passenger seat by removing the bolts. 6. Remove the quick fastener screws and
the bolts, and then pull the panel off as
shown.1. Top cover
2. Bolt
3. Quick fastener screw
2
3
1
1. Passenger seat
2. Bolt
3. Seat belt
1
3
2
2
UBAS7AE0.book Page 14 Wednesday, June 19, 2019 11:51 AM

9-15
9
To install the panel1. Place the panel in the original position,and then install the bolts and the quick
fastener screws. 2. Install the passenger seat by installing the
bolts, and then tighten them to the spec-
ified torque.
TIPMake sure that the seat frame is properly
secured.
1. Panel B
2. Quick fastener screw
3. Bolt
1
2
2
3
2
3
3
1. Panel BTightening torque:
Passenger seat bolt:32 N·m (3.2 kgf·m, 24 lb·ft)
1
UBAS7AE0.book Page 15 Wednesday, June 19, 2019 11:51 AM

9-16
9
Place the passenger seat belt in the original
position. 3. Install the passenger seat cushion.
4. Install the top cover by installing the bolts
and quick fastener screw.
5. Install panel A and the hood.
Panels C and D
To remove a panel1. Pull the tab on the panel lock up, and then turn the panel lock 1/4 turn clock-
wise.
1. Panel C
2. Panel D
3. Tab
1. Tab
2. Panel lock
1
3
2
3
1
2
UBAS7AE0.book Page 16 Wednesday, June 19, 2019 11:51 AM

9-17
9

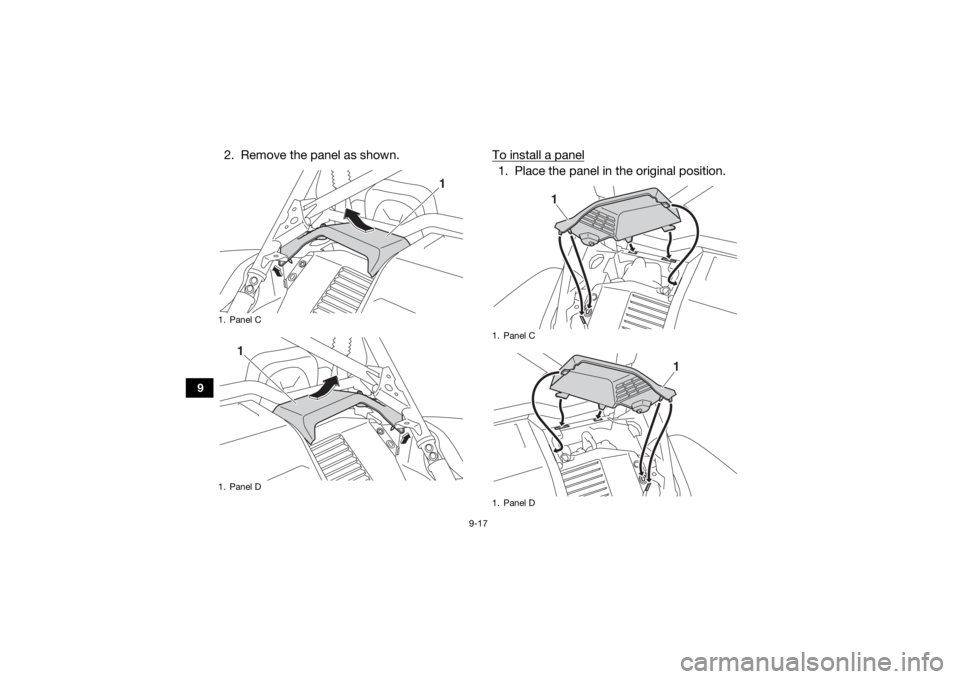

2. Remove the panel as shown.To install a panel
1. Place the panel in the original position.
1. Panel C
1. Panel D
1
1
1. Panel C
1. Panel D
1
1
UBAS7AE0.book Page 17 Wednesday, June 19, 2019 11:51 AM
