2020 YAMAHA TT-R110E Owners Manual

Table of contents
Motorcycle care an d stora ge ..........8-1
Matte color caution .........................8-1
Care.................................................8-1
Storage............................................8-4
Specifications ...................................9-1
Consumer information ...................10-1
Identification numbers...................10-1
In dex ................................................11-1
UB5185E0.book Page 2 Monday, June 17, 2019 9:04 AM

Location of important labels
1-1
1
EAU68710
Read and understand all of the labels on your vehicle. They contain important in-
formation for safe and proper operation of your vehicle. Never remove any labels
from your vehicle. If a label becomes difficult to read or comes off, a replacement
label is available from your Yamaha dealer.
For Cana da
1,235,6,7,84
UB5185E0.book Page 1 Monday, June 17, 2019 9:04 AM

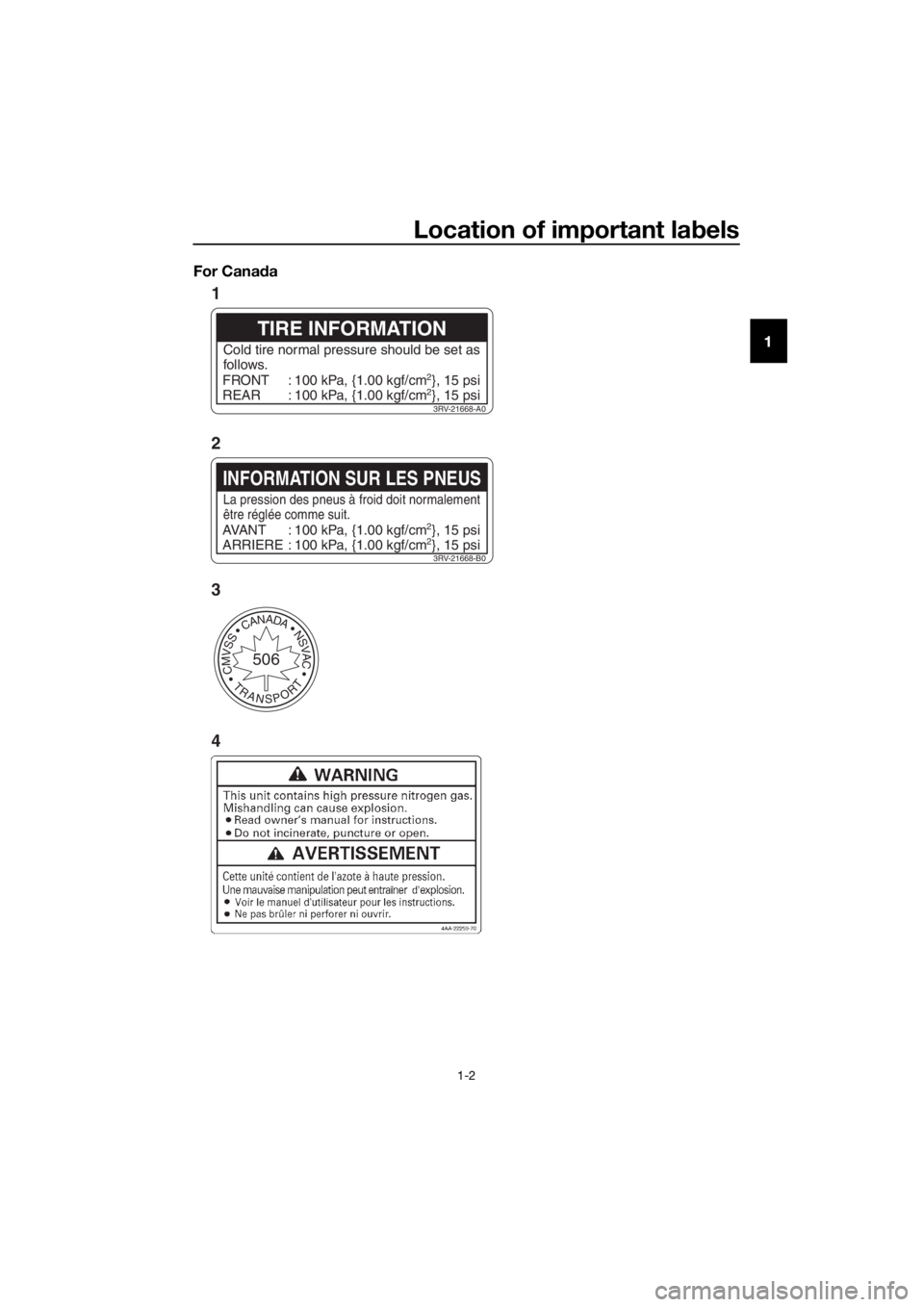

Location of important labels
1-2
1
For Cana
da
CMVSSCANADANSVAC
TRANSPORT
506
3RV-21668-A0
TIRE INFORMATION
Cold tire normal pressure should be set as
follows.
FRONT
REAR 100 kPa, {1.00 kgf/cm
2}, 15 psi
100 kPa, {1.00 kgf/cm2}, 15 psi
:
:
3RV-21668-B0
INFORMATION SUR LES PNEUS
La pression des pneus à froid doit normalement
être réglée comme suit.
AVANT
ARRIERE 100 kPa, {1.00 kgf/cm2}, 15 psi
100 kPa, {1.00 kgf/cm2}, 15 psi
:
:
1
3
4 2
UB5185E0.book Page 2 Monday, June 17, 2019 9:04 AM

Location of important labels
1-3
1 For Cana
da
THIS VEHICLE IS A RESTRICTED USE
MOTORCYCLE AND IS NOT INTENDED FOR
USE ON PUBLIC HIGHWAYS.
CE VÉHICULE EST UNE MOTOCYCLETTE À
USAGE RESTREINT DONT L’USAGE N’EST PAS
DESTINÉ AUX VOIES PUBLIQUES.
3PT-2416E-10
3PT-2118K-A1
CAN ICES-2 / NMB-2
8KM-82377-30
5
8 7 6
UB5185E0.book Page 3 Monday, June 17, 2019 9:04 AM

Location of important labels
1-4
1
For Europe
4
1,253
UB5185E0.book Page 4 Monday, June 17, 2019 9:04 AM

Location of important labels
1-5
1 For Europe
5PG-2816R-00
100 kPa
1.00 kgf/cm²
15 psi
100 kPa
1.00 kgf/cm²
15 psi
4AA-22259-40 5B6-2156A-10
TT-R110E
5.4 kW 72 kg
5B6-2816R-00
5B6-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2019
EN16029
12
4
5 3
UB5185E0.book Page 5 Monday, June 17, 2019 9:04 AM

Location of important labels
1-6
1
Familiarize yourself with the following pictograms and read the explanatory text.Read the Owner’s manual.
Always use an approved helmet and protective
gear.
Use from 6 years old.
Operation of this motorcycle by children under
the age of 6 increase the risk of severe injury
or death.
Adult supervision required for children.
Never use on paved roads.
Never carry passengers.
This unit contains high-pressure nitrogen gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
UB5185E0.book Page 6 Monday, June 17, 2019 9:04 AM

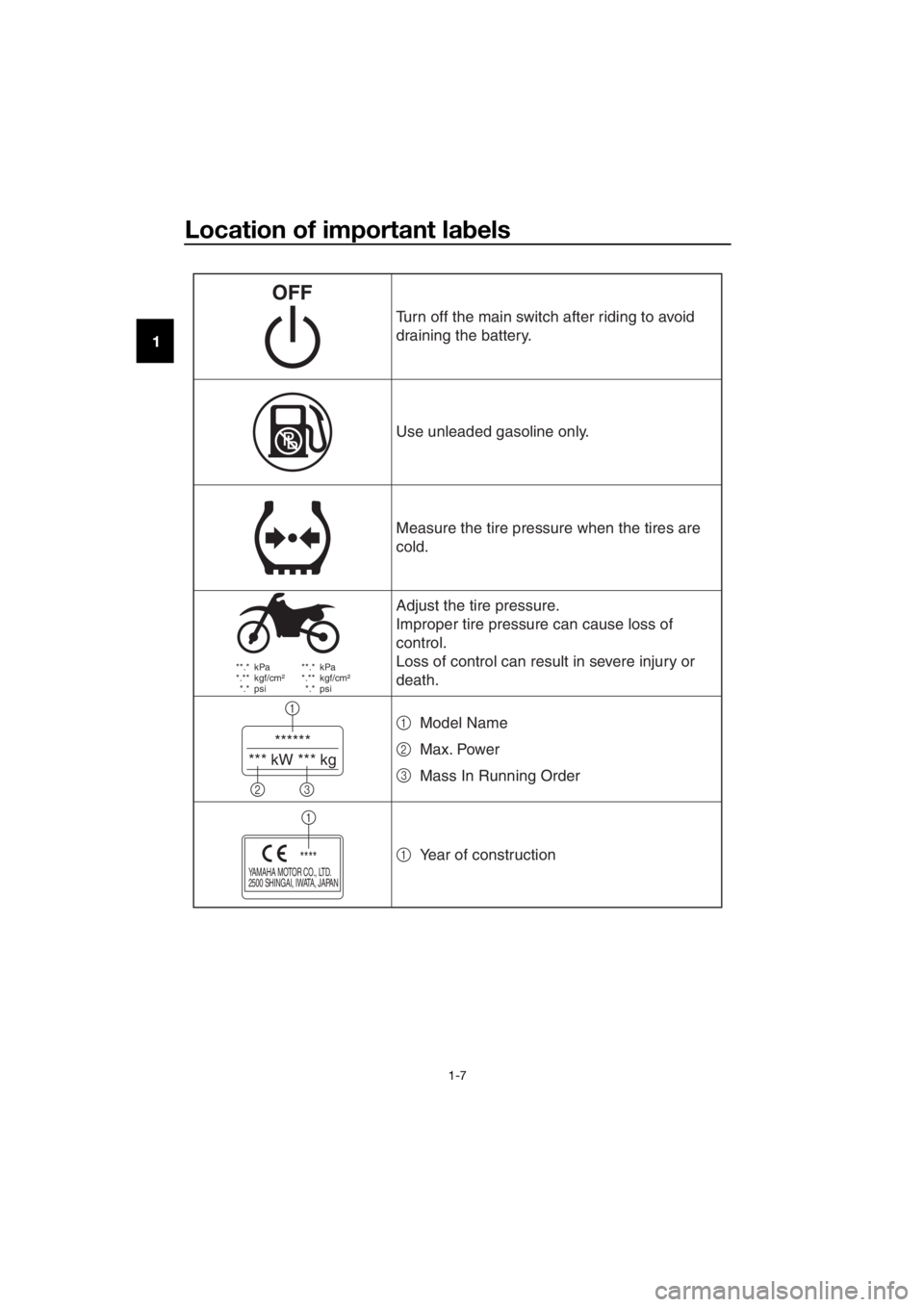

Location of important labels
1-7
1
**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
******
*** kW *** kg
1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN****
1
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold.
Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
1
2
3 Model Name
Max. Power
Mass In Running Order
1 Year of construction
Turn off the main switch after riding to avoid
draining the battery.
