Page 65 of 114
Periodic maintenance an d a djustment
8-5
8
12 *Wheels • Check runout and for damage.
• Replace if necessary.
√√√√
• Balance the front wheels. Whenever the tires or wheels have been changed or replaced.
13 *Tires • Check tread depth and for dam-
age.
• Replace if necessary.
• Check air pressure.
• Correct if necessary. √√√√√
14 *Wheel bearin gs • Check bearing for looseness or
damage. √√√√
15 *Steerin g system • Check bearing play and steering
for roughness. √√ √
• Lubricate with lithium-soap- based grease. √√
16 *Chassis fasteners • Make sure that all nuts, bolts and
screws are properly tightened. √√√√√
17 Front an
d rear
b rake lever pivot
shaft • Lubricate with silicone grease.
√√√√√
18 Brake ped
al pivot
shaft • Lubricate with lithium-soap-
based grease. √√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
UBX9E0E0.book Page 5 Monday, January 20, 2020 10:54 AM

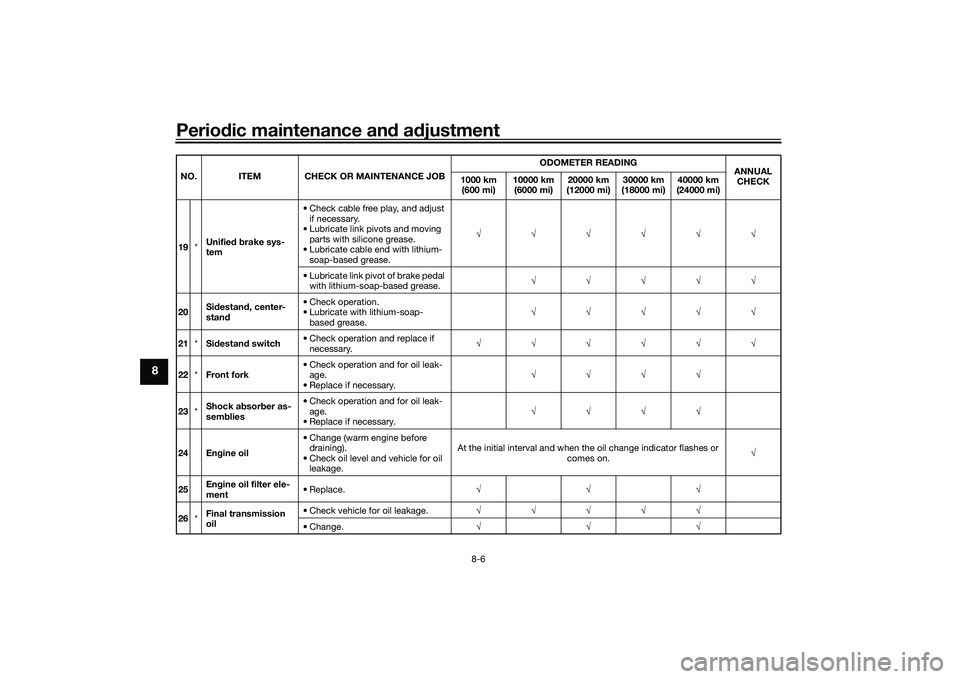

Page 66 of 114
Periodic maintenance an d a djustment
8-6
8
19 *Unifie
d b rake sys-
tem • Check cable free play, and adjust
if necessary.
• Lubricate link pivots and moving parts with silicone grease.
• Lubricate cable end with lithium- soap-based grease. √√√√√√
• Lubricate link pivot of brake pedal with lithium-soap-based grease. √√√√√
20 Si
destan d, center-
stan d • Check operation.
• Lubricate with lithium-soap-
based grease. √√√√√
21 *Sidestan d switch • Check operation and replace if
necessary. √√√√√√
22 *Front fork • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
23 *Shock a
bsor ber as-
sem blies • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
24 En gine oil • Change (warm engine before
draining).
• Check oil level and vehicle for oil leakage. At the initial interval and when the oil change indicator flashes or
comes on. √
25 En
gine oil filter ele-
ment • Replace.
√√√
26 *Final transmission
oil • Check vehicle for oil leakage.
√√√√√
• Change. √√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)UBX9E0E0.book Page 6 Monday, January 20, 2020 10:54 AM
Page 67 of 114
Periodic maintenance an d a djustment
8-7
8
EAU79370
TIP Engine air filter and V-belt air filter
• This model’s engine air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with compressed air to avoid damaging it.
• The engine air filter element and sub air filter element need to be replaced and the V-belt air filter element needs to be serviced more frequently when riding in unusually wet or dusty areas.27 *Coolin g system • Check coolant level and vehicle
for coolant leakage. √√√√√
• Change. Every 3 years
28 *V-belt • Replace. When the V-belt replacement indicator flashes [every 20000 km (12000 mi)]
29 *Front an
d rear
b rake switches • Check operation.
√√√√√√
30 *Movin
g parts an d
ca bles • Lubricate.
√√√√√
31 *Throttle g
rip hous-
in g an d ca ble • Check operation and free play.
• Adjust the throttle cable free play
if necessary.
• Lubricate the throttle grip housing and cable. √√√√√
32 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
UBX9E0E0.book Page 7 Monday, January 20, 2020 10:54 AM
Page 68 of 114
Periodic maintenance an d a djustment
8-8
8
Hydraulic brake service
• After disassembling the brake master cylinders and calipers, always change the fluid. Regularly check the brake fluid levels and fill the reservoirs as required.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
UBX9E0E0.book Page 8 Monday, January 20, 2020 10:54 AM

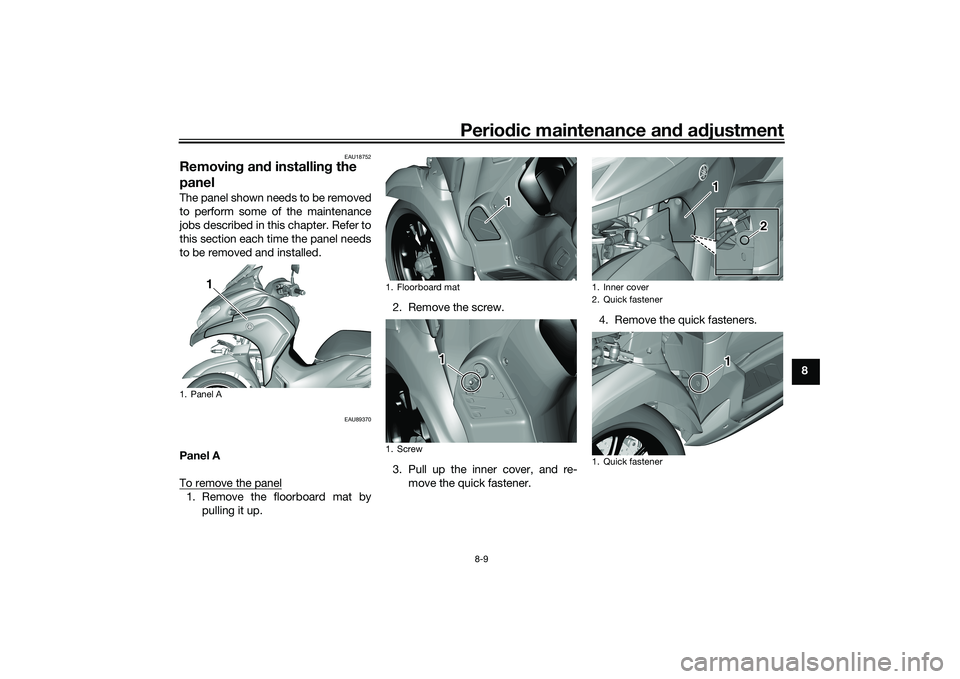

Page 69 of 114
Periodic maintenance an d a djustment
8-9
8
EAU18752
Removin g an d installin g the
panelThe panel shown needs to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time the panel needs
to be removed and installed.
EAU89370
Panel A
To remove the panel1. Remove the floorboard mat by
pulling it up. 2. Remove the screw.
3. Pull up the inner cover, and re-
move the quick fastener. 4. Remove the quick fasteners.1. Panel A
1
1. Floorboard mat
1. Screw
1 1
1 1
1
1. Inner cover
2. Quick fastener
1. Quick fastener
1 1
1
2
2
1 1
1
UBX9E0E0.book Page 9 Monday, January 20, 2020 10:54 AM
Page 70 of 114
Periodic maintenance an d a djustment
8-10
8 5. Pull the panel outward and slide it
rearward as shown.
To install the panel
1. Place the panel in the original po- sition, and then install the quick
fasteners and the Inner cover. 2. Install the screw.
3. Install the floorboard mat.
EAU19623
Checkin
g the spark plu gThe spark plug is an important engine
component, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
it should be removed and checked in
accordance with the periodic mainte-
nance and lubrication chart. In addi-
tion, the condition of the spark plug
can reveal the condition of the engine.
The porcelain insulator around the
center electrode of the spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally). If the spark plug shows a
distinctly different color, the engine
could be operating improperly. Do not
attempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
1. Quick fastener
1. Panel A
1
1
1. Panel A
1
Specified spark plu g:
NGK/LMAR8A-9
UBX9E0E0.book Page 10 Monday, January 20, 2020 10:54 AM

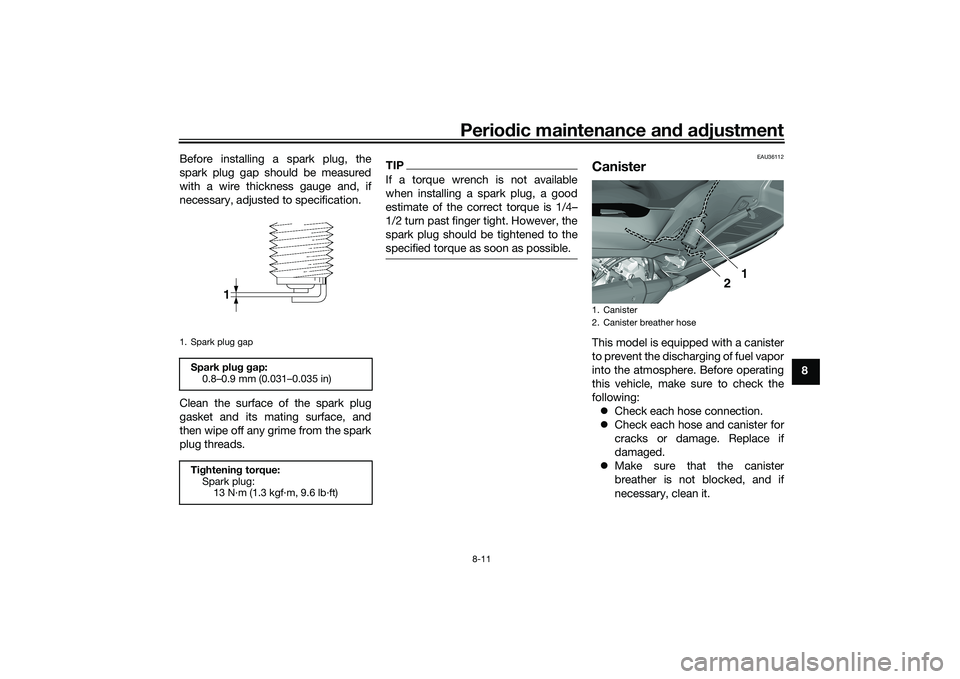

Page 71 of 114
Periodic maintenance an d a djustment
8-11
8
Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the spark
plug threads.
TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
EAU36112
CanisterThis model is equipped with a canister
to prevent the discharging of fuel vapor
into the atmosphere. Before operating
this vehicle, make sure to check the
following:
Check each hose connection.
Check each hose and canister for
cracks or damage. Replace if
damaged.
Make sure that the canister
breather is not blocked, and if
necessary, clean it.
1. Spark plug gapSpark plu g g ap:
0.8–0.9 mm (0.031–0.035 in)
Ti ghtenin g torque:
Spark plug: 13 N·m (1.3 kgf·m, 9.6 lb·ft)
1. Canister
2. Canister breather hose
1
2
UBX9E0E0.book Page 11 Monday, January 20, 2020 10:54 AM

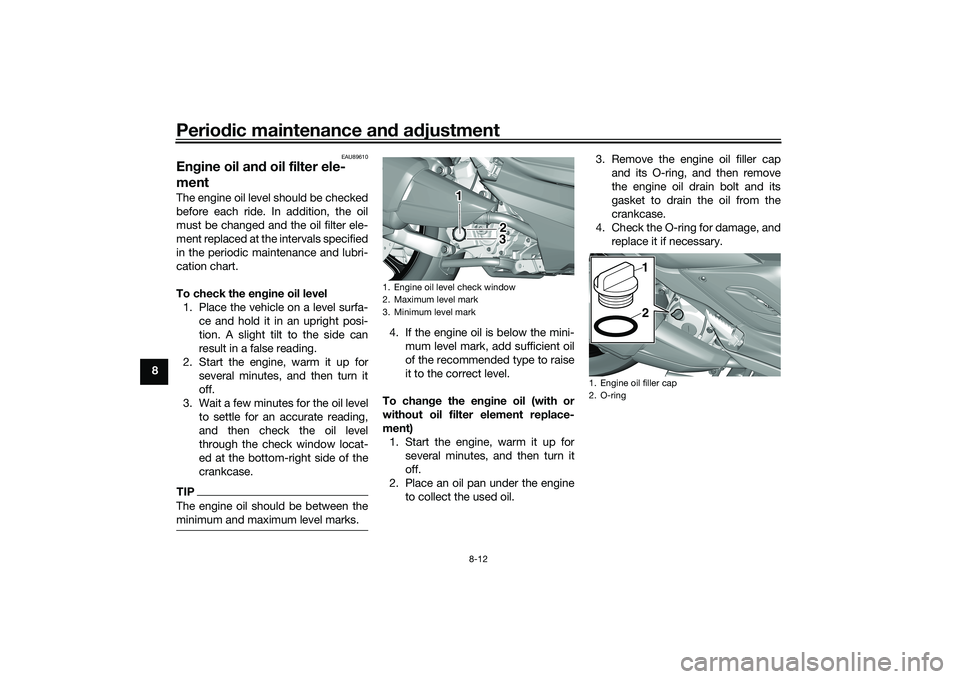

Page 72 of 114
Periodic maintenance an d a djustment
8-12
8
EAU89610
En gine oil an d oil filter ele-
mentThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the en gine oil level
1. Place the vehicle on a level surfa- ce and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes for the oil level to settle for an accurate reading,
and then check the oil level
through the check window locat-
ed at the bottom-right side of the
crankcase.TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To chan ge the en gine oil (with or
without oil filter element replace-
ment) 1. Start the engine, warm it up for several minutes, and then turn it
off.
2. Place an oil pan under the engine to collect the used oil. 3. Remove the engine oil filler cap
and its O-ring, and then remove
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
4. Check the O-ring for damage, and replace it if necessary.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
1
2
3
1. Engine oil filler cap
2. O-ring
1
2
UBX9E0E0.book Page 12 Monday, January 20, 2020 10:54 AM
