Description
2-2
2
EAU10421

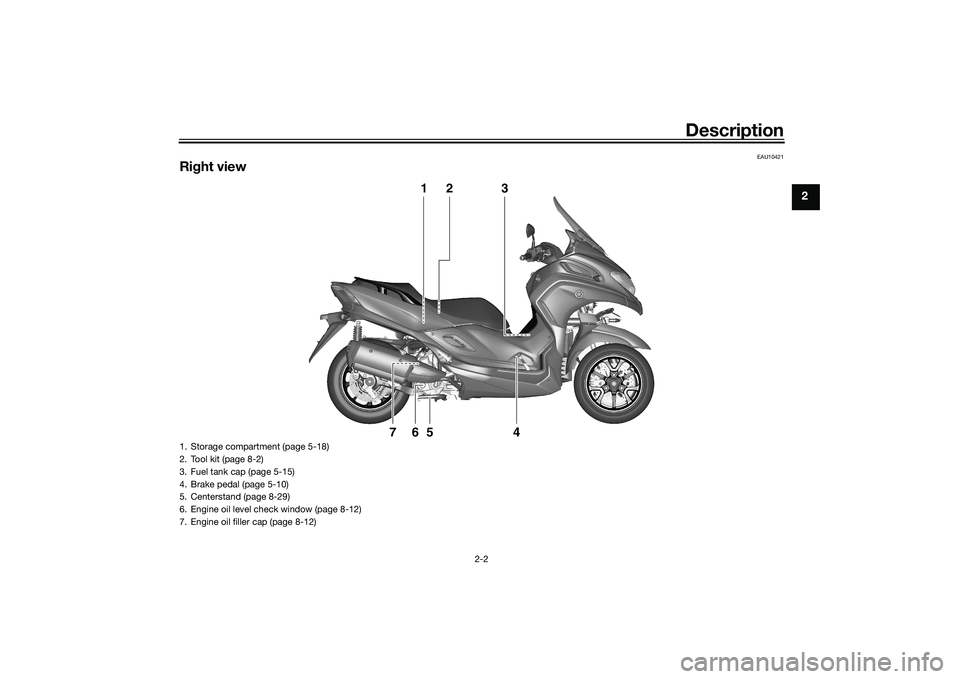

Right view
1
2
3
4
5
6
7
1. Storage compartment (page 5-18)
2. Tool kit (page 8-2)
3. Fuel tank cap (page 5-15)
4. Brake pedal (page 5-10)
5. Centerstand (page 8-29)
6. Engine oil level check window (page 8-12)
7. Engine oil filler cap (page 8-12)
UBX9E0E0.book Page 2 Monday, January 20, 2020 10:54 AM

Description
2-3
2
EAU10431

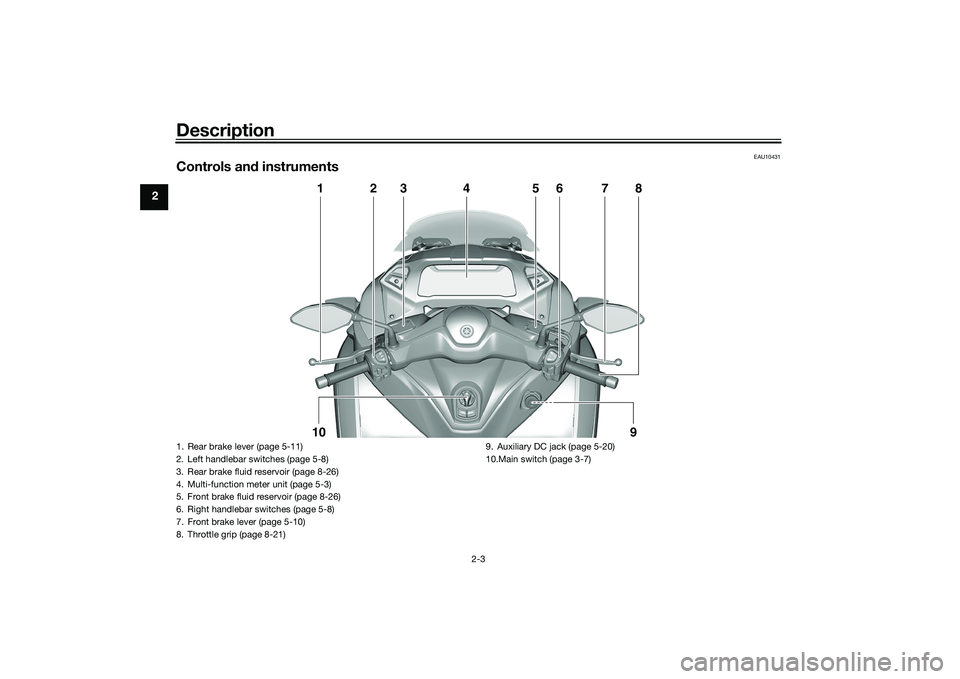

Controls and instruments
1
2
3
4
5
6
7
8
10
9
1. Rear brake lever (page 5-11)
2. Left handlebar switches (page 5-8)
3. Rear brake fluid reservoir (page 8-26)
4. Multi-function meter unit (page 5-3)
5. Front brake fluid reservoir (page 8-26)
6. Right handlebar switches (page 5-8)
7. Front brake lever (page 5-10)
8. Throttle grip (page 8-21) 9. Auxiliary DC jack (page 5-20)
10.Main switch (page 3-7)UBX9E0E0.book Page 3 Monday, January 20, 2020 10:54 AM

Smart key system
3-1
3
EAU76444

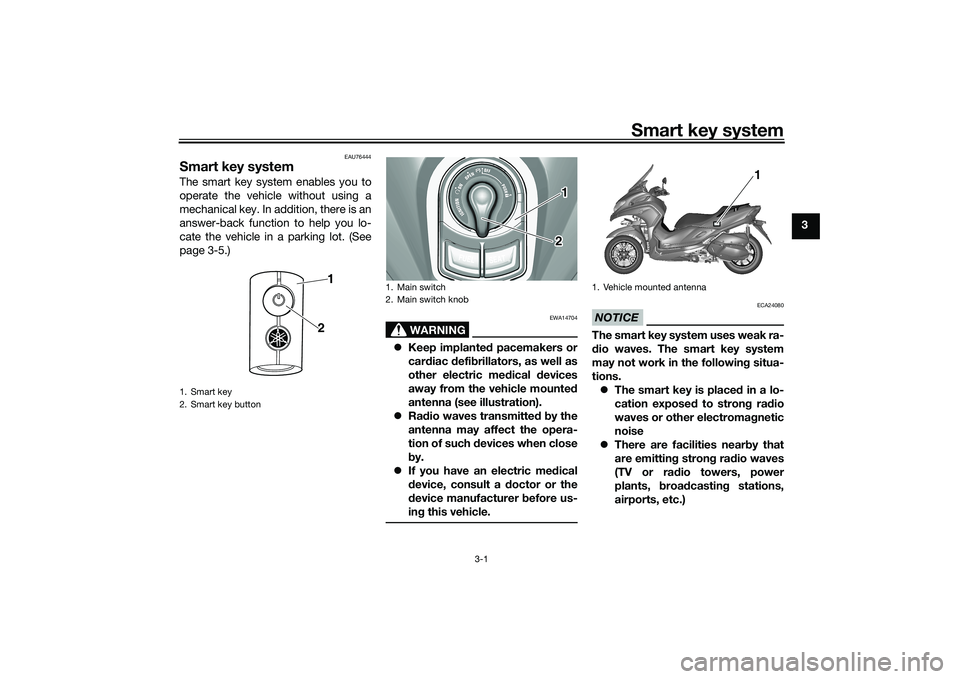

Smart key systemThe smart key system enables you to
operate the vehicle without using a
mechanical key. In addition, there is an
answer-back function to help you lo-
cate the vehicle in a parking lot. (See
page 3-5.)
WARNING
EWA14704
Keep implante d pacemakers or
car diac defi brillators, as well as
other electric med ical devices
away from the vehicle mounte d
antenna (see illustration).
 Radio waves transmitte d b y the
antenna may affect the opera-
tion of such devices when close
b y.
 If you have an electric me dical
d evice, consult a d octor or the
d evice manufacturer before us-
in g this vehicle.
NOTICE
ECA24080
The smart key system uses weak ra-
dio waves. The smart key system
may not work in the followin g situa-
tions.  The smart key is placed in a lo-
cation exposed to strong ra dio
waves or other electroma gnetic
noise
 There are facilities near by that
are emittin g stron g ra dio waves
(TV or ra dio towers, power
plants, broa dcastin g stations,
airports, etc.)
1. Smart key
2. Smart key button
1
2
1. Main switch
2. Main switch knob
12
1. Vehicle mounted antenna
1
UBX9E0E0.book Page 1 Monday, January 20, 2020 10:54 AM

Smart key system
3-2
3
You are carryin g or usin g com-
munication equipment such as
ra dios or mo bile phones in
close proximity of the smart key
 The smart key is in contact with
or covere d b y a metallic o bject
 Other vehicles equippe d with a
smart key system are near by
In such situations, move the smart
key to another location an d perform
the operation ag ain. If it still does
not work, operate the vehicle in
emer gency mo de. (See pag e 8-40.)
TIPTo preserve vehicle battery power, the
smart key system turns off approxi-
mately 9 days after the vehicle was last
used (the answer-back function is dis-
abled). In this situation, simply push
the main switch knob to turn the smart
key system back on.
EAU76452

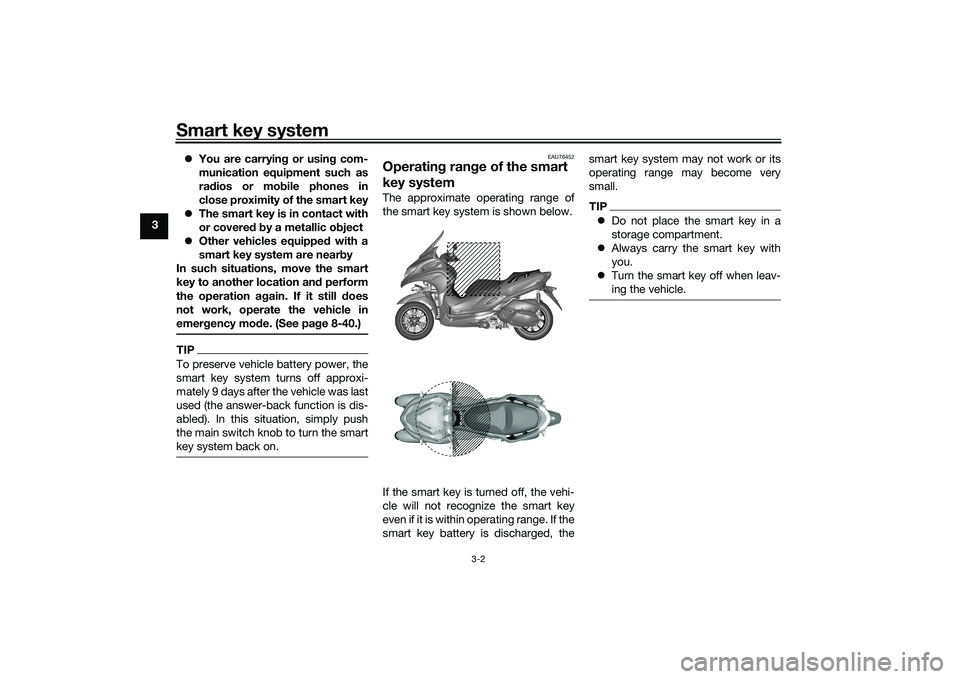

Operating ran ge of the smart
key systemThe approximate operating range of
the smart key system is shown below.
If the smart key is turned off, the vehi-
cle will not recognize the smart key
even if it is within operating range. If the
smart key battery is discharged, the smart key system may not work or its
operating range may become very
small.
TIP
Do not place the smart key in a
storage compartment.
 Always carry the smart key with
you.
 Turn the smart key off when leav-
ing the vehicle.
UBX9E0E0.book Page 2 Monday, January 20, 2020 10:54 AM

Smart key system
3-3
3
EAU78624

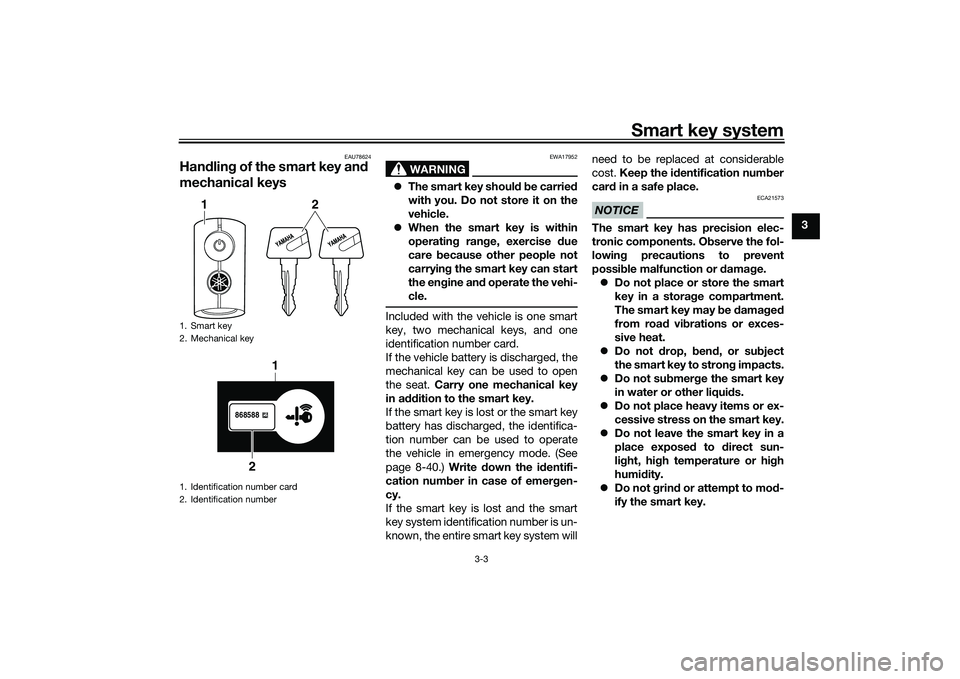

Handlin g of the smart key an d
mechanical keys
WARNING
EWA17952
 The smart key shoul d b e carried
with you. Do not store it on the
vehicle.
 When the smart key is within
operatin g ran ge, exercise due
care because other people not
carryin g the smart key can start
the en gine an d operate the vehi-
cle.Included with the vehicle is one smart
key, two mechanical keys, and one
identification number card.
If the vehicle battery is discharged, the
mechanical key can be used to open
the seat. Carry one mechanical key
in a ddition to the smart key.
If the smart key is lost or the smart key
battery has discharged, the identifica-
tion number can be used to operate
the vehicle in emergency mode. (See
page 8-40.) Write down the i dentifi-
cation num ber in case of emer gen-
cy.
If the smart key is lost and the smart
key system identification number is un-
known, the entire smart key system will need to be replaced at considerable
cost.
Keep the i dentification num ber
car d in a safe place.
NOTICE
ECA21573
The smart key has precision elec-
tronic components. O bserve the fol-
lowin g precautions to prevent
possi ble malfunction or damag e.
 Do not place or store the smart
key in a stora ge compartment.
The smart key may be damag ed
from roa d vi brations or exces-
sive heat.
 Do not drop, ben d, or su bject
the smart key to stron g impacts.
 Do not su bmer ge the smart key
in water or other liqui ds.
 Do not place heavy items or ex-
cessive stress on the smart key.
 Do not leave the smart key in a
place exposed to direct sun-
lig ht, hi gh temperature or hi gh
humi dity.
 Do not g rind or attempt to mo d-
ify the smart key.
1. Smart key
2. Mechanical key
1. Identification number card
2. Identification number
1
2
868588
1
2
UBX9E0E0.book Page 3 Monday, January 20, 2020 10:54 AM

Smart key system
3-4
3
Keep the smart key away from
stron g ma gnetic fiel ds an d
ma gnetic o bjects such as key
hol ders, TVs, an d computers.
 Keep the smart key away from
electric me dical equipment.
 Do not allow oils, polishin g
a g ents, fuel, or any stron g
chemicals to come in contact
with the smart key. The smart
key body may become discol-
ore d or cracked .
TIPThe smart key battery life is ap-
proximately two years, but this
may vary according to operating
conditions.
 Replace the smart key battery
when the smart key system indi-
cator light flashes for 20 seconds
when the vehicle is turned on, or
when the smart key indicator light
does not come on when the smart
key button is pushed. (See page
3-6.) After changing the smart key
battery, if the smart key system still does not operate, check the
vehicle battery and then have a
Yamaha dealer check the vehicle.
 If the smart key continually re-
ceives radio waves, the smart key
battery will discharge quickly. (For
example, when placed in the vicin-
ity of electrical products such as
televisions, radios, or computers.)
 You can register up to six smart
keys for the same vehicle. See a
Yamaha dealer regarding spare
smart keys.
 If a smart key is lost, contact a
Yamaha dealer immediately to
prevent the vehicle from being
stolen.
EAU89110
Smart key
WARNING
EWA17952
The smart key shoul d b e carrie d
with you. Do not store it on the
vehicle.
 When the smart key is within
operatin g ran ge, exercise due
care because other people not
carryin g the smart key can start
the en gine an d operate the vehi-
cle.1. Smart key indicator light
2. Smart key button
1
2
UBX9E0E0.book Page 4 Monday, January 20, 2020 10:54 AM

Smart key system
3-5
3

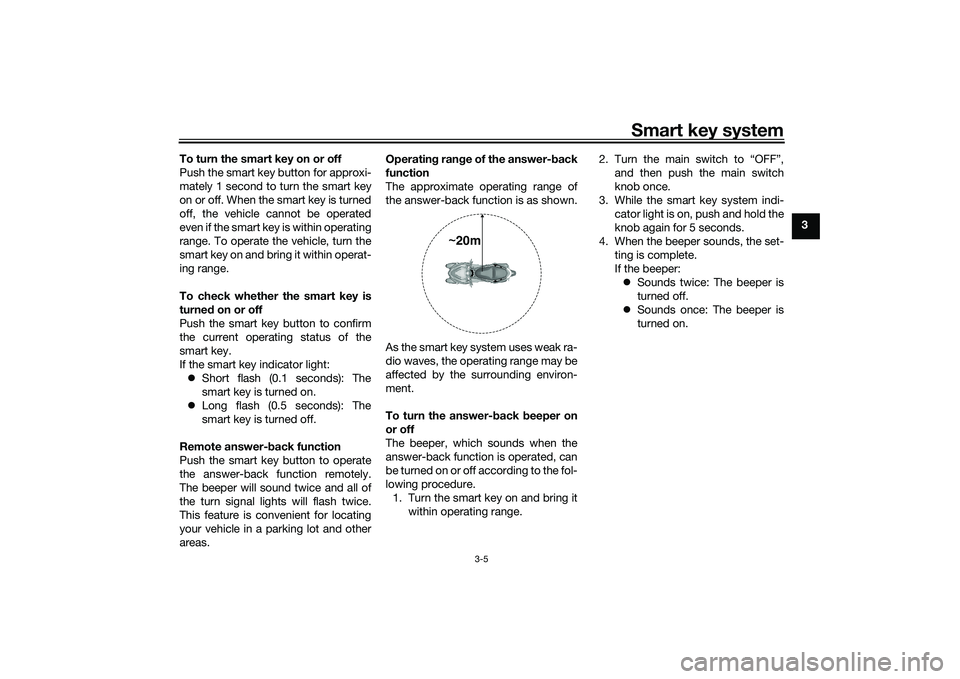

To turn the smart key on or off
Push the smart key button for approxi-
mately 1 second to turn the smart key
on or off. When the smart key is turned
off, the vehicle cannot be operated
even if the smart key is within operating
range. To operate the vehicle, turn the
smart key on and bring it within operat-
ing range.
To check whether the smart key is
turne
d on or off
Push the smart key button to confirm
the current operating status of the
smart key.
If the smart key indicator light:  Short flash (0.1 seconds): The
smart key is turned on.
 Long flash (0.5 seconds): The
smart key is turned off.
Remote answer- back function
Push the smart key button to operate
the answer-back function remotely.
The beeper will sound twice and all of
the turn signal lights will flash twice.
This feature is convenient for locating
your vehicle in a parking lot and other
areas. Operatin
g ran ge of the answer- back
function
The approximate operating range of
the answer-back function is as shown.
As the smart key system uses weak ra-
dio waves, the operating range may be
affected by the surrounding environ-
ment.
To turn the answer- back beeper on
or off
The beeper, which sounds when the
answer-back function is operated, can
be turned on or off according to the fol-
lowing procedure. 1. Turn the smart key on and bring it within operating range. 2. Turn the main switch to “OFF”,
and then push the main switch
knob once.
3. While the smart key system indi- cator light is on, push and hold the
knob again for 5 seconds.
4. When the beeper sounds, the set- ting is complete.
If the beeper: Sounds twice: The beeper is
turned off.
 Sounds once: The beeper is
turned on.
~20m
UBX9E0E0.book Page 5 Monday, January 20, 2020 10:54 AM

Smart key system
3-6
3
EAU76482

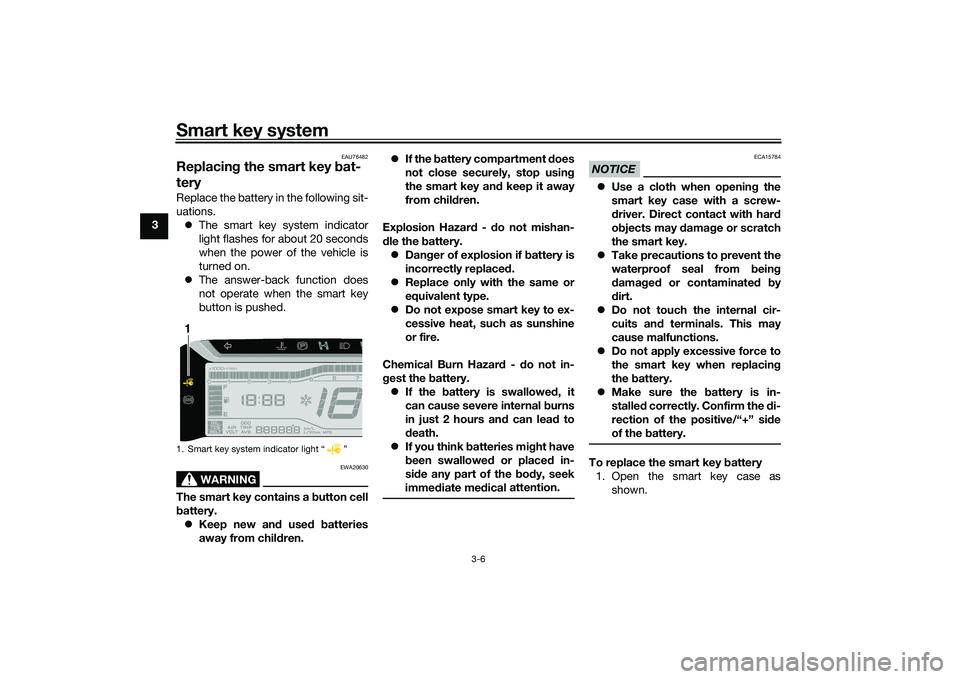

Replacing the smart key bat-
teryReplace the battery in the following sit-
uations.
 The smart key system indicator
light flashes for about 20 seconds
when the power of the vehicle is
turned on.
 The answer-back function does
not operate when the smart key
button is pushed.
WARNING
EWA20630
The smart key contains a button cell
b attery.
 Keep new an d use d b atteries
away from chil dren. 
If the b attery compartment does
not close securely, stop usin g
the smart key an d keep it away
from chil dren.
Explosion Hazar d - d o not mishan-
d le the battery.
 Dan ger of explosion if battery is
incorrectly replace d.
 Replace only with the same or
equivalent type.
 Do not expose smart key to ex-
cessive heat, such as sunshine
or fire.
Chemical Burn Hazar d - do not in-
g est the battery.
 If the battery is swallowed , it
can cause severe internal burns
in just 2 hours an d can lea d to
d eath.
 If you think batteries mi ght have
b een swallowed or placed in-
si de any part of the body, seek
imme diate me dical
attention.
NOTICE
ECA15784
 Use a cloth when openin g the
smart key case with a screw-
d river. Direct contact with har d
o bjects may d amage or scratch
the smart key.
 Take precautions to prevent the
waterproof seal from bein g
d amag ed or contaminate d by
d irt.
 Do not touch the internal cir-
cuits an d terminals. This may
cause malfunctions.
 Do not apply excessive force to
the smart key when replacin g
the battery.
 Make sure the battery is in-
stalle d correctly. Confirm the di-
rection of the positive/“+” si de
of the battery.To replace the smart key battery
1. Open the smart key case as shown.
1. Smart key system indicator light “ ”1
UBX9E0E0.book Page 6 Monday, January 20, 2020 10:54 AM
