2020 VOLVO V60 TWIN ENGINE Owners Manual

SPECIFICATIONS
647
Engine specifications Engine specifications (output, etc.) for each engine variant are shown in the table below.The specifications for Special Edition vehiclesmay vary.Twin Engine vehicles are powered by both agasoline engine and an electric motor (ERAD– Electric Rear Axle Drive).NOTE
Not all engines are available on all markets.
Engine
Engine codeA
Output
(kW/rps) Output
(hp/rpm) Torque
(Nm/rps) Torque
(ft. lbs./rpm) Number of cylinders
T8 Twin Engine B4204T28 233/100 313/6000 400/37–90 295/2200–5400 4
T8 Twin Engine Polestar B4204T39 245/100 328/6000 430/75 317/4500 4
A The engine code, component and manufacturer serial numbers can be found on the engine.
Electric motorMax. output: 65 kW (87 hp).
Torque: 240 Nm.
Related information
Type designations (p. 640)
Engine oil specifications (p. 648)
Coolant specifications (p. 649)

SPECIFICATIONS
648
Engine oil specifications Fully synthetic engine oil of at least ACEA A5/B5 must be used. Lower oil gradesmay not offer the same fuel economy, engineperformance or engine protection.
Volvo recommends:
GeneralSee the Service and warranty booklet for infor- mation about oil change intervals.
NOTE
This vehicle is delivered from the factory with synthetic oil.
Do not use oil additives.
Oil viscosityThe wrong oil viscosity can shorten engine service life during normal use. SAE 5W-30provides good fuel economy and engine pro-tection. See the viscosity chart.
Viscosity chart
Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is rec- ommended for extreme conditions.
Oil volume
The oil volume for the engine is:
Liter (approx) 5.6
US qts (approx) 5.9
Related information
Type designations (p. 640)
Checking and filling engine oil (p. 589)
Engine oil (p. 588)

SPECIFICATIONS
649
Coolant specifications
Recommended grade: Volvo-approved pre-
mixed coolant. If concentrated coolant is used, mix with 50% water of acceptablequality (i.e. not salt water, etc.). Consult aVolvo retailer if you have any questions.
To avoid deterioration of the cooling system, engine trouble, etc., only approved Volvo cool-ant should be used.
WARNING
Coolant is hazardous if ingested and could cause damage to organs (kidneys). Theproduct contains ethylene glycol, inhibitor,water, etc.
Related information
Refilling coolant (p. 590)
Transmission fluid specifications
Under normal driving conditions, the trans- mission fluid will not need to be changed dur-ing the transmission's service life. However,it may need to be changed if the vehicle isdriven frequently in adverse driving condi-tions.
Automatic transmission
Prescribed transmission fluid: AW-1
Related information
Type designations (p. 640)
Brake fluid specifications
The medium in the hydraulic brake system is called brake fluid and is used to transfer brak-ing force from e.g. pressure on the brakepedal via a master brake cylinder to one ormore slave cylinders, which in turn act on amechanical brake.
Recommended grade: Volvo Original or simi-
lar fluid that meets a combination of Dot 4, 5.1 and ISO 4925 class 6.
NOTE
Changing or filling brake fluid should be entrusted to an authorized Volvo work-shop.
Related information
Engine compartment overview (p. 587)

SPECIFICATIONS
650
Fuel tank volume
The fuel tank's refillable volume is shown in the table below.
All models
Liter (approx) 60
US gallons (approx) 15.9
Related information
Refueling (p. 436)
Octane rating (p. 438)
Air conditioning specifications
The climate system in the vehicle uses a freon-free R134a refrigerant. For informationregarding the refrigerant, refer to the decallocated on the inside of the hood.
The prescribed grades and volumes for fluids and lubricants in the air conditioning systemare shown in the tables below.
A/C Decal
Decal for R134a
Refrigerant
Vehicles with R134a refrigerant
Weight Prescribed grade
725 g (1.60 lbs) R134a
WARNING
The air conditioning system contains the refrigerant R134a under pressure. Serviceand repairs to the system should only bedone by an authorized workshop.
Compressor oil
Volume Prescribed grade
100 ml (3.38 fl. oz.) PAG SP-A2
Evaporator
CAUTION
The A/C system evaporator must never be repaired or replaced with a previously usedevaporator. The new evaporator must becertified and labeled in accordance withSAE J2842.
Related information
Climate control system service (p. 585)

SPECIFICATIONS
651
Approved tire pressure The following tire pressures are recom- mended by Volvo for your vehicle. Refer tothe tire inflation placard for information spe-cific to the tires installed on your vehicle atthe factory.
Tire dimensions
Cold tire pressure for up to five persons
Front
psi (kPa) Rear
psi (kPa)
235/45 R18 235/40 R19 39 (270)
39 (270)
Temporary spare tireT125/80 R18 60 (420)
60 (420)
Related information
Type designations (p. 640)
Checking tire pressure (p. 533)
Recommended tire pressure (p. 535)

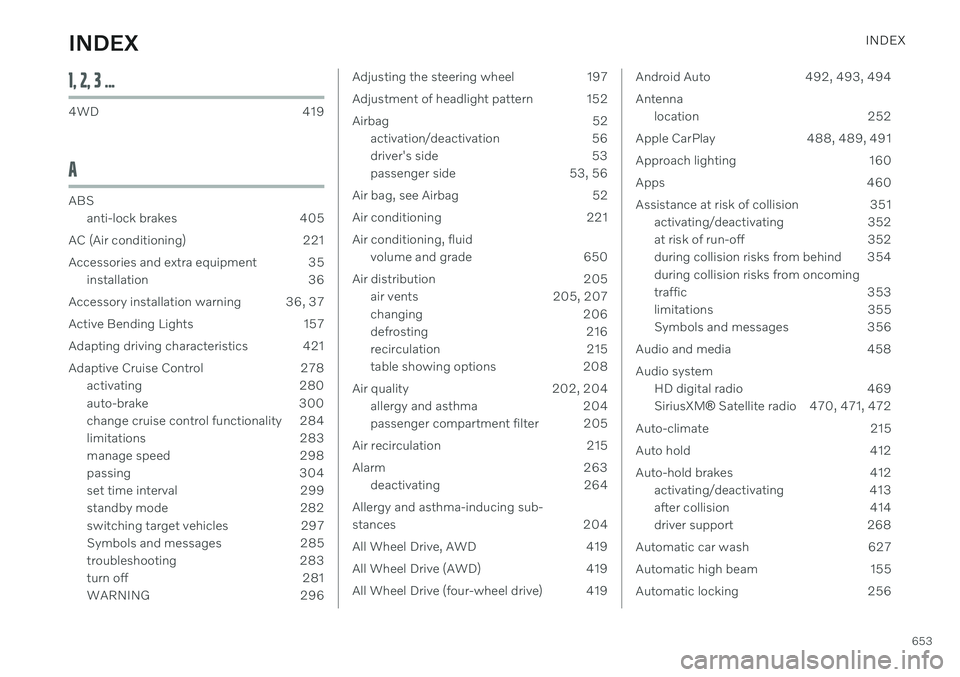

INDEX
653
1, 2, 3 ...
4WD 419
A
ABSanti-lock brakes 405
AC (Air conditioning) 221
Accessories and extra equipment 35 installation 36
Accessory installation warning 36, 37
Active Bending Lights 157
Adapting driving characteristics 421
Adaptive Cruise Control 278 activating 280
auto-brake 300
change cruise control functionality 284
limitations 283
manage speed 298
passing 304
set time interval 299
standby mode 282
switching target vehicles 297
Symbols and messages 285
troubleshooting 283
turn off 281
WARNING 296
Adjusting the steering wheel 197
Adjustment of headlight pattern 152
Airbag 52
activation/deactivation 56
driver's side 53
passenger side 53, 56
Air bag, see Airbag 52
Air conditioning 221Air conditioning, fluid volume and grade 650
Air distribution 205 air vents 205, 207
changing 206
defrosting 216
recirculation 215
table showing options 208
Air quality 202, 204 allergy and asthma 204
passenger compartment filter 205
Air recirculation 215
Alarm 263 deactivating 264
Allergy and asthma-inducing sub-
stances 204
All Wheel Drive, AWD 419
All Wheel Drive (AWD) 419
All Wheel Drive (four-wheel drive) 419Android Auto 492, 493, 494 Antenna location 252
Apple CarPlay 488, 489, 491
Approach lighting 160
Apps 460
Assistance at risk of collision 351 activating/deactivating 352
at risk of run-off 352
during collision risks from behind 354 during collision risks from oncoming
traffic 353
limitations 355
Symbols and messages 356
Audio and media 458 Audio system HD digital radio 469 SiriusXM ® Satellite radio 470, 471, 472
Auto-climate 215
Auto hold 412
Auto-hold brakes 412 activating/deactivating 413
after collision 414
driver support 268
Automatic car wash 627
Automatic high beam 155
Automatic locking 256
INDEX

INDEX
654Automatic relocking 236, 250
Automatic transmission 414, 415
kickdown 419
oil 649
Trailer 444
Auxiliary heater 229
B
Backrest front seat, adjusting 184, 185, 188, 189 , 190, 191
rear seat, folding 194
Battery Hybrid 597
jump-start 442
Maintenance 593
recycling 598
start 593
symbols on the battery 598
BLIS 329 activating/deactivating 330
limitations 331
Symbols and messages 332
Blower adjusting 218
air distribution 206
air vents 207
Bluetooth
connect 485
connecting vehicle to Internet 505
phone 495
settings 503
Book service and repair 581
Booster cushions 72Brake assist after collision 414
Brake energy 406, 420Brake fluid grade 649
Brake functions 405
Brake position 415
Brakes 405 anti-lock brakes, ABS 405
automatic when stationary 412
Brake Assist System, BAS 407
brake lights 159
brake system 405
emergency brake lights 159
Maintenance 408
on salted roads 408
on wet roads 407
parking brake 408
brake system fluid 649C
Camera sensorsee Camera 308
Camera unit 308 limitations 309
maintenance and cleaning 313
Capacity weight 554, 645
Cargo compartment 565 attachment points 568
cargo net 572
electrical outlet 560, 562
Lighting 162
Cargo compartment cover 569
cargo net 572
Cargo net 572
Car wash 624, 625, 627, 628, 629, 630
Catalytic converter 440 recovery 448
CD player 483
Cell phone, see Phone 496
Center console 559Center display change appearance 128
cleaning 619
climate controls 211
Function view 119
