2020 VOLVO V60 TWIN ENGINE Owners Manual

HYBRID INFORMATION
391
LED indicator light's colorMeaning
White Courtesy light. Yellow Wait modeA
– waiting for
charging to start.
Flashing green Charging is in progress B
.
Green Charging completed C
.
Red Malfunction.
A E.g. after a door has been opened or if the charging cable handle is not locked in place.
B The more slowly the light flashes, the closer the battery is tobeing fully charged.
C The light will go out after a short time.
Related information
Charging the hybrid battery (p. 383)
Charging status in the instrument panel (p. 392)
Charging status in the charging cable'scharging module (p. 391)
Stopping hybrid battery charging (p. 394)
Charging status in the charging cable's charging module
The red and blue lights in the charging mod- ule indicate the status of ongoing and com-pleted charging.
Charge module: 1. Red warning light, 2. Blue status indicator
When the charge module is initially plugged into a wall outlet, the red warning light willflash once to indicate that a startup safetycheck has been performed. When the safetycheck has been completed, the blue statusindicator will glow steadily and the red warn-ing light will be off. The charger is now readyto be used. If the red warning light continuesto flash or glows steadily, a fault has beendetected and the charger will not deliverpower to the vehicle. Contact a Volvo retaileror a certified Volvo service technician. When the charging cable is connected to thevehicle's charging socket, the blue light willflash once. Charging cable connected to the vehicle's charging socket:
Indicator light's color
Meaning
Flashing blue Charging is in progress. Thelight flashes about onceevery other second.
Solid blue Charging completed. This will also be indicated in theinstrument panel.
Related information
Charging the hybrid battery (p. 383)
Charging status in the vehicle's charging socket (p. 390)
Charging status in the instrument panel(p. 392)
Stopping hybrid battery charging (p. 394)

HYBRID INFORMATION
392

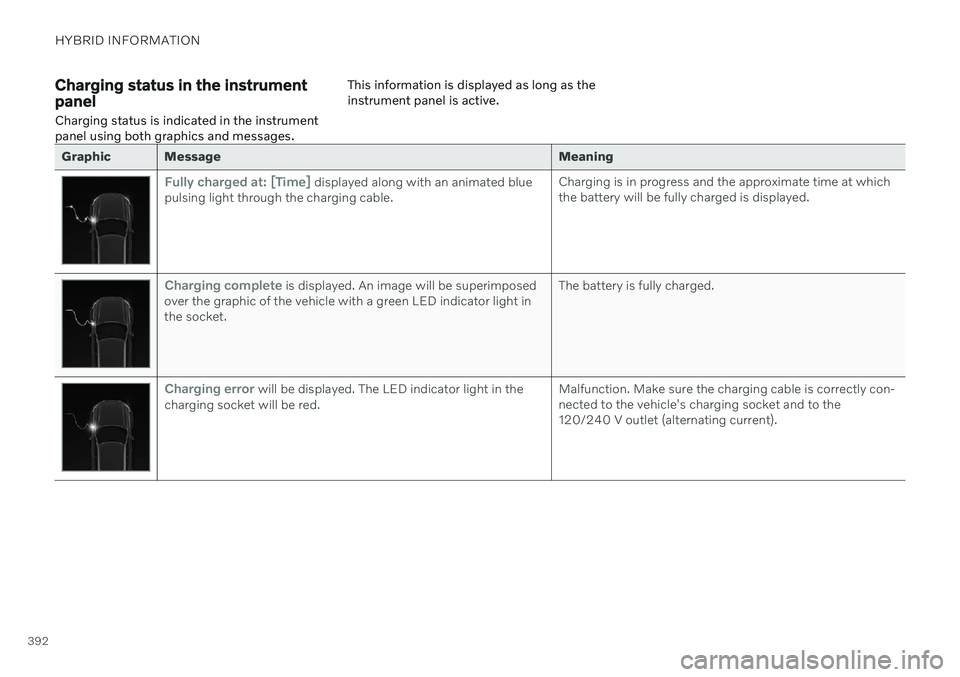

Charging status in the instrument panelCharging status is indicated in the instrument panel using both graphics and messages. This information is displayed as long as theinstrument panel is active.
Graphic Message
Meaning
Fully charged at: [Time] displayed along with an animated blue
pulsing light through the charging cable. Charging is in progress and the approximate time at which the battery will be fully charged is displayed.
Charging complete is displayed. An image will be superimposed
over the graphic of the vehicle with a green LED indicator light in the socket. The battery is fully charged.
Charging error will be displayed. The LED indicator light in the
charging socket will be red. Malfunction. Make sure the charging cable is correctly con- nected to the vehicle's charging socket and to the120/240 V outlet (alternating current).

HYBRID INFORMATION
393
NOTE
If the instrument panel is not used, it will go dark after a period of time. To reactivatethe display: depress the brake pedal,
open one of the doors, or
put the ignition in mode
I by turning
the START knob clockwise and then
releasing.
Related information
Charging the hybrid battery (p. 383)
Twin Engine symbols and messages in the instrument panel (p. 395)
Charging status in the vehicle's chargingsocket (p. 390)
Charging status in the charging cable'scharging module (p. 391)
Stopping hybrid battery charging (p. 394)

HYBRID INFORMATION
* Option/accessory.
394
Stopping hybrid battery charging To stop charging of the hybrid battery, unlock the vehicle, unplug the charging cable fromthe vehicle's charging socket and thenunplug the cable from the 120/240 V outlet(alternating current).
CAUTION
Before the charging cable is removed from the vehicle's charging socket, the vehiclemust be unlocked using the unlock buttonon the remote key. This must be done evenif the vehicle's doors are already unlocked.If the vehicle is not unlocked using theunlock button, the charging cable or sys-tem may be damaged.
NOTE
Always unlock the vehicle so that charging is cut off before the connection to the120/240 V outlet (AC, alternating current)is disconnected. Note that the chargingcable must be disconnected from the vehi-cle's charging socket before it is discon-nected from the 120/240 V outlet, partlyto prevent damage to the system and partyto prevent unintentional interruption ofcharging.
Unlock the vehicle with the remote key. Charging will stop.
Press the lock button on the charging cable's handle. The handle will bereleased/unlocked. Unplug the cable fromthe vehicle's charging socket and closethe charger door.
Unplug the cable from the 120/240 V out- let. Stow the charging cable in the storage compartment under the cargo area floor.
Charging cable automatically locksIf the charging cable cannot be removed fromthe charging socket, it will automatically lockinto place again after unlocking to maximizecharging and range and to enable precondi-tioning before driving. The charging cable canbe removed again if the vehicle is unlockedusing the remote key. For vehicles with Passive Entry *, the handle can be used to lock
and unlock.
Related information
Opening and closing the charging socket cover (p. 388)
Charge cable (p. 385)
Charging the hybrid battery (p. 383)
Initiating hybrid battery charging (p. 388)

HYBRID INFORMATION
}}
395
Twin Engine symbols and messages in the instrument panelA number of symbols and messages relating to the Twin Engine may be displayed in the instrument panel. They may also appear incombination with general indicator and warn-ing symbols and disappear when the neces-sary action has been taken.
Symbol Message Meaning
12 V Battery Charging fault, service urgent. Drive to workshopBattery fault. Contact a workshop
A
to have the battery checked as soon as possible.
12 V Battery Charging fault Stop safelyBattery fault. Stop the vehicle as soon as possible and contact a workshop A
to have the bat-
tery checked.
12 V Battery Fuse failure Service requiredBattery fault. Contact a workshop A
to have the system checked as soon as possible.
HV battery Overheated, stop safelyThe hybrid battery's temperature seems to be rising at an abnormal rate. Stop the vehicle and turn off the engine. Wait at least 5 minutes before driving. Call a workshop A
or inspect the
vehicle to make sure everything seems normal before continuing to drive.
Reduced performance Max vehicle speed limitedThe hybrid battery's charge level is too low for driving at high speeds. Charge the battery as soon as possible.
Propulsion system Harsh behavior at low speed, vehicle ok to useThe hybrid system is not functioning properly. Contact a workshop A
to have the system
checked as soon as possible.

||
HYBRID INFORMATION
396
Symbol Message Meaning
Hybrid system failure Service requiredThe hybrid system is not functioning. Contact a workshopA
to have the system checked as
soon as possible.
Charge cable Remove before startDisplayed when the driver attempts to start the vehicle with the charging cable still con- nected. Remove the charging cable and close the charger cover.
A An authorized Volvo workshop is recommended.
Related information
Initiating hybrid battery charging (p. 388)
Stopping hybrid battery charging (p. 394)
Charging the hybrid battery (p. 383)
Warning symbols in the instrument panel (p. 94)
Indicator symbols in the instrument panel(p. 91)
Hybrid gauge (p. 83)
Hybrid battery gauge (p. 84)

HYBRID INFORMATION
397
Long-term storage of vehicles with hybrid batteries To help minimize degradation of the hybrid battery if the vehicle is not driven for a pro-longed period (longer than 1 month) thehybrid battery charge level should be kept atapprox. 25% according to the gauge in theinstrument panel.
Do as follows:
1. If the hybrid battery charge level is high,drive the vehicle until the charge level is approximately 25%. If the charge level islow, charge the battery until the level rea-ches approximately 25%. 2. If the vehicle is not driven for more than 6
months or the hybrid battery's chargelevel is noticeably below the 25% mark,charge the battery to about 25% to helpcompensate for the natural battery dis-charge that occurs in long-term storage.Regularly check the charge level using thegauge in the instrument display.
NOTE
Store the vehicle in as cool a location as possible to minimize battery aging duringlong-term storage. In the summer, park thevehicle indoors or in a shady location,whichever is cooler.
Related information
Initiating hybrid battery charging (p. 388)
Hybrid battery gauge (p. 84)
Charging the hybrid battery (p. 383)
