2020 VOLKSWAGEN T-ROC Owners Manual

Insert the bulb holder into the headlight and turn it clockwise as far as it will go.
Connect the connector to the bulb holder. The connector must audibly click into place.
Push the headlight from the outside into the openings and insert into the bumper.
Use the screwdriver to tighten the securing screws Fig. 169
Fit the cover in the bumper Fig. 169
Stow the wire hook and screwdriver in the vehicle toolkit.
Changing bulbs in the tail light clusters (LED lights)
First read and observe the introductoryinformation and safety warnings
These lamps use LED technology. The LEDs cannot be replaced by customers. If some LEDs fail, this
may be an indication that more elements are on the point of failure. In this case, have the lights
checked and renewed if necessary at a qualified workshop. Volkswagen recommends using a
Volkswagen dealership for this purpose.
Changing bulbs in the number plate light (LED lights)
First read and observe the introductoryinformation and safety warnings
These lamps use LED technology. The LEDs cannot be replaced by customers. If some LEDs fail, this
may be an indication that more elements are on the point of failure. In this case, have the lights
checked and renewed if necessary at a qualified workshop.
Troubleshooting
First read and observe the introductoryinformation and safety warnings
Fault in vehicle lighting
The indicator lamp lights up yellow.
Fault in vehicle lighting or fault in cornering lights.
Check the vehicle lighting and change the appropriate bulb as required Changing bulbs
bulbs are OK or there is a fault in the dynamic cornering light, go to a qualified workshop.
Changing fuses
Introduction
This chapter contains information on the followingsubjects:
Fuses in the dash panel

Fuses in the engine compartment
Fuse table for fuses in the dash panel
Fuse tables for fuses in the engine compartment
Changing a blown fuse
At the time of publication we are unable to provide an complete overview of the locations of the
fuses for the electrical consumers. This is because the vehicle is under constant development,
because fuses are assigned differently according to the vehicle equipment level and because several
electrical consumers may use a single fuse. You can obtain more information about the fuse
assignment from a Volkswagen dealership.
Several electrical consumers can share a single fuse. Conversely, a single consumer could have more
than one fuse.
Therefore fuses should only be replaced when the cause of the fault has been rectified. If a new fuse
blows shortly after fitting, have the electrical system checked by a qualified workshop.

WARNING
High voltages in the electrical system can cause electric shocks, serious burns and death.



WARNING
Using unsuitable or repaired fuses and bridging an electrical circuit without fuses can cause a fire
and serious injuries.
fuse with the same amp rating (same colour and markings) and size.



NOTICE
electrical consumers off and remove the vehicle key from the ignition before changing a fuse.

pened. Dirt and moisture in the fuse
boxes can damage the electrical system.

There are other fuses in the vehicle in addition to those described in this chapter. These should be
changed only by a qualified workshop.
Fuses in the dash panel

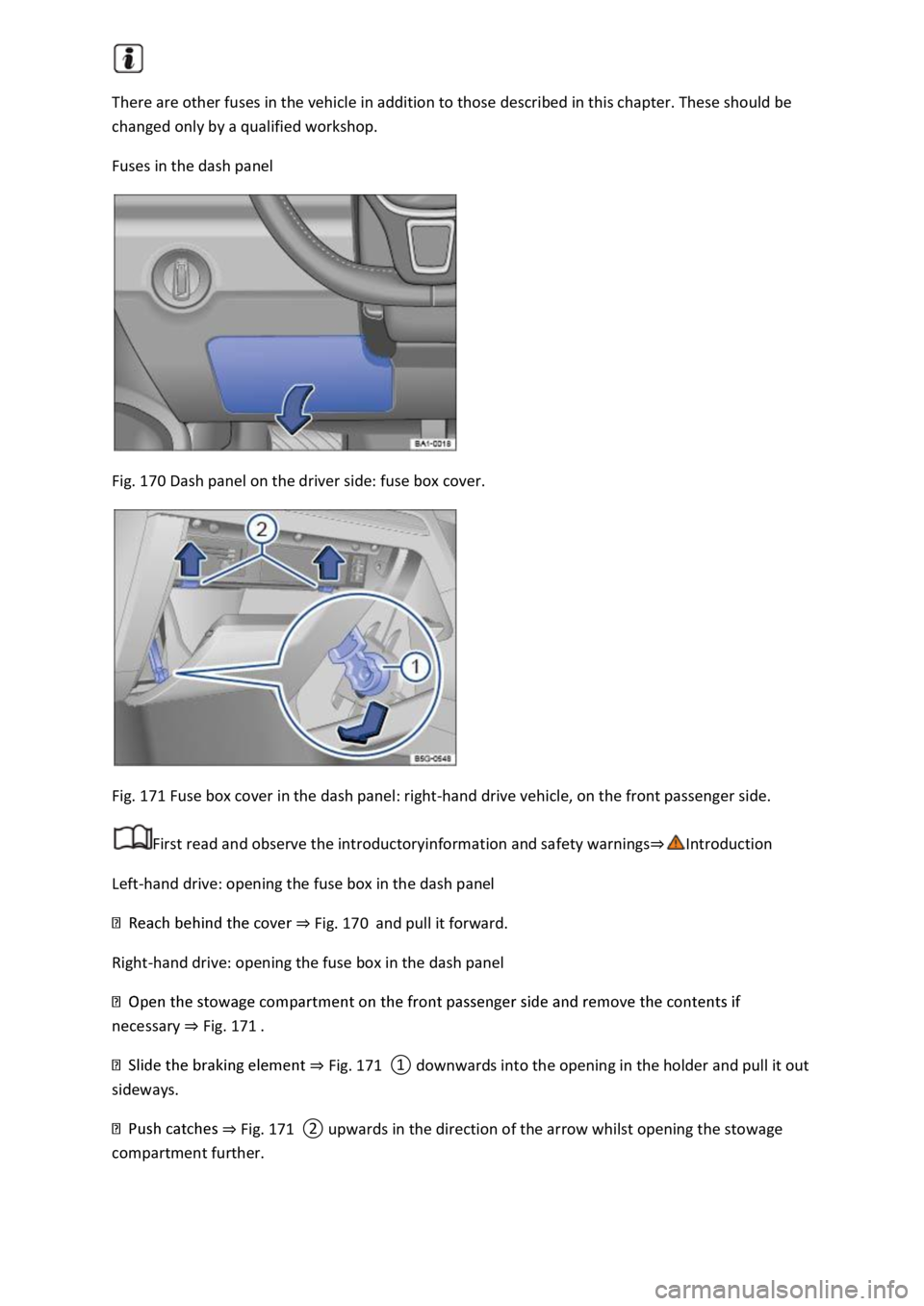

Fig. 170 Dash panel on the driver side: fuse box cover.

Fig. 171 Fuse box cover in the dash panel: right-hand drive vehicle, on the front passenger side.
First read and observe the introductoryinformation and safety warnings
Left-hand drive: opening the fuse box in the dash panel
Fig. 170and pull it forward.
Right-hand drive: opening the fuse box in the dash panel
necessary Fig. 171
Fig. 171

Fig. 171

the holder and push it upwards until it audibly clicks into place. Carefully push the stowage
compartment forwards beyond the resistance of the catches Fig. 171

NOTICE
e the covers of the fuse boxes carefully and install them again properly so as to avoid
damage to the vehicle.
boxes can damage the electrical system.
Fuses in the engine compartment

Fig. 172
First read and observe the introductoryinformation and safety warnings
Opening the fuse box in the engine compartment
et In the engine compartment
Fig. 172


y clicks
into place on both sides.
In some vehicles, there is a pair of plastic pliers Fig. 172


NOTICE
tall them again properly so as to avoid
damage to the vehicle.

Fuse table for fuses in the dash panel

Fig. 173 In the dash panel: fuse assignment.
First read and observe the introductoryinformation and safety warnings
The table shows the fuse locations of the electrical consumers relevant for the driver. The first
column in the table contains the location. The other columns contain the fuse type, the amp rating
and the consumer protected by the fuse.
Depending on the market and specification of your vehicle, the fuse numbers and positions may
differ to those given in the table. If necessary, ask your Volkswagen dealership for the exact fuse
assignment.
Fuse location Fig. 173
F410 amps, MINI

-fitted fuse location as shown in illustration Fig. 173
Fuse tables for fuses in the engine compartment
First read and observe the introductoryinformation and safety warnings
The table shows the fuse locations of the electrical consumers relevant for the driver. The first
column in the table contains the location. The other columns contain the fuse type, the amp rating
and the consumer protected by the fuse.
Depending on the market and specification of your vehicle, the fuse numbers and positions may
differ to those given in the table. If necessary, ask your Volkswagen dealership for the exact fuse
assignment.
F65 amps, ATO

Colour coding of fuses
Fuses (ATO / MINI / MAXI)
ColourAmp
ratingBlack1 ampsPurple3 ampsOrange5 ampsBrown7.5 ampsRed10 ampsBlue15 ampsYellow20 am
psWhite or clear25 ampsGreen30 ampsLight green40 amps
Fuses (JCASE)
Blue20 ampsPink30 ampsGreen40 ampsRed50 ampsYellow60 amps
Preparations
equipment.
Fuses in the dash panel

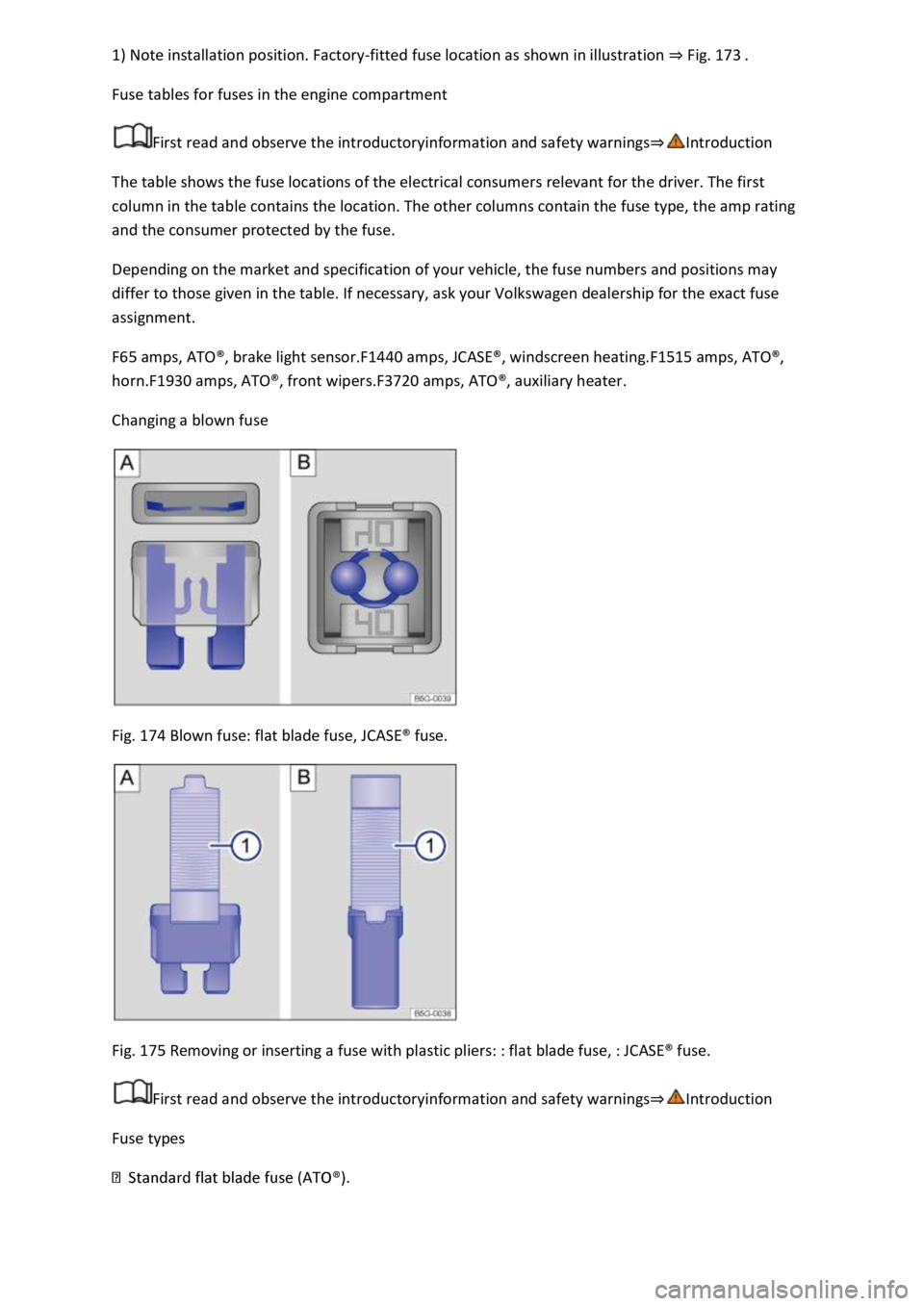

Recognising a blown fuse

rom the top and side through
the transparent housing due to the melted metal strip Fig. 174
transparent housing Fig. 174
Changing a fuse
ary, take the plastic pliers Fig. 175
Fig. 175 Fig. 175


lace it with a new fuse of the same amp rating (same colour and same
markings) and same size



NOTICE
You can damage another location in the electrical system by using a fuse with a higher amp rating.
Jump starting

Introduction
This chapter contains information on the followingsubjects:
Jump lead connection point (earth connection)
Jump starting the vehicle
If the engine fails to start because the 12-volt vehicle battery is flat, the discharged battery can be
connected to the 12-volt battery of another vehicle to start the engine.
Suitable jump leads are needed for jump starting.
2 for vehicles with petrol engines.


WARNING
Using the jump leads incorrectly or performing the jump start procedure incorrectly can cause the
12-volt vehicle battery to explode, which can lead to severe injuries. Please note the following in
order to reduce the risk of the 12-volt vehicle battery exploding:
-volt vehicle battery and the electrical system can cause serious chemical burns,
fire or electric shocks. Always read the warnings and safety information before carrying out any kind
of work on the 12-volt vehicle battery 12-volt vehicle battery
volts) and approximately
the same capacity (see label on battery) as the flat 12-volt vehicle battery.
-volt vehicle battery. Discharged 12-volt vehicle batteries can
already freeze at temperatures of around 0
