2020 SUZUKI JIMNY Owners Manual

SPECIFICATION
ITEM: Mass (weight) UNIT: kg (lbs)
Curb mass (weight) MIT 1080-1095 (2381-2414)
A/T 1095-1110 (2414-2447)
Gross vehicle mass (weight) rating 1435 (3163)
Permissible maximum Axle Weight Front 680 (1499)
Rear 880 (1940)
ITEM: Engine
Type K15B
Number of cylinders 4
Bore 74.0 mm (2.91 in.)
Stroke 85.0 mm (3.35in.)
Piston displacement 1462 cm3 (1462 cc, 89.2 cu.in)
Compression ratio 10.0: 1
ITEM: Electrical
Standard spark plug DENSO ZXU20PR11, NGK KR6A-10
Battery 12V 55B24L 20HR 45AH CCA 370A(JIS)
Fuses See "INSPECTION AND MAINTENANCE" section.
9-4

SPECIFICATION
ITEM: Lights WATTAGE BULB No.
Headlight Halogen 12V 60/55W H4
LED LED -
Front fog light (if equipped) Without daytime running 12V 19W H16 light
With daytime running light 12V35W HB
Position light (if equipped) 12V5W wsw
LED -
Daytime running light (if equipped) 12V 13W P13W
Turn signal light Front 12V 21W W21W
Rear 12V21W WY21W
Side turn signal light 12V5W -
Tail/brake light 12V 21/5W W21/5W
High mount stop light LED -
Reversing light 12V 21W W21W
License plate light 12V5W W5W
Rear fog light 12V21W W21W
Interior light Front 12V 10W -
Luggage compartment 12V8W -(if equipped)
9-5

SPECIFICATION
ITEM: Wheels and tyres
Tyre size, front and rear 195/80R15 955•1
Rim size with steel wheels 15X5 1/2JJ
with aluminum wheels 15X5 1/2J
Tyre pressures For the specified tyre pressure, see the tyre information label located
on the driver's door lock pillar.
Recommended snow chain (for Europe) Radial thickness: 20 mm, axial thickness: 20mm
Recommended snow tyre 195/80R15.2
•1 If you cannot prepare tyres with the specified load index rate and speed symbol, prepare tyres with higher load index rate and speed
symbol. •2 If you prepare snow tyres; • Check that they are tyres of the same size, structure and load capacity as the originally installed tyres.
• Mount the snow tyres on all four wheels. • Understand that the maximum permissible speed of snow tyres is generally less than the originally installed tyres.
Consult a SUZUKI dealer or supplier for further information.
9-6

SPECIFICATION
ITEM: Recommended fuel / lubricants and capacities (approx.)
Fuel See "FUEL RECOMMENDATION" section. 40 L (8.8 Imp gal)
Engine oil Classification: ACEAA1/B1, A3/B3, A3/B4, A5/B5 For EU countries and API SL, SM or SN Israel ILSAC GF-3, GF-4 or GF-5 3.6 L (6.3 Imp pt) Viscosity: SAE 0W-16, 0W-20 or SW-30
Classification: API SG, SH, SJ, SL, SM or SN (replacement with oil filter) Except For EU coun-tries and Israel Viscosity: SAE 0W-20, SW-30, 10W-30, 1 0W-40, 15W40 or 20W-40
Engine coolant MIT 5.0 L (8.8 Imp pt)
"SUZUKI LLC: Super (Blue) Coolant" (including reservoir tank)
A/T 4.9 L (8.6 Imp pt) (including reservoir tank)
9-7

SPECIFICATION
ITEM: Recommended fuel/ lubricants and capacities (approx.)
Manual transmission oil "SUZUKI GEAR OIL 75W" 1.2 L (2.1 Imp pt)
Automatic transmission oil "SUZUKI ATF 3317 or Mobil ATF3309 or equivalent to DEXRON® -111" 5.7 L (10.0 Imp pt)
Differential oil Front 1.6 L (2.8 Imp pt) "SUZUKI SUPER GEAR OIL 75W-85 SYNTHETIC" Rear 1.3 L (2.3 Imp pt)
Transfer oil "SUZUKI GEAR OIL 75W" 1.21 L (2.1 Imp pt)
Brake fluid / Clutch fiuid SAE J1703 or DOT3 -
9-8

SPECIFICATION
MEMO
9-9

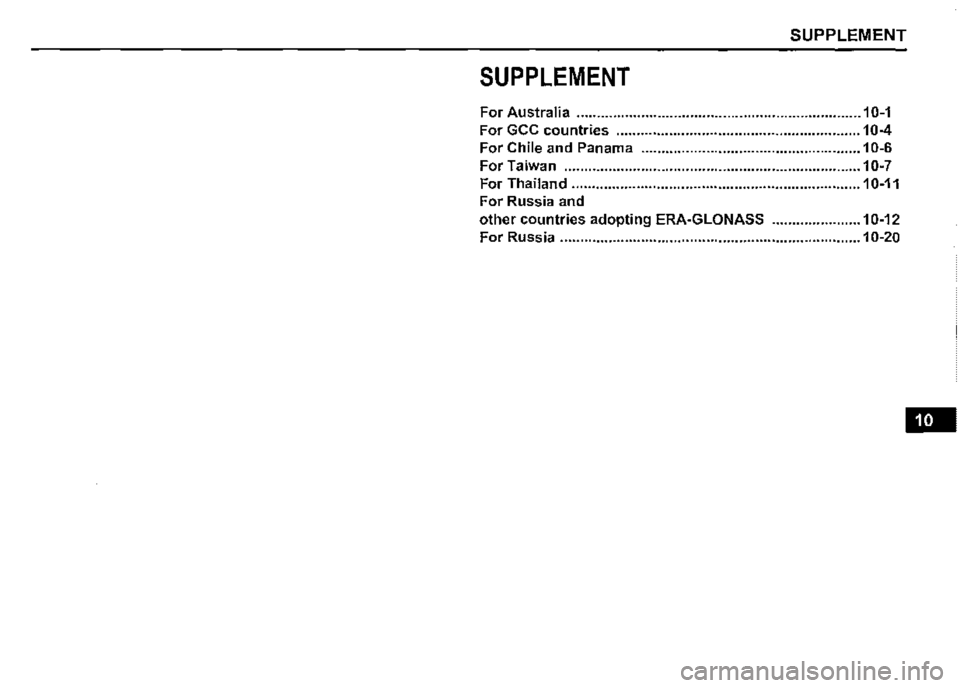

SUPPLEMENT
SUPPLEMENT
For Australia ...................................................................... 10-1
For GCC countries ............................................................ 10-4
For Chile and Panama ...................................................... 10-6
For Taiwan ......................................................................... 10-7
For Thailand ....................................................................... 10-11
For Russia and
other countries adopting ERA-GLONASS ...................... 10-12
For Russia .......................................................................... 10-20

SUPPLEMENT
For Australia
Built date
Built date is located on Vehicle Identifica­tion plate. "Built date" means -the calendar month and the year in which the body shell and power train sub-assemblies are conjoined and the vehicle is driven or moved from the production line.
Child restraint
A WARNING
Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circum­stances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehi­cle.
10-1
Installation of child restraint with
top tether anchorage
Some child restraint systems require the use of a top tether strap. Top tether anchorage brackets are provided in your vehicle at the locations shown in the illus­tration. The number of the top tether anchorage brackets provided in your vehi­cle depends on the vehicle specification.
(1)
(1) Anchor fitting
78RB10005
1) Remove the luggage box (1 ). 2) Secure the child restraint on the rear seat using the procedure described above for securing a restraint system that does not require a top tether strap. 3) Hook the top tether strap to the top tether anchorage bracket and tighten the top tether strap according to the instructions provided by the child restraint system manufacturer. Attach 54Gm the top tether strap to the correspond­ing top tether anchorage bracket located on the floor of the rear cargo area.
