2020 SUZUKI JIMNY Owners Manual

(2) (4)(5)
78R807037
(2) Brake/tail light (3) Rear turn signal light (4) Reversing light (5) Rear fog light (if equipped)
2) To remove the bulb holder of the above light from the light housing, turn the holder counterclockwise and pull it out.
~~~
(2) / (3) / (4) / (5)~ ,
.. (6) V'
Q(7)
78RB07038
(6) Removal (7) Installation
3) To remove and install the bulb of the brake/tail light (2), the rear turn signal light (3), the reversing light (4), or the rear fog light (5) (if equipped), simply pull out or push in the bulb.
INSPECTION AND MAINTENANCE
License plate light
52RM70070
1) Remove the cover (1) by turning it counterclockwise.
6-52

INSPECTION AND MAINTENANCE
76MH0A126
2) To remove and install the bulb of the license plate light (2), simply pull out or push in the bulb.
High-mount stop light
LED is used. It is recommended that you take your vehicle to a SUZUKI dealer for bulb replacement since special procedures are required.
6-53
Interior light
Remove the lens by using a flat-bladed screwdriver covered with a soft cloth as shown. To install it, simply push it back in.
Front
76MH0A139
Luggage compartment (if equipped)
78RB07039

Wiper blades
54G129
If the wiper blades become brittle or dam­aged, or make streaks when wiping, replace the wiper blades.
To install new wiper blades, follow the pro­cedures below.
NOTICE
To avoid scratching or breaking the window, do not let the wiper arm strike the window while replacing the wiper blade.
NOTE: Some wiper blades may be different from the ones described here depending on vehicle specifications. If so, consult a SUZUKI dealer for proper replacement method.
For windshield wipers:
78RB07040.
1) Hold the wiper arm away from the win­dow.
INSPECTION AND MAINTENANCE
54G130
2) Squeeze lock (1) towards wiper arm (2) and remove the wiper frame from the arm as shown. 3) Unlock the lock end of the wiper blade and slide the blade out as shown.
6-54

INSPECTION AND MAINTENANCE
(Removal)
78RB07045.
(Installation)
a
54G132
6-55
(3) Retainer
4) If the new blade is provided without the two metal retainers, move them from the old blade to the new one. 5) Install the new blade in the reverse order of removal, with the locked end positioned toward the wiper arm. Make sure the blade is properly retained by all the hooks. Lock the blade end into place. 6) Reinstall wiper frame to arm, making sure that the lock lever is snapped securely into the arm.
For rear windshield wipers:
78R807047
(1) Lock end (2) Blade rubber
1) Lift the rear wiper arm a little from the rear window. Remove the wiper frame from the rear wiper arm by pushing the lock end (1) from the side of wiper blade frame and then by pushing the wiper frame to the direction of the arrow with the lock end (1) free from locking in the above illustration.
NOTE: Return the rear wiper arm slowly after removing the rear wiper blade.

77R60050
(3) Stopper (4) Hook (5) Retainer
2) Pull and remove the wiper blade rubber from the wiper frame until the stopper (3) of the wiper frame is taken out of the hook (4). Remove the retainers (5) from the wiper blade.
63R60160
3) If the new blade is provided without the two metal retainers, install them from the old blade to the new one.
,.....,
c
77R60030
4) Install the retainers along the direction of camber as shown in the illustration.
INSPECTION AND MAINTENANCE
63R60180
5) Slide the new wiper blade into the wiper frame. When installing the blade rub­ber, put into the side that has no stop­per on the wiper blade.
6-56

INSPECTION AND MAINTENANCE
77R60060
(6) Stopper (7) Hook
6) Fix the wiper blade securely by pushing · the hook (7) into the stopper (6).
7) Reinstall the wiper frame to the rear wiper arm in the reverse order of removal. Make sure that the rear wiper blade is installed securely.
6-57
Windshield washer fluid Check that there is washer fiuid in the tank. Refill it if necessary. Use a good quality windshield washer fiuid, diluted with water
as necessary.
NOTE: SUZUKI highly recommends the use of ECSTAR brand windshield washer fluid. ECSTAR has been specially formulated for your SUZUKI product and contributes to the desired vehicle performance and ideal driving experience.
A WARNING
Do not use radiator antifreeze in the windshield washer reservoir. This can severely impair visibility when sprayed on the windshield, and also can damage your vehicle's paint.
NOTICE
Damage may result if the washer motor is operated with no fluid in the washer tank.

Air conditioning system
If you do not use the air conditioner for a long period, such as during winter, it may not give the best performance when you start using it again. To help maintain opti­mum performance and durability of your air conditioner, it needs to be run periodically. Operate the air conditioner at least once a month for one minute with the engine idling. This circulates the refrigerant and oil and helps protect the internal components.
Air conditioner filter replacement
Since special procedures are required, ask a SUZUKI dealer for this job.
78RB07042
1) To approach the air conditioner filter, remove the glove box by pressing both sides of the glove box inward and pull­ing it out.
INSPECTION AND MAINTENANCE
(2)
(1)
78RB07043
2) Remove the cover (1) and pull out the air conditioner filter (2).
NOTE: When you install a new filter, check that the UP mark (3) faces upward.
6-58

INSPECTION AND MAINTENANCE

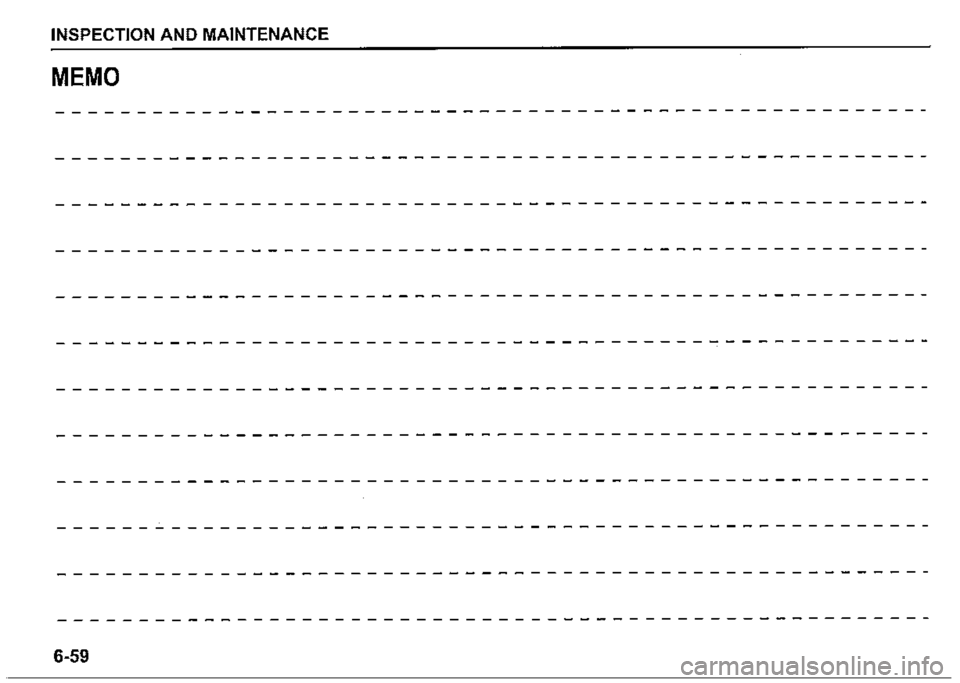

MEMO
------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
------------------------------------------------------
6-59
