2020 Seat Leon Owner's manual

Fuses and bulbs
No. Consumers/Amps
12 Right lights 40
13 Central locking 40
14 Beats Audio CAN and MOST. 30
16 Airbag 7.5
17 SCR, engine relay, 1.5 10
18 KESSY 7.5
19 Instrument panel 7.5
20 Connectivity Box 7.5
21 Rear camera 7.5
24 4x4 Haldex Control Unit 15
25 RGS+EBSS front seat belts 25
26 Right door 30
27 RGS+EBSS front seat belts 25
28 PHEV. Switching off the high voltage
syst
em f
or rescue tasks. Identified
by a yellow label. 10
29 Trailer 15
30 Radio 30
31 Trailer 25
34 230V socket 30
35 Left lights 40
36 Air conditioner fan 40 No. Consumers/Amps
37 Electric rear lid 30
39 Heated steering wheel 10
40 Alarm horn 7.5
41 Gateway 7.5
42 Automatic gearbox lever 7.5
43 Air conditioning and heating con-
tr
ol panel

, rear window heating, AA
compressor 10
44 Diagnosis, handbrake switch, light
s
wit

ch, reverse light, interior light-
ing, lit-up door sill 7.5
45 Steering column 7.5
46 Radio display 7.5
47 Driving mode. 10
48 USB 7.5
52 12V socket 20
58 Parking sensors, parking assist
control unit, fr

ont camera, radar 7.5
59 Reverse switch, clima sensor, elec-
trochr

omic mirror 7.5
60 Diagnosis, headlight control unit,
headlight adjuster 7.5
61

Starter motor; clutch sensor 7.5
65 Sound amplifier 10 No. Consumers/Amps
66 Rear window wiper 15
67 Heated rear window 30 In-line fuse/Amps
230 V rear power sockets 30
Electric driver

Emergencies
No. Consumers/Amps
16 PHEV, Automatic gearbox unit 5017 PTC 40
18 PTC 40
20 Front electronic differential 15 21 Engine control unit 7.5
22 Starter motor 30
23 Engine control unit (diesel/pet-
r
ol) 15
2
4 Engine sensors 7.5/10
25 Engine sensors 7.5/10
26 Engine power supply 7.5/10
27 Lambda probe 10/15
28 Engine 10/20
29 Fuel pump control unit 15/20/30
30 Pressure pump 1.0 10
33 PTC 40Note

Operation
Fig. 58
Instruments and controls.66

Controls and displays
Operation
Contr ol
s and displays
Interior view Overview Door handle
Air v
ents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Control lever for:

Operation
Instruments and warn-
ing/contr ol l
amps
Instrument panel Introduction The vehicle can be fitted with a instrument
panel digit
al l

ap timer or one Digital (SEAT
Cockpit).
After switching the engine on with a 12-volt
battery that is heavily discharged or newly
changed some system settings (such as the
time, the date, the personalised comfort set-
tings and the programming) might be altered
or deleted. Check and correct these settings
once the battery is sufficiently charged. WARNING
Any distraction may lead to an accident,
with the risk of injury.

Instruments and warning/control lamps
Analogue instrument panel Fig. 59
Instrument panel, on dash panel. Details of the instruments
››
› Fig. 59
:
Revolution counter (with the engine run-
ning, in hundreds of revolutions per mi-
nute) ››› page 82
.
Engine coolant temperature indicator
››› page 84.
Displays on the screen ››› page 72
.
Speedometer.
Fuel gauge ››› page 84
. 1
2
3
4
5
69

Operation

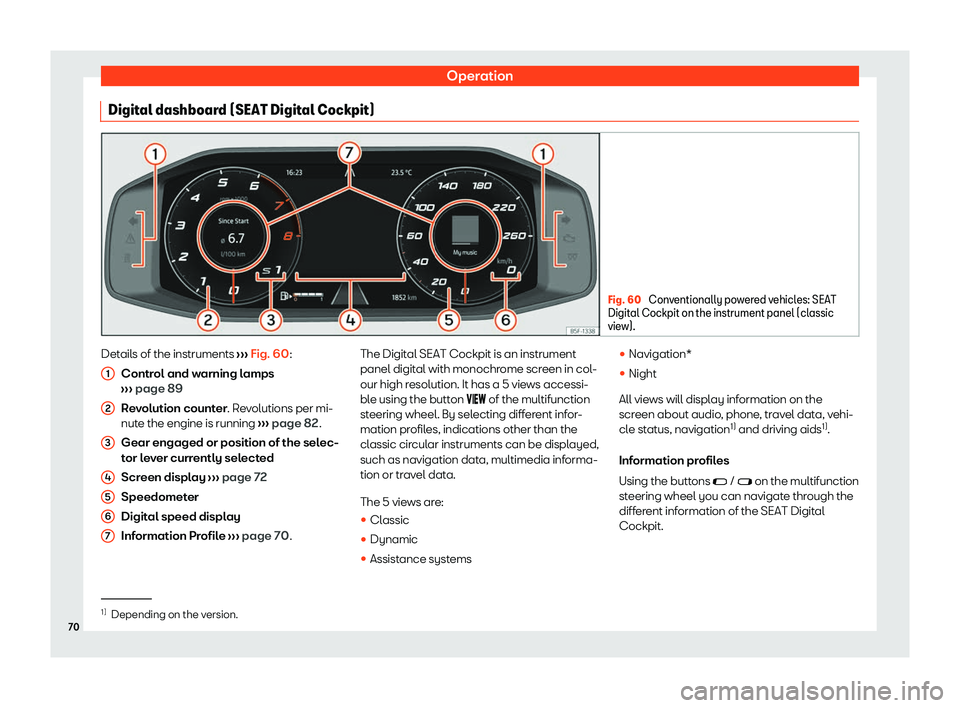

Digital dashboard (SEAT Digital Cockpit) Fig. 60
Conventionally powered vehicles: SEAT
Digit al Cockpit on the instrument panel (cl
assic
view). Details of the instruments
››

› Fig. 60
:
Control and warning lamps
››› page 89
Revolution counter. Revolutions per mi-
nute the engine is running ››› page 82
.
Gear engaged or position of the selec-
tor lever currently selected
Screen display ››› page 72
Speedometer
Digital speed display
Information Profile ››› page 70
.
1 2
3
4
5
6
7 The Digital SEAT Cockpit is an instrument
panel digit
al with monochr
ome screen in col-
our high resolution. It has a 5 views accessi-
ble using the button  of the multifunction
steering wheel. By selecting different infor-
mation profiles, indications other than the
classic circular instruments can be displayed,
such as navigation data, multimedia informa-
tion or travel data.
The 5 views are:
