2020 Seat Leon navigation system

Table of Contents
Table of Contents Gener al vie
ws of the vehicle . . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Overview (left hand drive) . . . . . . . . . . . . . . . . 11
Overview (right hand drive) . . . . . . . . . . . . . . . 12
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Advice about driving . . . . . . . . . . . . . . . . . . . . . . . . 14
Correct sitting position of vehicle occu-
pants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
The whys and wherefores of seat belts . . . . . 18
How to properly adjust your seat belt . . . . . . 21
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . 23
PreCrash system* . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operation of the airbags . . . . . . . . . . . . . . . . . . . 27
Transporting children safely . . . . . . . . . . . . . . 33
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Information, assistance and emergency
call service* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Emergency equipment . . . . . . . . . . . . . . . . . . . . . 45
Tyre repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 48Changing the windscreen wiper blades . . . . 53
Jump start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Tow start and towing . . . . . . . . . . . . . . . . . . . . . . . 56
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
61
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Controls and displays . . . . . . . . . . . . . . . . . . . . 67
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Instruments and warning/control
lamps
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Using the instrument panel . . . . . . . . . . . . . . . . . 87
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Infotainment system . . . . . . . . . . . . . . . . . . . . . . . . 92
Multifunction steering wheel* . . . . . . . . . . . . . . 97
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 98
Set of vehicle keys . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . 107
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Window controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Sunroof* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Vehicle lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Windscreen wiper and rear window wiper
systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Mirr

ors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Sun protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 Seats and headrests . . . . . . . . . . . . . . . . . . . . . . 134
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
134
Headrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Transport and practical equipment . . . . . . 141
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 142
Net partition* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Storage compartment . . . . . . . . . . . . . . . . . . . . . 152
Power sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Heating, ventilation and cooling . . . . . . . . . . . . 157
Auxiliary heating (additional heating)* . . . . . 165
Stationary air conditioning* . . . . . . . . . . . . . . . . 169
Infotainment system . . . . . . . . . . . . . . . . . . 172
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Overview and controls . . . . . . . . . . . . . . . . . . . . . 176
General instructions for use . . . . . . . . . . . . . . . . 178
Data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
SEAT CONNECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Full Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
WLAN access point* . . . . . . . . . . . . . . . . . . . . . . . . 193
Infotainment operation . . . . . . . . . . . . . . . . . . . 195
voice control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Radio/Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Telephone interface . . . . . . . . . . . . . . . . . . . . . . . . 211
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Start and driving . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Starting and stopping the engine . . . . . . . . . . . 218
Start-Stop system* . . . . . . . . . . . . . . . . . . . . . . . . . 223 5

Instruments and warning/control lamps
Within its limitations, the system also displays
additional signal s, such as time-specific pr
o-
hibitions, signs for vehicles towing trailers
››› page 298 or limitations that only apply in
the event of rain. Even on journeys without
signs, the system may display any applicable
speed limits.
The traffic sign detection system does not
work in all countries. Keep this in mind when
travelling abroad.
Shown on the display
In Germany, on motorways and vehicle
roads, besides speed limits and overtaking
provisions the system also displays the end of
prohibition signs. The valid speed limit at the
time in other countries is always shown.
The traffic signs detected by the system are
displayed on the dash panel display
››› Fig. 63 and, depending on the navigation
system fitted in the vehicle, on the infotain-
ment system as well ››› page 92
.
Hazard warning signs are not displayed in the
infotainment system.
Road sign detection system messages: There are no traffic signs available

Operation
Infotainment system Intr oduction The infotainment system brings together im-
port
ant v
ehicle functions and systems into a
single central control unit, e.g. air condition-
ing, menu settings, radio equipment and the
navigation system.
The actual number of menus available and
the name of the various options will depend
on the vehicle’s electronics and equipment.
General operating information
General information on the operation of the
infotainment system, as well as on the warn-
ing and safety instructions that must be taken
into account, is found in ››› page 172
. How to move through the different menus
and sel
ect them

Infotainment system
Navigation* Intr oduction Fig. 156
Schematic representation: Navigation
vie w A global satellite system determines the cur-
r
ent position of the v
ehicle and the sensors
mounted on the vehicle analyse the routes
taken. All measured values and possible traf-
fic events are compared with the available
maps to allow optimal navigation to the des-
tination.
Navigation announcements and graphic rep-
resentations will guide you to your destina-
tion.
Navigation management is carried out on the
screen.
Depending on the country, some functions of
the infotainment system will not be available on the screen when travelling above a certain
speed. It is not a malfunction, but is due to
compliance with l
egislation.
Navigation announcements
Navigation announcements are acoustic indi-
cations for driving referred to the current
route.
The type and frequency of navigation an-
nouncements depend on the driving situation,
for example, starting the guide to the destina-
tion, driving on the motorway or on a round-
about and the settings. If the exact destination cannot be reached
because, f
or example, it is in a non-digitised
area, indications relating to the address and
the distance to the destination are displayed
on the screen.
During dynamic route guidance, you will re-
ceive information about reported traffic con-
gestion on the route. An additional navigation
announcement is provided if the route is re-
calculated due to traffic congestion.
While a navigation announcement is playing,
its volume can be adjusted. The following
navigation announcements provided will be
played with the newly adjusted volume.
204

Infotainment operation
Limitations during navigation
If the inf ot
ainment system cannot receive da-
ta from GPS satellites, for example, in a tunnel
or in an underground garage, navigation con-
tinues using the vehicle's sensors.
In areas that are not digitised or are only par-
tially digitised on the infotainment memory,
the infotainment system will still attempt to
provide route guidance.
In the case of missing or incomplete naviga-
tion data, it may not be possible to determine
the exact position of the vehicle. This may
mean that navigation is not as precise as usu-
al.
Roads and streets are subject to constant
change (e.g. new roads, road works, roads
closed to traffic, changes to street names
and building numbers). If the navigation data
is obsolete, this may lead to errors or inaccur-
acies during the route guidance.
Managing the navigation map
To allow an optimal view, you can also man-
age the navigation map with additional finger
movements.
Move the map (tip: use your index finger).

Infotainment operation
Click on a traffic event to open an additional
windo w with further det
ails ››› page 209
.
Slow traffic.
Traffic jam.
Accident.
Broken down vehicle.
Slippery surface (ice or snow).
Road closed to traffic.
Slippery road hazard.
Danger.
Road works.
Strong wind.
Reduced visibility.
Navigation data The Infotainment system is equipped with a
built
-in navigation dat

a memory. Depending
on the country, the necessary navigation da-
ta may already be pre-installed.
To provide correct route guidance and make
the most of the functions offered, the infotain-
ment system should be updated on a regular
basis.

}



Driver assistance systems

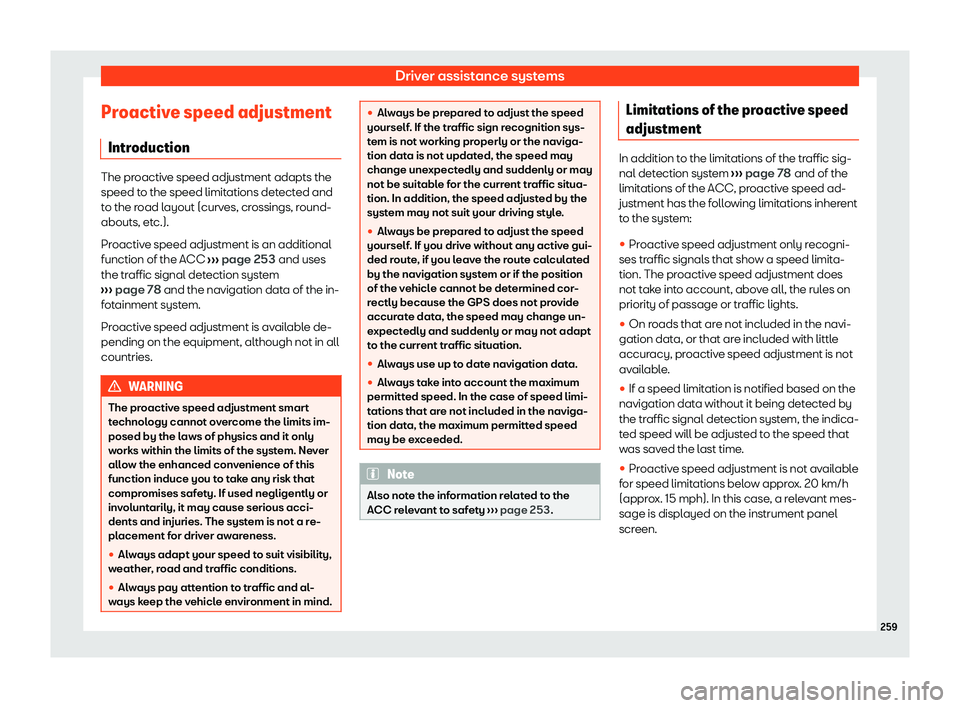

Proactive speed adjustment Intr oduction The proactive speed adjustment adapts the
speed t
o the speed limit
ations detected and
to the road layout (curves, crossings, round-
abouts, etc.).
Proactive speed adjustment is an additional
function of the ACC ››› page 253
and uses
the traffic signal detection system
››› page 78 and the navigation data of the in-
fotainment system.
Proactive speed adjustment is available de-
pending on the equipment, although not in all
countries. WARNING
The proactive speed adjustment smart
t echnol

ogy cannot overcome the limits im-
posed by the laws of physics and it only
works within the limits of the system. Never
allow the enhanced convenience of this
function induce you to take any risk that
compromises safety. If used negligently or
involuntarily, it may cause serious acci-
dents and injuries. The system is not a re-
placement for driver awareness.

Index
Identity accreditation . . . . . . . . . . . . . . . . . . . . . . . . 186
Inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Inf
ormation profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92, 172 adapt menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Android Auto™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Apple CarPlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
before first use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
connecting and disconnecting . . . . . . . . . . . . 179
customise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
customised menus . . . . . . . . . . . . . . . . . . . . . . . . 179
drop-down menu . . . . . . . . . . . . . . . . . . . . . . . . . . 179
executing functions . . . . . . . . . . . . . . . . . . . . . . . . 179
function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
initial configuration . . . . . . . . . . . . . . . . . . . . . . . . . 94
Internet access . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Media mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
MirrorLink® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
overview and controls . . . . . . . . . . . . . . . . . 176, 177
Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . 172
share a WLAN connection . . . . . . . . . . . . . . . . . 193
sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
system settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
telephone interface . . . . . . . . . . . . . . . . . . . . . . . . 211
vehicle information . . . . . . . . . . . . . . . . . . . . . . . . . 95
vehicle settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Wi-Fi Protected Setup (WPS) . . . . . . . . . . . . . . 194
WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Infotainment system see Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331, 356
Inspection reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Inspection service . . . . . . . . . . . . . . . . . . . . . . . . . . .
331
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 68, 69
contr
ol and warning lamps . . . . . . . . . . . . . . . . . 89
digital (SEAT Digital Cockpit) . . . . . . . . . . . . . . . 70
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
service intervals display . . . . . . . . . . . . . . . . . . . . 85
status display . . . . . . . . . . . . . . . . . . . . . . . . . . . 72, 74
use with the multifunction steering wheel . . . 87
use with the wiper lever . . . . . . . . . . . . . . . . . . . . 88
Instrument panel display . . . . . . . . . . . . . . . . . . 70, 72 Hybrid vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Instrument panel lighting . . . . . . . . . . . . . . . . . . . . 126
Interior door handle . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Interior mirror anti-dazzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Interior monitoring and the anti-tow system activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Interlock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
position points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Jump start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
K
Keyless Access Press & Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
special characteristics . . . . . . . . . . . . . . . . . . . . 106 starting the engine . . . . . . . . . . . . . . . . . . . . . . . . 220
unlocking and l
ocking the vehicle . . . . . . . . . 104
Keys assign a key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
changing the battery . . . . . . . . . . . . . . . . . . . . . 100
instructions for the driver (mechanical con-tact) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
pull out the key blade . . . . . . . . . . . . . . . . . . . . . . 99
remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
synchronise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
unlock and lock . . . . . . . . . . . . . . . . . . . . . . . 102, 110
vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Key switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Kick-down automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 232
driving profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
L Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261 control and warning lamp . . . . . . . . . . . . . . . . . 261
how it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Lane assist Plus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Lane Assist system see Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Lane departure warning (Side Assist) control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
driving situations . . . . . . . . . . . . . . . . . . . . . . . . . . 269
how it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Light indication . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Launch-control (automatic transmission) . . . . 233
Leaving a parking space with the parking as- sist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Leaving Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Legal provisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
387
